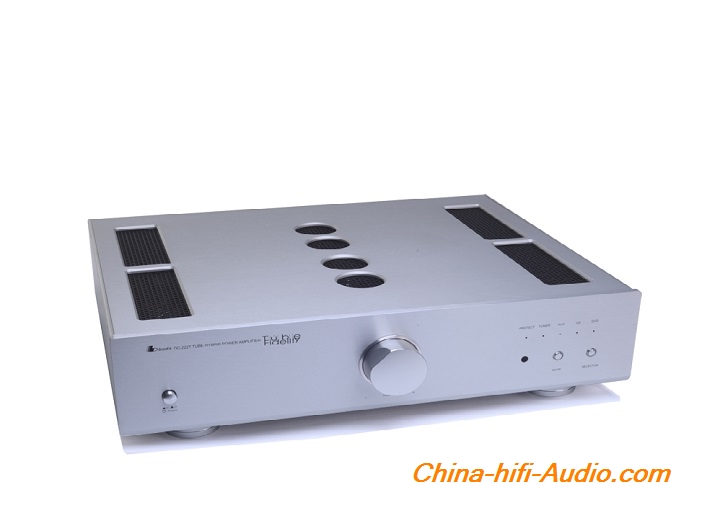

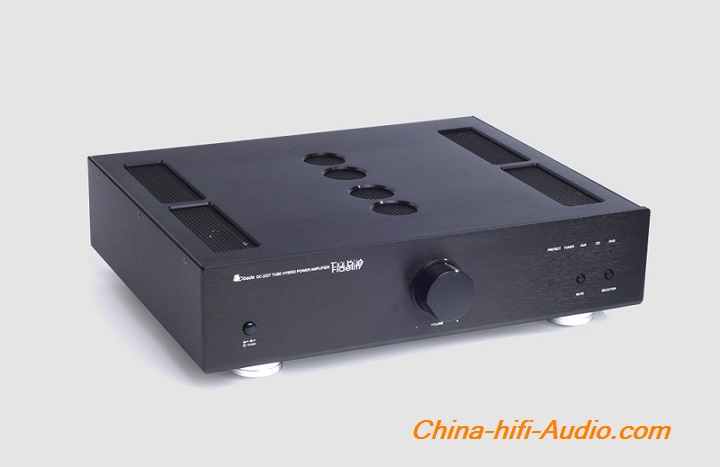

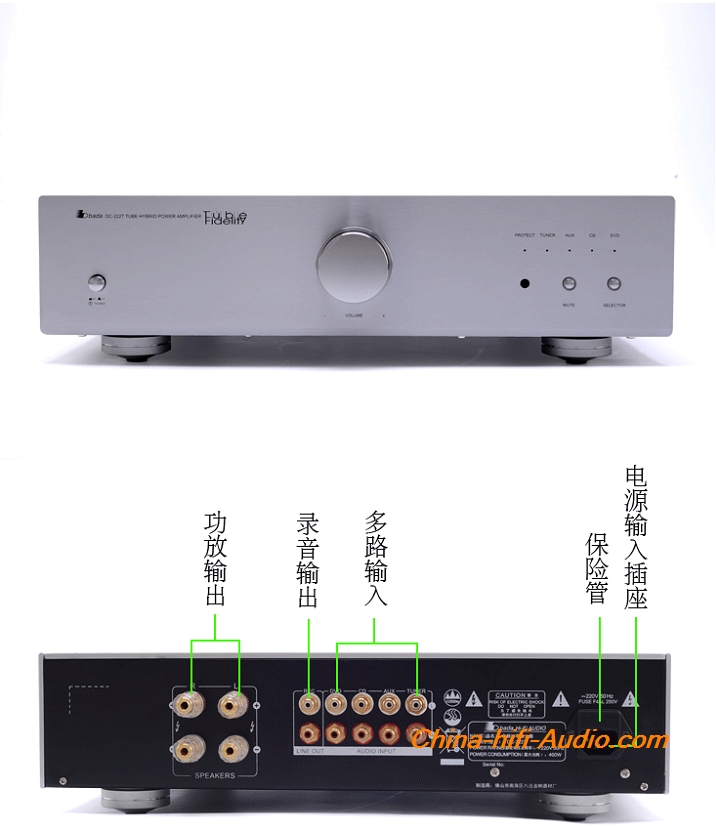

Bada DC-222T 12AU7 ×4 Tube Fidelity Integrated Amplifier with Remote

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!


FEATURE:

tube input
tube amplification
tube driver
Darlington power output
remote control function

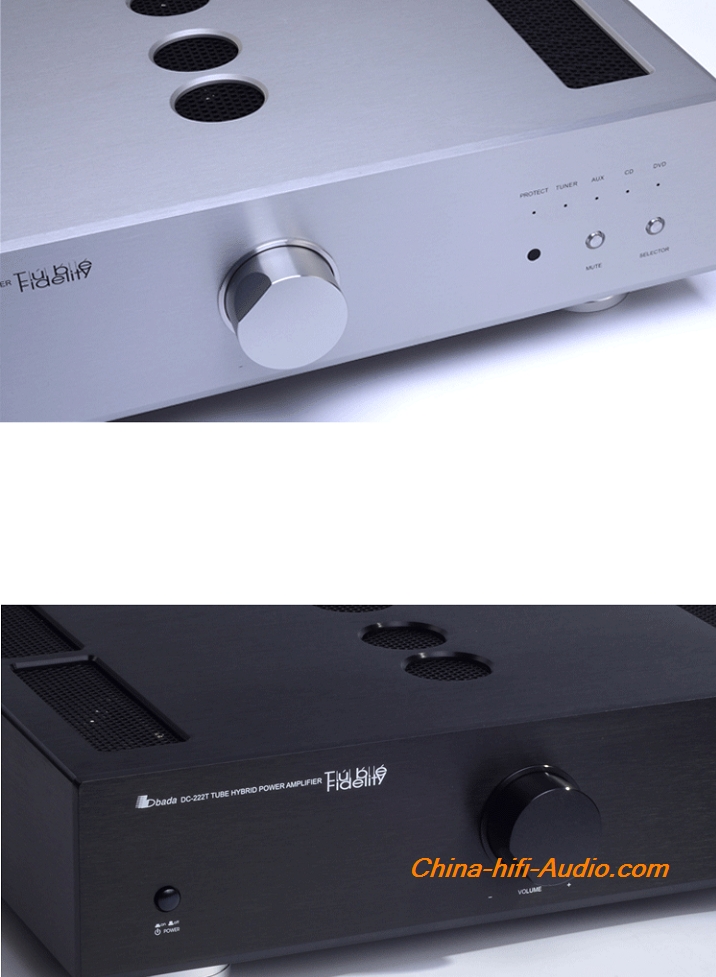

Fashion look
Vivid interpretation,Tube fidelity Series

Introduction:

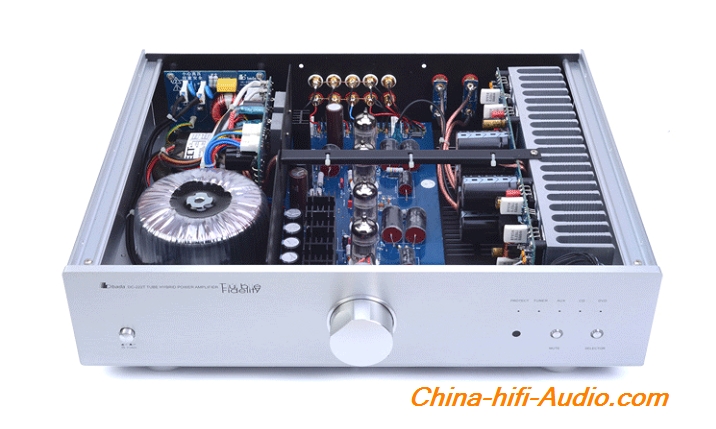

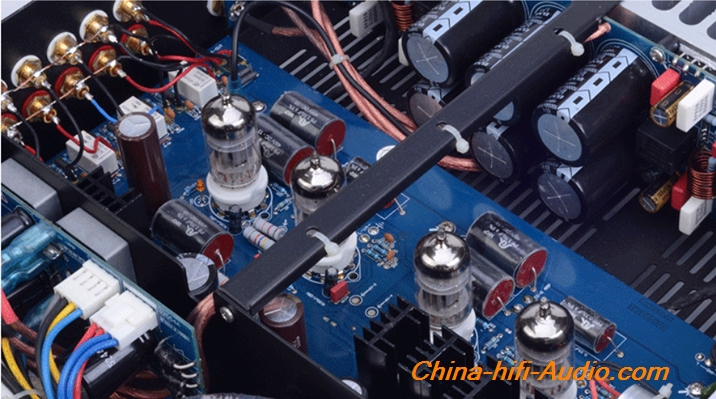

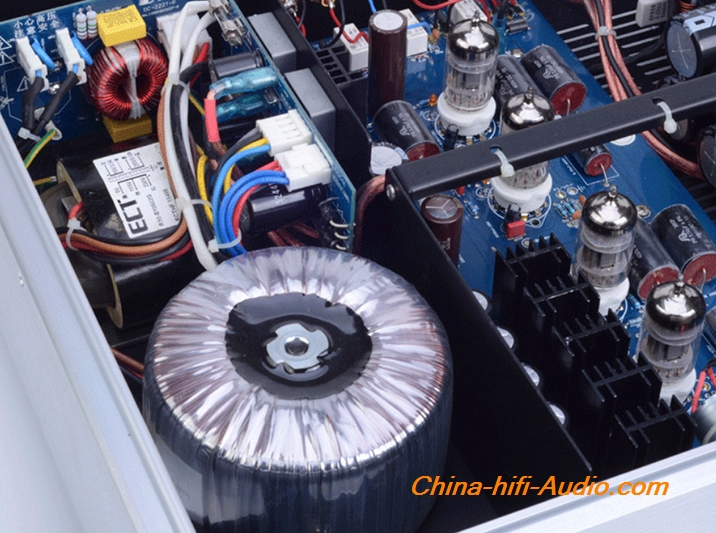

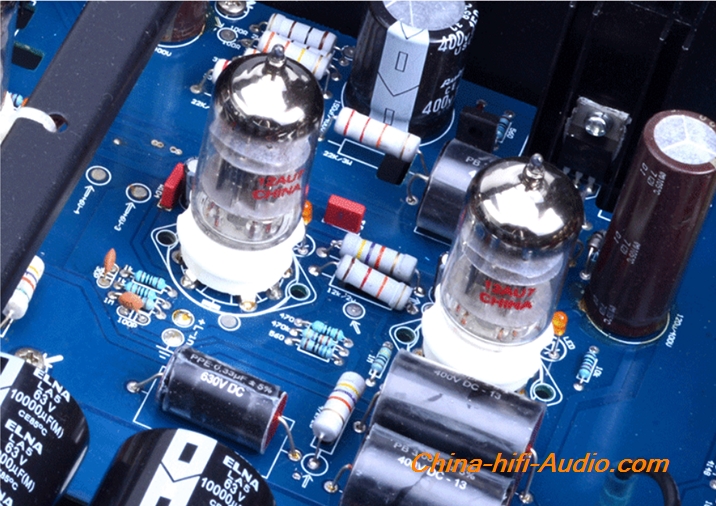

The machine with audio saying " simple is best" aim to design, circuit concise , machine used in addition to current amplifier output stage transistors , the former level after level voltage input to amplify all done by the tube , and the local circuit using direct coupling , better bass power . Electron tubes critically acclaimed 12AU7, tube high voltage power supply using the power supply with a constant current source , adjust the tube in the power of the 13007 Tam single , high stability , internal resistance, current supply fast, excellent music taste will play a tube vividly. Power output using three current amplification , low thick and powerful. DC-222T internal layout is extremely reasonable , shielded power transformer using an independent interval to reduce the interference on the circuit ; tube amplification section using music Sauvignon R-type transformer power supply , and the power output stage consists of a toroidal transformer power supply .

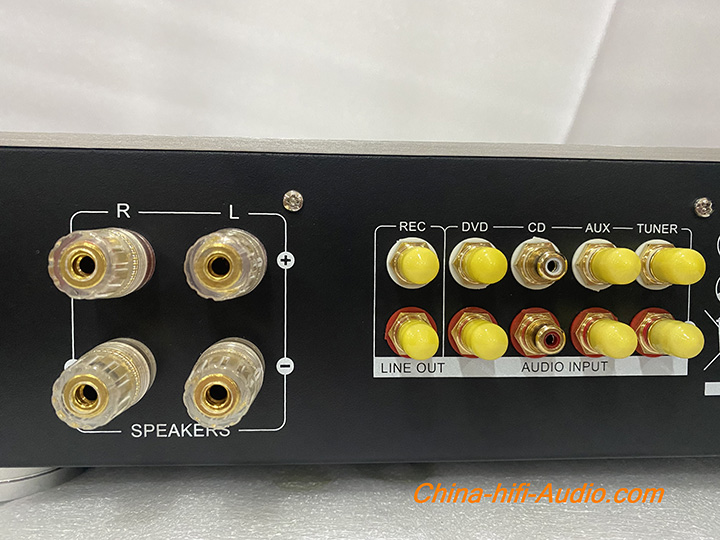

This machine has sophisticated materials, input select lossless relay control, volume used in Japan ALPS motor potentiometer, also uses SOLEN other senior capacitor school sound .

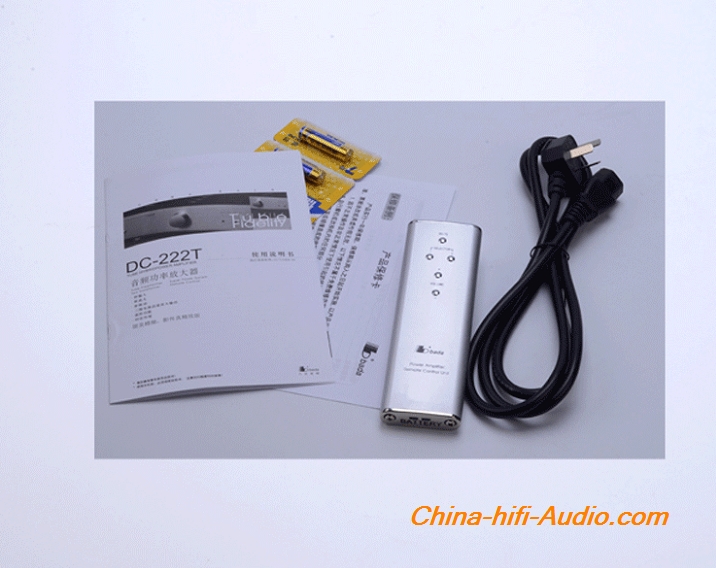

The machine with remote control function , appearance beautiful and fashionable , but also give full play to the excellent characteristics of tubes and transistors , both full of fascinating musical performance have bile taste intensity and speed , especially for tasteful music lovers.
Refined version upgrade focuses on the circuit arrangement is more reasonable level after the left and right channels using the mirror symmetry arrangement to ensure consistent signal transmission , audio-visual positioning is more accurate, balanced music is good, natural sense of hearing , as well as all levels of the circuit operating point for fine accurate adjustment , so the match between the amplifier circuit coordination at all levels of transmission fluid, minimal distortion . Also uses multiple sets of high-end European and American equipment for school sound , the sound performance of fine sweet, very resistant to listen , listening to music is the ideal equipment.

Specifications

Tube: 12AU7
Maximum output power (distortion ≤ 2%): 95W +95 W (8 ohms)
Frequency response: 20Hz-20KHz (±1.5dB)
Harmonic distortion: ≤0.5% (1kHz 10w)
Signal to noise ratio: ≥85dB (A standard)
voltage:
AC110V(±10%)/220V(±10%)60Hz/50Hz
(110V version and 60Hz version need 3-14 working days to order)
Power: ≤400W
Dimensions (width x height x depth): 430*360*118 (mm)
Gross weight: 15 kg (net weight: 13.6 kg)

All products are manufactured passed China national CCC authentication .
