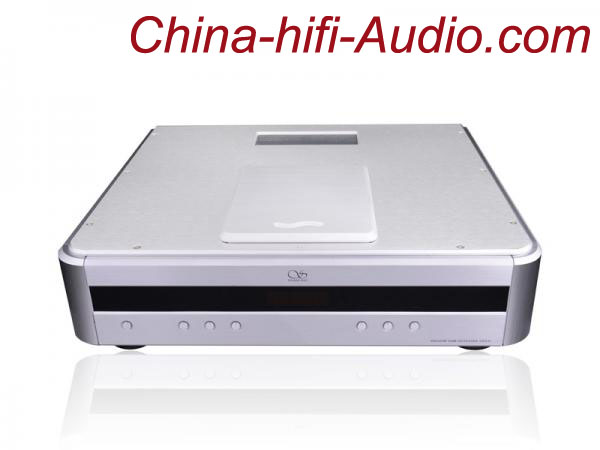

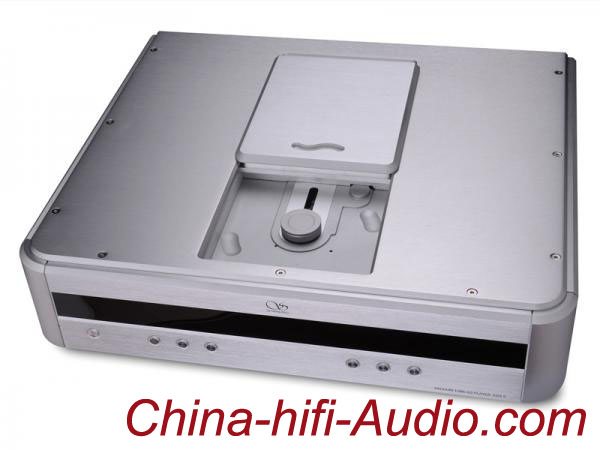

Shanling CD3.2 vacuum tube CD player XLR full balance Top-load Hi-end

larger image

Product Price: $1,554.54 USD

Product Model: Model: MUIA9831260
Product Weight: Shipping Weight: 17kg
Product Quantity: 0 Units in Stock

Please Choose:

Version

With USB port to be used a DAC

Voltage

Current Reviews: 1

Shanling CD3.2 vacuum tube CD player XLR full

balance Topload CD player with Remote Control

brnad new 2014

the price is for the version without USB port, if you need the

version with USB input to be a DAC to link PC, add $90 USD

Declaration

SHANLING CD3.2 VACUUM TUBE CD PLAYER AUDIOPHILE NEW
Feature
Digital receiver chip uses CS8416 of CRYSTAL Company and Up-conversion uses SRC4193.
DA converter chip uses BB company 's es9018.
I / V conversion uses ADI company's AD797
Low-pass filter uses BB company's OPA2627
Valve output section uses 6H30 tubes
Two R-type transformer supply power, strong dielectric and burning resistance
Using high-level Capacitors and other components
Using CMC816 Gold-plated input and output terminals
Support coaxial and optical input (used as DAC)
Using Philips SAA7824HL CD servo system
Supports C-Media 6632 USB receiving

Specification
Analog output level: 2.4V(RCA), 4.8V(XLR)
Frequency response: 20Hz~20KHz(-0.5dB)
Harmonic distortion: <0.1%(RCA OUT), <0.0003%(XLR OUT)
Dynamic range: >100dB(16bit), >105dB(24bit)
S/N Ratio: >100dB
USB receiving specification: USB2.0, 24bit/384KHz(maximum)
DSD signal specification: DSD 1bit/2.8MHz/DSD 1bit/5.6MHz
Power consumption: 51W
Size(W x D x H): 460mmx404mmx132mm
Power supply voltage: 110/220V 60Hz/50Hz
                                      (100V, 110V, 120V, 230V, 240V version will
                                      take 3-14 work days to order),
                                      220V version is in stock
Net weight: 11.5kg
Gross weight: 17kg (very safe)
