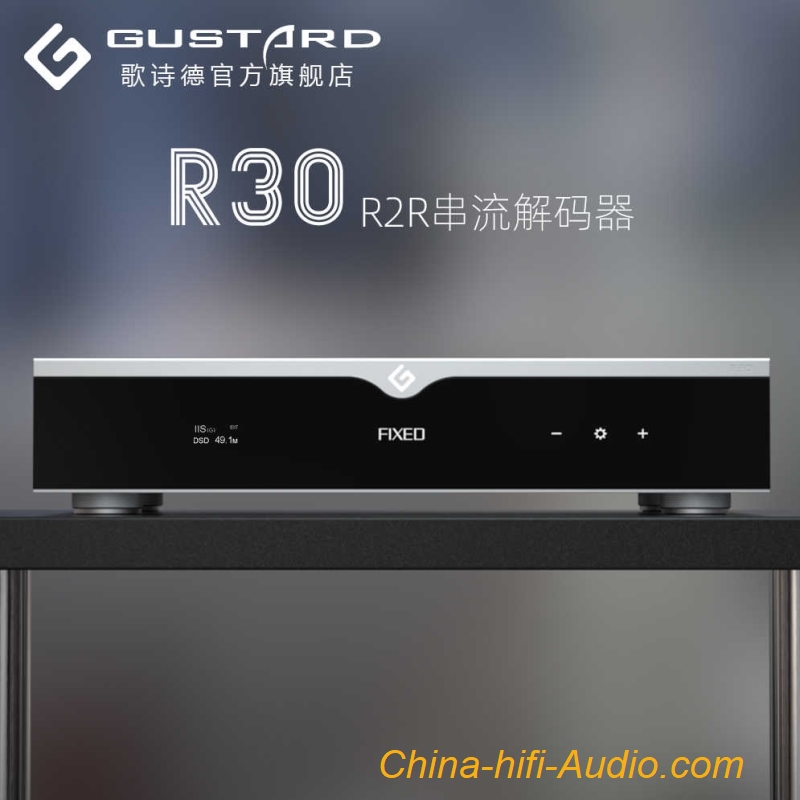

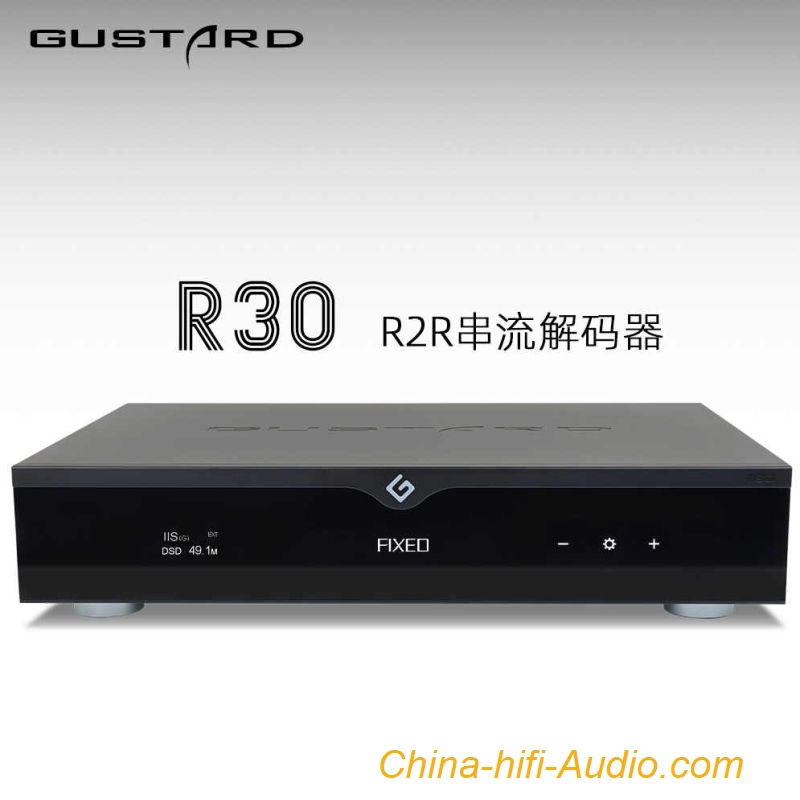

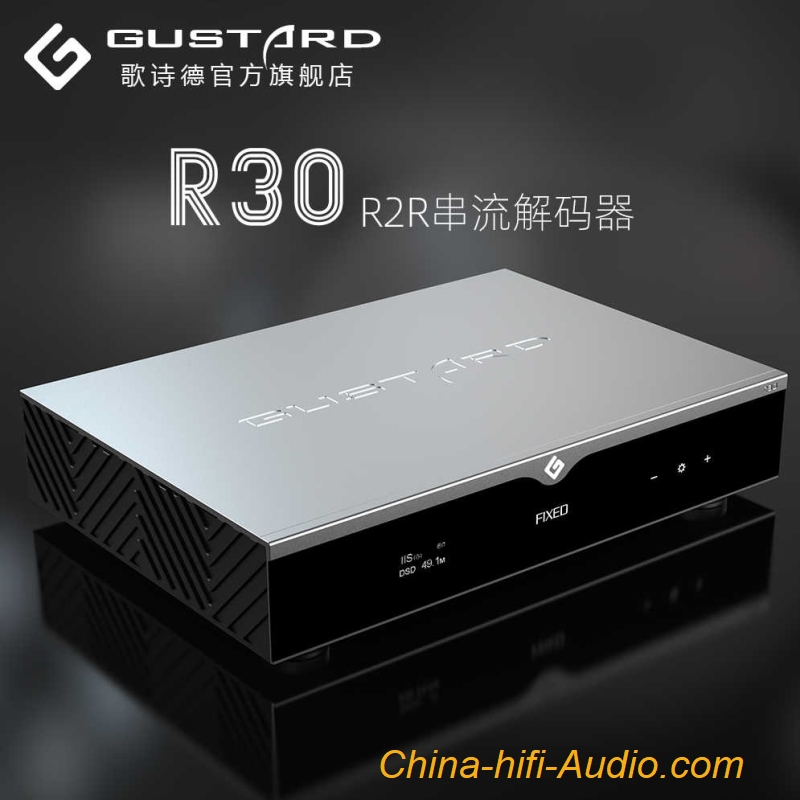

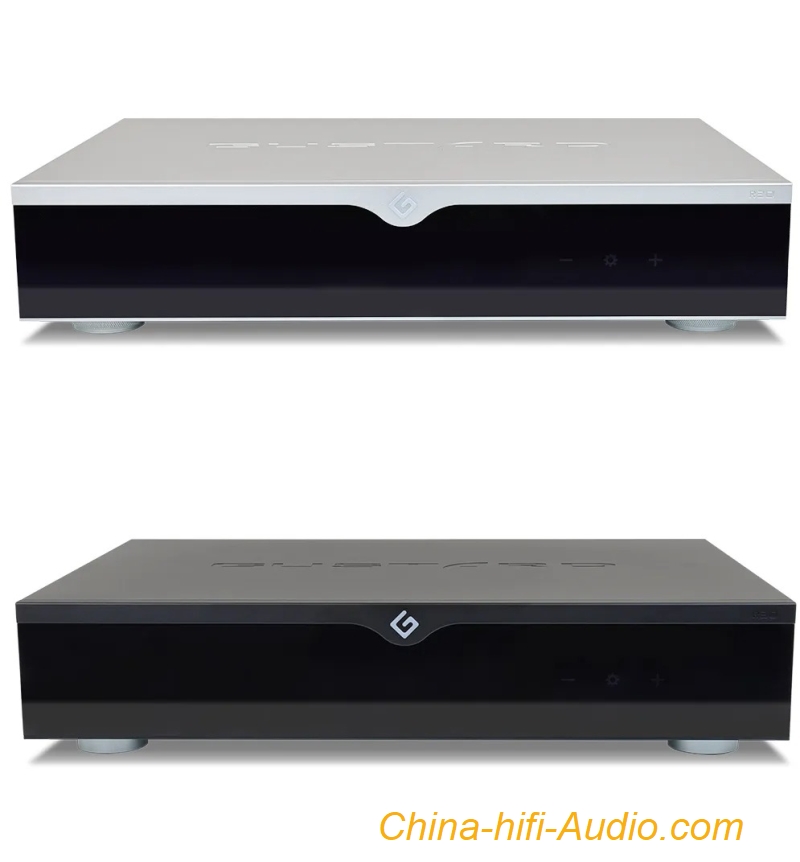

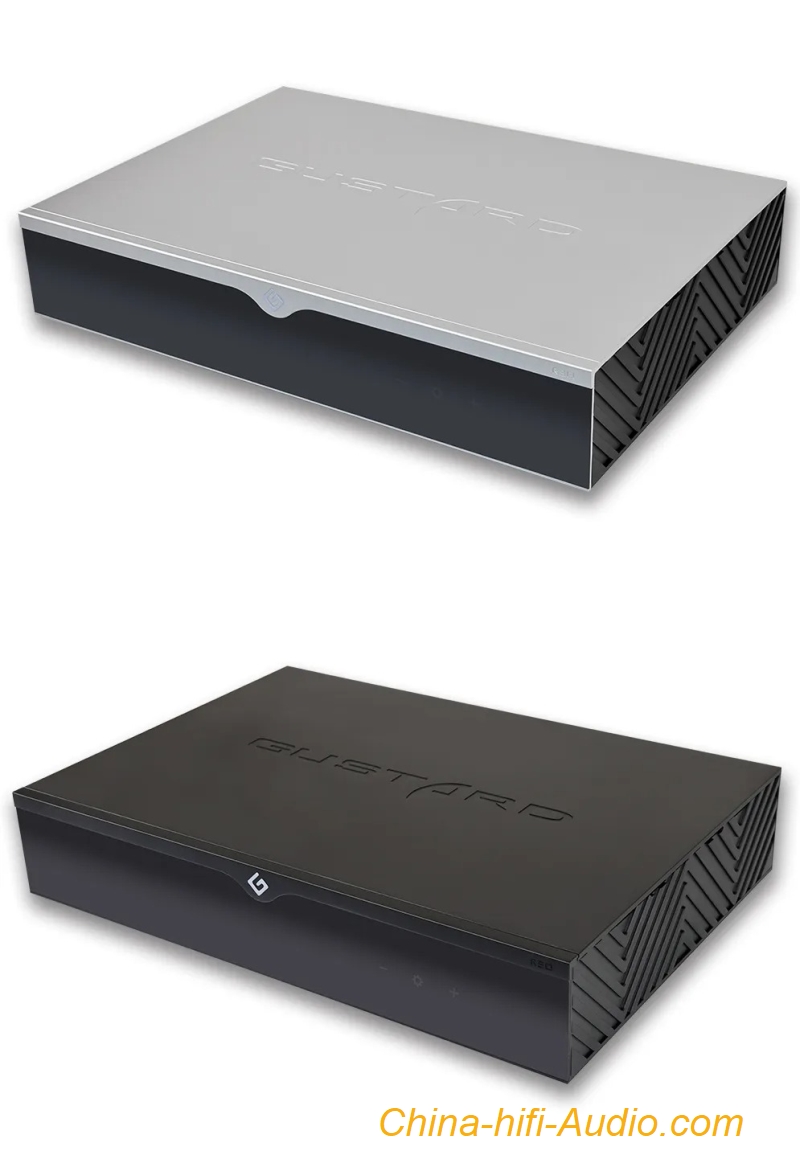

GUSTARD DAC-R30 NETWORK STREAM DECODER R2R DAC DSD PCM768K DIGITAL FILTER

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

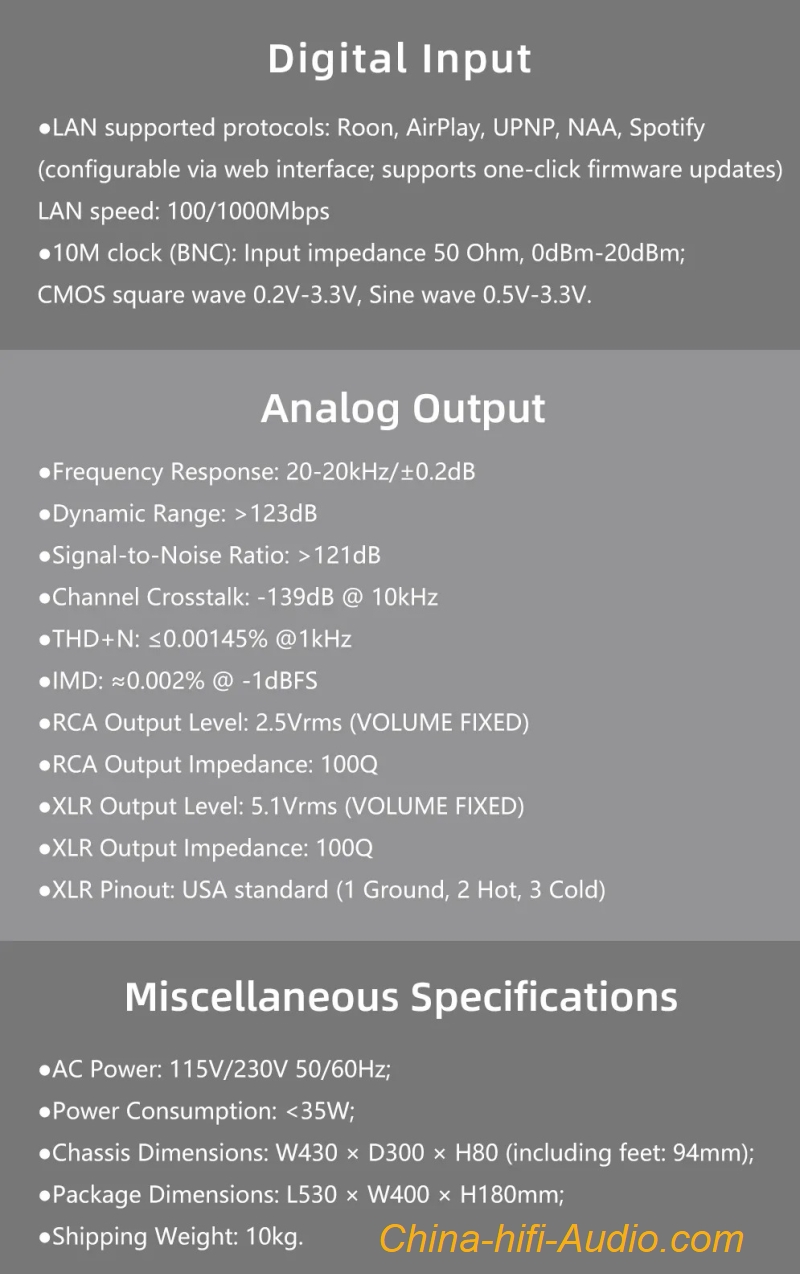

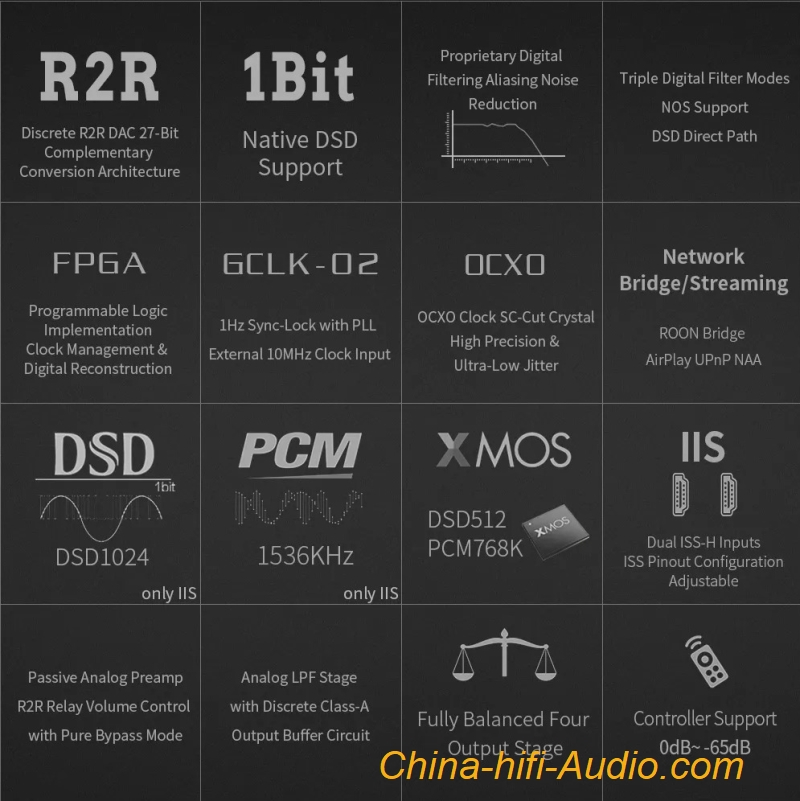

Product features:

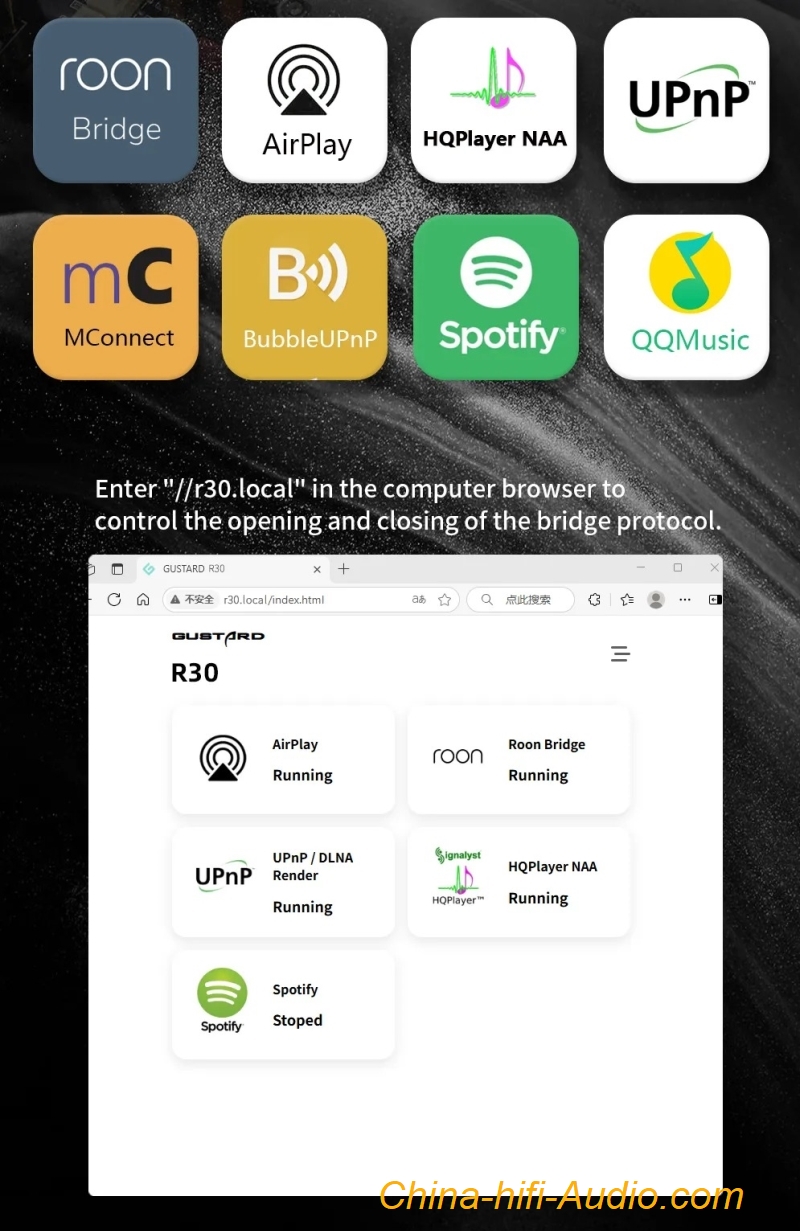

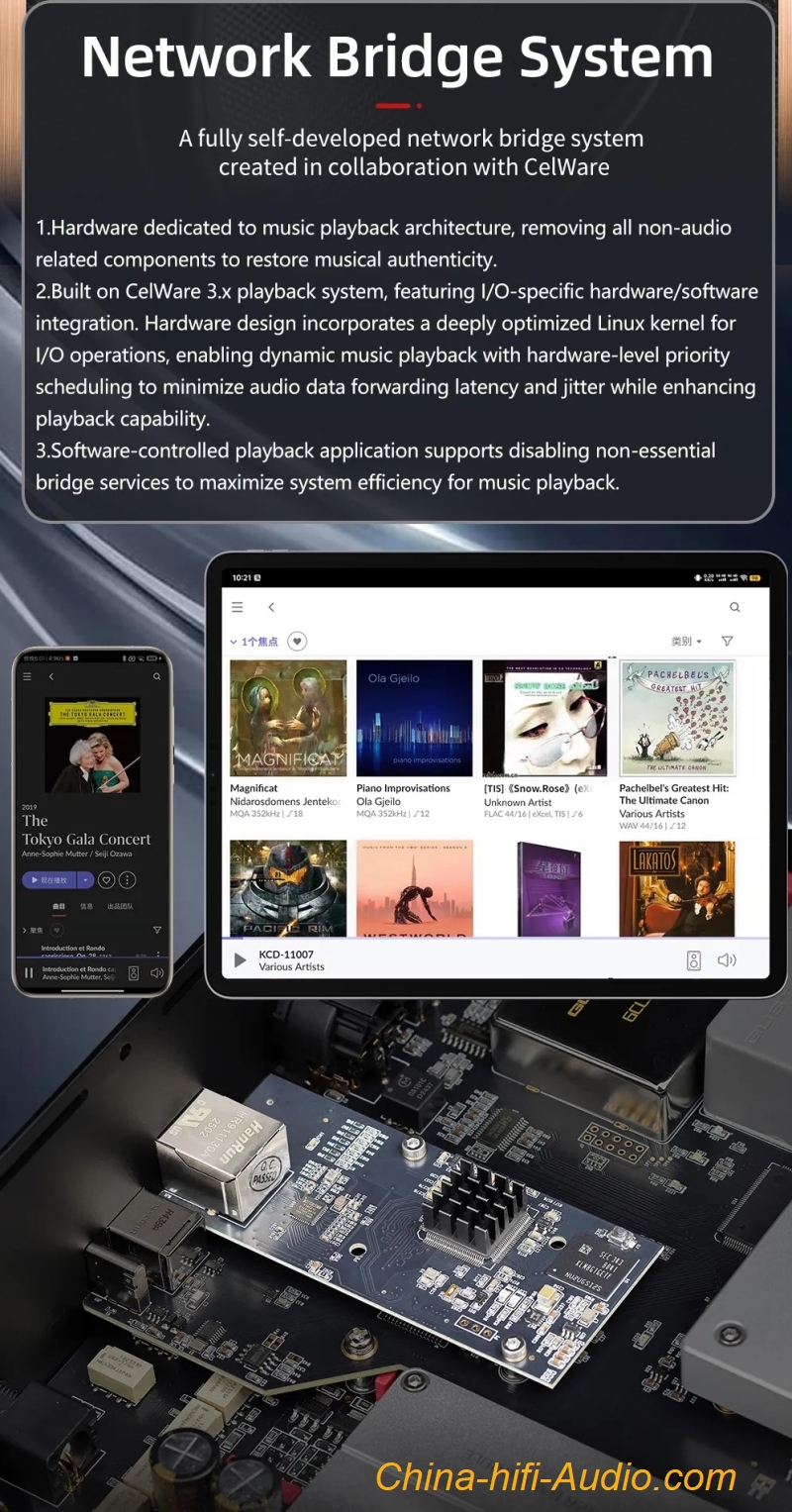

LAN support protocol: Roon,airplay, upnp,NAA,Spotify
(Configuration web page can be configured to open and close the protocol, can be upgraded online with one click)
LAN speed 100/1000Mbps

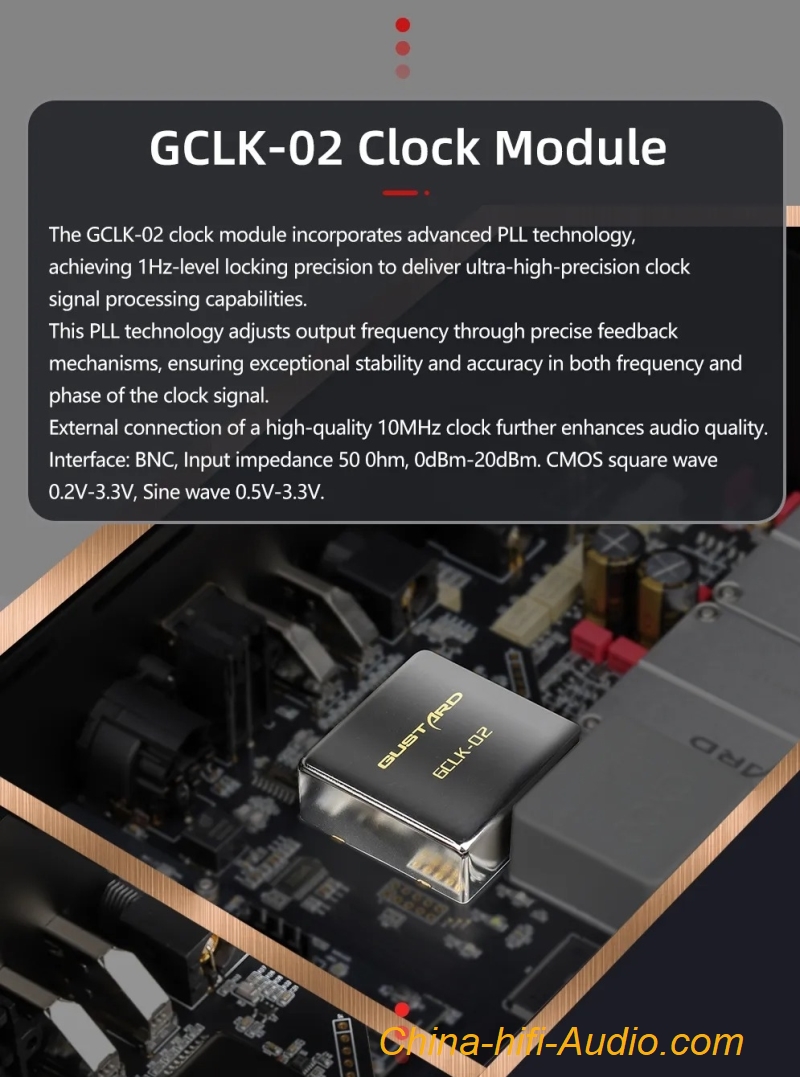

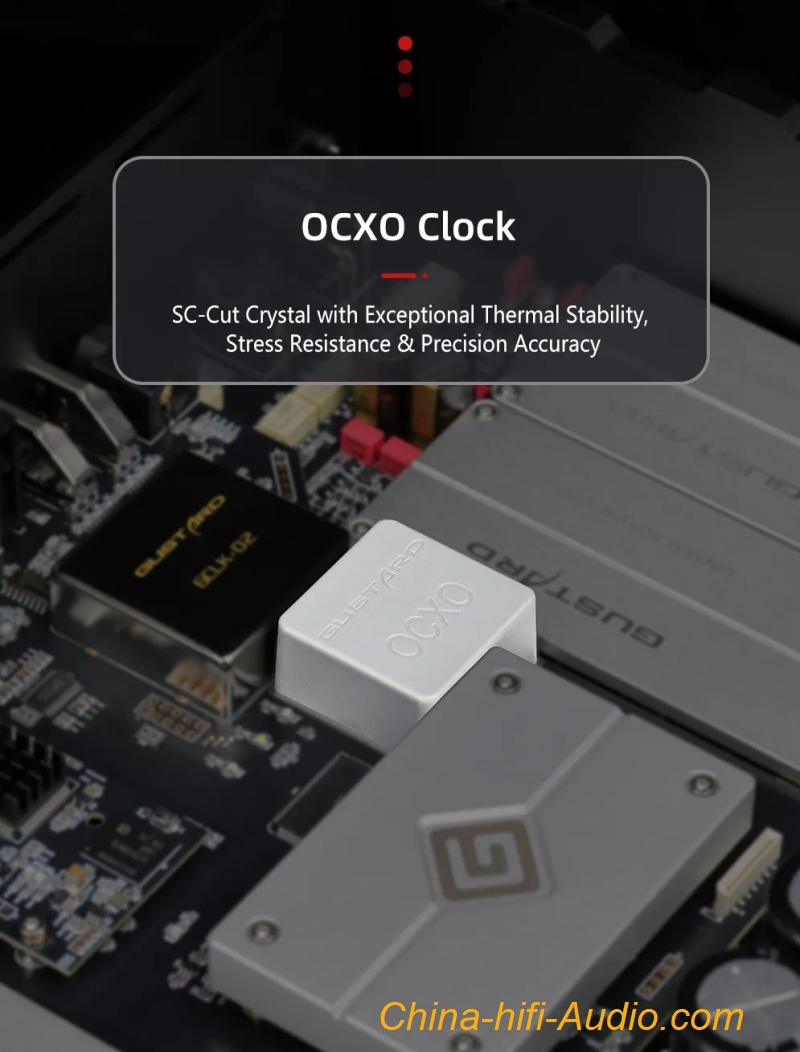

10M clock(BNC):Input impedance 50 0hm,0dBm-20dBm,
CMOS square wave 0.2V-3.3V,
Sine wave 0.5V-3.3V.

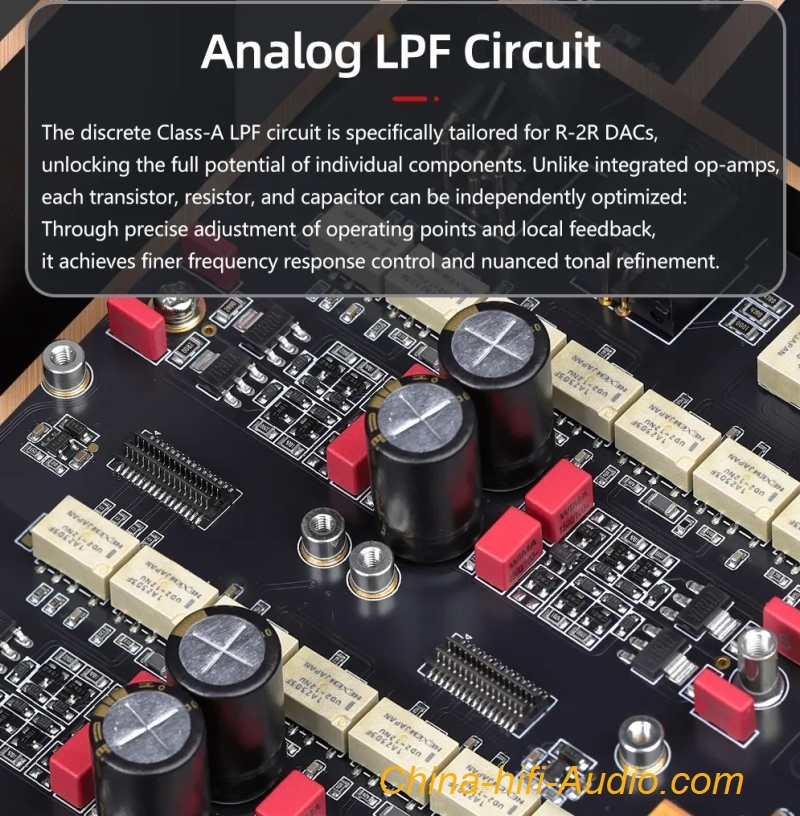

Analog Output
Frequency Response:20-20kHz/+-0.2dB.
Dynamic Range:>123dB
Signal to Noise Ratio:>121dB
Channel Crosstalk:-139dB@ 10kHz.
THD+N:<= 0.00145% @1kHz
IMD: ≈0.002% @-1dBFS

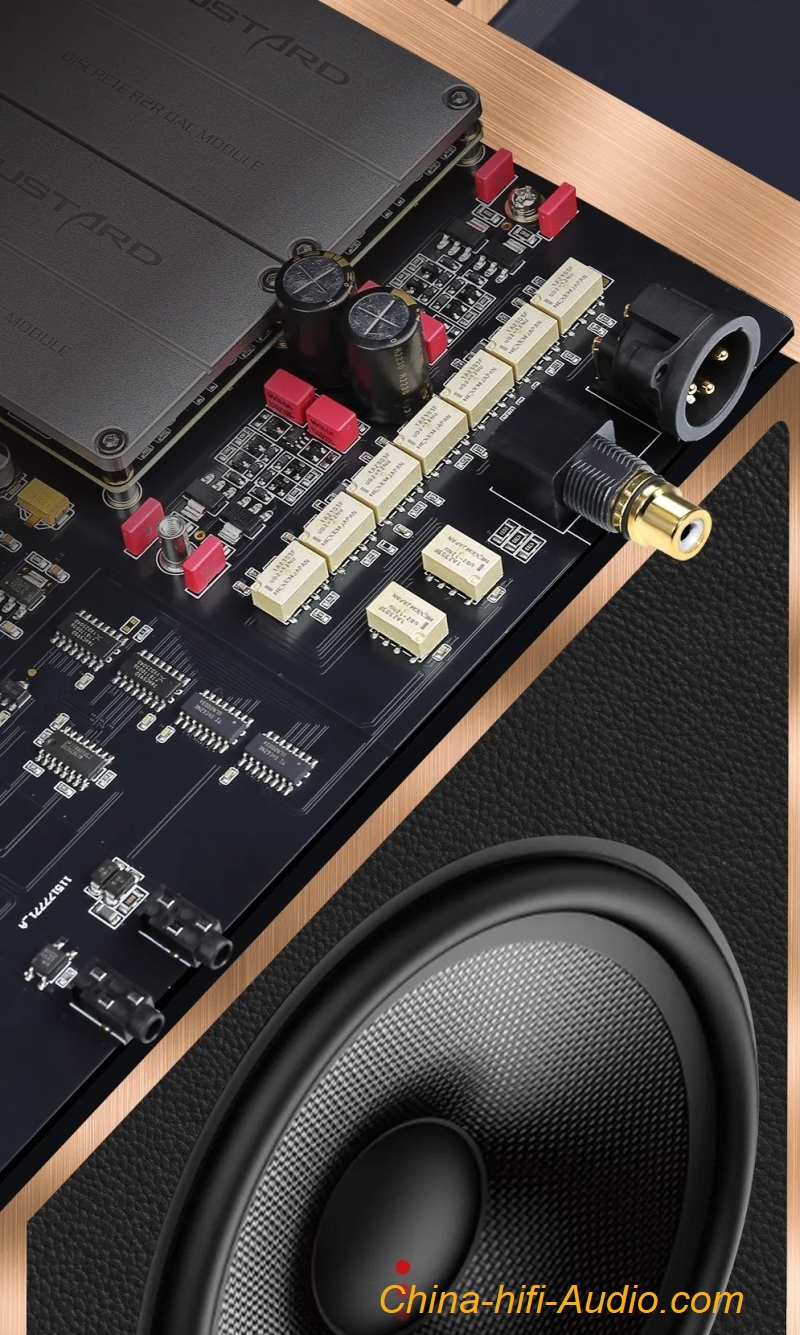

RCA output level: 2.5Vrms (VOLUME FIXED)
RCA output impedance: 100Ω
XLR output level: 5.1Vrms(VOLUME FIXED)
XLR output impedance: 100Ω.
XLR interface definition: USA standard (1 Ground, 2 Hot,3 Cold)


Specification:
AC power supply: AC115V/230V 50/60Hz;
Power consumption: <35W.

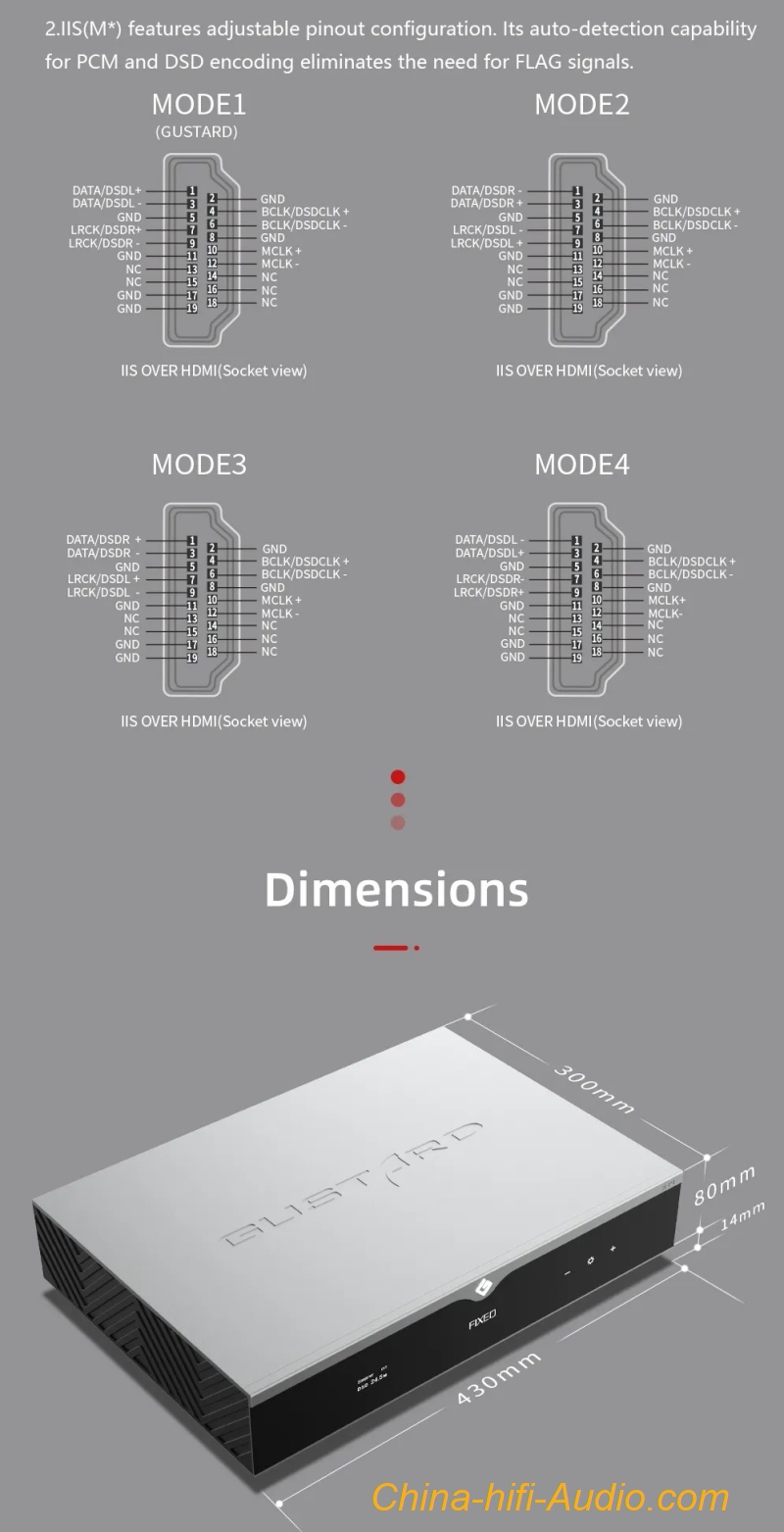

Dimensions :W430*D300*H80 (including foot 94mm);
Package size:L530*W400*H180mm;
Weight with package:10KG.
