G&W TW-2006MKIII STEREO integrated amplifier 2x100W powerful new



G&W TW-2006MKIII STEREO integrated amplifier Featrue:
1. pre-amp part double differential amplifier circuit
2. JFET field effect transistor differential input
3. Two poles complement the network
4. Low distortion three-level Darlington push-pull output stage
5. Panasonic 63V10000uF electrolytic capacitor for power filter
6. Imported Japanese Nippon Steel core wound high-quality 400W toroidal transformer
7. 220mm long professional radiator
8. Japan ALPS potentiometer
9. Double-sided 70mm thick copper thin circuit board

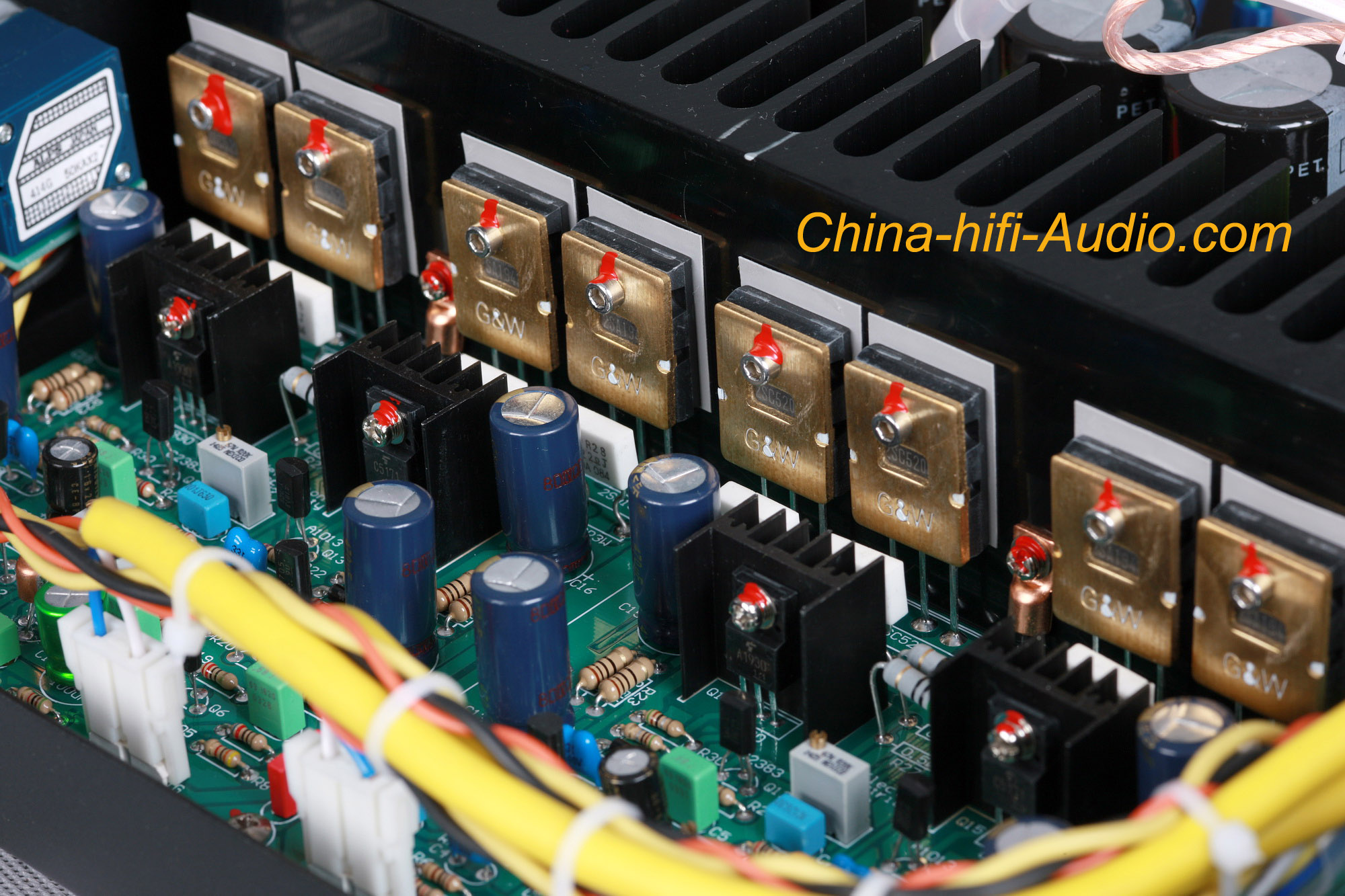

10. Toshiba 2SC5200 / 2SA1943 high power tube eight output

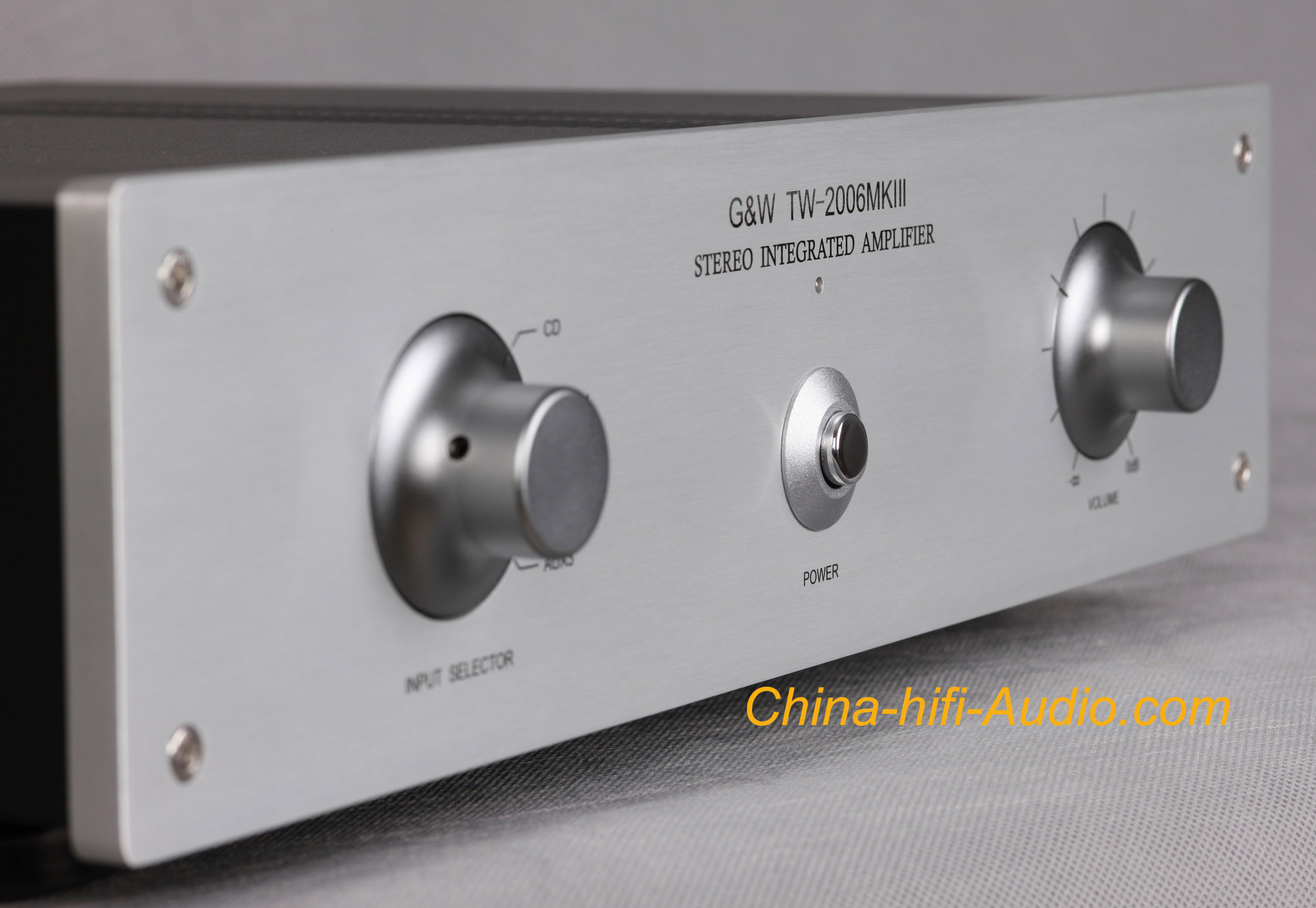

11. 8mm thick aluminum brushed panel
12. Circuit wiring is reasonable, the noise is very low, with a fever idea
13. With full-function power-on delay, output short-circuit over-current, midpoint DC offset and other perfect protection circuit

Specification:
Input sensitivity: 350mV
Output power: 2 × 100W (RMS, 8ohms)
Harmonic distortion: 0.005% (50W, 8 ohms, 1KHz)
Signal to noise ratio: 102dB (A weighting)
Frequency response: 6Hz ~ 200KHz (-3dB)
Dimension: width 430 * deep 380 * high 120mm
Net weight: 12.5kg
Gross weight: 14kg
Power supply: AC100V -240V 60Hz/50Hz (100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order. 220V version is in stock.
