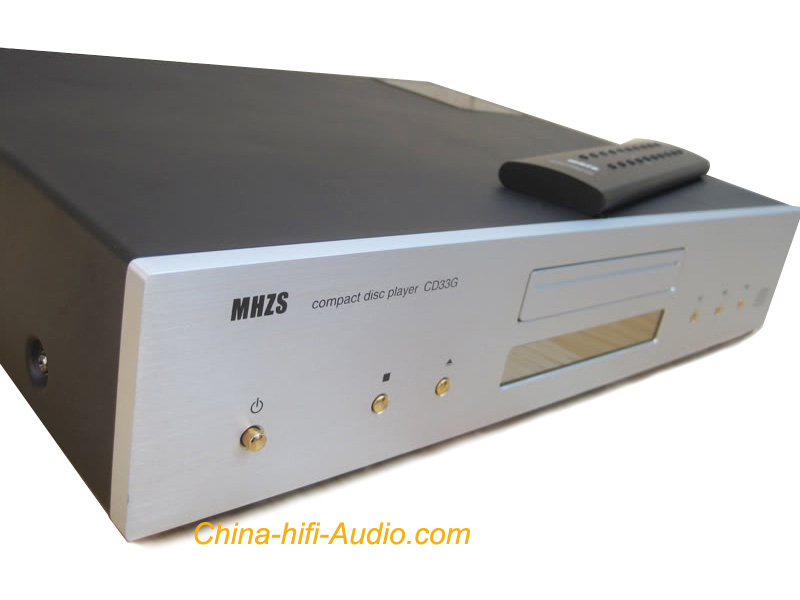

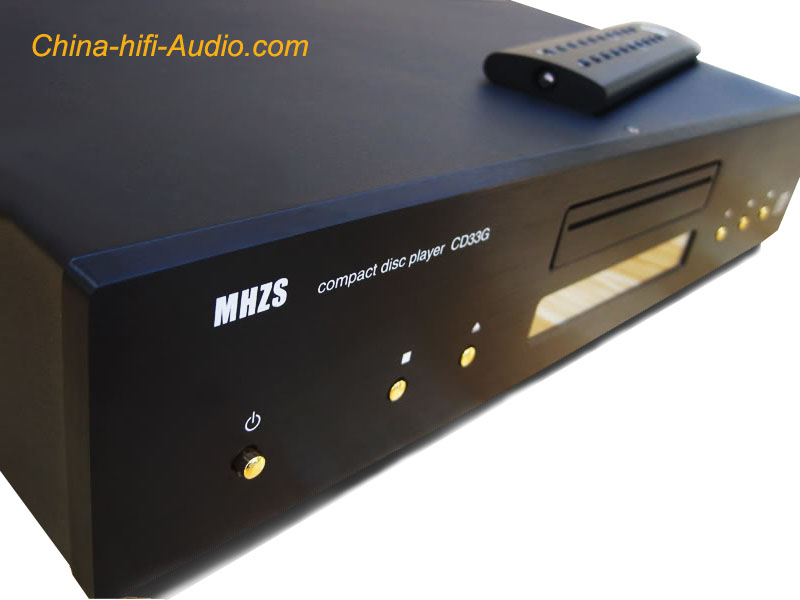

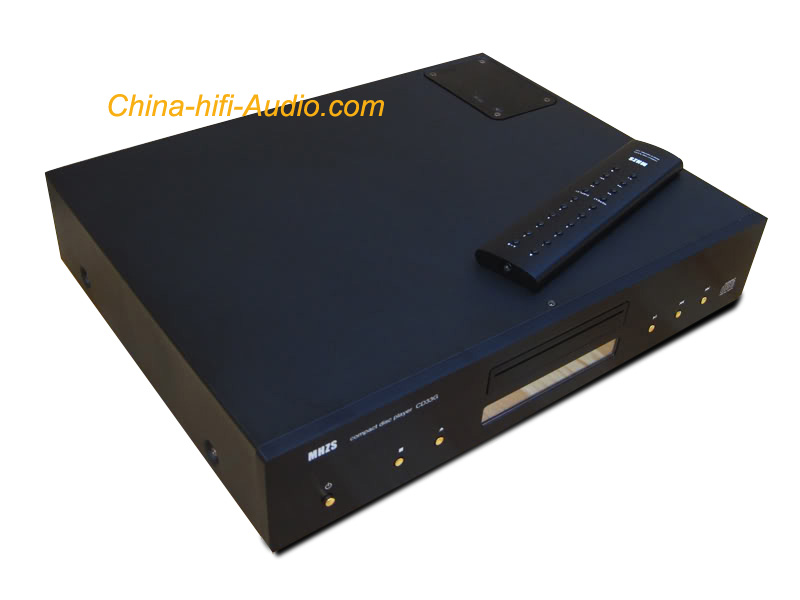

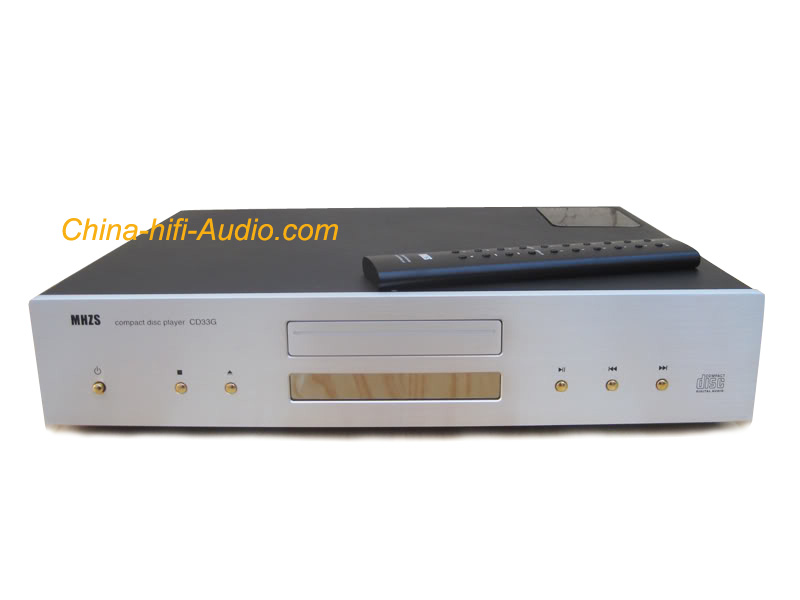

MHZS CD33K 24bit/192kHz 6N3*2 Tubes CD player with remote control
Silve or Black front panel version for choice
Brand New
Declaration
MHZS CD33K 24bit/192kHz 6N3*2 Tube hi-fi Auido CD player
MHZS CD-33K Entry level High End Tube based CD Player (HDCD compatibile)
MCap MKP capacitors are used for Tube decoupling and power rectify
Solen capacitor is used for PSU LC filter, make the power more clean
Special designed Low Pass Filter, with pure clear sound and widest sound stage
Sony 213Q transport, highly reliable,
Philips SAA7824 Servo ,Low jitter design
6N3 tubes x 2 for analog amplification
BurrBrown OPA2604 OpAmp and Dual FET design
Upsampling frequencies selectable: 44.1kHz , 88.1kHz and 174.1.kHz
Solen of France capacitor is used for power filter

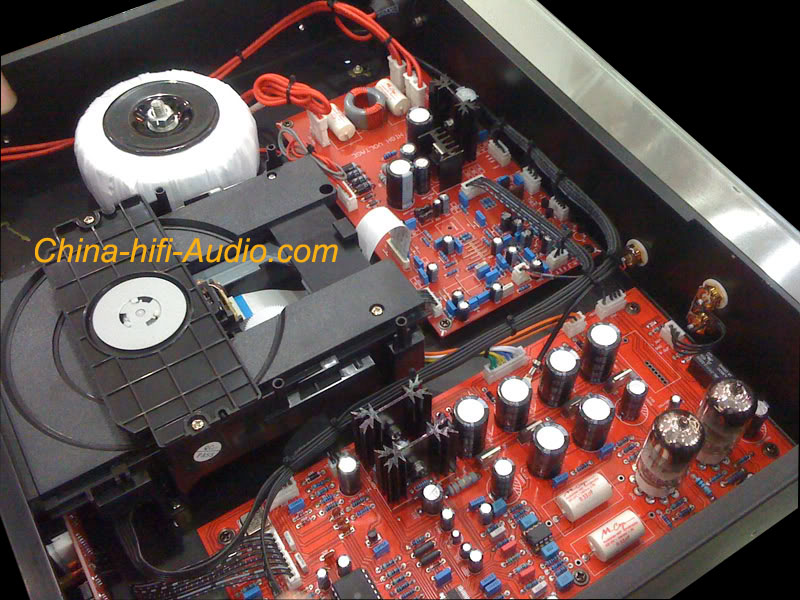

inside view of CD-33F,2 x 6N3 tubes, M-Cap capacitor for decouping
tubes replacement window for easy replacement
SPECIFICATION
Output voltage: 2.3V (rms/-3dB)
SNR: >= 110 dB (Weight: A)
Dynamic Range: 100dB
THD: < 0.05%
Power consumption: 60W
Dimensions: 430 x 330 x 95 (mm)

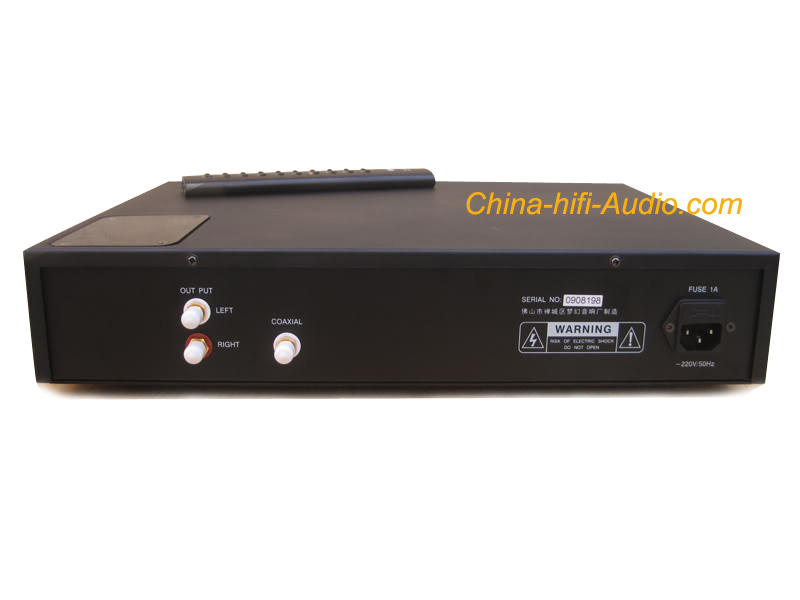

Analog Outputs: RCA Stereo Speaker Out & Digital Coaxial
Digital Outputs: Coaxial and Toslink
Compatible Disc: CD, CD-R, CD-RW
Power supply: 115V(+-10%)/230V(+-10%) 60Hz/50Hz AVAILABLE
Frequency Response: 20Hz~20KHz (+-0.5dB)
Weight: 13 KG
Gross weight:15 kg
PACKAGE CONTENTS, CD Player, Remote Control, Standard 1.8m Power Cord, Original BOX, instruction in English
