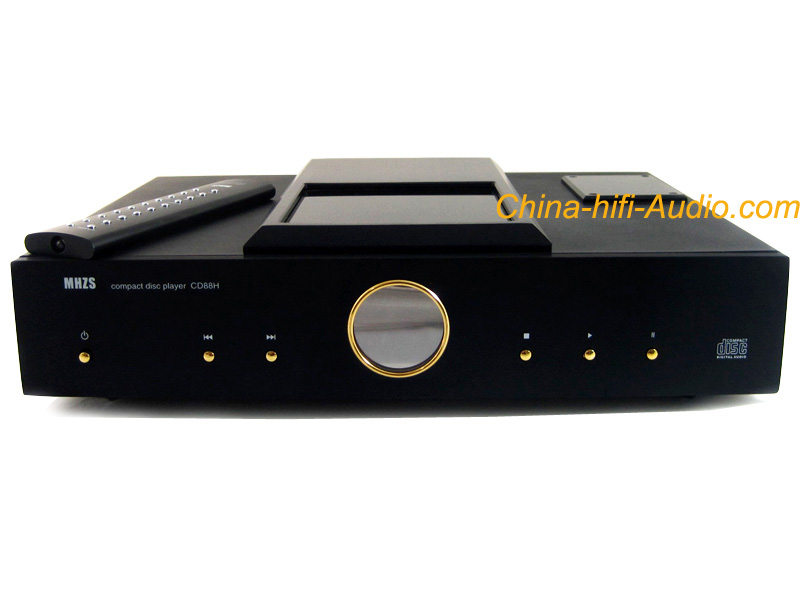

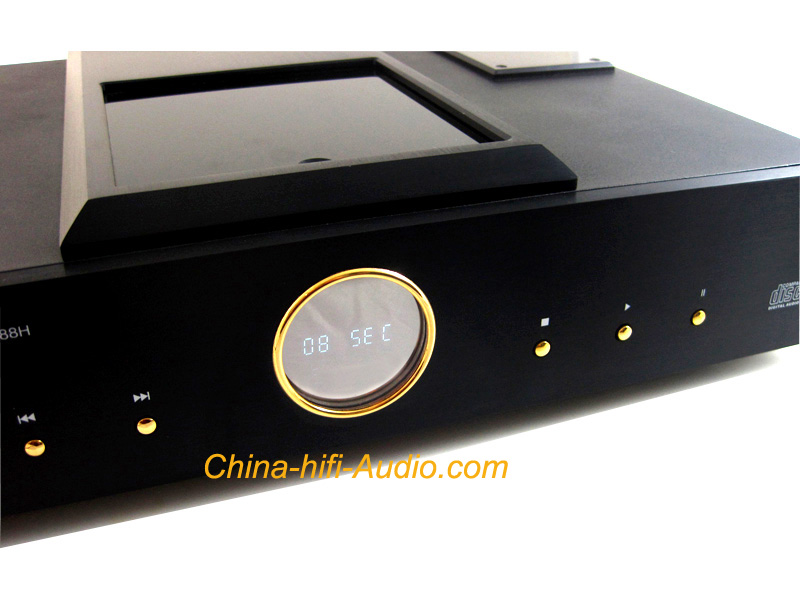

MHZS CD88H Top Loading Tube CD Player balanced XLR HiFi Audio SL

FEATURES
Full commutation analog all vacuum tube stage.
SONY 213Q laser pick-up, 4 kg metal mechanism with better stability.
Philips SAA7842 servo chipset.
Use CS4398 DAC. (CS4398 support 24 bits, sampling frequency conversion can be as high as 192 KHZ).
Remote selectable up-sampling mode 44.1kHz, 88.2kHz or 176.4kHz.
Burr Brown OPA2604 for filter circuit.
Two pieces of Tung-Sol 12AX7 for analogue amplification; One 6Z4 tube as rectifier, One WY2 as voltage stabilizer.
MIT capacitance coupling for bravery.
Use WIMA class for the power input capacitance filter circuits LC, power supply, make music background more clearly.
8 sets of isolated stabilized power-supplies for avoiding interferences.
20s power on standby time delay for optimal protection.
Excellent shielding,Detachable IEC power cord system,Fuse, replaceable at rear panel.
Aluminum alloy front panel,Aluminum alloy Enclosure in 1.5 mm thickness for better stability, Adjustable feet in Aluminum alloy.
Remote control unit.
Center tray design best design with good balance of weighting



MHZS CD88H Top Loading Tube HDCD CD Player
SPECIFICATION
System :SONY 213Q Laser Pick Up, PHILIPS SAA78241 Servo System
Hi-End Power Supply,Heavy Duty Transformer
Special designed: Burr - Brown Super 24Bit 192KHz D/A
(Optimized For : 44.1kHz , 88.2kHz and 176.4.kHz )
Compatible Disc : CD, CD-R, CD-RW, HDCD
Tube Output : CLASS A tubes 12AX7x2 , 6Z4x1, WY2x1

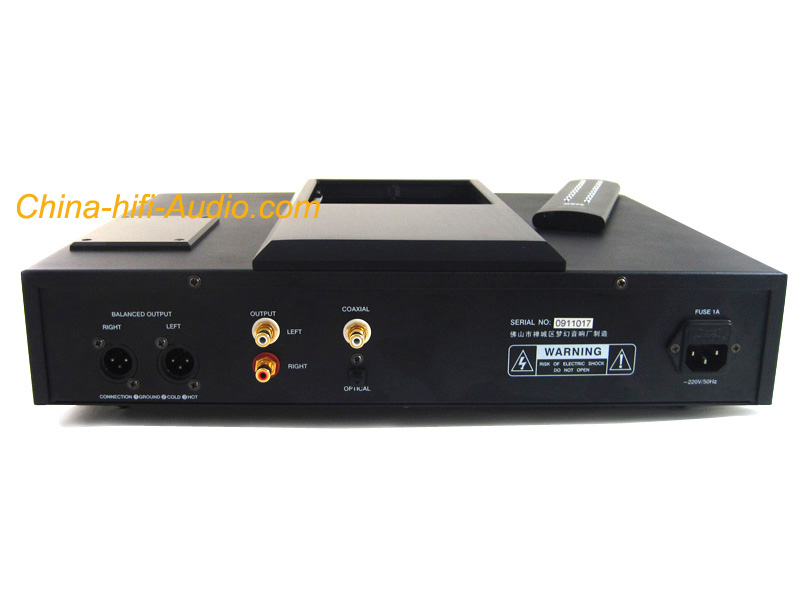

Audio Output : XLR (Balance) , RCA Stereo Out & Digital Coaxial
Digital Output : Toslink & Digital Coaxial
SNR : > 110 dB (A weighted )
Freq Response : 20Hz~20KHz (+-5dB)
Dynamic : > 110 dB (A weighted )
THD : < 0.05%
Power consumption : 60W
Dimensions: Length 430mm x Height 95mm x Depth 330mm
Colour: Black or Silver
Weight: 17 kg
Gross weight: 19 kg
Voltage: 110V - 240V AVAILABLE
PACKAGE INCLUDED, CD Player, Remote Control, Standard 1.8m Power Cord, Original Box, English Enstruction
