MingDa MC368-B5 TUNG-SOL KT120*4 tube Integrated&Power Amplifier

Product Price: $2,818.18 USD

Always Free Shipping
  • Product Model: Model: MUIA9831252
  • Product Weight: Shipping Weight: 35kg
  • Product Quantity: 4 Units in Stock

Please Choose:



  • Add to Cart:
  • Max: 10


paypal

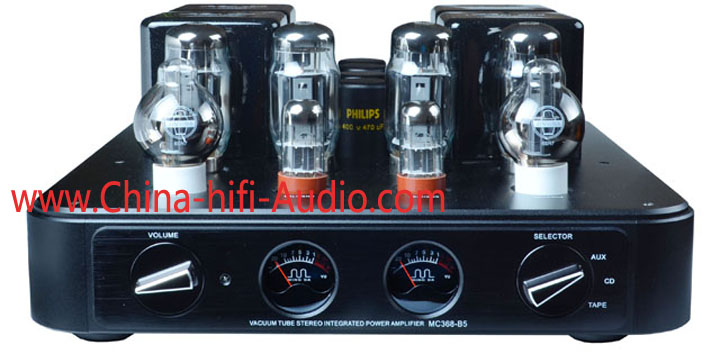

Meixing MingDa MC368-B5 TUNG-SOL KT120*4  Vacuum tube Integrated Amp & Power Amplifier
Pure handmade 2012

Brand New
     This amp not only can be an Integrated Amplifier, but also can be a Power Amplifier.
     There is a switch to change it to be.













Declaration


Features:

a)Using tubes KT120 of strong magnification power produced by American TUNG-SOL brand and the output power of per channel is up to 110W.It can easily drive HiFi speakers over 80dB and between 100W to 1000W.
b)The tone quality feels vivid,active and fluent.And the high SNR of 99.7dB provides more musical details to listener.

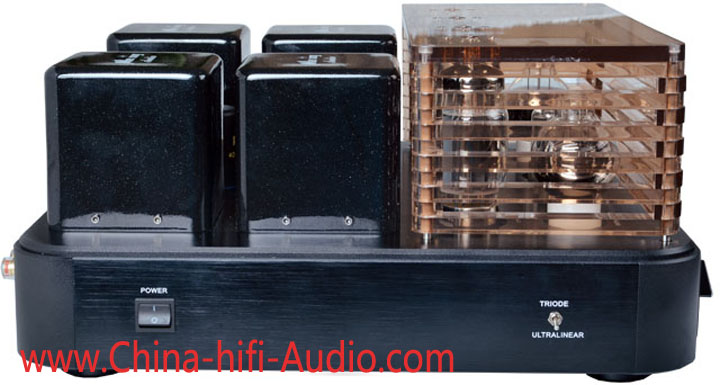

c)The machine is multi-purpose.It is not only a intergraded amplifier of high quality,but also a binaural power amplifier of high cost performance.With a high-quality pre-AMP,there will be more surprises.There are choices of triode and ultra-linear.
d)The case of the machine is made by aluminum alloy,which looks elegant and beautiful.With a better shielding effect,it sounds more quiet.The special triangular knob made by Meixing Factory is of artistic beauty and it can also distinguish the position between volume and selection.As for the power meter,it is classic and accurate and its perfect details as well as high cost performance are comparable with international brands.
e)A remote controlled volume system is added to the machine,as well as the ALPS Potentiometer from Japan,and the the cover of handle is made by aluminum alloy.

Specifications:

Power output: 110W (ultralinear);
                       50W x 2 (Triode)
Input Sensitivity: 200mv ( as a Integrated amp)
                           1000mv ( as a power amp)
Output impedance: 4Ω, 8Ω
Distortion: ≤ 1%
Sensitivity: 99.7dB

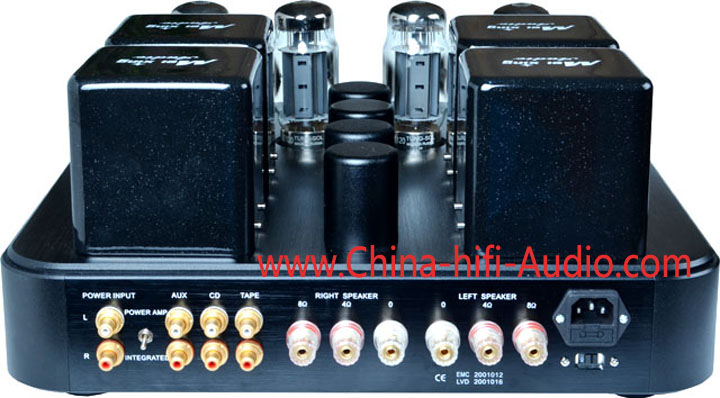

Output options: 2 Group
Input options: 3 groups for
Integrated amp,  1 group for power amp
Frequency response: 18Hz - 55KHz

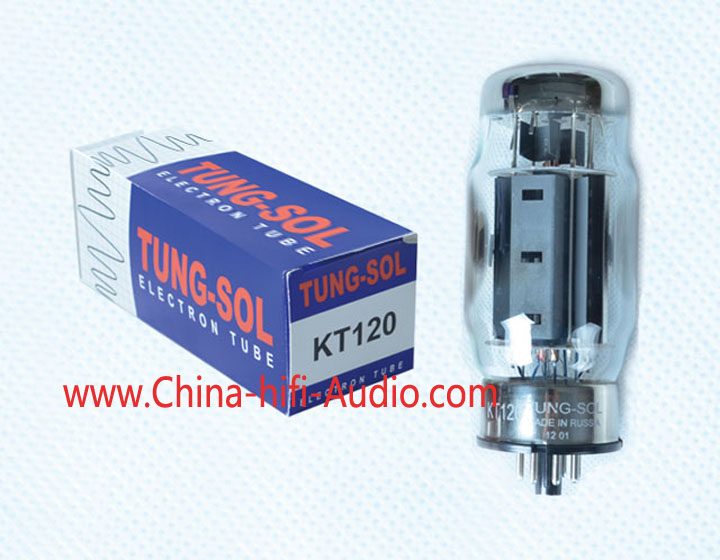

Vacuum tube: (USA TUNG-SOL) KT120 X 4
                       (USA TUNG-SOL) 6SL7 X 2,
                       (Specially produced) 6SN7 X 2

Power supply voltage: 110/220V 60Hz/50Hz
                                    (100V,120V, 127V, 230V, 240V version will
                                      take 7-14 work days to order),
                                     110,220V version are in stock

Net Dimensions : L33 x W46 x H20 cm
Carton Size :L60 x W56 x H35 cm
Net weight : 30kg
Gross weight : 35kg


This product was added to our catalog on Friday 19 December, 2014.
