MUZISHARE R10 Hifi Tube 12AU7 DAC tube rectifier ES9018 24Bit/192KHz with USB XMOS asynchronously
100% Brand new
MUZISHARE Audio R10 is a Hifi Tube Audio DAC with USB
Declaration
MUZISHARE Audio R10 tube DAC with USB
Features of Audio Decoder MUZISHARE R10:
This is a pure tube rectifier output decoder with very good resolution, vocal positioning, clear image, rich overtone details, rich sound performance, very good IF density, and noble and shiny string texture. Great dynamic performance control is unequivocal.
a), the use of imported EI core -196 ℃ cryogenic medical-grade isolation transformer shield metal shield power supply independent, it effectively filter the current impact, interference, so that low-frequency bouncing force, enhanced control, knot-rich;
b),,Using the United States ESS 32bit 192khz ES9018S DAC high-speed computing decoder chip; use the United States BB OPA2604AP op amp.
c), Using the program of the United States XMOS XS1_L1_128TQFP chip XMOS asynchronously USB 32bit 192khz decoder chip.

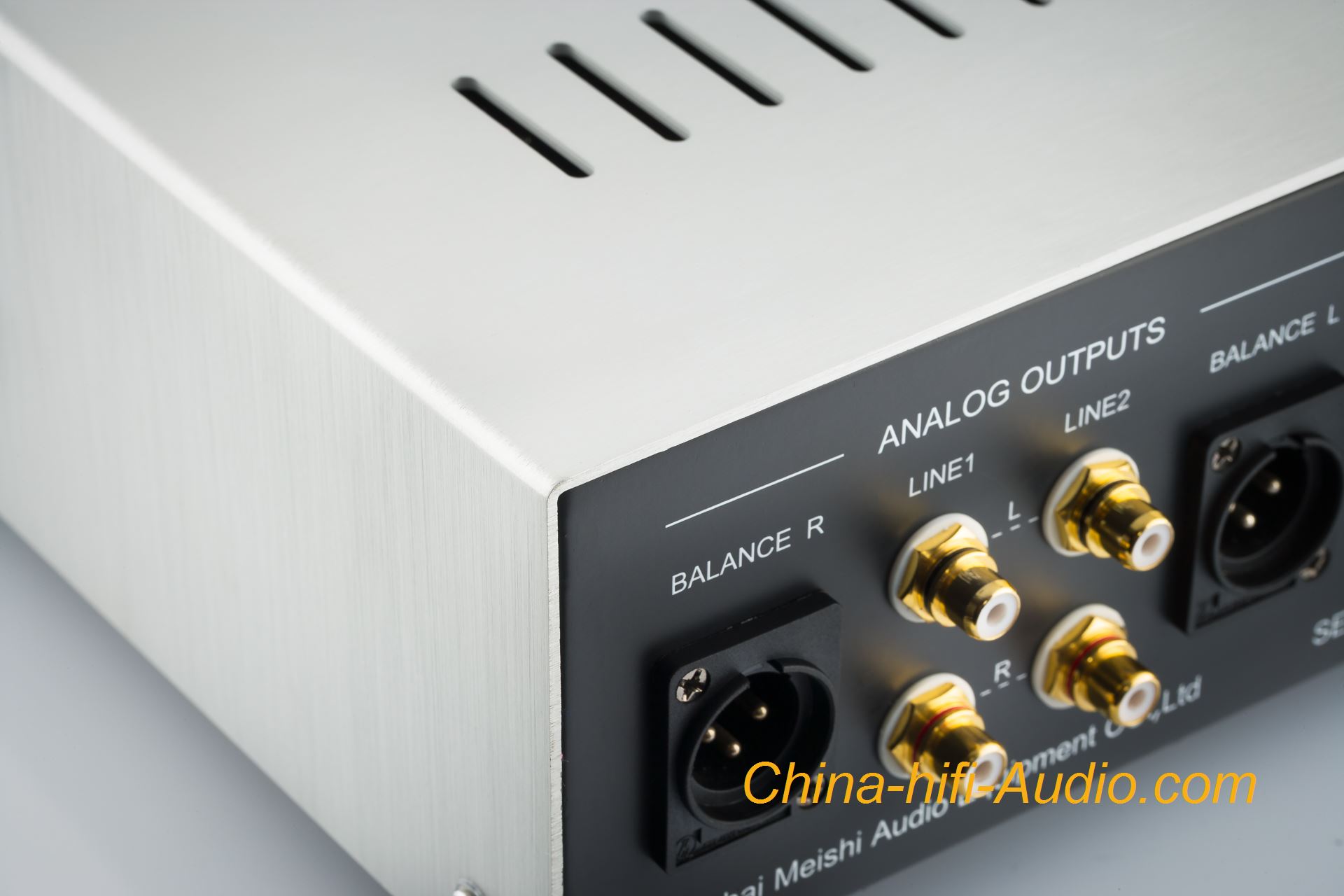

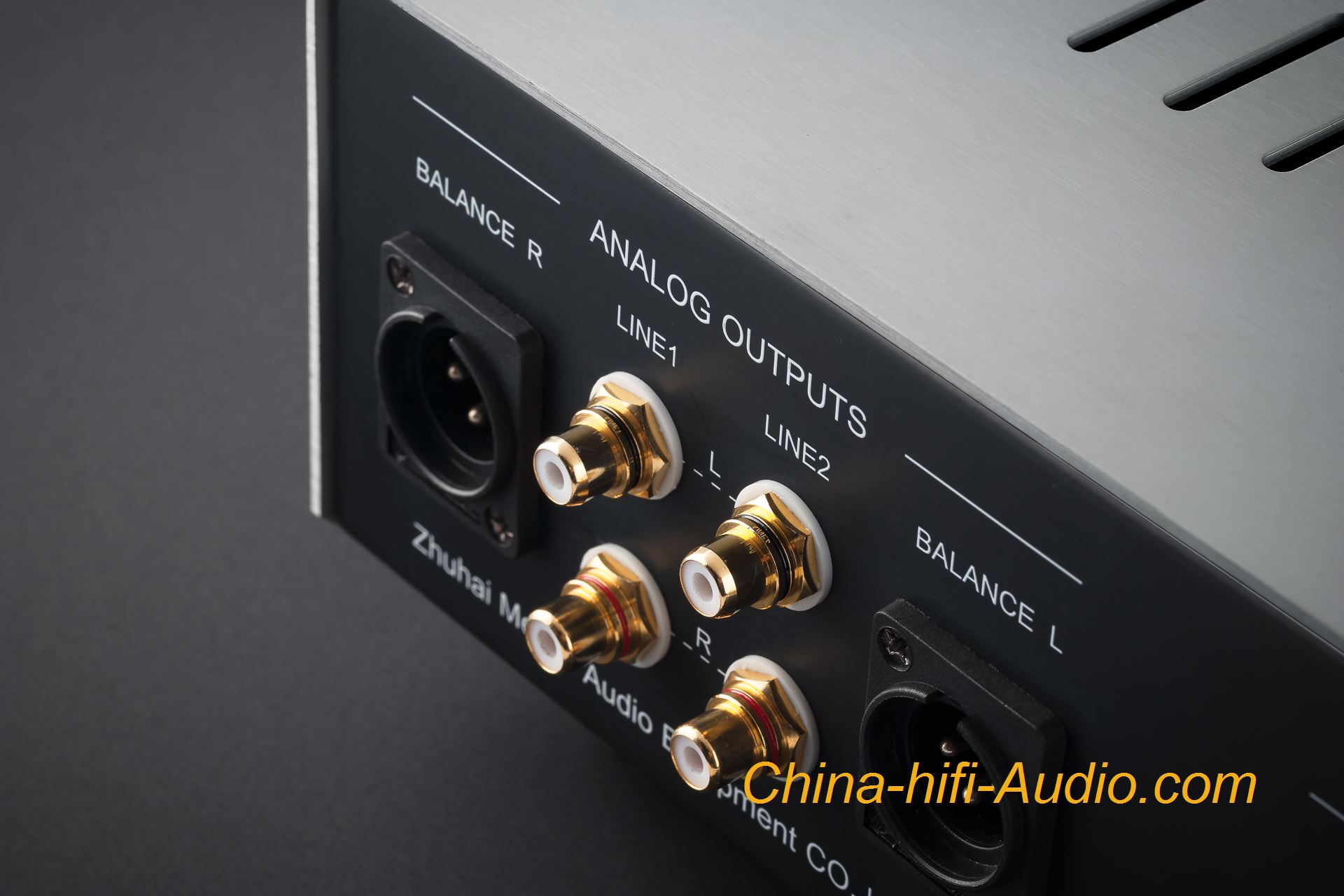

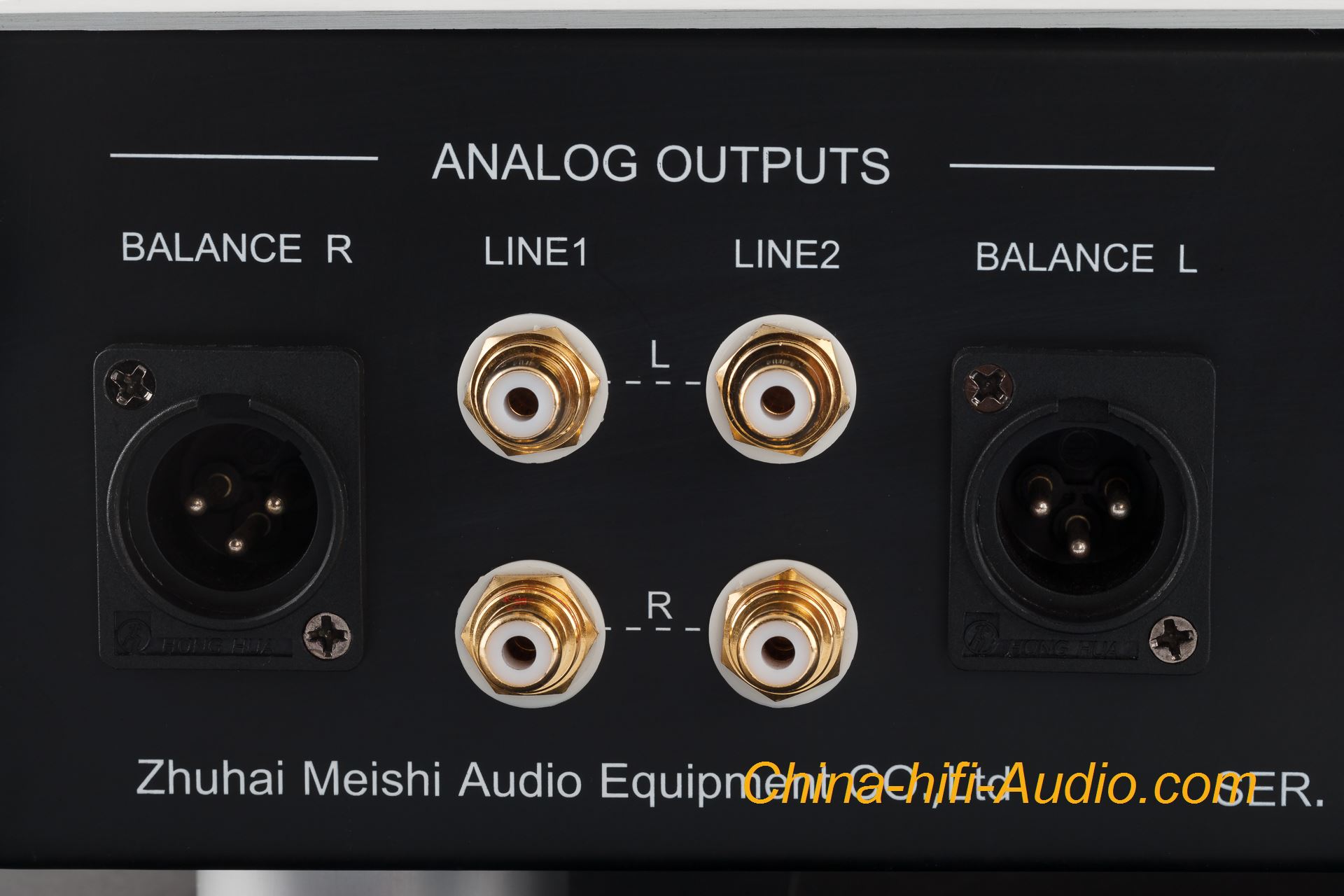

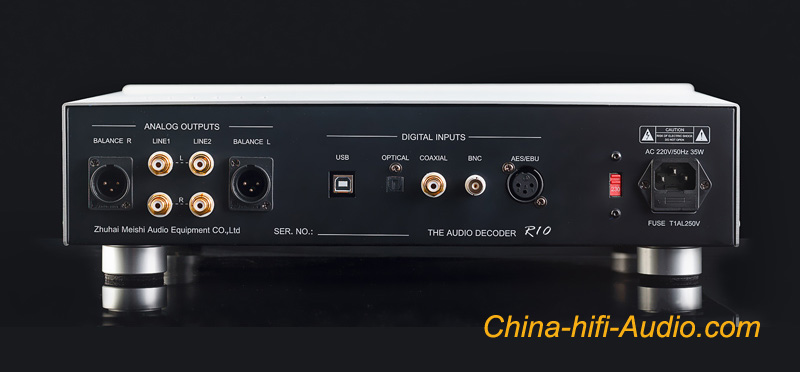

d), R10 input signal has 5 groups of options: AES / EBU (balanced), BNC (coaxial), USB (computer), OPTICAL (optical), COXIAL; two parallel RCA output, a XLR balanced output ;
e),, Using a 6Z4 tube rectifier, 4 pairs of 12AU7 accurate matching tube output.
f),, R10 In addition to unmatchable superb sound, but also sounding, is regarded as a simple look of artwork.The main material of the chassis is high-quality rigid steel plate. The top plate is made of high-tech aluminum alloy. The panel is made of high-grade aluminum by the CMC computer. The new metal buttons use expensive square buttons.
ESS 9018 DAC chip
XMOS asynchronously USB 192KHz
Sampling rate: 32bit 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz

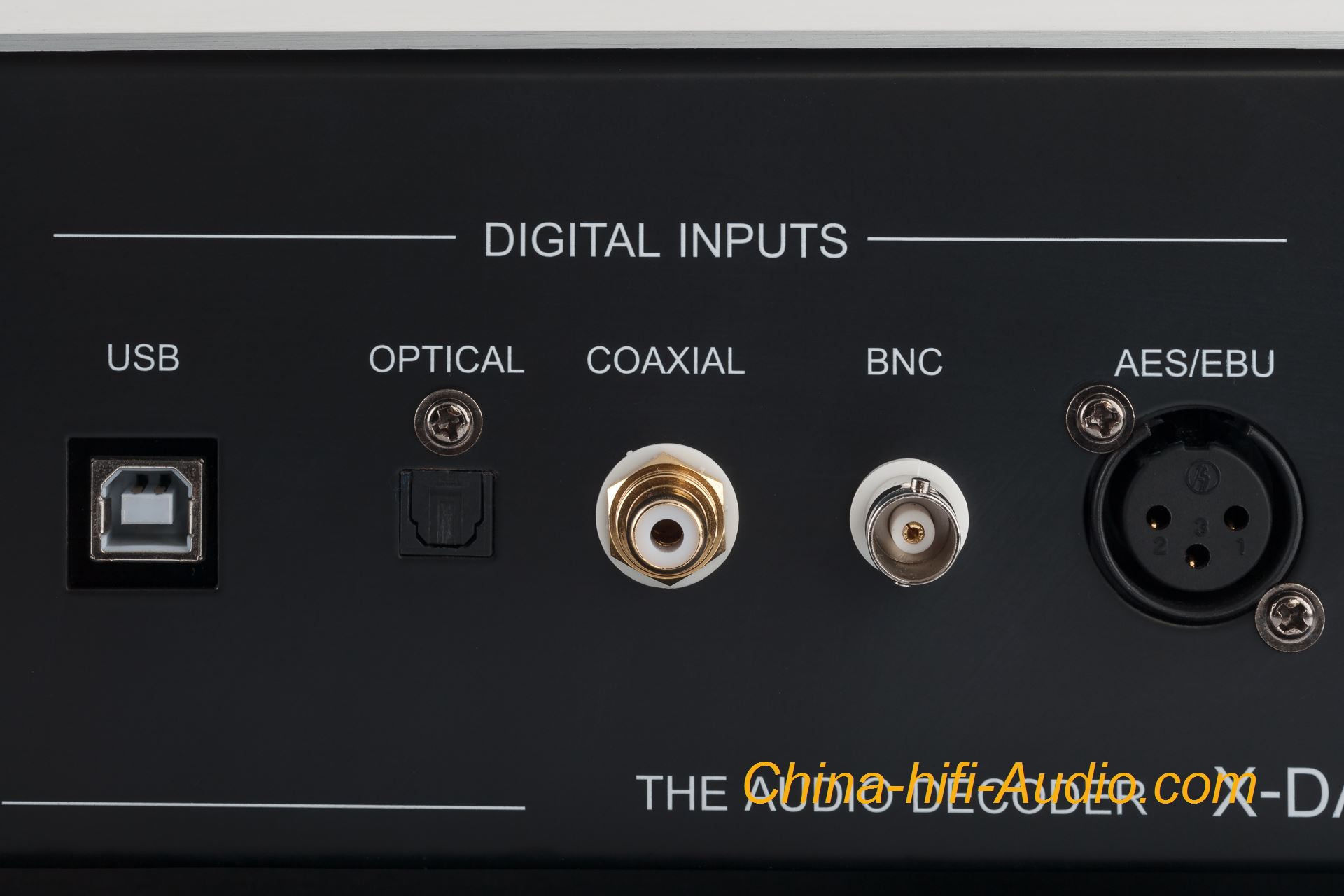

Five groups of signal input options: AES / EBU, BNC, USB, OPTICAL, COXIAL
Tube output

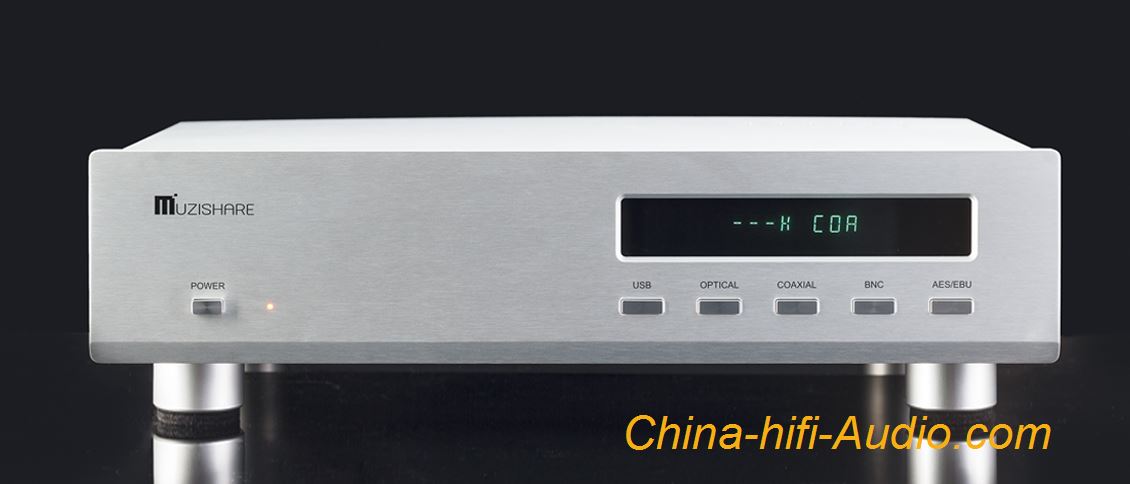

LCD screen display
Dedicated special EI refrigeration power transformers
Analog circuit tube 6Z4 rectifier circuit
Tube output circuit using four 12AU7 tubes
ESS's ES9018 is the industry's highest performing 32-bit audio DAC solution designed for use in Blu-ray players, audio preamplifiers, A / V receivers, and professional applications such as recording systems, mixing controllers and digital audio workstations.
Featuring a patented 32-bit Hyperstream DAC architecture and time-domain jitter eliminator, the ES9018 offers up to 135dB of signal-to-noise ratio (DNR) and -120dB of THD+N for PCM data, DSD and SPDIF data inputs with input sample rates up to 200kHz , Power consumption is less than 100mW.
Technical Parameters:
Sampling rate: 32bit 44.1KHz 48KHz 88.2KHz 96KHz 176.4KHz 192KHz
Total harmonic distortion: 0.5% (tube)
Frequency response: 15Hz ~ 50kHz
Signal to noise ratio: 98dB
Dynamic range: 120dB
Input impedance: 75Ω
Output impedance: 2KΩ (tube)
Output voltage: 2.5V +-0.5dB (tube)
Analog circuit rectifier tube: 6Z4 x1
Tube output circuit: 12AU7 x4
Dimension(W × D × H): (415 x 340 x 110) mm
Net weight: 10kg
Gross weight: 11kg
Power consumption: 35W

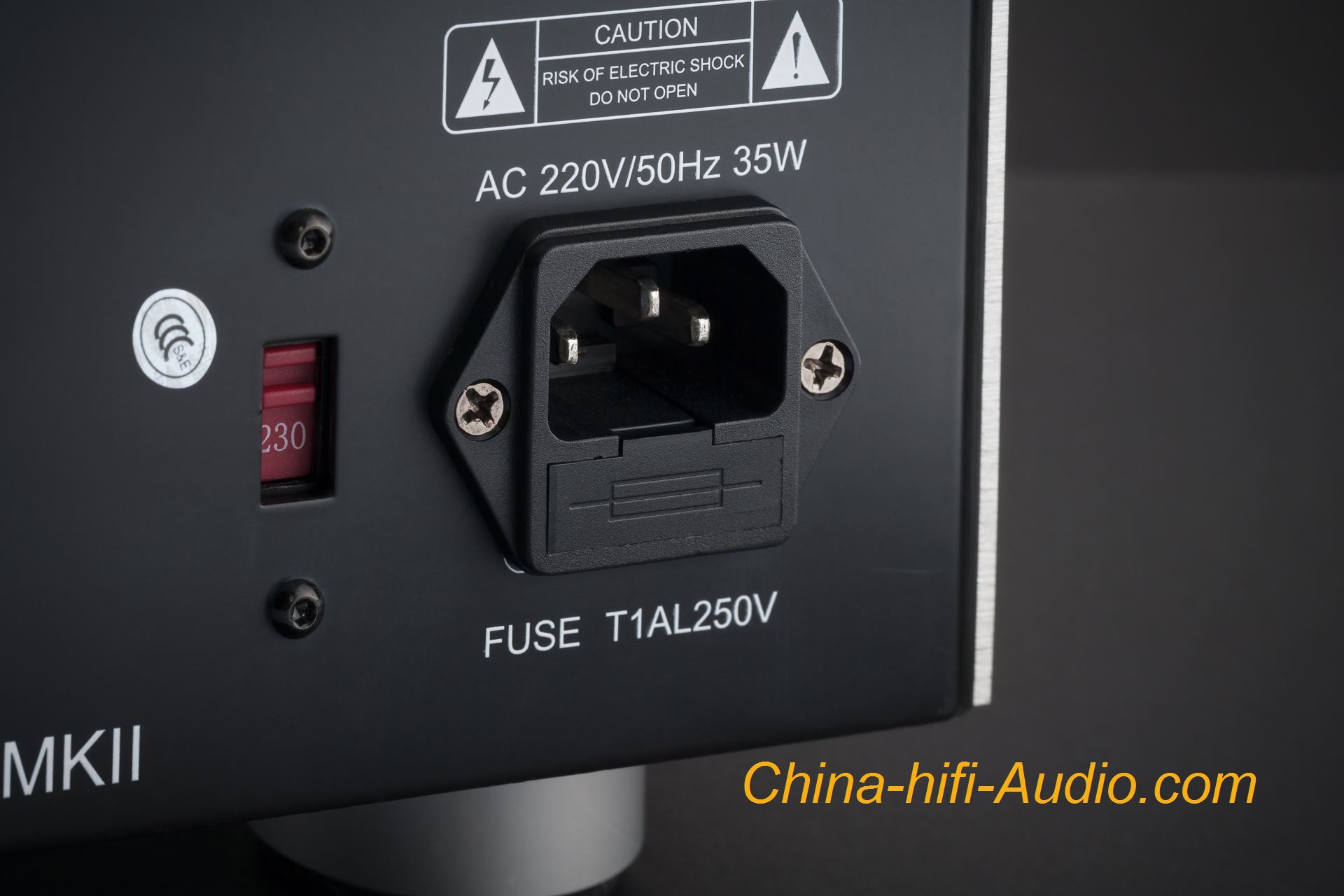

Power supply: 100V - 240V 60Hz / 50Hz, 110V, 115V, 120V, 220V and 230V version are in stock. 100V and 240V version need to take 3-14 business days to order.
Working conditions: Temperature: 0 ℃ ~ 40 ℃ Humidity: 20% ~ 80%
Storage conditions: Temperature: -20 ℃ ~ 70 ℃ Humidity: 20% ~ 90%
