MUZISHARE X5 EL34 x4 push-pull vacuum tube integrated amplifier
100% Brand new

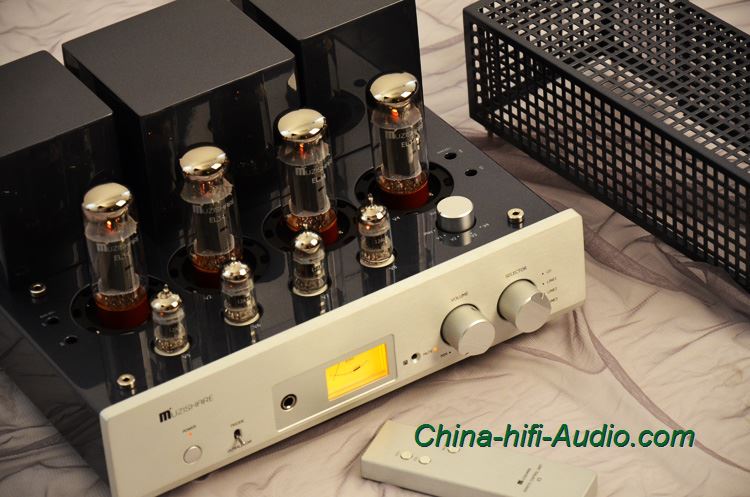

MUZISHARE X5 come with a remote control and a tube cage cover.
Declaration
MUZISHARE X5 EL34 push-pull tube integrated amplifier
Features:

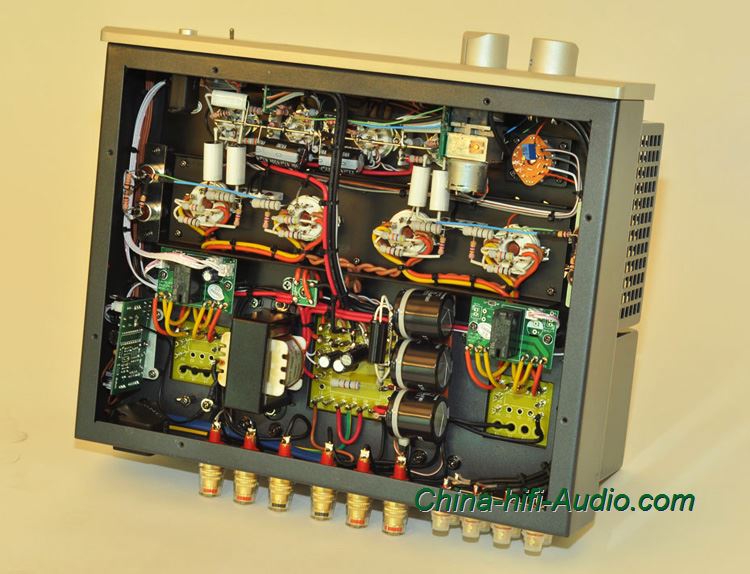

1, pure Handmade, point to point hand welding

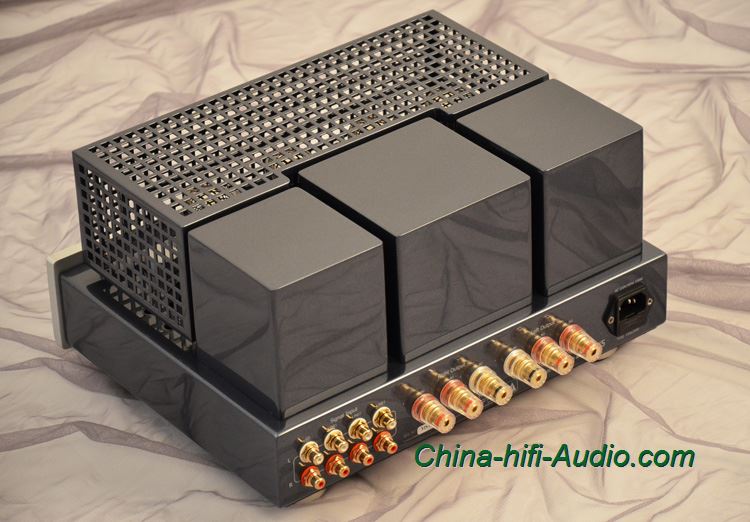

2, two Japanese high quality EI output transformers with high quality sound and high sound quality
3. Use the EI type power transformer designed specially for this machine

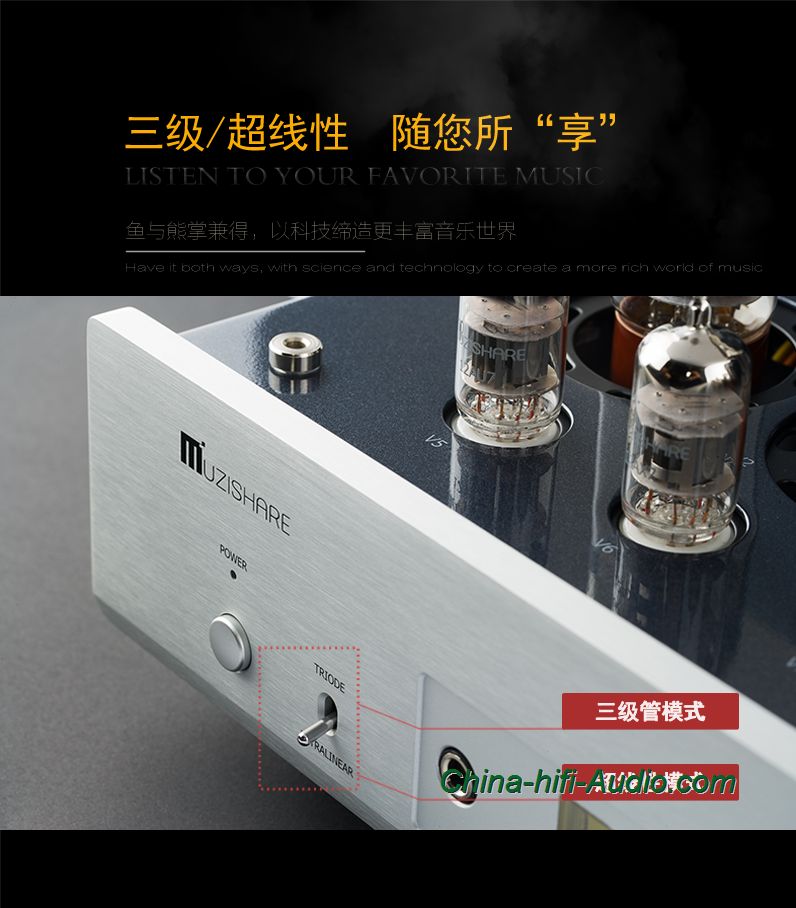

4, The pre-amp stage uses each 2x 12AX7 and 12AU7 vacuum tubes, and the power stage uses 4 EL34 vacuum tubes to be AB1 type push-pull power amplification, providing triode and super-linear selection function.Triode working, sound soft, pure and smooth, suitable for voice, string and other types of appreciation of music; super linear way, open, ebullience, sound momentum is good, suitable for large dynamic scenes, appreciation and other types of music.

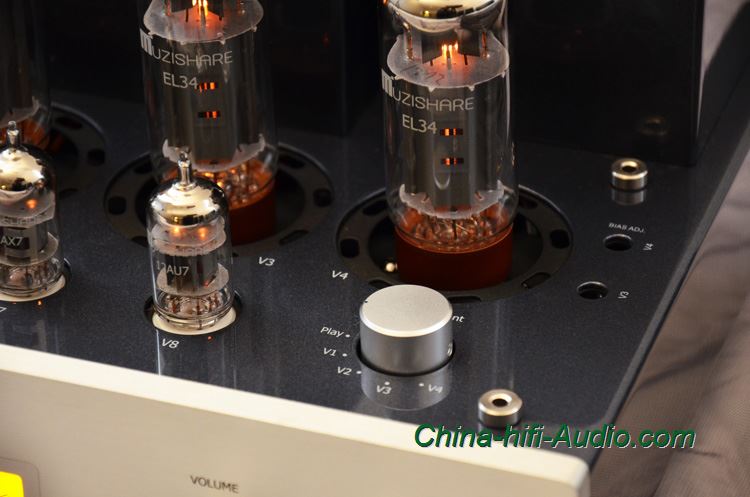

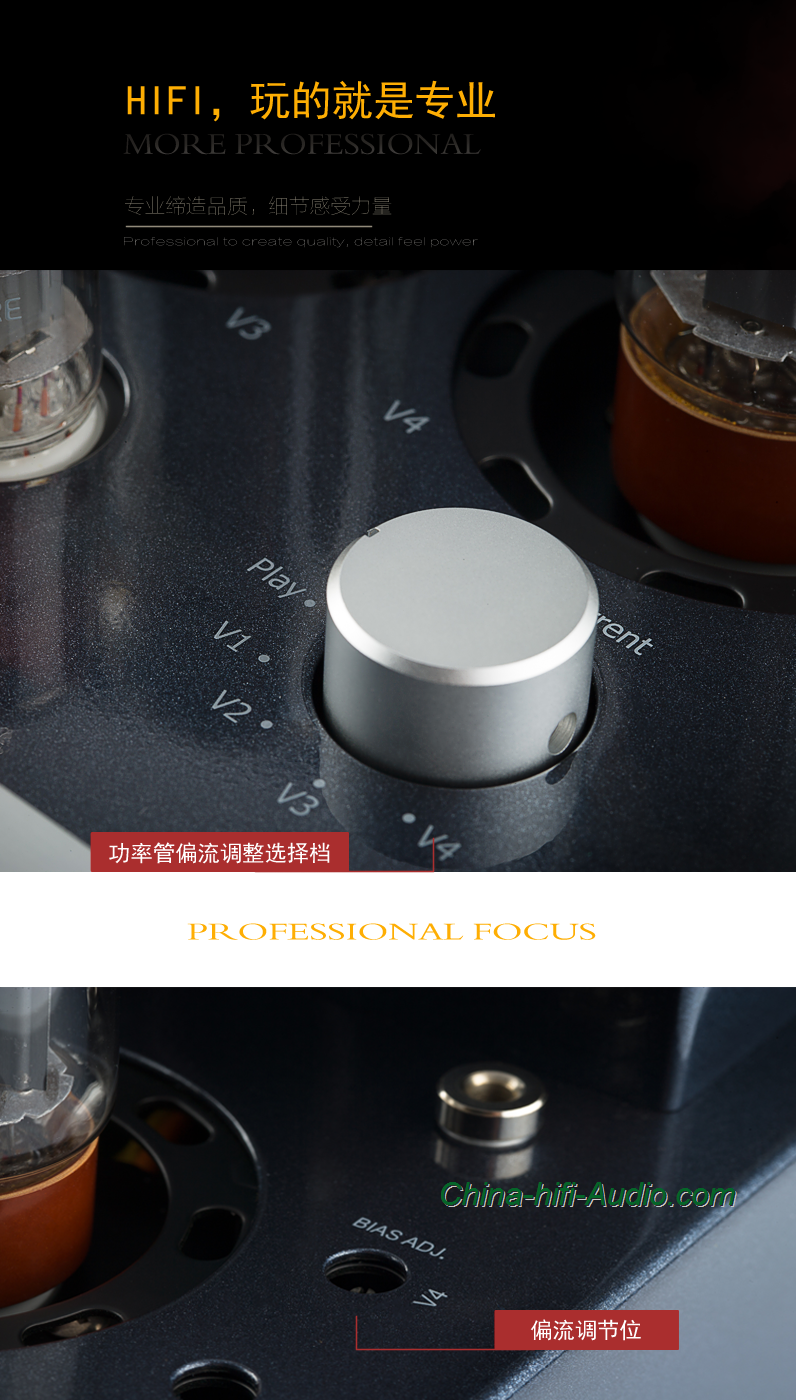

6. There is a driver tubes and power tubes current trimming knob with current display meter.
6, infrared function remote control.6, infrared function remote control.
8. When it is turned on, high voltage delay and mute delay function (about 30 seconds).

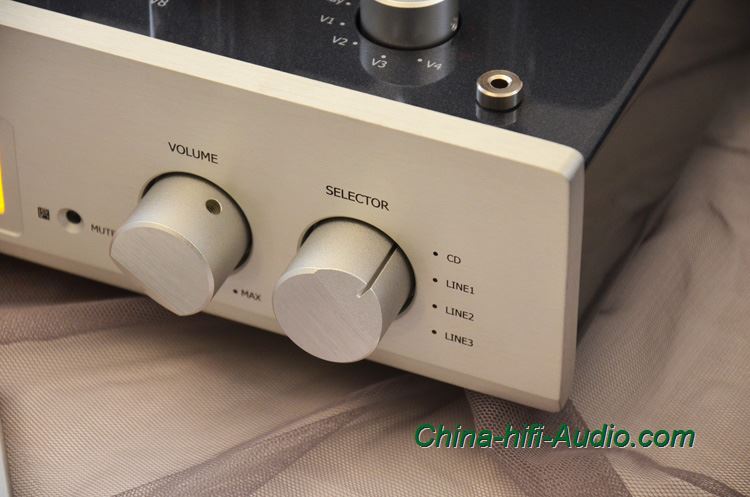

9. Japanese ALPS high grade motor potentiometers

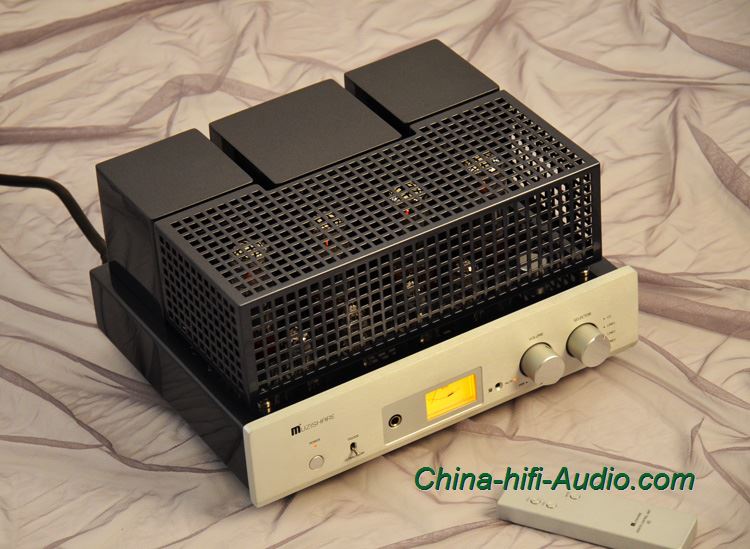

10. convenient installation plug type vacuum tube cage cover.
Specification:
Output power: 15W+15W (RMS triode)
35W+35W (RMS Ultralinear)
Harmonic Distortion: 1% (1kHz)
Frequency Response: 15Hz ~ 35kHz (-1.5dB)
Input sensitivity: 200mV
Input Impedance: 100 kohms
Signal to noise ratio: 88dB
Output Impedance: 4 ohms, 8 ohms, 16 ohms
Vacuum tubes: 12AX7 x 2, 12AU7 x 2, EL34 x 4
Dimension (W x D x H) (370 x 325 x 105) mm
Net weight: 18.5kg
Gross weight: 21kg

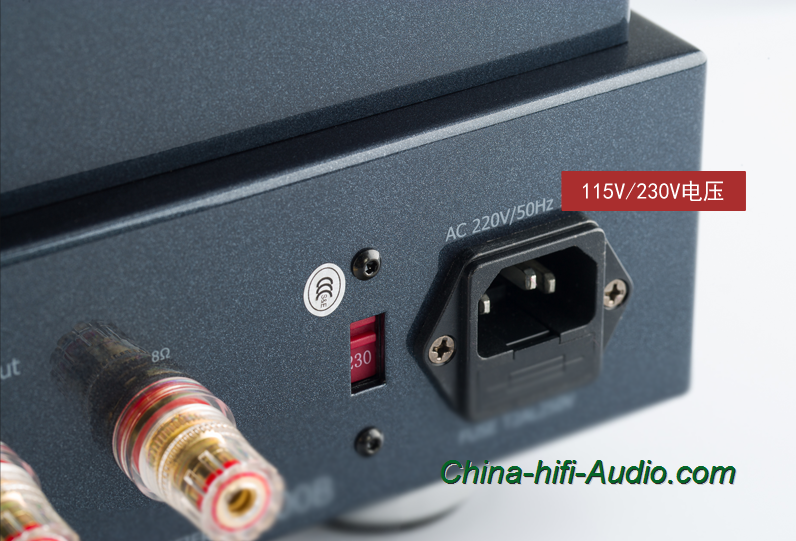

Power supply: 100V - 240V 60Hz/50Hz, 110V, 115V, 120V, 220V and 230V version are in stock. 100V and 240V version need to take 3-14 business days to order.
Power consumption for the whole machine: 230W
Working conditions: temperature: 0 C ~40 C, humidity: 20%~80%
Storage conditions: temperature: -20 C ~70 C, humidity: 20%~90%
