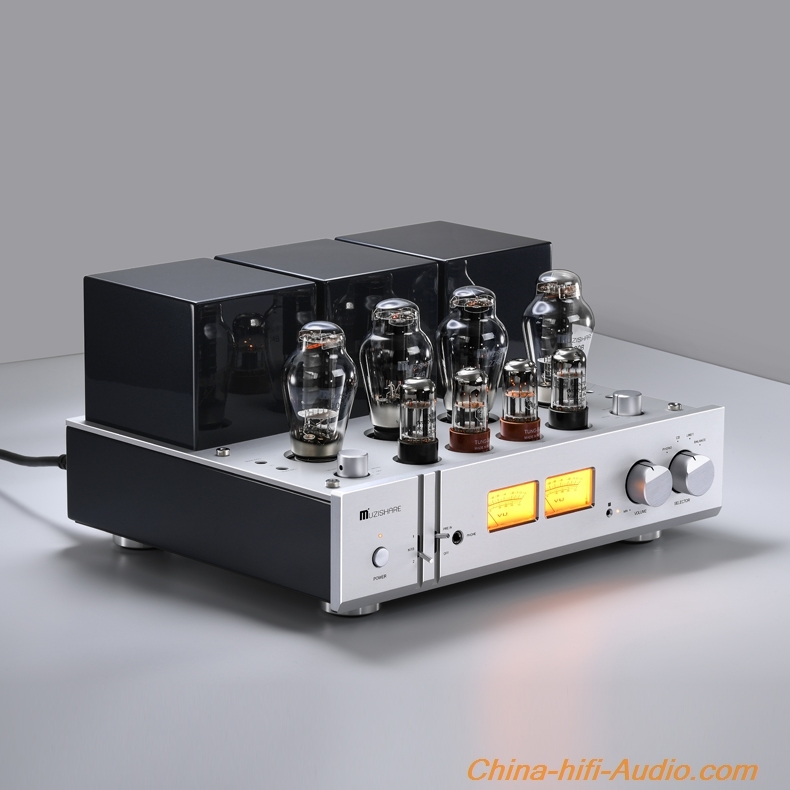

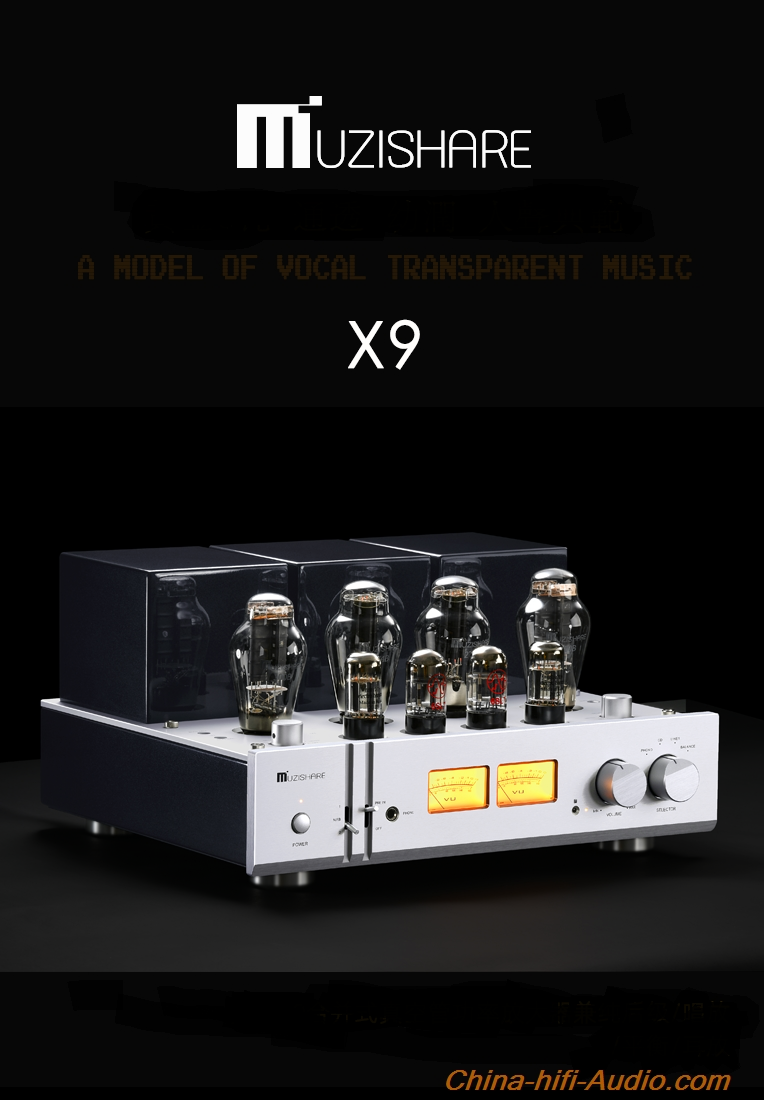

MUZISHARE X9 300B single ended Class A tube integrated Amplifier & power amplifier with Phono MM stage
100% Brand New




MUZISHARE X9 is an integrated Amplifier.
This is a Power Amplifier too (there is a group pre-amp input).
This is a Headphone amplifier too.

This is a amplifier for Phono player too, direct link your phono player to this amplifier to output to speakers.

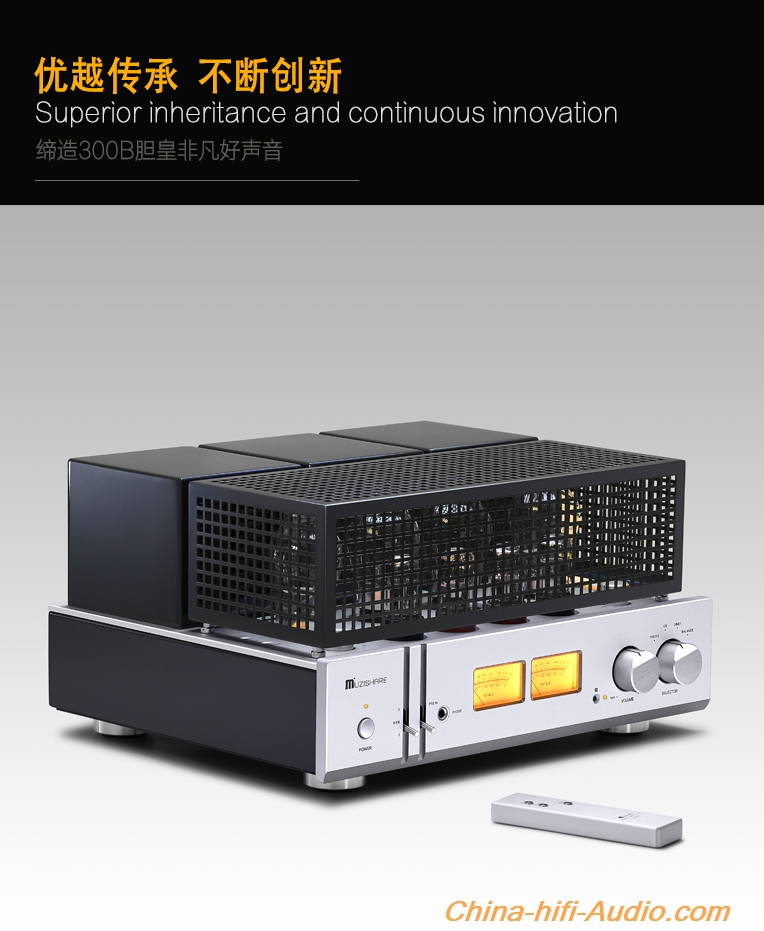

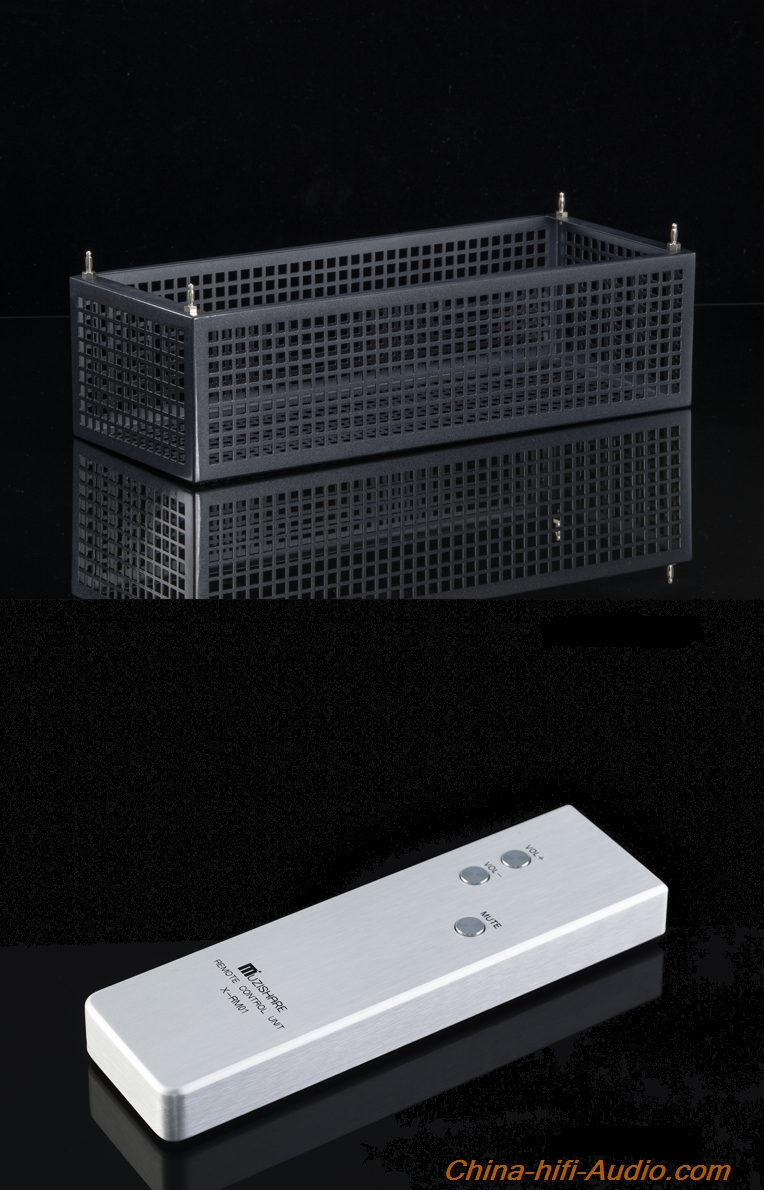

It come with a remote control and a tube cage cover.















Declaration


All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

Product parameters:

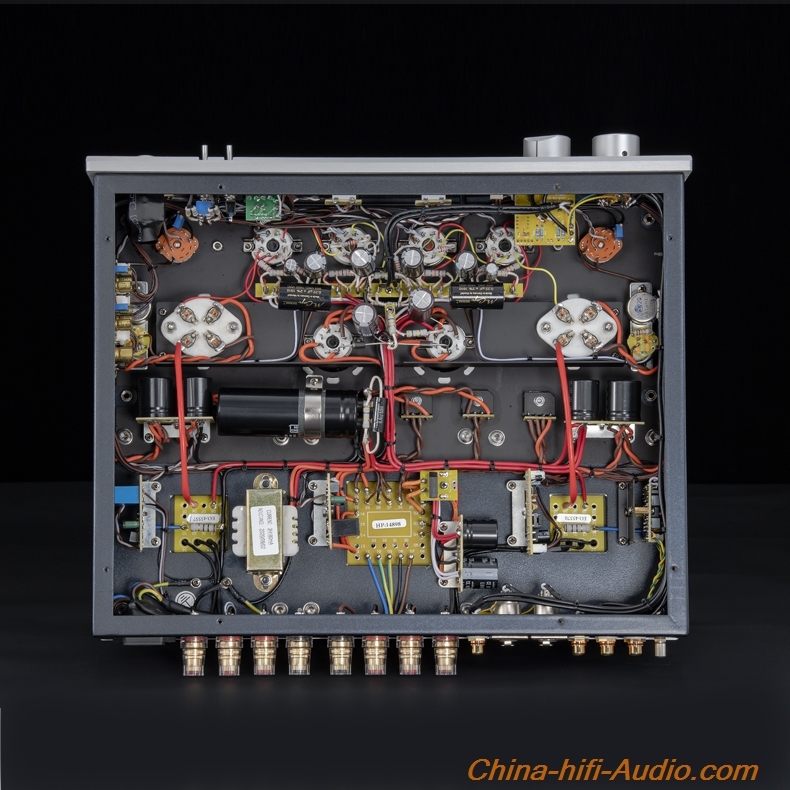

Purely handmade, the whole machine adopts scaffold welding.
Using two wide frequency response of high-quality high-quality Japanese-type output transformer EI,designed only high-power type power transformer ring core Z11.
two high-pressure part 274B do the whole gall rectifier dawn,The first stage uses two Czech 6SL7 and 6SN7EH vacuum tubes, and the latter stage uses two 300B vacuum tubes for class A single-ended power amplification.

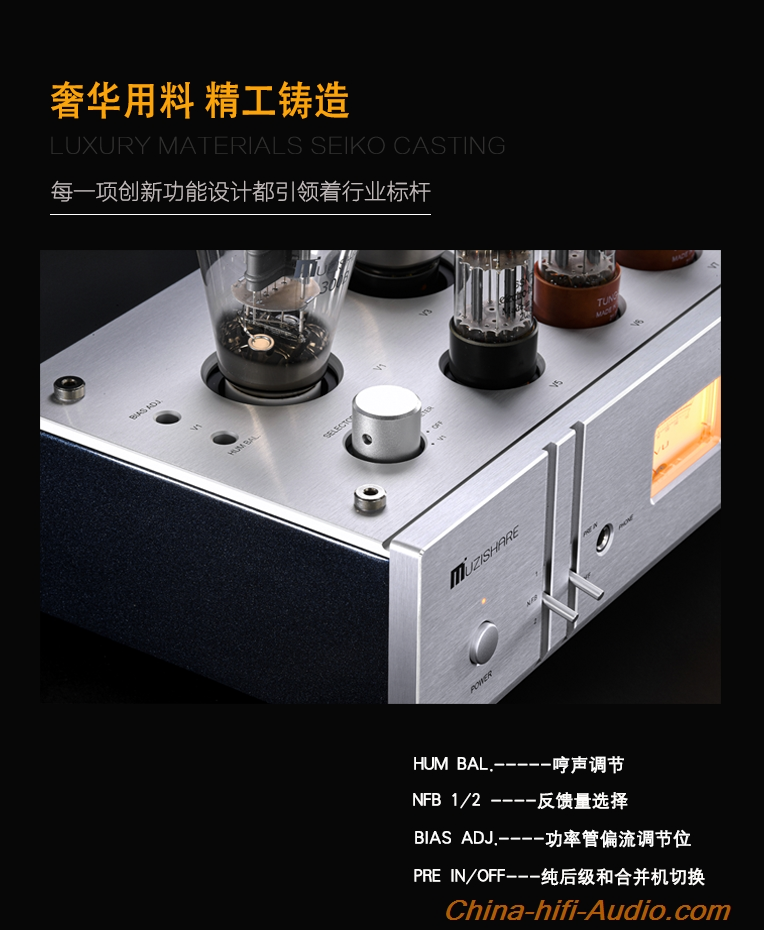

The peripheral power adjustment knob tube current and the current output level and dynamic display UV meter.the motor used in Japan ALPS potentiometer, Germany Mengduo Fu M-CAP using capacitors fever.
the mute start delay function (approximately 30 seconds).Infrared remote control to facilitate mounting of shield plug vacuum tube.


Technical parameter:
Rated output: 8W + 8W (RMS)
Harmonic distortion: 1% (1kHz)
Machine Frequency: 10Hz ~ 50kHz (-1.5dB)
Input sensitivity: 150mV (0db) 260mV (-3db) 420mV (pre in)
Input impedance: 100KΩ;

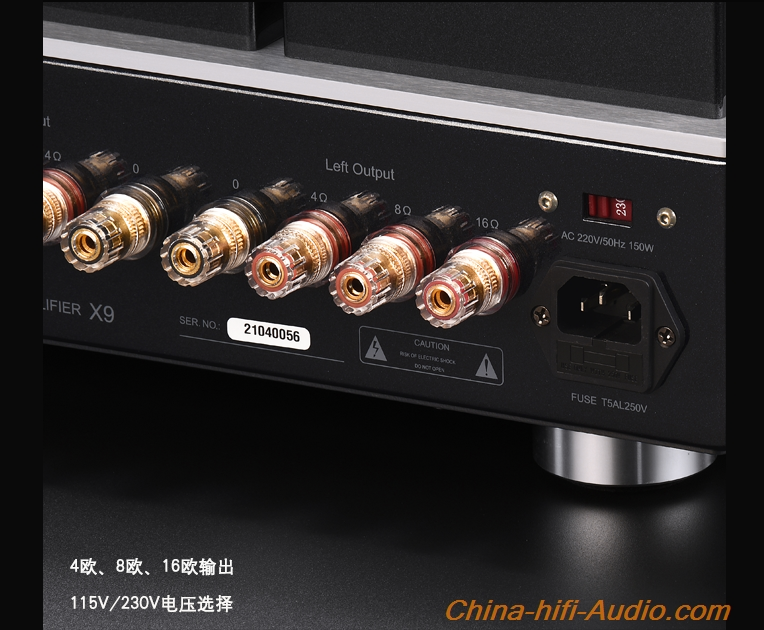

Output impedance: 4Ω ,8Ω ,16Ω
Signal to noise ratio: 92dB
Net Weight: 35kg
Grosst Weight: 38kg
Machine power consumption: 155W
Left and right output balance:<1db

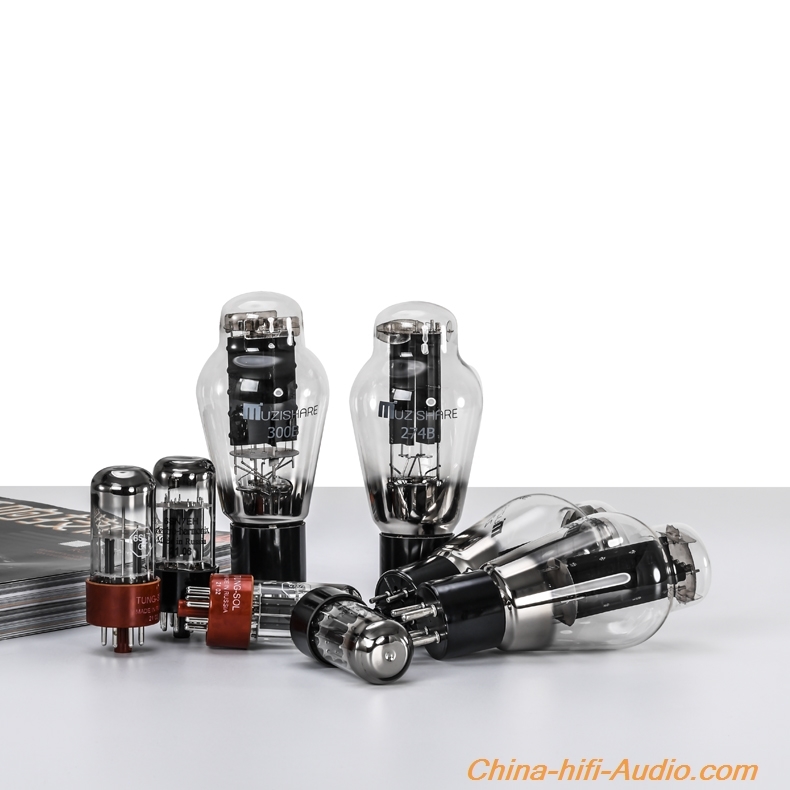

Use vacuum tube: 6SN7x2,6SL7x2, 300bx2, 274Bx2
Overall size (WxDxH): 430mm x 393mm x 236mm
Supply voltage: ~ 110V / 220V + 5% (50Hz)
Working conditions: Temperature: 0 °C ~ 40 °C
Humidity: 20%~ 80%
Storage conditions: Temperature: -20 °C ~ 70 °C
Humidity: 20% ~ 90%
