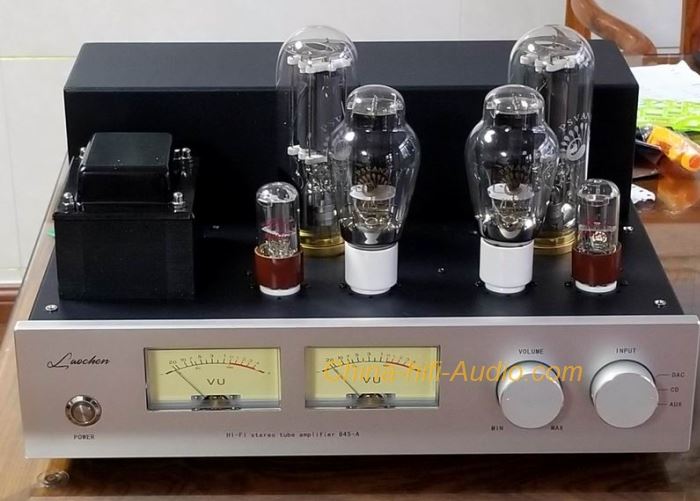

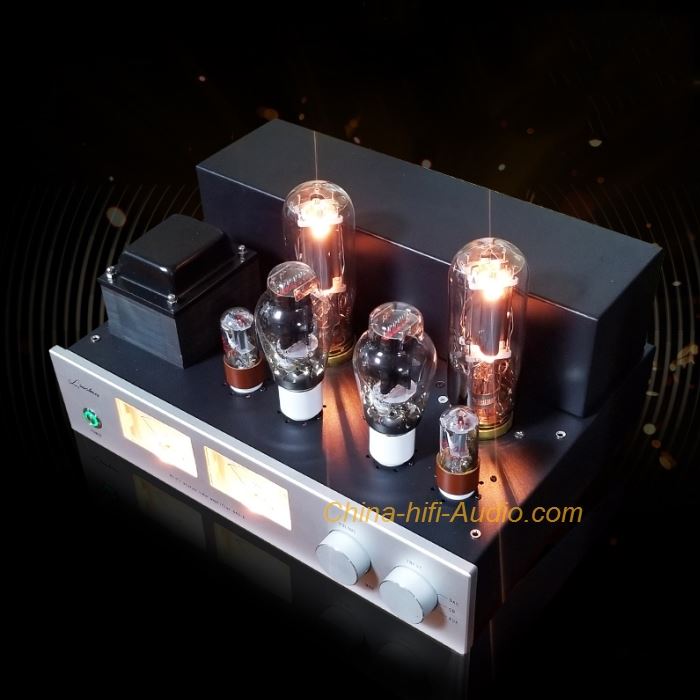

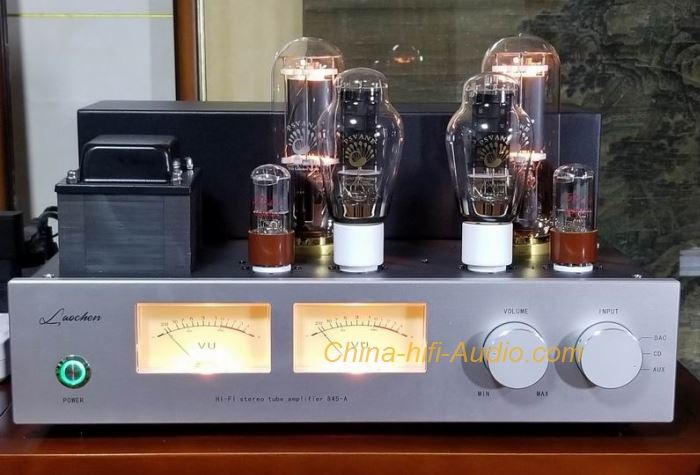

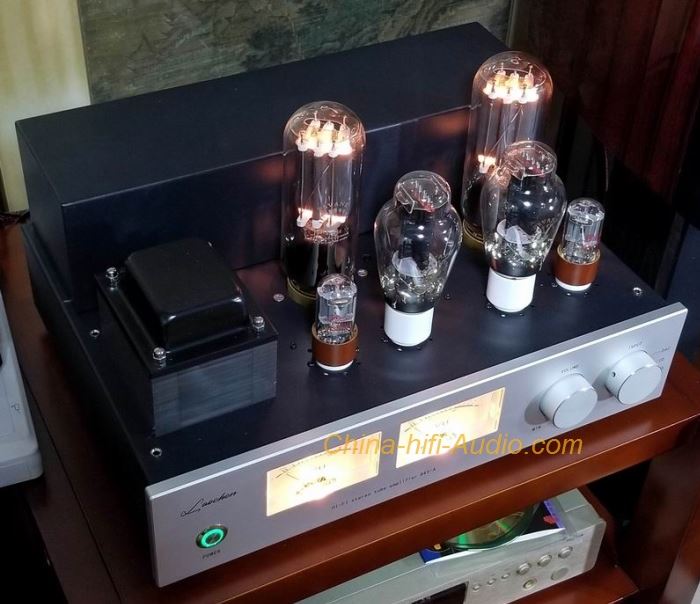

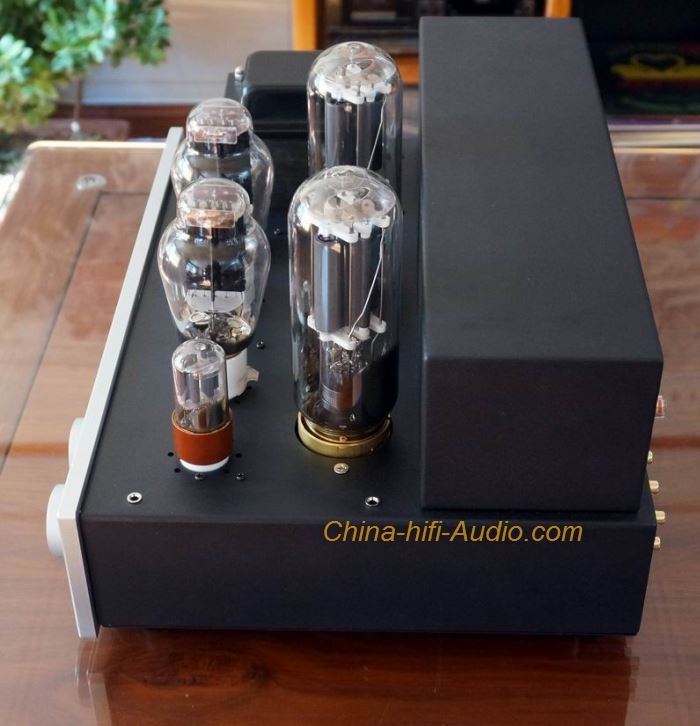

LaoChen 300B 845 Tube Amplifier Single-Ended Class A Amp with VU meter

Product Price: Starting at: $992.28 USD

  • Product Model: Model: MUIA9832206
  • Product Weight: Shipping Weight: 32kg
  • Product Quantity: 1 Units in Stock

Please Choose:

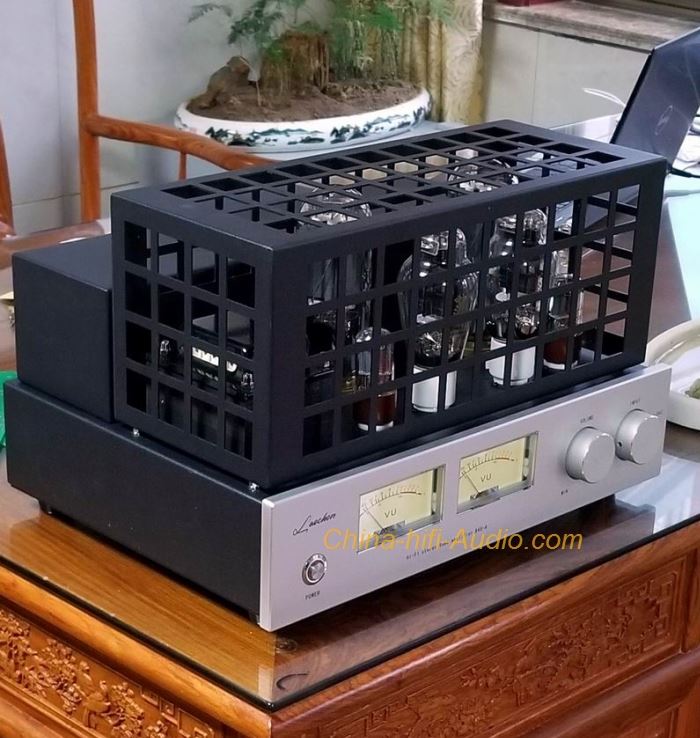

Come with Tube cage cover



  • Add to Cart:
  • Max: 5


paypal











LaoChen 845 300B audiophile Tube Amplifier Single-Ended Class A Amp with VU meter
100% Brand New


If your speakers and audio source are very good, you have a higher level of pursuit for the sound quality of the machine and the sound level of the tube. You can upgrade the PSVANE tube 6SN7-SE*2, 300B-SEN*2, 845SEC*2.

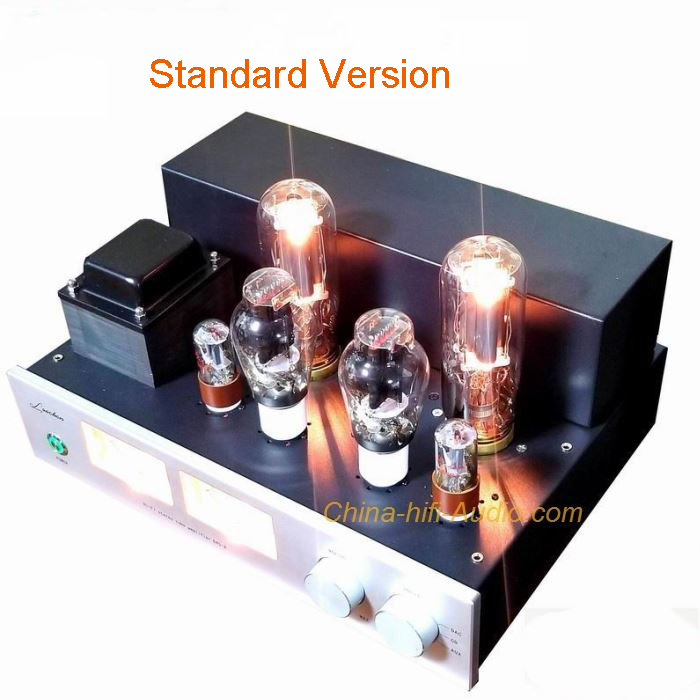

Standard version:845*2+6SN7*2+300B-SE*2

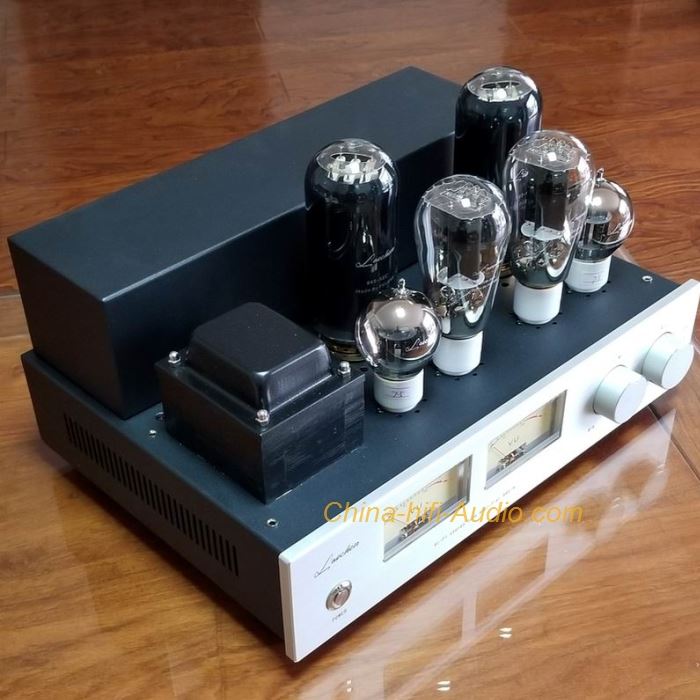

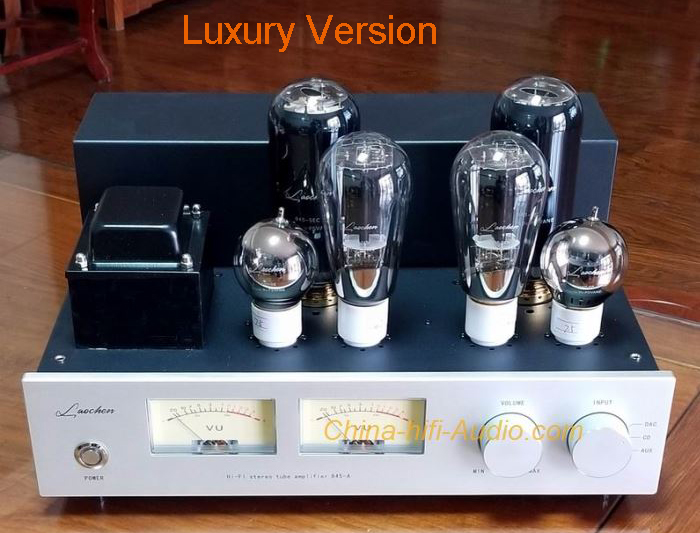

Luxury version:PSVANE 845-SEC*2+PSVANE 6SN7-SE*2+PSVANE 300B-SEN*2













Declaration


All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!

Manufactuer "LaoChen" have 3 brands name: "Oldchen" , "LaoChen", "Aiqin" So for this product, we have some amplifier maybe come with "Oldchen" words on the front plate , and others come with "LaoChen" , please pay attention.

Parameters:

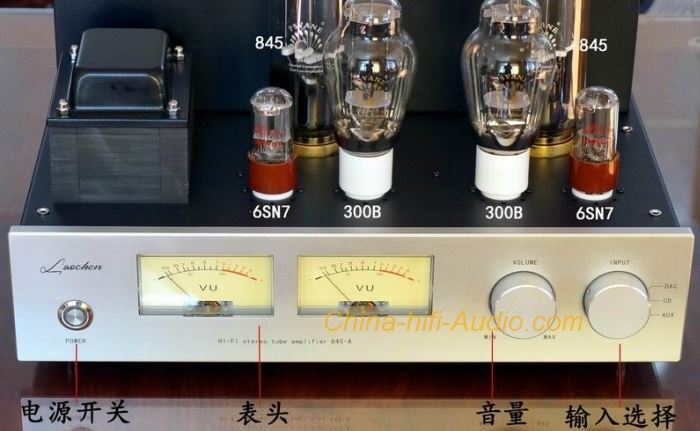

Preamp tubes: 2 x Special customize 6SN7 or 6SN7-SE
Driver tube: 2 x Special customize 300-SE or 300-SEN
Power tubes: 2 x PSVANE HIFI serie 845 or 2 x Special customize for Laochen 845-SEC
Output power : 25Wx2 (RMS 8Ω)
Power transformer Power: 150W
Frequency response: 18Hz-35KHz
Output Impedance: 4Ω , 8Ω
Total Harmonic Distortion: < 1% (1kHz)
Input Impedance: 100K ohms
Input Sensitivity: 500mV--2000mV
SNR: 88db
Power Supply Voltage: AC 100V - 240V / 50Hz-60Hz (100V, 110V, 115V,120V, 230V, 240V version will take 2-14 work days to order), 220V version is in stock.
Size (W × D × H): 430(W)×340(D)×280(H)mm
Net weight: 30Kg
Gross weight: 32Kg

Features:
Since 2 years preparation and testing , Laochen in the end release their latest flagship big power 845 tube amplifier
Use one high voltage transformer and one lower voltage transformer, 2 x power transformers independently supply amp, in order to ensure amplifier's power at the same time reduce the interference, in the absence of output feedback, the noise is controled within 1-1.5 millivolt, making the sound of the amplifier more broadly natural.
Using custom 6SN7 preamplifier,
PSVANE 300B-SE to drive PSVANE 845 high-power bile duct drive output transformer,
Between 300B and 845 is with stable efficient hi-fi coupling capacitors
Use of metal film resistors, ALPS potentiometer and hi-fi level capacitors,
signal amplification part use handmade scaffolding design to reduce the noise
The power supply part use thickened circuit board.
use for each high voltage and low voltage two inductance for filtering,
Use a delay of 30 seconds of the circuit, effectively protecting the life of the power tube.
Taiwan's high-quality dual-head dynamic VU meter,
Direct thermal triode 845 amp, both the performance of human voice and natural string and delicate, and also when dynamic time it's calm and magnificent,

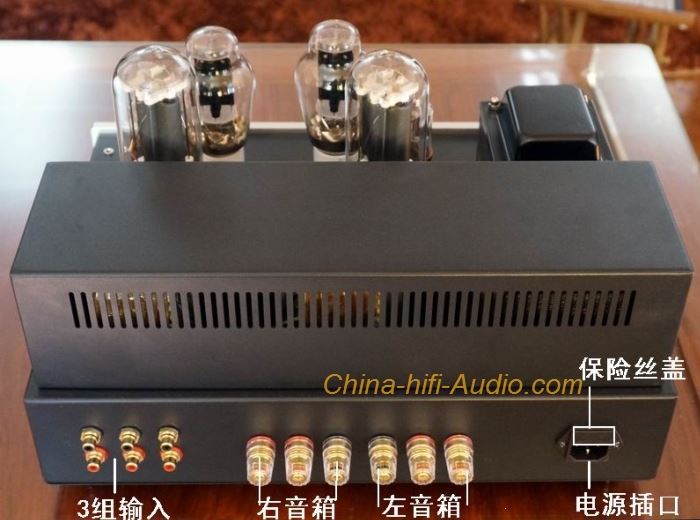

3 groups of inputs.
