Open Box Willsenton R800i 300B 845 Single-end Class A tube Integrated amplifier

Product Price: Starting at: $2,499.00 USD

Always Free Shipping
  • Product Model: Model: MUIA9832277
  • Product Weight: Shipping Weight: 48kg
  • Product Quantity: 1 Units in Stock

Please Choose:

Version



Condition



Remote Control



Come with Tube cage cover



  • Add to Cart:
  • Max: 5


paypal









Willsenton R-800i 300B 845 tube Single-ended Class A Integrated Amp & power amplifier with true Balanced XLR input Export version
100% Brand New

The Open box item is in USA, we can send it in 3 days, and take 4-10 business days about to your door in USA. Shipping to USA ONLY thanks.


Willsenton provide the Special Tailor-Made Export version to us, use the best parts and technology, looks top grade and Luxury.

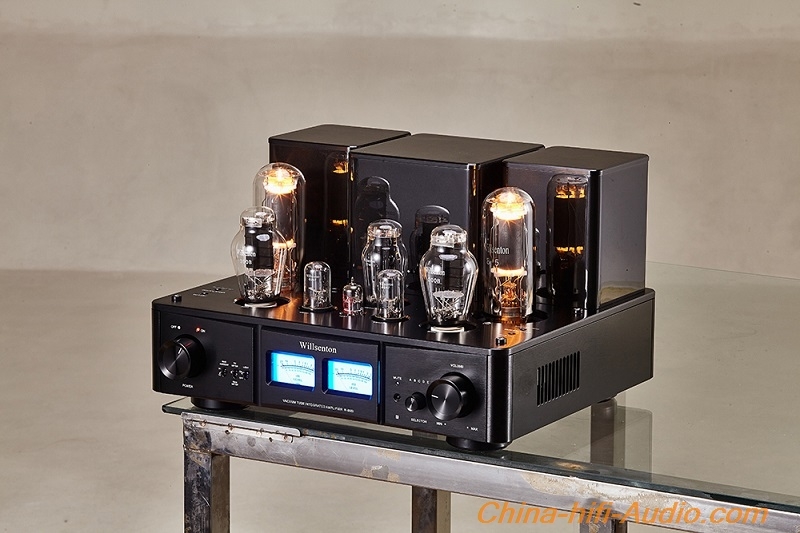

Willsenton R-800i 300B 845 is an integrated Amplifier.
This is a Power Amplifier too (there is a group pre-amp input).















Declaration


All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!


Features:
The Export version use the piano lacquer transformer cover that show it very high range.
The Export version use the Special Tailor-Made tube socket for the 845, so, make the tubes very good connect and stronge, tubes get long life and have nice sound.

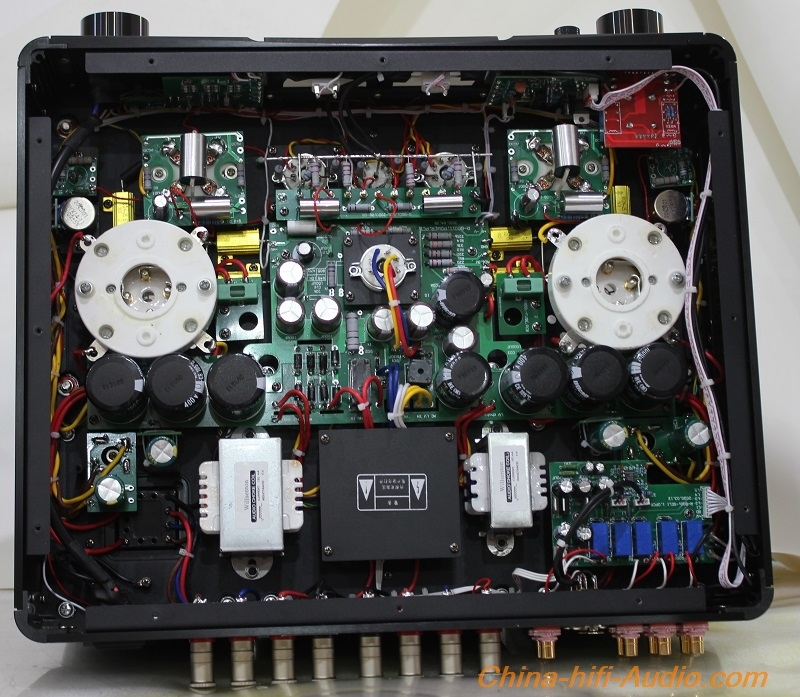

Hand welding point to point, the main circuit adopts shed welding
Two wide frequency high-end EI type single-ended output transformers with high-end special technology and high-quality broadband response made of Z11 iron core to get the sweet sound.
High-voltage power supply and filament power supply independently use large high-efficiency toroidal, high-power power transformers with Z11 cores and special materials with sweet voice.
High voltage and low voltage dual power transformer, double insurance design, lightning protection and short circuit protection and electronic tube insurance are adopted to prevent the electronic tube from burning the transformer. Level meter and bias meter switching use. Blu ray dual meter design, true full balance input and pure rear stage independent input.
The whole machine is designed with aluminum alloy casing. It adopts imported materials and is tested and inspected in strict accordance with European standards.

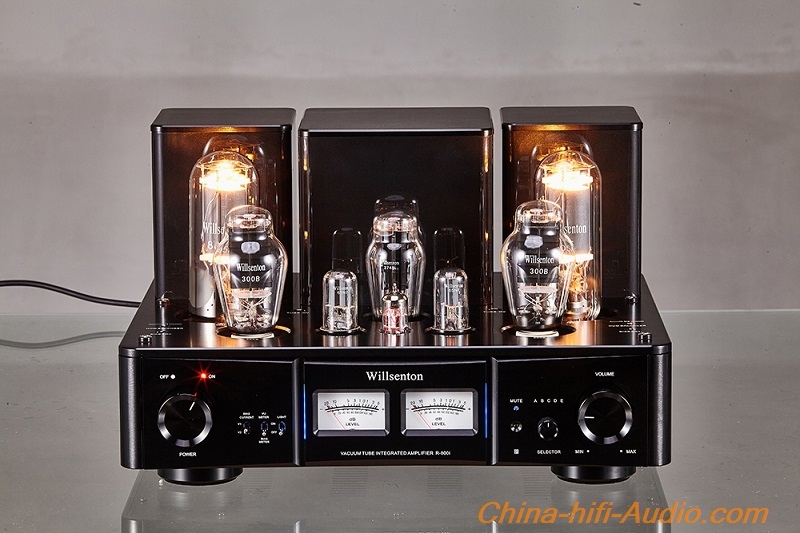

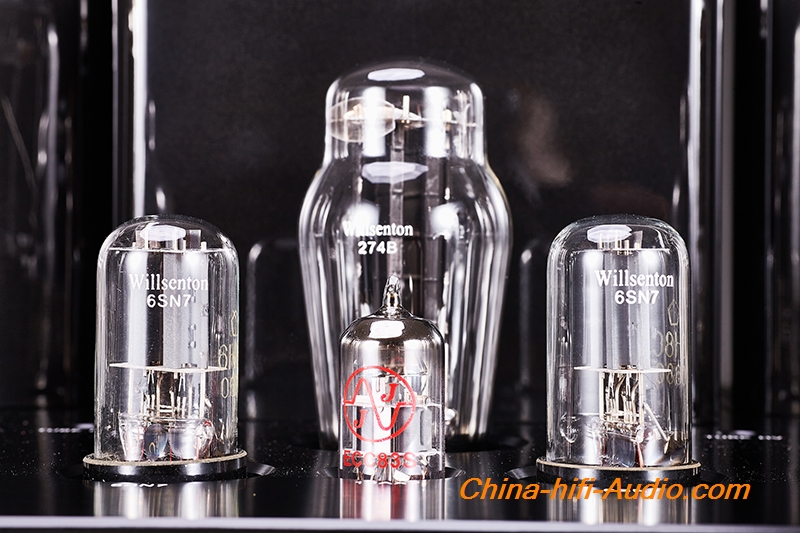

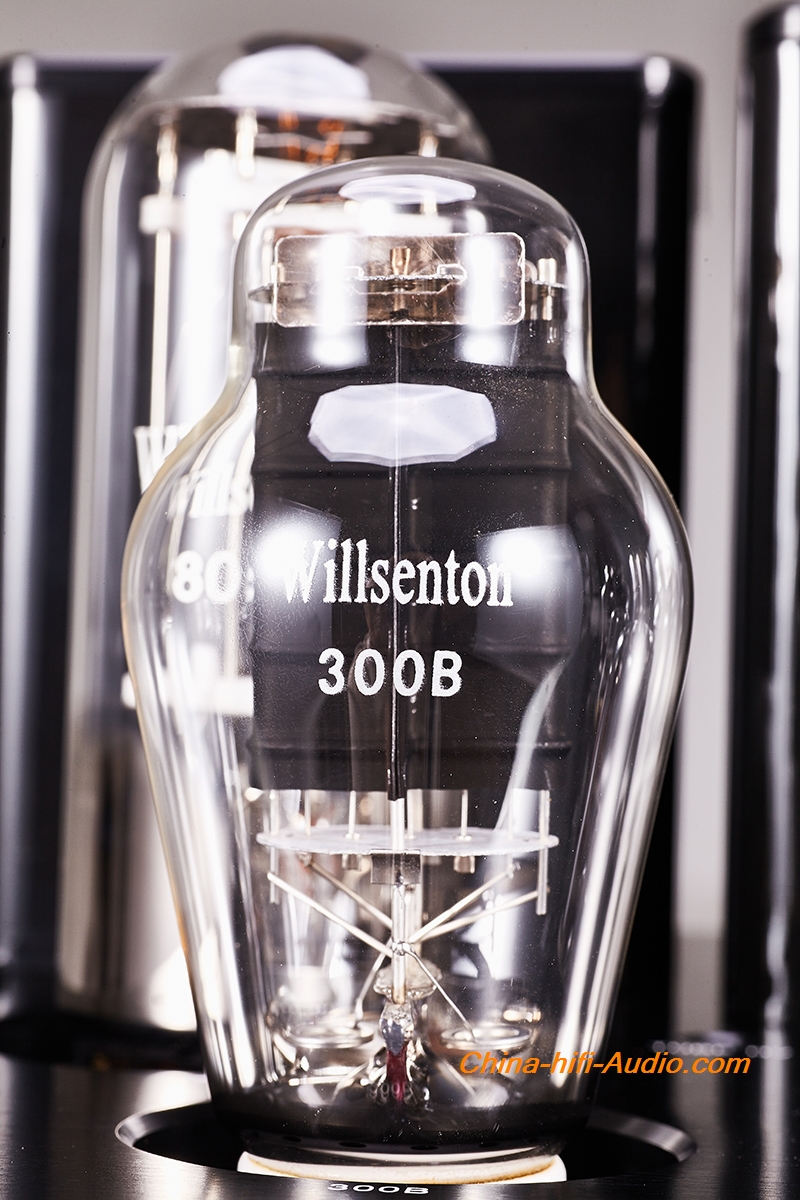

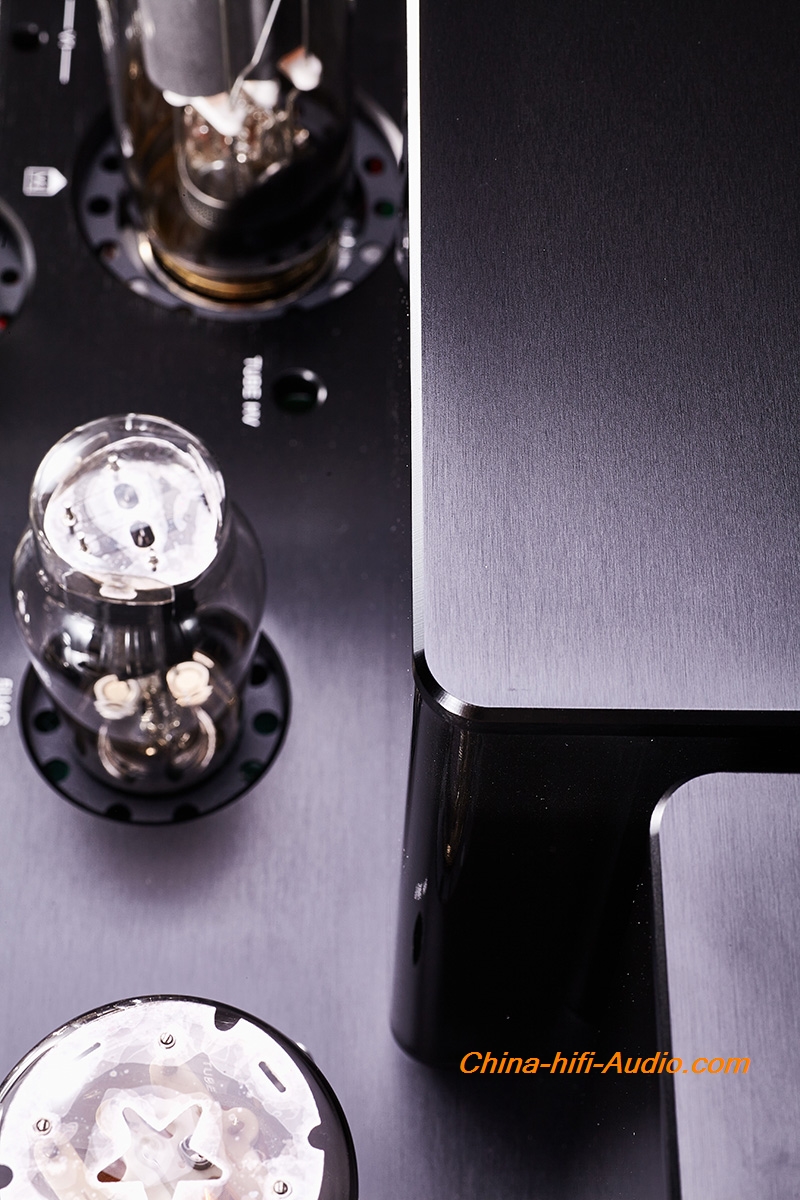

The front stage uses one 12AX7(ECC83s)(Brand JJ) and two 6SN7 vacuum tubes; the driving part uses two 300B electronic tubes to amplify the rear stage.
The front stage uses a 274B(fishhook style) for rectification
The rear stage uses two 845 vacuum tubes for class A single-ended power amplification

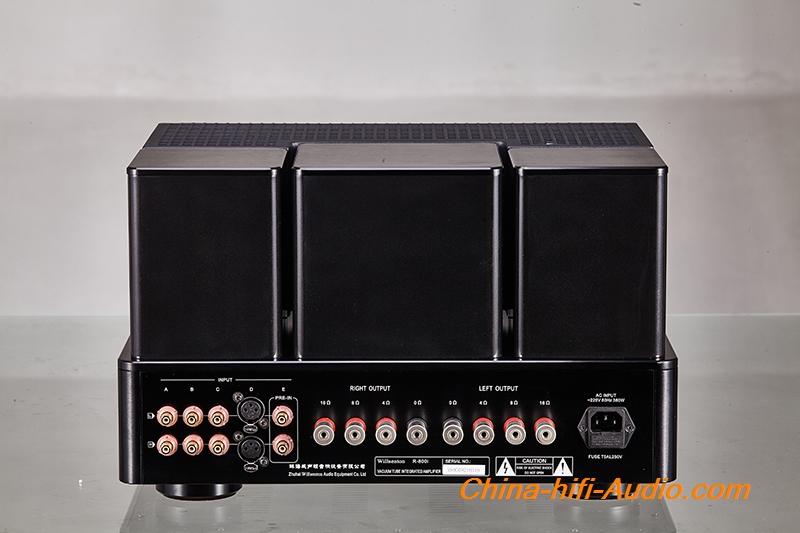

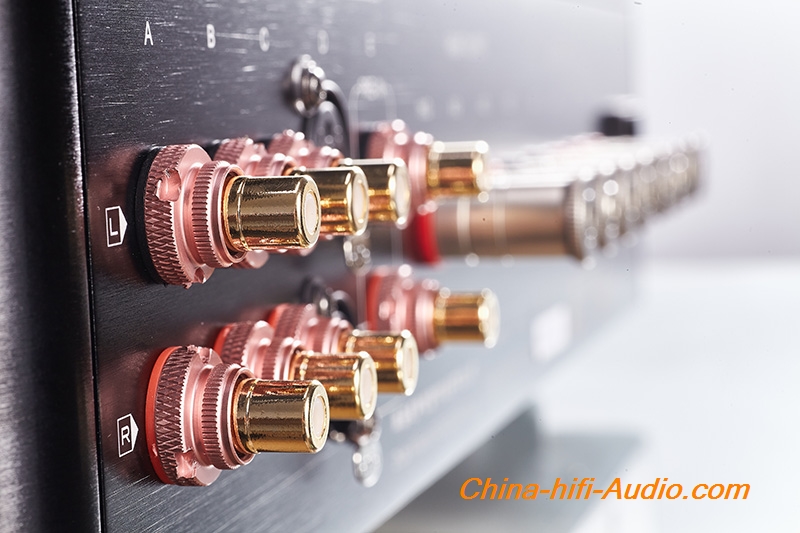

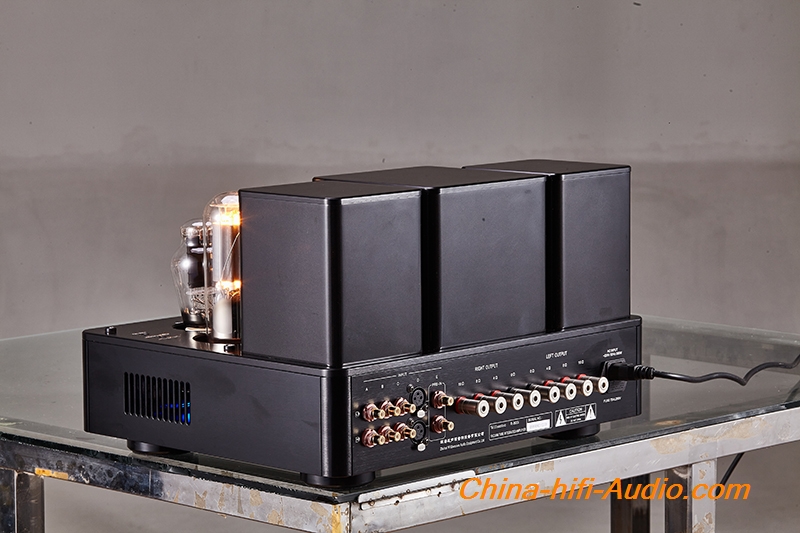

Five groups of signal input A, B, C, (D) BALANCE, E (PREIN) This machine is specially equipped with balanced input function and pure rear function
Power on mute delay function, soft-start feature to prolong tube life (about 30 seconds).

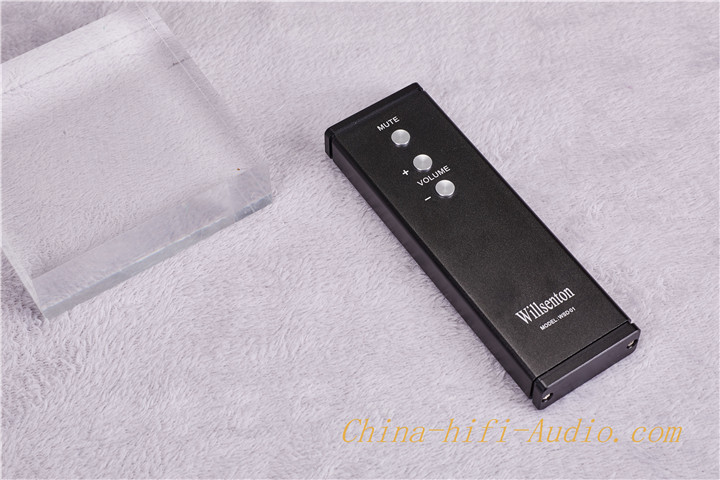

Infrared function remote control
Use Japanese ALPS high-end potentiometer

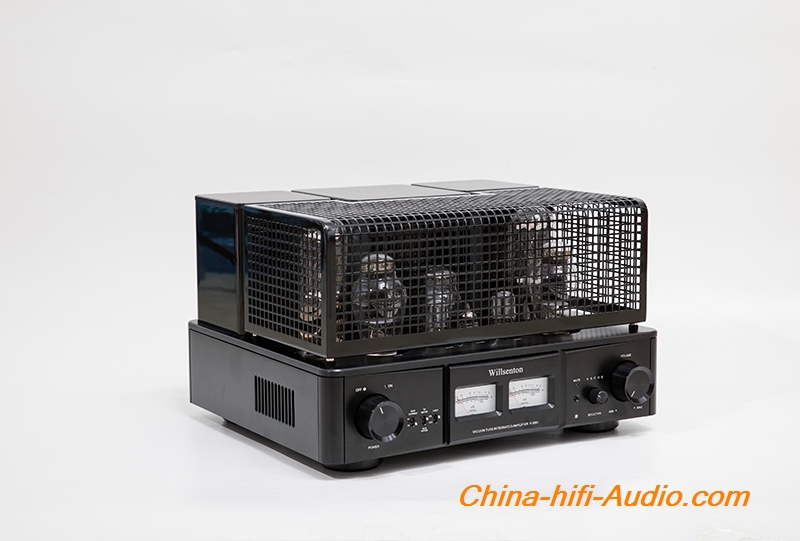

Easy-to-install plug-in vacuum tube shield

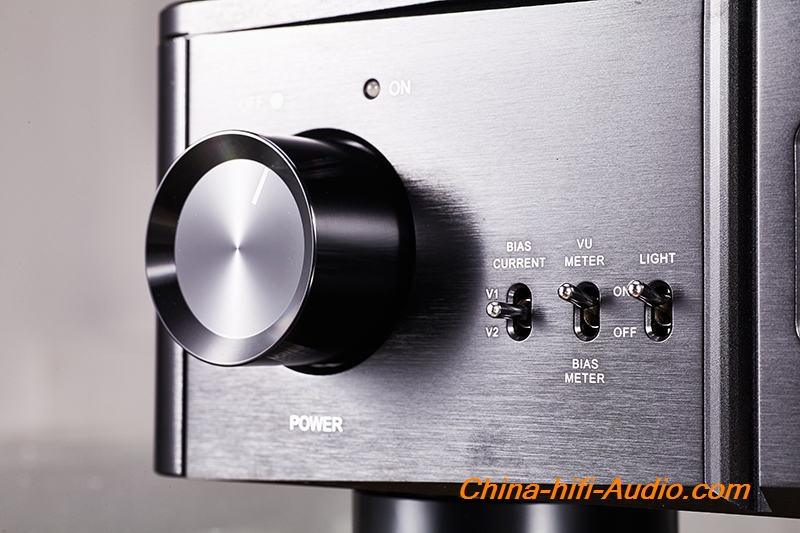

Peripheral power tube bias current adjustment function and power output level meter sensitivity switch
Negative feedback circuit design
Soft, pure and sleek sound, suitable for listening to various types of music

Product parameters:
Rated output power: 23W + 23W (RMS)
Machine frequency response: 12Hz ~ 35kHz (-1.5dB)
Input sensitivity: 280mV
Balance input: 280mV
Pure power stage: 1800mV
Input impedance: 100KΩ

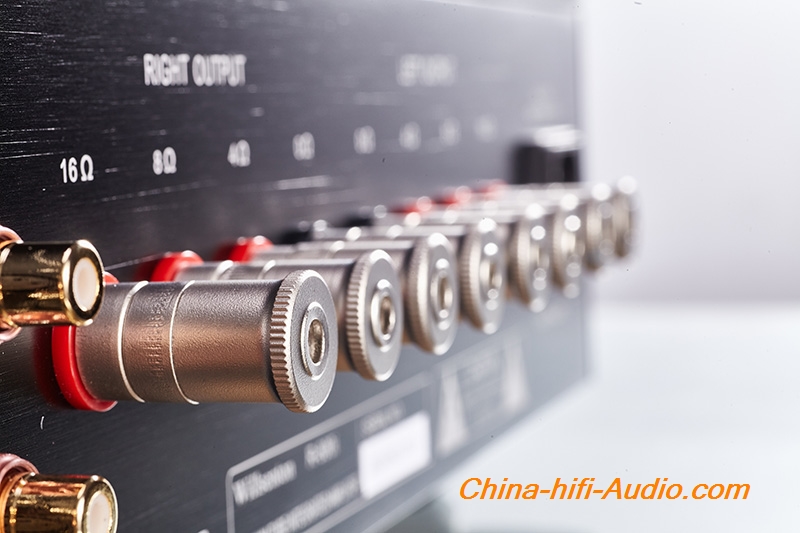

Output impedance: 4Ω, 8Ω, 16Ω
Harmonic distortion: 1% (1kHz)
Signal to noise ratio: 90dB
Left and right output balance: <± 0.5dB
Power consumption: 380W
Vacuum tube: 12AX7(JJ ECC83s) × 1, 6SN7 × 2, 274B x1, 300B × 2, 845 × 2
Working conditions: temperature: 0 ° c ~ 40 ° c humidity: 20% -80%
Storage conditions: temperature: 20 ° c ~ 70 ° c humidity: 20% -90%
Machine volume: (440 * 410 * 275) mm
Net weight: 42kg
Gross weight: 48kg
Power supply voltage: AC 100V to 240V 60Hz/50Hz, 110V, 115V, 220V and 230V version are in stock. 100V, 120V and 240V usually takes 7-14 business days to order.


The 805 tubes can NOT work on a 845 R-800i amplifier, the 845 tubes can NOT work on a 805 R-800i amplifier.
They are completely different amplifiers.

What is difference between 845 and 805 tubes?
Usually, the 845 tubes have a smooth sound, it is good at human voice, very nice sound, but the power is not too high, so, 845 fits the speakers are high efficiency.
805 tubes have a very high power, so, it work well with most of speakers(but please don't use 805 at a pair of very high efficiency speakers), and 805 is good at large dynamic musics like Symphony, jazz.

Why does a 845 R-800i amplifier cost high?
Because the tubes 845 cost higher, the others are almost the same.
