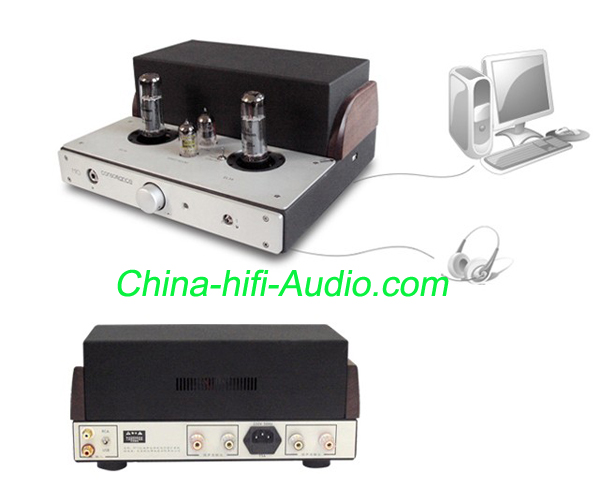

Opera M10 intergrated amplifier Multifunctional tube amp

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!


Features:

a) The circuit of the M10 is the easiest and the most classic circuit.Two triodes push a power tube and all tubes are working in a single-ended Class A status . b) M10 adds an audio decoders with USB input,which can be directly connected to the computer and laptop USB interface.Can replace sound card of notebook computer latop to get a Hifi sound.
c) Pushing triode tube chooses the common ECC83/12AX7, ECC82 / 12AU7, and users can choose 6550, EL34, 6L6GC/KT66 and other audio tubes as the end -stage power tubes. Simply by adjusting potentiometer inside the BAIS.
d) The machine also designed triode / ultra- linear state switch,and users can mix carefully according to different music genres and efficiency of different speakers, to achieve satisfactory results .
e) The M10 is particularly suitable for listening to music in a small environment, if you want to enjoy alone , you can also use its headphone output ,from 10 ohms to 600 ohms, advanced headset can be a perfect matched with it. Unique USB input , allowing the computer to connect more easily with it.

Specifications:

Output impedance: 6-8Ω
Output Power: 12W x2 (ultra-linear connection) RMS 1kHz
Output power: 8W x2 (three-pole connection) RMS 1kHz
Frequency Response: 6Hz - 46kHz-3dB (5W)
Harmonic Distortion: <1% (5W, 1KHz)
Signal to noise ratio: 90dB
Input Sensitivity: 400mV
Input ports: 1 group (RCA), 1 USB
Power consumption: 86W
Tubes: EL34 x 2, ECC82/12AU7 x 1, ECC83/12AX7x 1
Power supply voltage: 110/220V 60Hz/50Hz
(110V，120V, 127V, 230V, 240V version will
take 3-14 work days to order),
220V version is in stock
