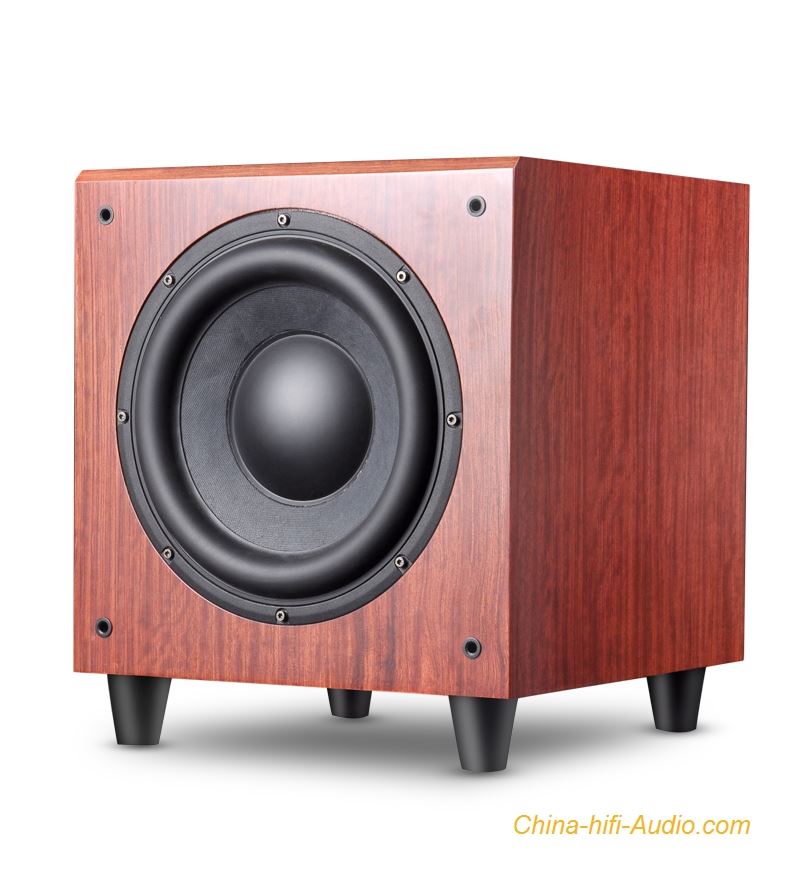

PAIYON SUB101 Double 10.5 inch subwoofer active speakers home theater hifi

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

Features:
The SUB101 dual 10.6-inch super cannon launched by PAIYON is not abandoning the combination of HIFI and cost-effective design. The engineers have been trying to integrate the ultra-low into the HIFI system. The subwoofer is the same as the bookshelf speaker, making it easy to make sounds. Throughout the subwoofer products on the market, there are many products ranging from three to four hundred yuan to tens of thousands of yuan. If it is just to add an ultra-low sound field, and not to pursue the texture of the bass and the connection of the system, then a few hundred dollars. The subwoofer is great; if you have both a powerful bass effect and a gun that connects to your existing system, it's really hard to find. The SUB101 of the sounding sound is born to achieve this combination!
A qualified subwoofer system with excellent performance is more than four parts: speaker, power amplifier, crossover and cabinet. The speaker of this project is completely imported with design materials. Refer to the famous JBL ultra-low series of more than 2,000 yuan. The magical dance series subwoofer and the Danish Peerless series subwoofer craftsmanship create a 10.6-inch subwoofer. This speaker uses a four-layer 55-core large voice coil with an aluminum alloy frame and 147mm. The huge double magnetic steel is supplemented by magnetic liquid cooling technology, high-density composite rubber suspension and folding ring suspension technology to ensure that it can be kept at high power without distortion; the British REL and American MK subwoofer circuit are used in the driving of the power amplifier. The two-stage sliding power supply processing method used in combination with the mature class AB amplifier drive circuit, high-power pure copper special ring cow, RM military-grade large reservoir filter capacitor, using imported components, whether in low power or high power There is a steady stream of powerful power output to the speakers. In the processing of the signal source, three input modes are adopted. The three input modes are respectively processed by the respective operational amplifiers, and the signals of the respective signals do not interfere with each other in an ultra-low range of 30 to 120 Hz. The cabinet is made of AAA grade high-density board thickened and reinforced, and it is decorated with imported veneer and is very high-grade. SUB101 abandons the reverse design of the ordinary subwoofer, but at the cost of using the same passive radiator as the main speaker, the main speaker to the ground + radiator front, making the bass dive more shocking, less distortion, set off The sound field is more solid and steady.

Instructions:

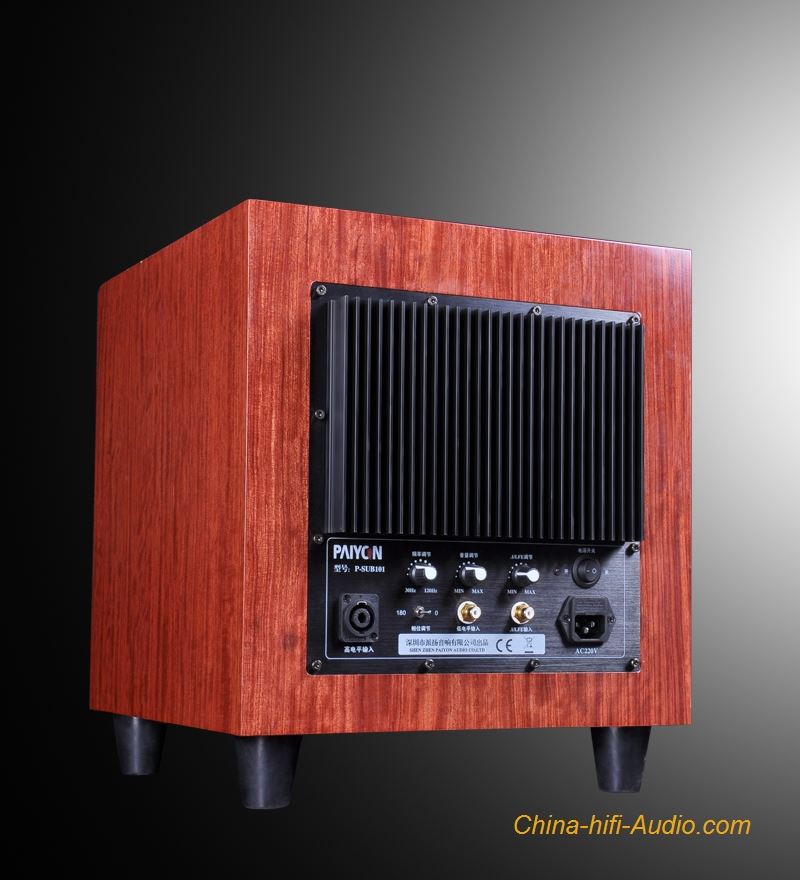

SUB101 consists of three input modes, high level input, low level input and .1LFE input:

Use method one:
When you connect the SUB101 to your normal HIFI two-channel system for boosting the system's bass, you can use a high-level input. The system is equipped with a dedicated high-level input cable, plugging one end of the cable into the subwoofer. The "high-level input" socket of the ministry is rotated and tightened, the other end is stripped of the wire, the black wire is connected to the output terminal of the power amplifier, and the other two wires are respectively connected to the positive pole of the left and right channel outputs, according to their actual conditions. Need to adjust the appropriate volume level with the environment system, adjust the frequency, adjust the phase switch and the existing HIFI system, you can enjoy the shocking bass effect.

Method 2:
When you connect the SUB101 to your normal HIFI two-channel system to boost the system's bass, if your preamp has a separate ultra-low signal output, you can use a coaxial RCA cable (wired from Ready) Connect the signal to the "low level input" jack of the SUB101. According to your actual needs and the environment system to adjust the appropriate volume, adjust the frequency, adjust the phase switch and the existing HIFI system, you can enjoy the shocking bass effect.

Use method three:
When you connect the SUB101 to your home theater multi-channel system (eg 5.1; 6.1; 7.1, etc.) to enhance the use of the system bass, you can use a coaxial RCA cable (wired self-supplied) from your DVD. , Cinema Center Amplifier or other audio source independent. 1 bass signal output, the signal can be connected to the SUB101 ".1LFE input" jack. According to the actual needs of the environment and the environment system, adjust the appropriate volume. 1LFE volume, adjust the frequency, adjust the phase switch and the existing system, you can enjoy the shocking bass effect.

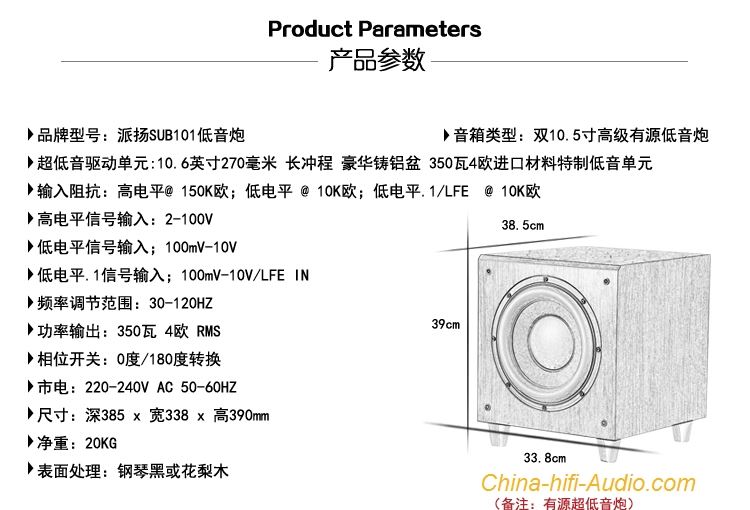

specification:

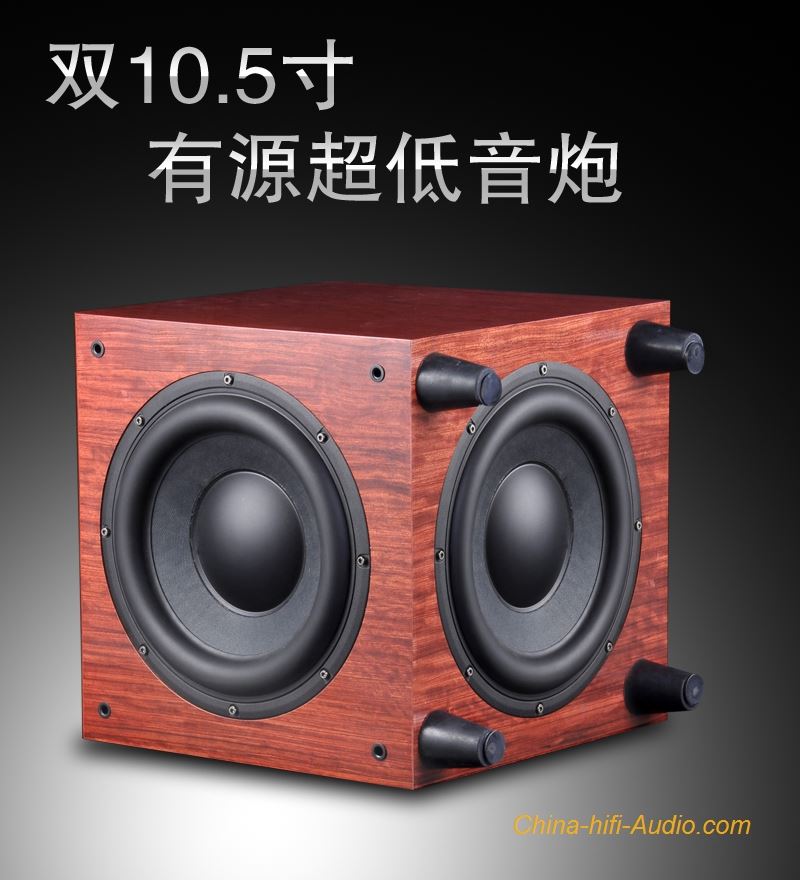

Type: Double 10.6 inch advanced active subwoofer
Subwoofer drive unit: 10.6" 270 mm long stroke luxury cast aluminum basin 350 watts 4 ohm imported material special woofer
High level signal input: 2-100V
Low level signal input; 100mV-10
Low level .1 signal input; 100mV-10V/LFE IN
Input impedance: high level @ 150K ohm; low level @ 10K ohm; low level.1/LFE @ 10K ohm
Frequency adjustment range: 30-120HZ
Power output: 350 watts 4 ohms RMS
Phase switch: 0 degree / 180 degree conversion
Mains: 220-240V AC 50-60HZ
Dimensions: 385 x Width 338 x 390 mm
Net weight: 20KG
Surface treatment: piano black or rosewood
