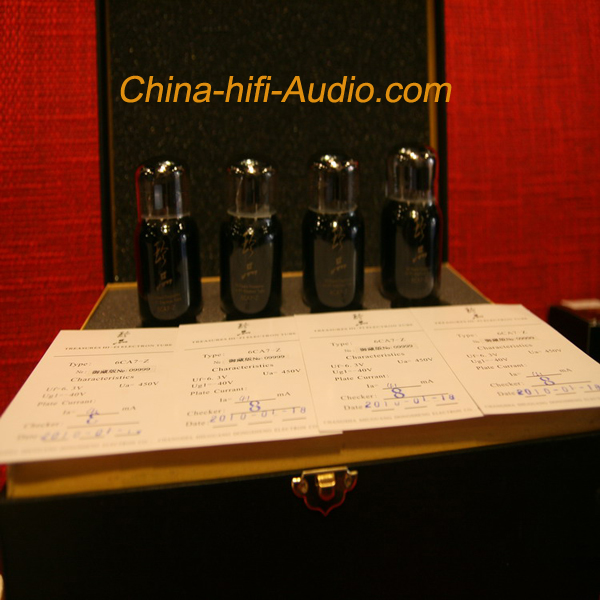

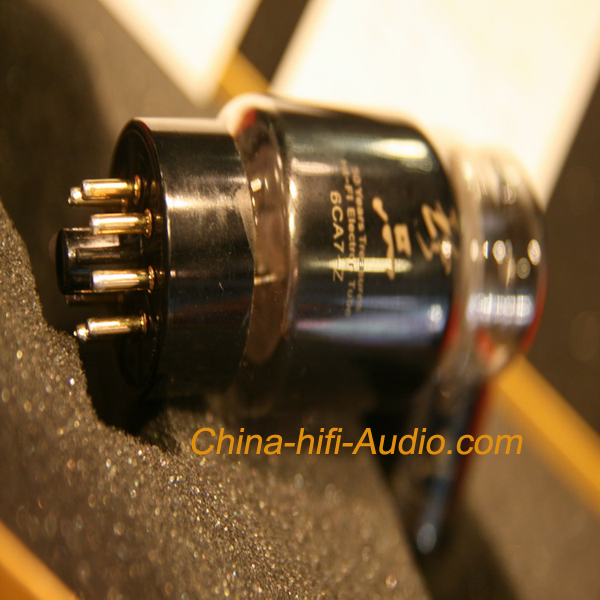

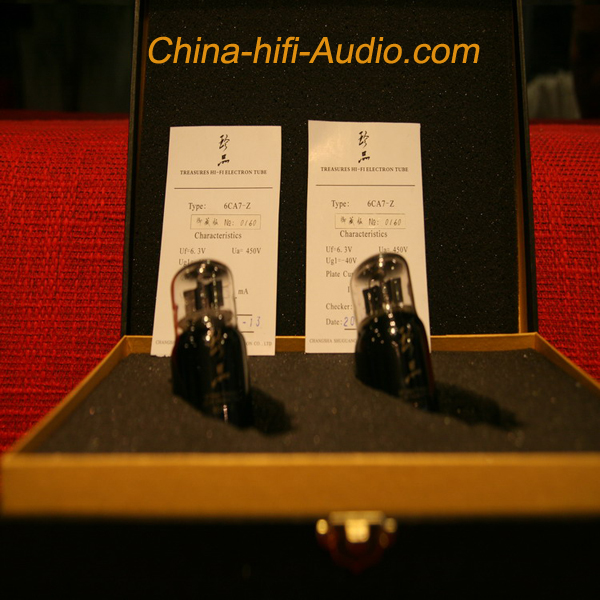

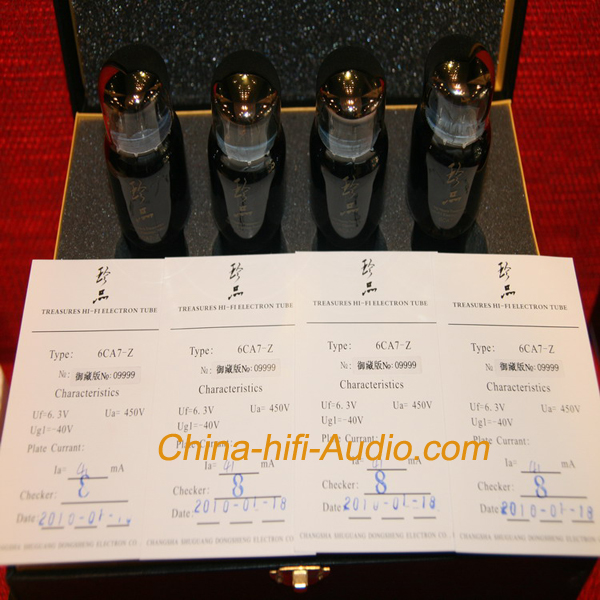

ShuGuang Treasure 6CA7-Z hifi Vacuum Tube Collection Version a pair
100% Brand New
The price is for 1 pair, if you buy 2pair(4pcs), we will
send the Factory full matched tubes to you.
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Parameter：
High Polymer Compound Carbon (HPCC) coating is for the first time used on vacuum tube production. Compared to traditional carbon spray technology, HPCC coating will allow greater concentration of electrons, enhance and maintain stability of the electron flow, maximize “secondary electron emission surpression” from the glass enclosure, in turn reduce effects of electron swirl which generates internal noises from the vacuum tube itself.
‘Super Alloy’ technology is for the first time used in constructing vacuum tube. ‘Super Alloy’ technology was invented and first used in aviation, aerospace, military and other high-tech area. After 3 years of testing under extreme conditions, Shuguang has successfully adopt such technology in vacuum tube constructing to achieve directional solidification and single crystallization, greatly improving the ability of electron emission and electron current stability.
■Improved vacuuming technology during production process to clear signal background
■Key assembling process is manually completed by a small number of senior technicians with 30+ years of experience.
■60 extra parts selection and matching processes are adopted to ensure premium quality tubes, compared to the Shuguang generic clear glass tubes.
■Premium Grade matched right out of factory to serve outside of China market
■Interchangable with EL34 family of tubes
■Suggested burn-in time 150-300 hours. Most changes happen in the first 150 hours.
Reviewer Nel Ferre says: “Beyond good… these are great!” ”I found that I preferred the Treasure Series 6CA7 to the regular grade Shuguang KT-88 in my system for their extended highs and midrange beauty. I appreciated the Treasure Series’ bass texture, but I found myself wishing for more authority. That is where the Treasure KT88′s extra bass grunt came into play. I found these to be my favorite of the lot, by a big margin. I found them to be the most balanced of the tubes I have on hand top to bottom, with incredible detail. Dynamics, both micro and macro… check. The Treasure Series KT88 really has it all — just like a Black and Tan. Keep in mind, I am not slighting the Treasure Series 6CA7 — I still preferred them to my usual tubes. This is high praise”.
“Shuguang’s Treasure Series 6CA7-Z and KT-88Z tubes are both stellar performers. ….While the Treasure Series 6CA7 is the only EL34 type tube that I have ever heard that I could easily live with long term, their KT88s (to my ears and taste) are even better yet. Though I prefer the KT88s both models are very highly recommended”.
Some precautions about using high voltage power tubes:
Unlike other vacuum tubes such as KT88 or EL34, which typically run at 450V plate voltage, high voltage power tubes such as 845, 805 and 211 run at plate voltage 900V or even higher depending on your amp design. Due to the high voltage in the circuit, biasing an 845 / 805 or 211 amp improperly may expose you to lethal high voltage causing instant death. If you haven’t owned any tube before, we recommend you not to start with a 845 /805/211 tube amps until you get comfortable with maintaining a lower voltage tube amp such as EL34 / KT88 or 300B amps.
Always bias your amplifier by strictly following your amp manufacturer’s instructions. Do not bias the plate current over suggested reading (usually in mA) in any case. This will cause tube overheat, tube failure and burning out other parts inside your amp.
High voltage tube has maximum rating of plate heat dissipation (see specification link on each tube listing page). Do not run your amp at a plate current that could cause the tube plate turn red hot. When you start using a new tube, try it first in a room with dark light so that you can observe the plate color closely. If the plate turns red hot, turn down your amp bias immediately until the plate no longer show overheat symptom. Bias the two channel’s plate current readings to the same safe level for both. It’s not recommended to have two channels biased at different level.
Plate heat dissipation (measured in watts) = plate voltage (in Volt) x plate current (in mA) / 1000
For example, if a tube amp has plate voltage of 960V on the 845 tube by design, and the 845 tube has max plate heat dissipation rating of 75w, your maximum plate current bias reading should be 78mA. If the amp has plate voltage of 910V by design, your maximum plate current bias reading should be 82mA. It is not recommended run a tube constantly at its peak rating so ideally you should set your plate current bias at about 10% below the maximum. This will prolong your tube life and ensure a safe and long term enjoyment of your amp.
Although each tube amp has its designed plate voltage for tubes at a fixed input power voltage, a variation of more than 5% of your input power voltage will cause the plate voltage for tubes vary greatly (for example, swing from designed 910V to 950V or even higher). In such a case, your tube could be overheated and fail in a very short time. It’s strongly recommended to use a power conditioner properly designed for audio with your tube amp to reduce the possibility of such an accident and financial loss.
An excellent tube amp design along with poor selection of parts and poor production quality control could also cause your amp to overheat a tube and cause it fail prematurely. Always choose amplifiers made properly for your local voltage from a reputable reseller. In the past, we have seen many after-market modified Chinese tube amps which have been sold into North America with main transformers not designed for the right voltage, and cause not only inferior performance, but also tube failure or burning up components.
Last but not least, never leave your tube amp unattended for extended period of time. Never leave a 845/805/211 high voltage tube amp on without anyone in the room.
Due to the complicated feature of a tube amp’s design and user’s settings and maintenance vary greatly, tube manufacturer only warrant a vacuum tube for 30 days. If a tube has inherent manufacturer defect, it will show in the first 30 days of normal use and it will be covered by warranty. Improper usage including using in an amp not suitable for the tube or set bias too high or too low, input power spikes etc will result in tube failure prematurely – such incidence will not be covered by tube manufacturer’s warranty.
