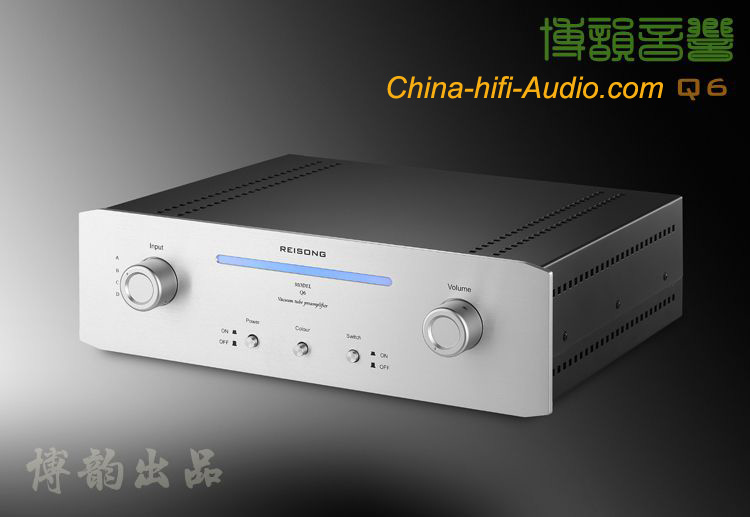

Reisong Q6 Pre-amplifier Marantz 7 circuit M7 Tube 12AX7 Preamp BoyuuRange
Brand New
Declaration
Features of BOYUURANGE Q6 M7 Circuit upgraded version :

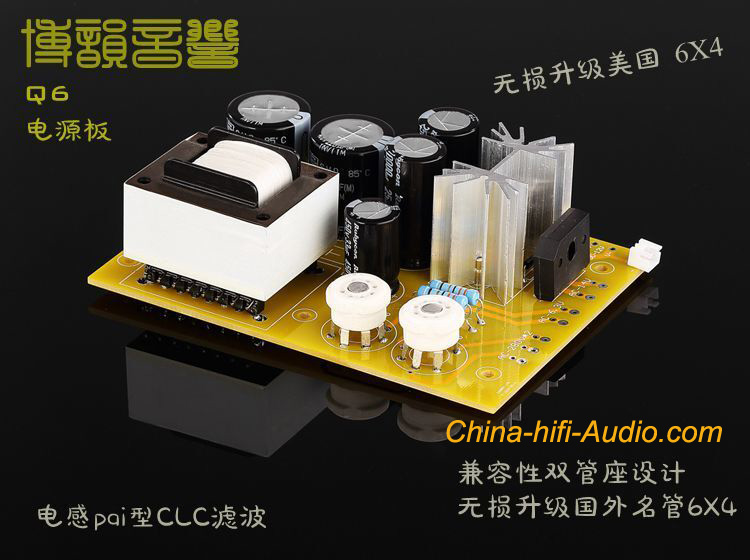

A.Vacuum Tube Rectifier(6Z4 rectifier tube ).
B.Vacuum tube high voltage voltage stabilization. 6P6P (6V6) Tube power supply adjustment, 6J1 Tube Voltage proportional amplification.

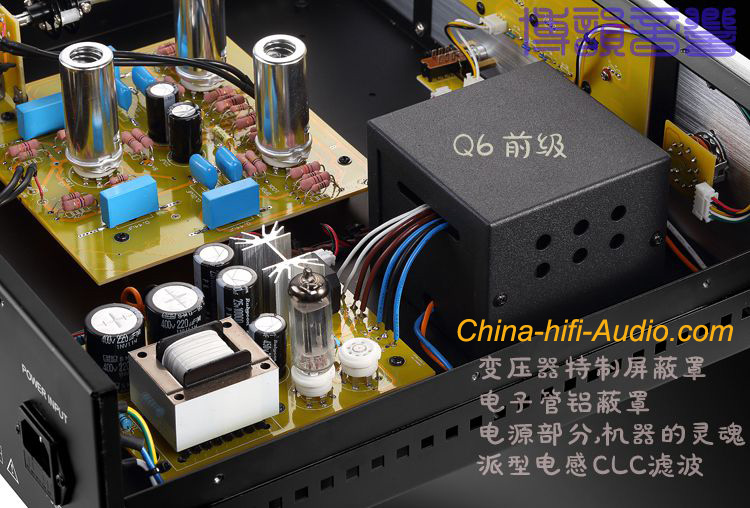

C.The power supply part adopts CLC filtering.

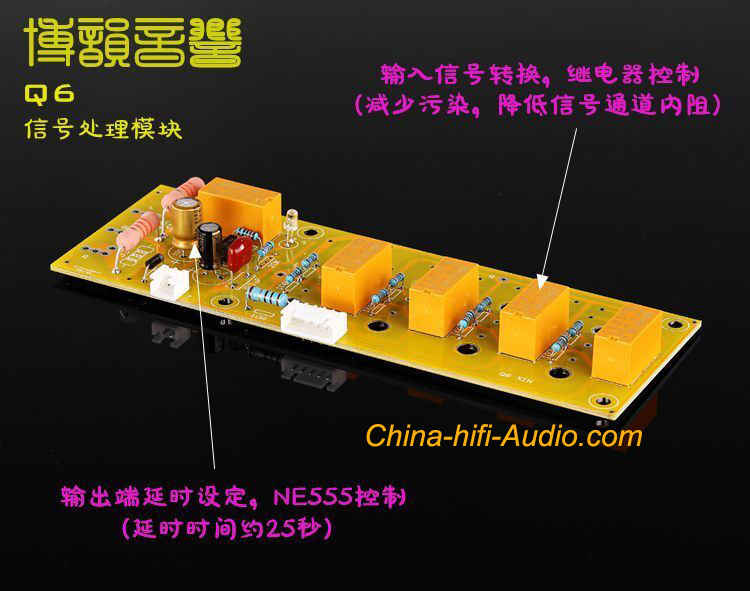

D.Boot audio delay output, and the delay time is 25-35 seconds.

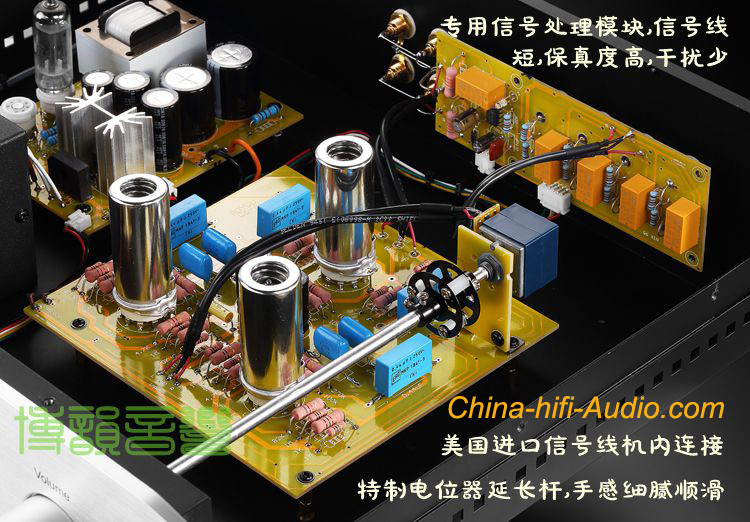

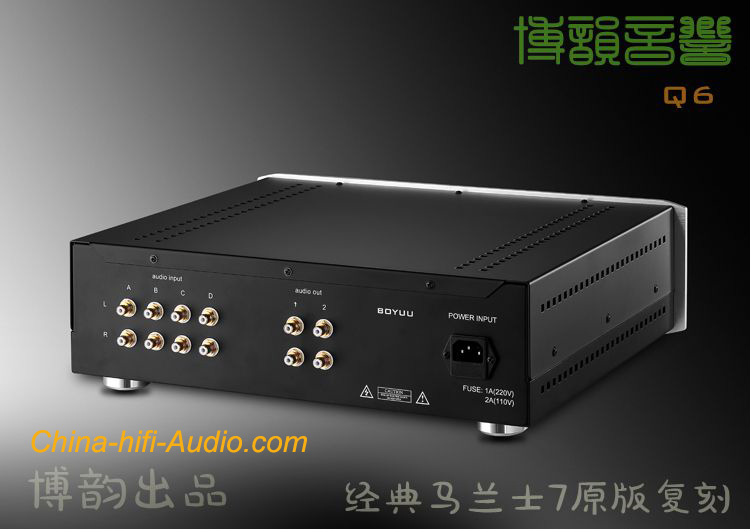

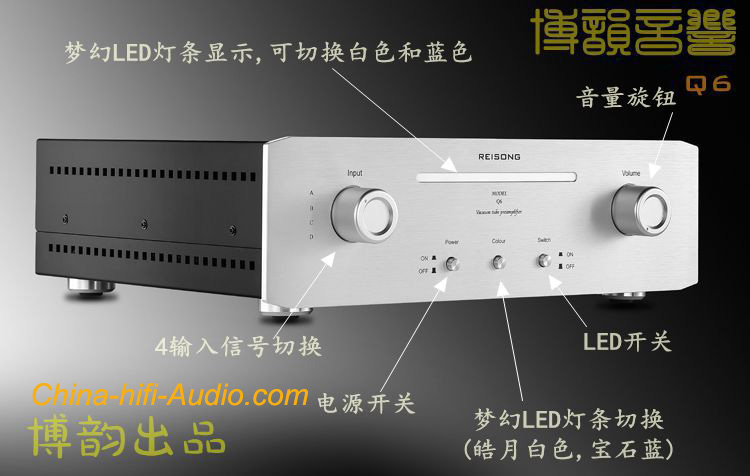

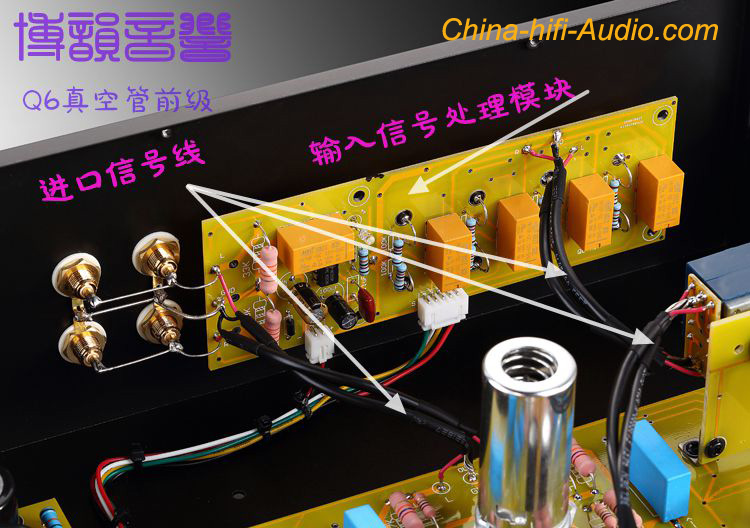

E.4 groups of audio input, relay signal switch, reduce signal interference, shorten the signal channel path.

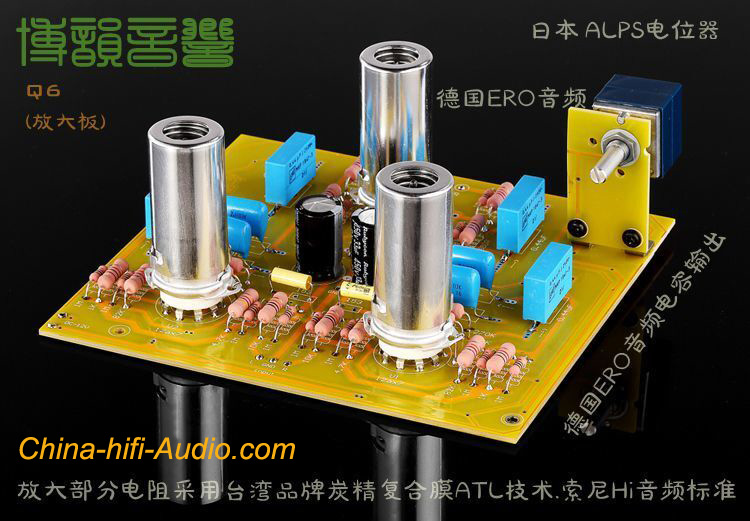

Vacuum Tubes: 12AX7 * 3, 6Z4 * 1,6J1 *1,6P6P (6V6) *1 (6J1 *1, 6P6P (6V6) *1 tube only for BOYUURANGE Q6 high voltage voltage stabilization version)
Specification:
Frequency response: 19Hz-43kHz ± 0.5dB
Output voltage: 16.5V (Max)
Harmonic Distortion: ≤ 0.2% (1kHz 5V)
Input sensitivity: 1000 mV
Signal to noise ratio: 92dB
Input impedance: 100 K ohms
Output impedance 1000 ohms (theoretical data)
Tube: 12AX7 Tube * 3, 6Z4 Tube * 1,6J1 Tube*1,6P6P (6V6) Tube*1
Size : 420mm(W)* 380mm(D)* 135mm(H)
Package Size: 530mm(W)*480mm(D)*250mm(H)
Gross weight: 14kg
Input Power Voltage: AC100V - AC240V(60Hz/50Hz)(100V, 110V, 120V, 127V, 230V, 240V version will take 3-14 work days to order. 220V version is in stock.
