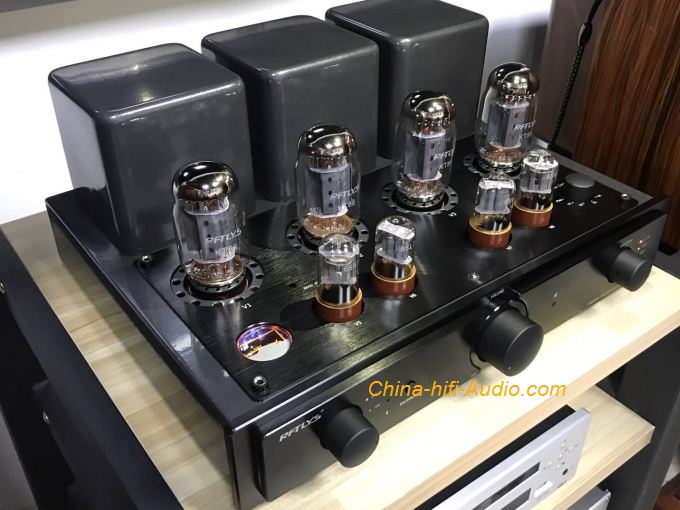

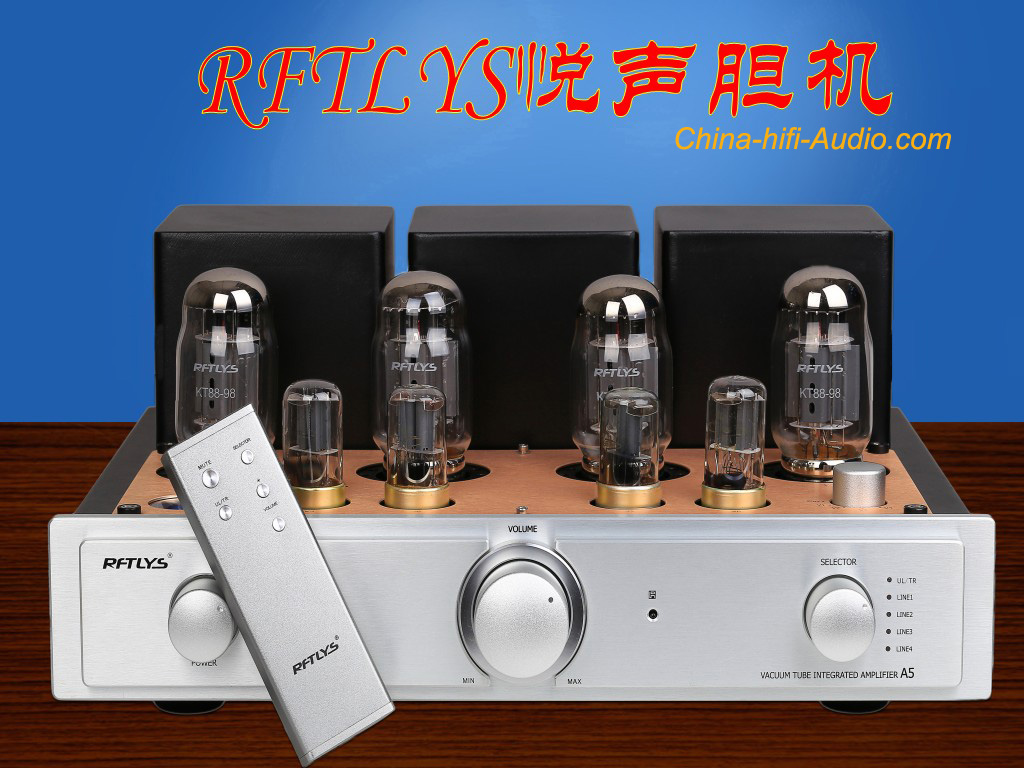

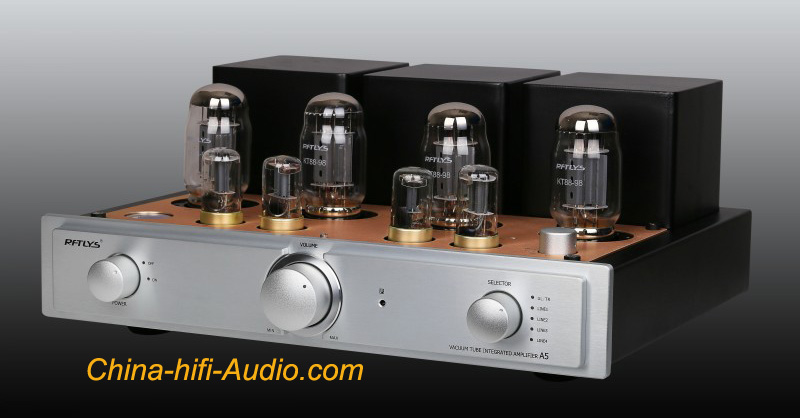

RFTLYS A5 KT88*4 Vacuum tube intergrated amplifier 2 Mode to listen

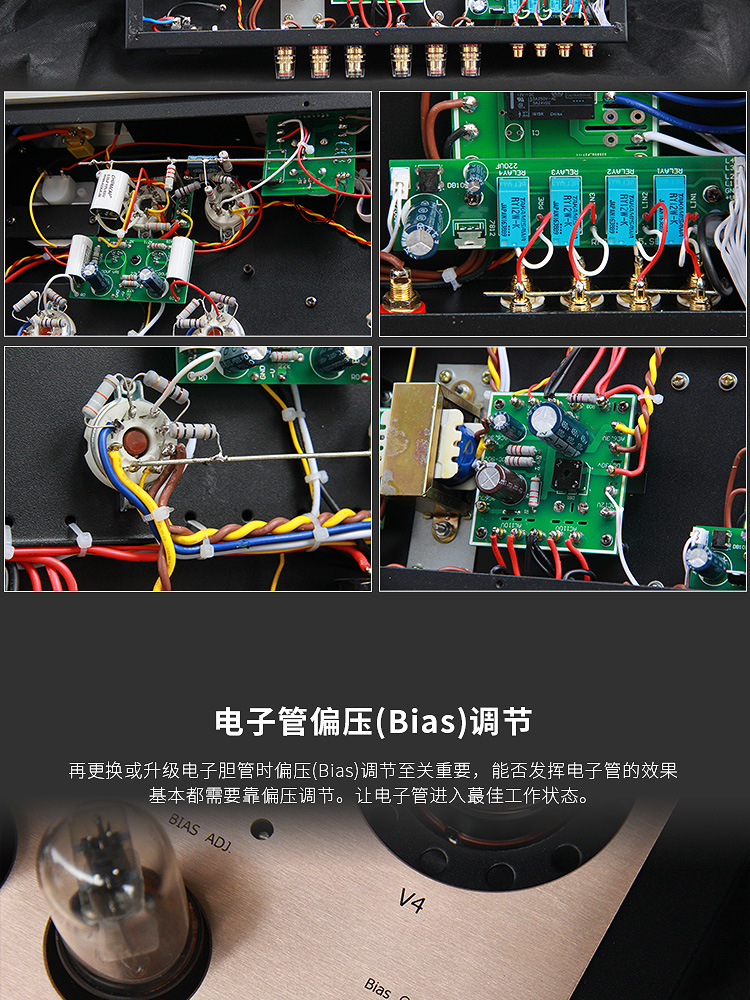

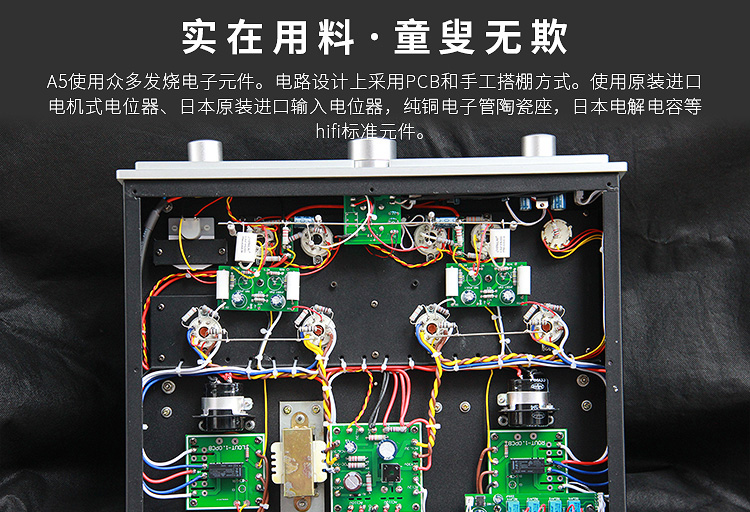

Point to point hand soldering circuit，

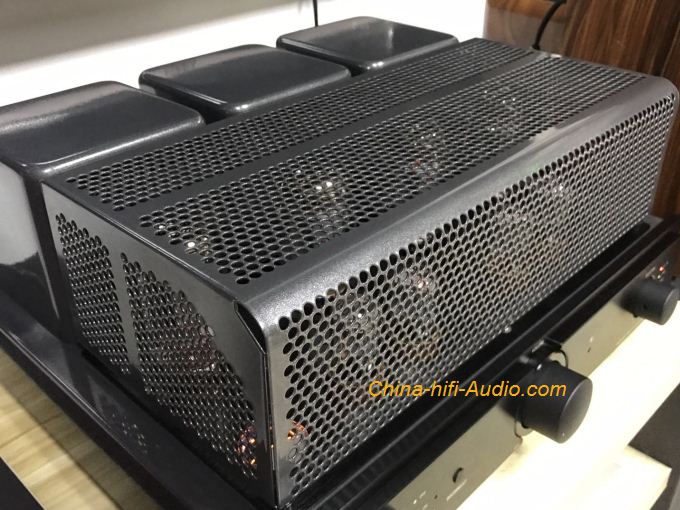

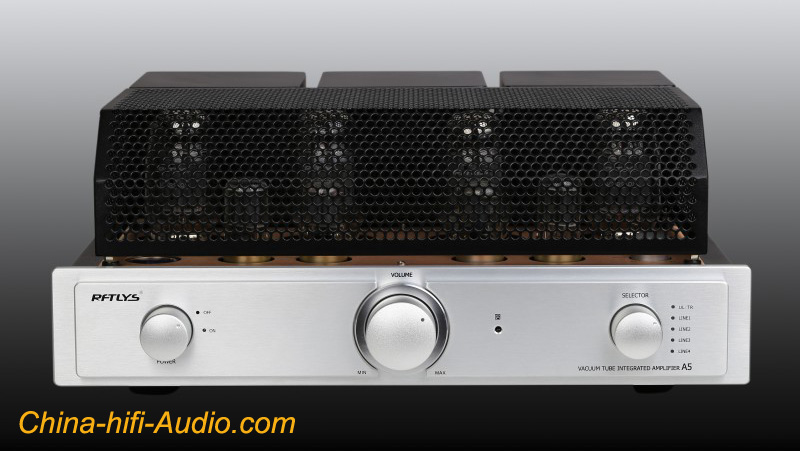

Come with tube cage cover and remote control
There is a transfer switch to easy choose utlra-linear mode or triode mode to listen.
This the updated version with Bluetooth input
Declaration
Specification:
Output power 45W * 2 (utlra-linear mode): 25W * 2 (triode mode) (there is a transfer switch to easy set)
Tube: KT88 * 4, 6N8P * 2, 6N9P * 2
Power consumption: 300W
Frequency response: 10Hz ~ 30KHz
Total Harmonic Distortion: ≤1.2% (1KHz)
Input sensitivity: 300mV
Input impedance: 100KΩ

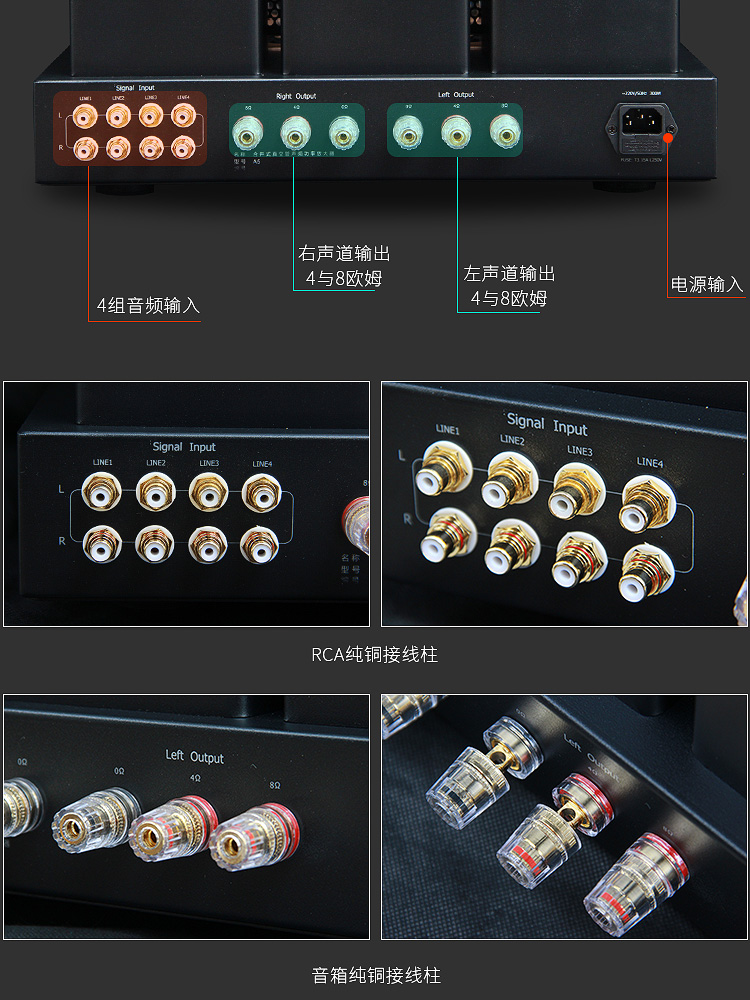

Output impedance: 4Ω, 8Ω
Signal to noise ratio: ≥ 90dB (A weighting)
Size: 435 (MM) × 400 (MM) × 195 (MM)
Net weight: 23kg
Gross weight: 25kg
Input Power Voltage: AC100V - AC240V (60Hz / 50Hz) (100V, 110V, 120V, 127V, 230V, 240V version will take 3-14 work days to order. 220V version is in stock.
