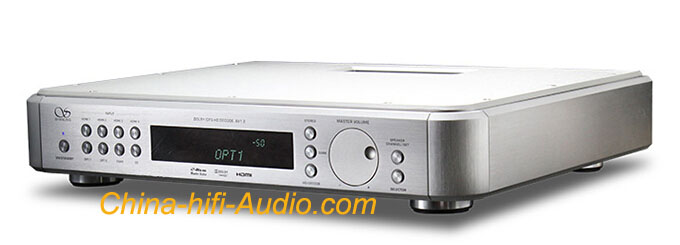

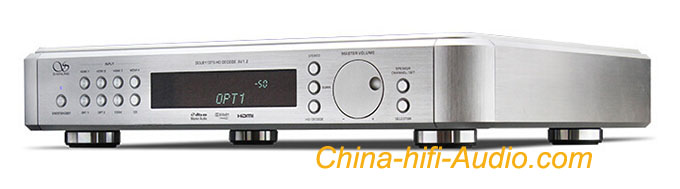

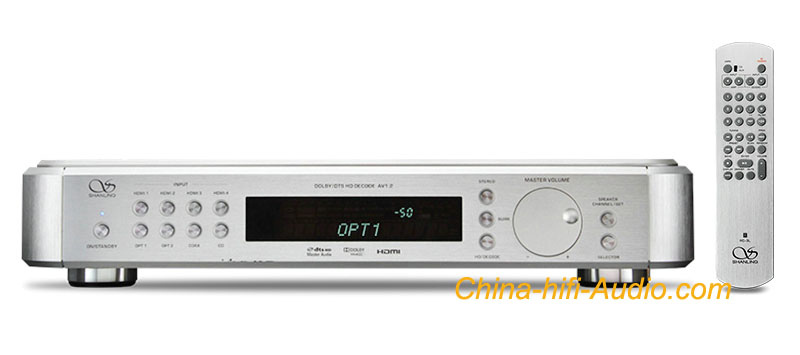

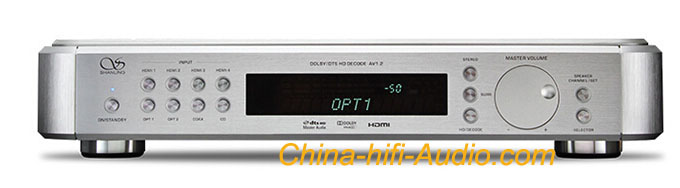

hanling AV1.2 HDMI DTS Blu-ray AV Decoder 3D Video Audio AC3 Hi-Fi 7.1 Channel 5.1 DAC preamp
The best decoder for your Home Theater system, so wonderful Video, hi-fi audio nice sound 7.1 and stereo.
Brand new 2014
Declaration
Features of Shanling AV1.2:
HDMI 1.4a (1080P) version, support for 3D TV and Blu-ray disc player body
Dual-core DSP decoder can decode:
Dolby True HD
DTS 5.1 High Resolution
Dolby Digital Plus
DTS - HD Master Audio
Dolby Digital

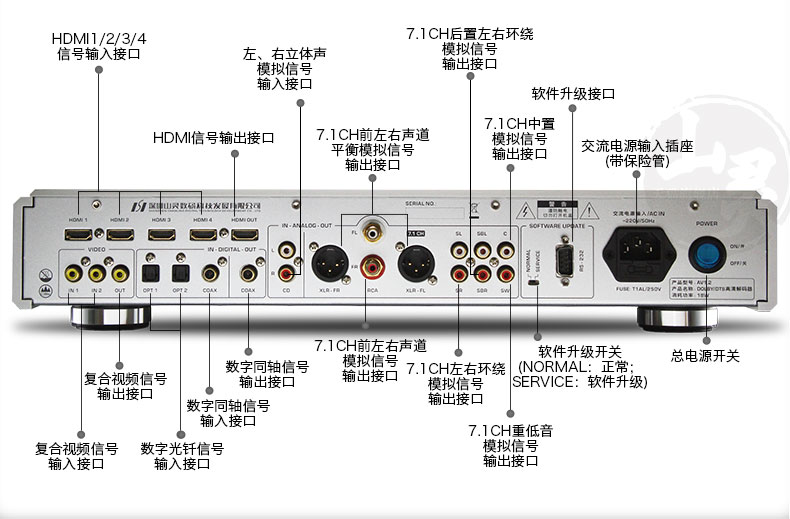

Digital audio input: 1 * Coaxial, 2 * Fiber

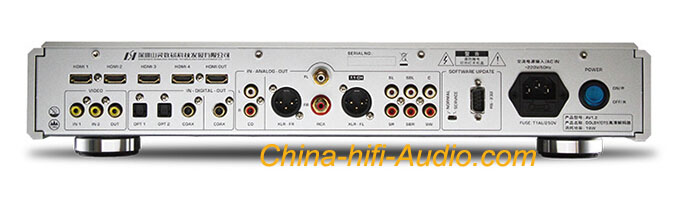

4 HDMI inputs, 1 HDMI output
Analog Audio Output: 7.1ch, stereo
Standby power consumption is less than 1W
Technical parameters of Shanling AV1.2:
Audio section:

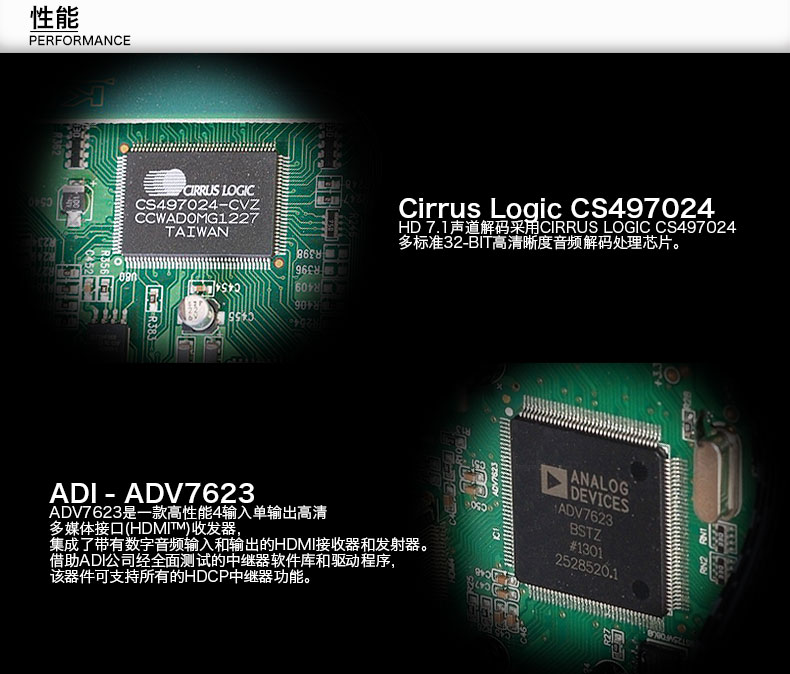

HD 7.1 Channels Sound DAC used a 32 Bit HD chip Cirrus Logic CS497024
Gain:> 12dB
Nominal input level: 500mVrms
Nominal output level: 2Vrms
SNR: unbalanced outputs ≥102dB (A-weighted) balanced output ≥106dB (A-weighted)
Channel Separation: ≥85dB
Total Harmonic Distortion: THD + N≤0.006% (A-weighted)
Frequency response: 10--50KHz (+ 1 / -3dB)
Digital input sample rate support: 44.1K - 192K
Video section:
ADI - ADV7623 HDMI(TM) Transceiver and HDCP Repeater
Video input support:
HDMI / DVI 480P, 576P, 720P50, 720P60, 1080i50.1080i60, 1080P50, 1080P60, 1080P24
Video output support:
HDMI / DVI 480P, 576P, 720P50, 720P60, 1080i50. 1080i60, 1080P50, 1080P60, 1080P24
General:
Power consumption: 18W
Standby power consumption: <0.5W
Volume (W x D x H): 460 x 374 x 89mm
Weight: about 8 Kg
Gross Weight: 12 Kg
Power supply voltage: 110V - 240V 60Hz / 50Hz
(100V, 110V, 120V, 127V, 230V, 240V version will
take 3-14 work days to order)
220V version is in stock
