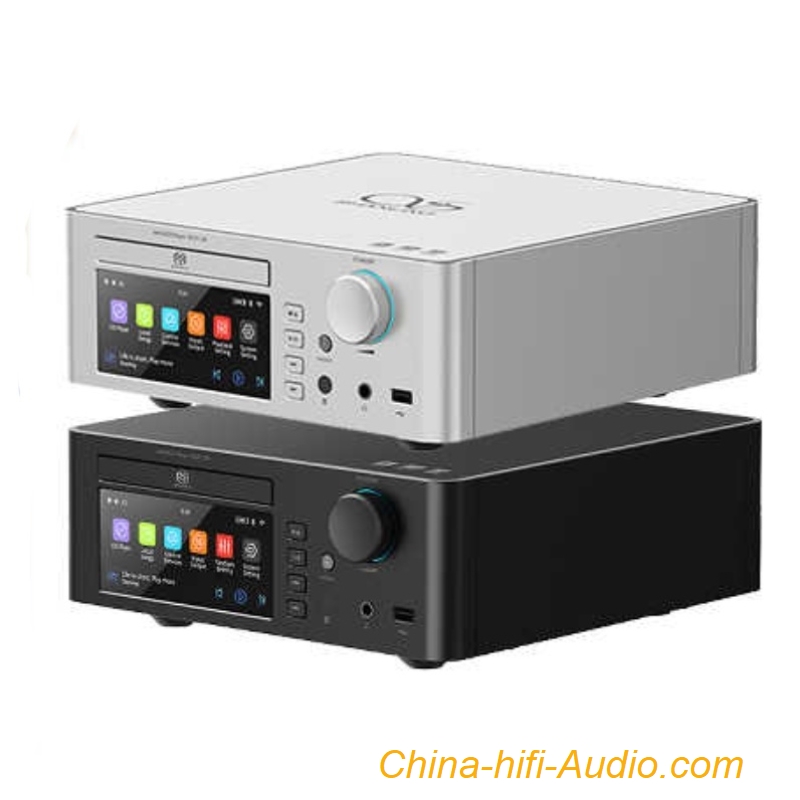

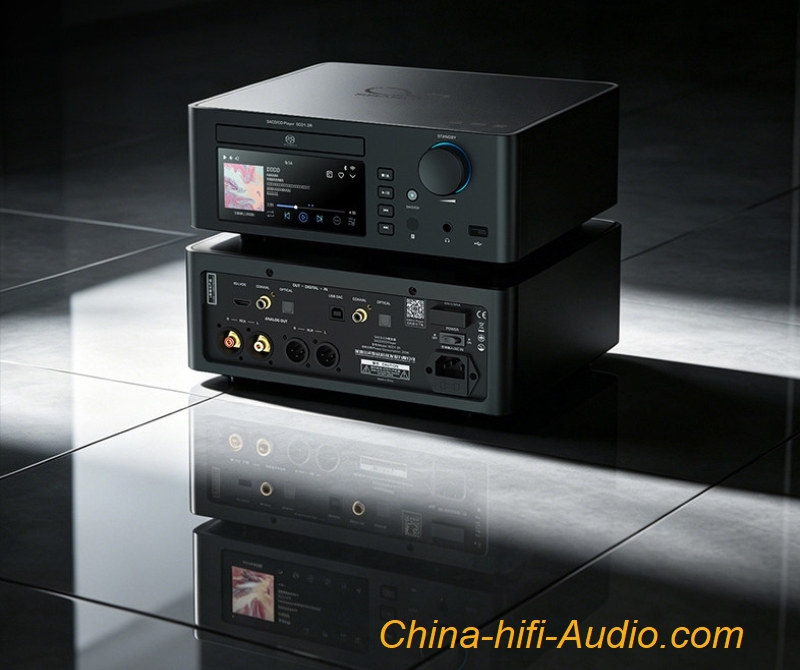

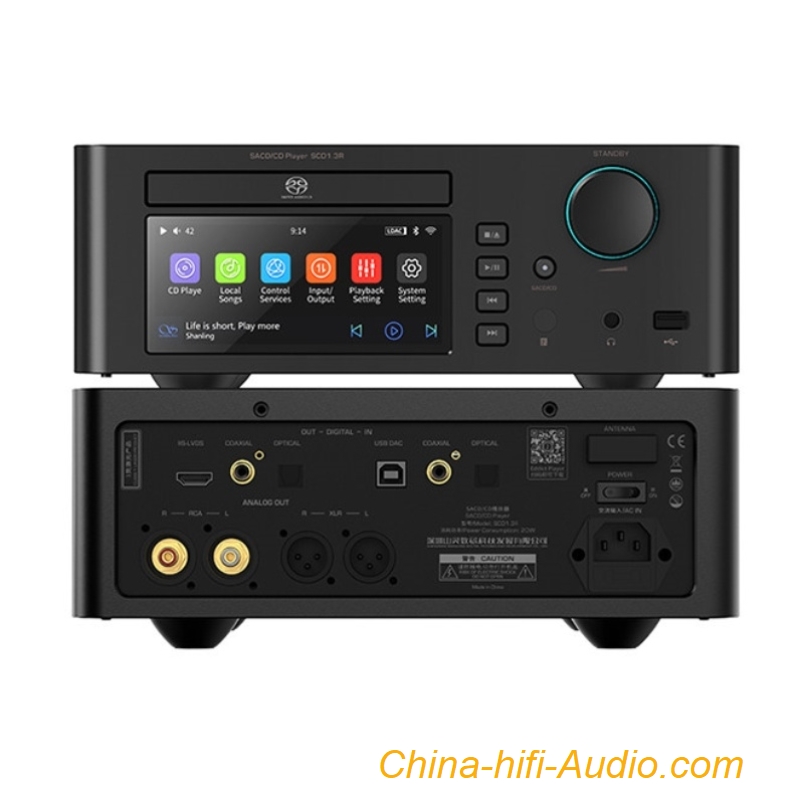

Shanling SCD1.3R R2R SACD CD Player Hi-Res & DSD Support Dedicated Headphone Amplifier
100% Brand New
Shanling SCD1.3R shines as a High-End DAC playing SACDs, but it was designed as a multifunctional source component for a wide range of Hi-Fi setups. Apart from SACDs, you can enjoy playback from local USB drives, convenient Bluetooth streaming or even DLNA, Airplay and NAS support. And while its single-ended and balanced outputs will be matching partners for many audiophile amplifiers or active speakers, the included digital inputs can feed even better DACs, taking advantage of the new advanced I2S support.
Declaration
All items are guaranteed to be 100% brand new in the original box.
ONE Year Warranty!!
Product features:
Dimensions:280×280 X96mm(LxWxH)
Weight 5.7kg
Power Consumption: 20W
Processor: Ingenic X2000

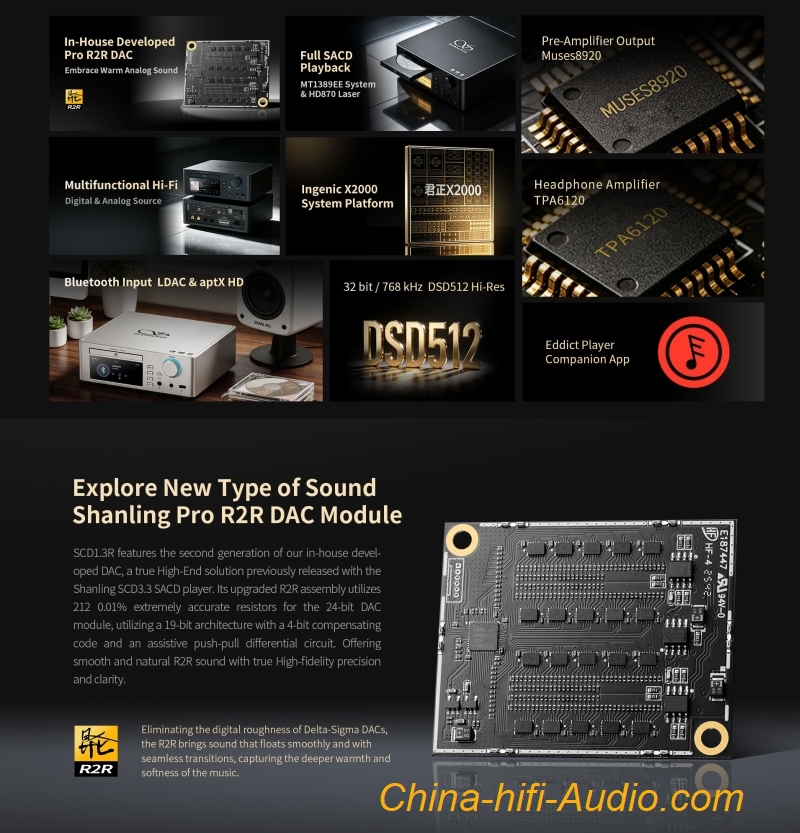

DAC:Shanling Pro R2R DAC
USB Input:XMOSXU316
Bluetooth: Bluetooth 5.0 Receiver
Bluetooth Codec Support: LDAC, aptXHD,aptX, AAC, SBC
Display: 5.1-inch LGTouch Screen (854*358)
Controls:Touch Screen, Physical buttons + Volume Wheel,Remote Control, Companion app for iOS &Android

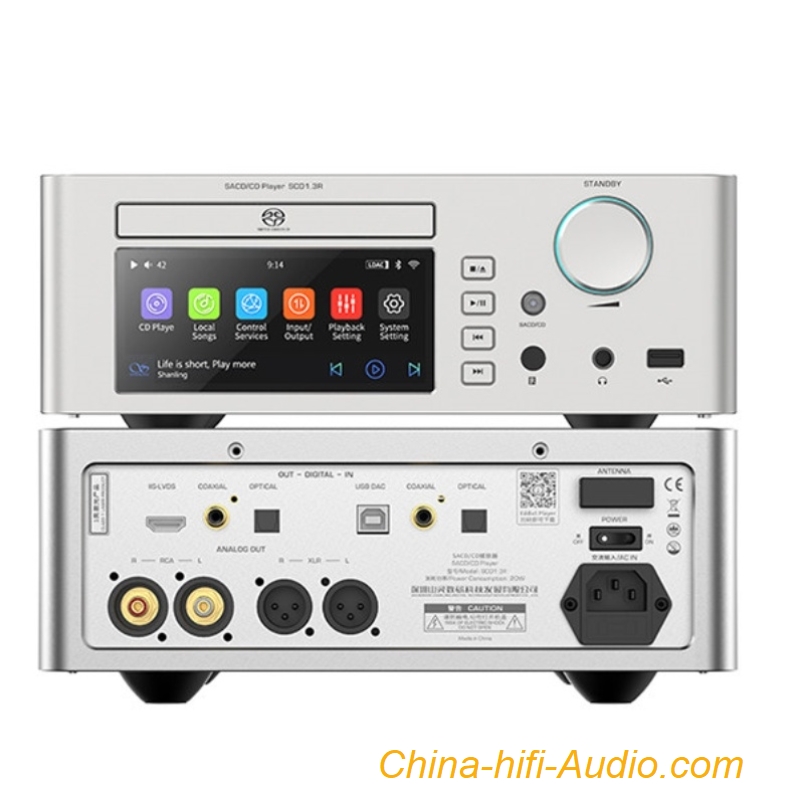

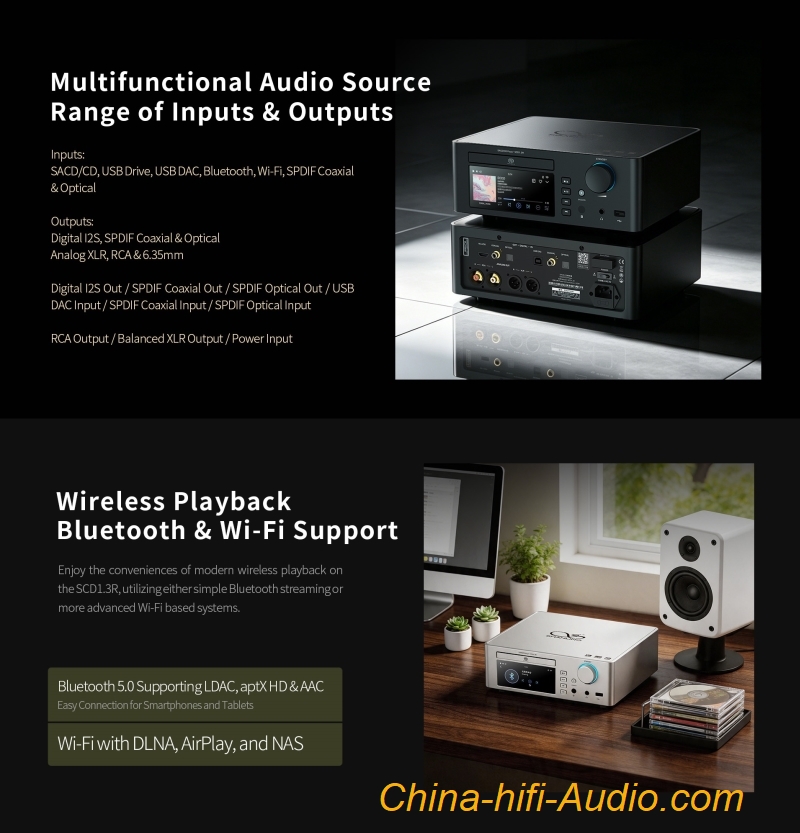

Inputs: SACD/CD, USB Drive, USB DAC, Bluetooth, Wi-Fi,SPDIF Coaxial &Optical
Digital Outputs: 2S, SPDIF Coaxial & Optical (SACD play-back limited to PCM 88.2 kHz)
AnalogOutputs: XLR,RCA&6.35mm
USB Drive Audio Formats Support DSD (".iso" , ".dsf" , ".dff",does not support "DST")
/ISO/ DXD /APE / FLAC / WAV/AIFF/AlF/DTS/MP3/WMA/AAC/OGG /ALAC/MP2/ M4A/AC3/M3U/ M3U8/OPUS
USB Drive Hi-Res Support: 32bit /768kHz, DSD512 Native
RCA output
Output level: 2.5Vrms
Frequency Response:20Hz-40kHz (-0.1dB)
THD+N:0.003%
Dynamic Range: 117dB
Signal-to-noise ratio: 117dB
XLROutput
Output level: 5.0Vrms
Frequency Response:20Hz-40kHz(-0.1dB)
THD+N:0.003%
Dynamic Range: 120dB
Signal-to-noise ratio: 120dB

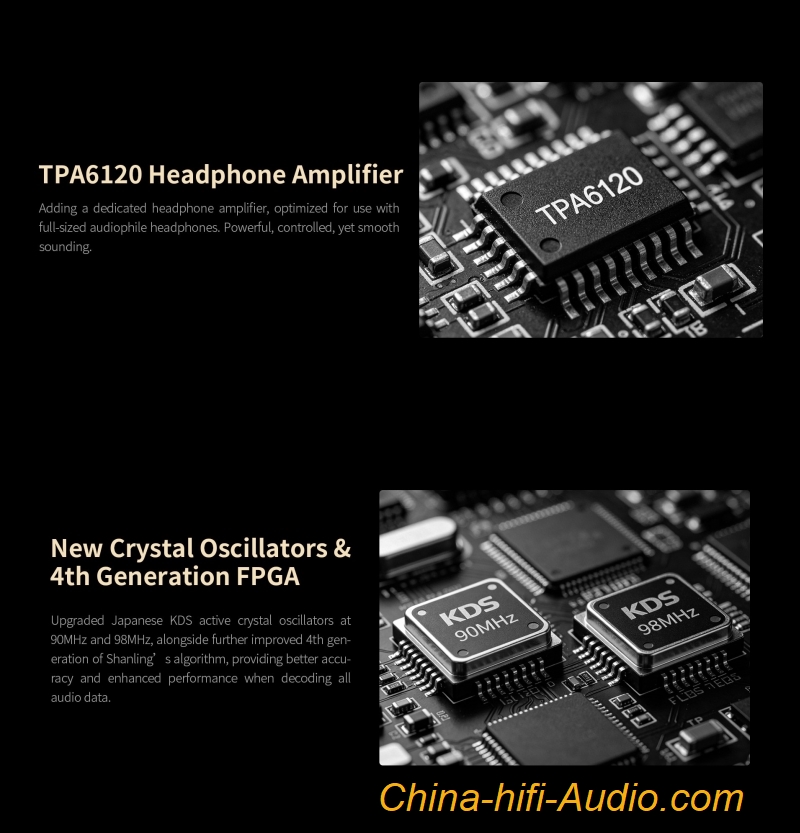

Headphone Output
output Power:
Low Gain:21.5 mW @ 32Ω
Medium Gain: 203 mW@ 32Ω
High Gain:1120 mW@ 32Ω//153 mW@ 300Ω
Frequency Response:20Hz-40kHz(-0.1dB)
THD+N:0.003%
Separation: 75dB@32Ω
Dynamic Range:117dB
Signal-to-noise ratio:117dB
OutputImpedance: 4.7Ω
