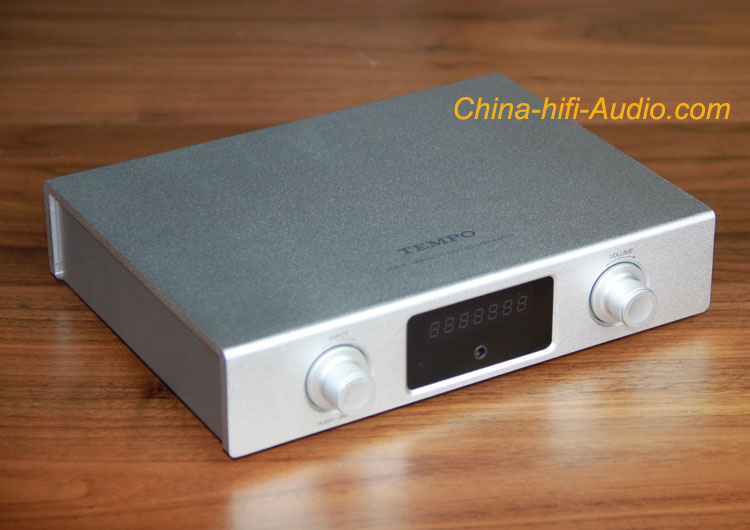

Shanling Tempo EDA3 stereo HIFI DAC Bluetooth wireless Headphone Amplifier
asynchronous USB DAC 24bit / 192kHz to link PC
100% Brand New

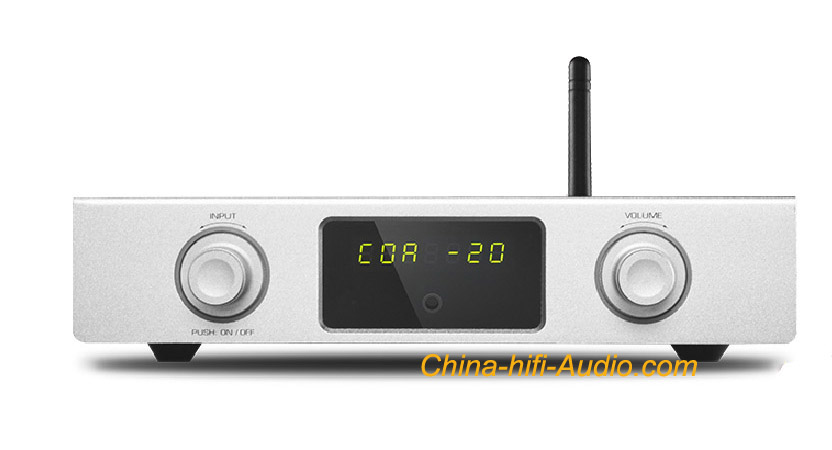

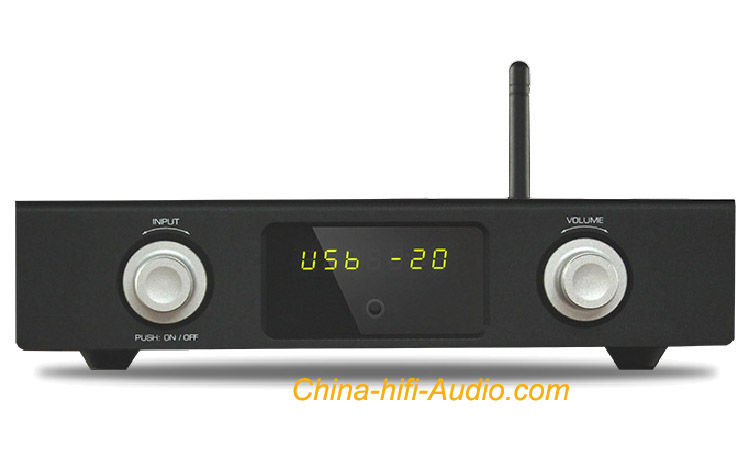

Colour Black or Silve for Choice

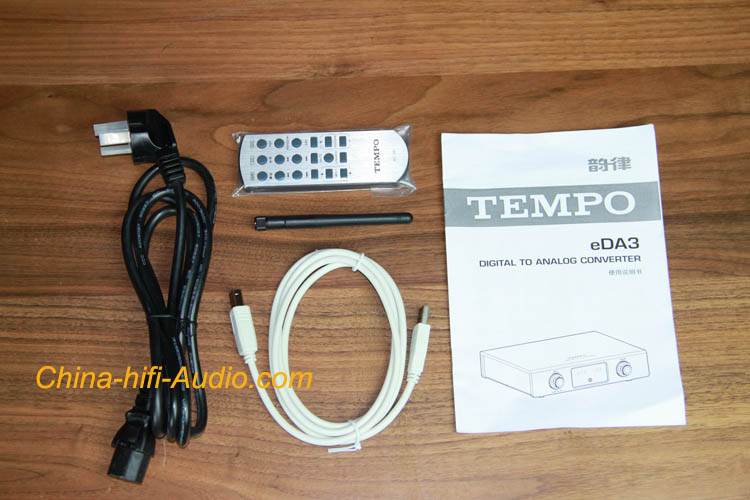

come with a remote control
Declaration
Technical Specifications:
1. Line output level: 2.3V
2. Headphone output level - 100mW @ 32 ohm
Recommend headphone impedance: 16 ohm - 150 ohm
3. Frequency response - 20Hz-20KHz (-0.5dB)
4. Harmonic distortion - <0.003% (1KHz)
5. Dynamic Range -> 98dB
6. SNR -> 105dB
7. Separation -> 95dB
8. USB sample rate - 44.1K / 48K / 88.2K / 176.4K / 192K / 16-24Bit

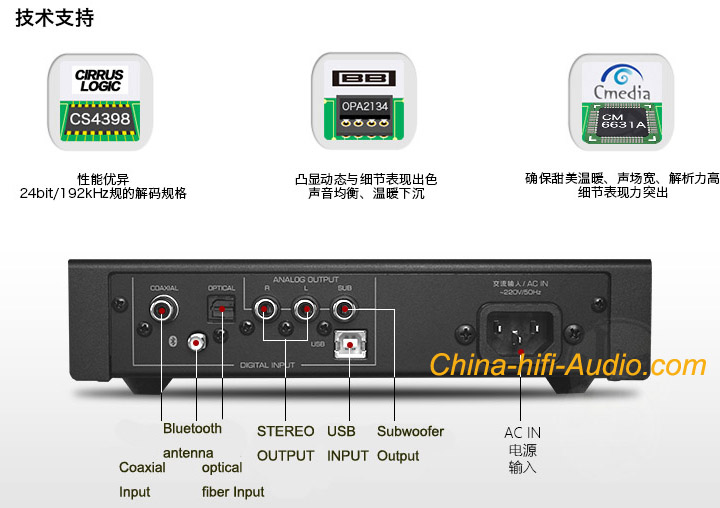

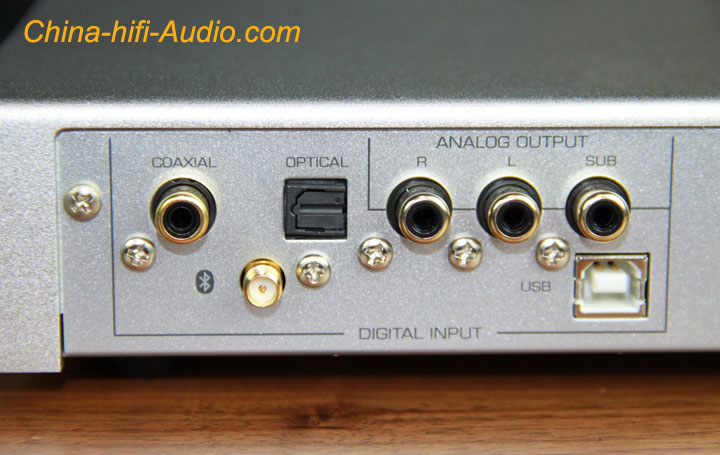

9. Enter: Bluetooth wireless, coaxial, fiber optic, USB
10. Output: 3.5mm Headphone output, Stereo analog output, SUB output
11. Net weight: 2 kg
12. Gross weight: 3kg
13. Dimension W x D x H: 215mm x 176mm x 52mm
14. Power supply voltage: 100V - 240V 50Hz / 60Hz
Features:
With volume control, can be used as a preamp DAC
2.1 Channels out put, can link Stereo plus a SUB
Supports asynchronous USB data transfer, can be used as an external sound card for PC, the maximum decoding specifications meet 24bit / 192khz,
Bluetooth wireless, coaxial, fiber optic input

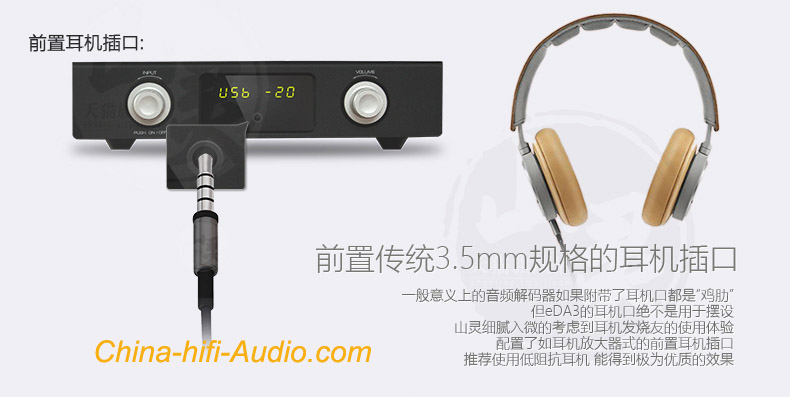

3.5mm Headphone output on front panel.
Cristal CIRRUS LONGIC CS4398 DAC Chip 24 bit / 192kHz
Cristal CS8422 *1 Digital receiver IC
BB PO2134 * 3pcs High Performance Audio Operational Amplifier

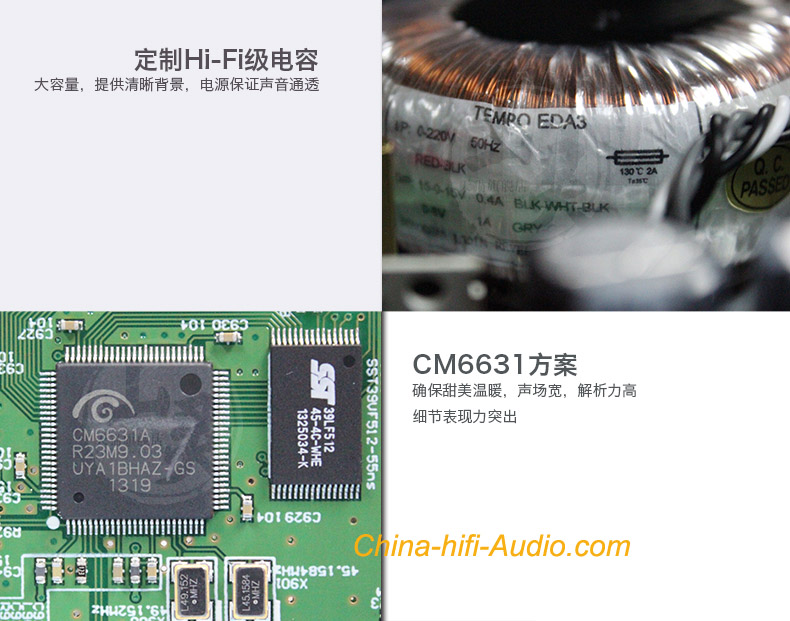

CM6631 Plan
Hi-Fi grade cap
Precision linear power supply
High performance, low magnetic leakage toroidal transformer
