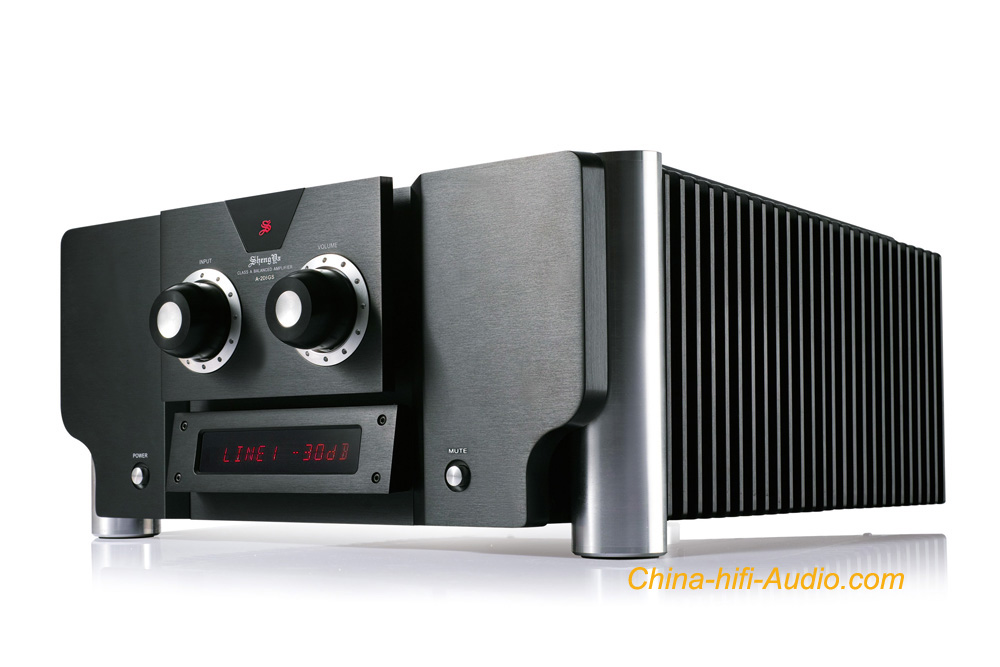

Shengya A-206GS Full balanced intergrated amplifier with remote

Features:

a) A-206GS Class A amplifier adopts fully balanced amplifier circuit,which ensures an excellent sound quality, tone and sound field.The core of preamp section uses high-speed DC amplification module chip,which has an outstanding performance in a wide frequency response, low distortion, slim thick tone and active dynamic vast.
b) The machine is equipped with a 100W shielding box transformer, which is throughout the epoxy resin filling, effectively reducing the work produced by the transformer.Two-channel audio using special filter capacitor , with a total capacity of up to 80,000 microfarads and 16 high-power transistors to form a strong class A output stage ,and sound performance is delicate.And with a huge aluminum alloy radiator,which makes quite a advance in spatializer,channel separation and sound articulation.
c) Adopts a dedicated film capacitors of audio MKP ,with 1% precision metal film resistors and precision power supply in parallel. The signal of power amplifier is from the input circuit composed of FET cascode differential amplification , famous transistortube for the second voltage amplification and the differential current drive.
d) When the output is under 20W,it works at Class A status and when it is more than 20W,the work status is Class A&B.A-206GS has a full-featured CPU manipulation and data display screen, and set up a special full-function infrared remote control system.

Specifications:

Frequency Response: 10Hz - 20kHz ± 0.5dB
Rated output power: 200W + 200W (8Ω)
Class A output power: 20W + 20W (8Ω)
Harmonic distortion: ≤ 0.1% (1kHz 1W)
Input sensitivity: 300mV
SNR: 90dB
Input impedance: 47kΩ
Voltage: 220V(±10%)
Dimensions: (W x H x D) 446 x 216 x 520 (mm)
Net Weight: 33 kg
Gross Weight: 36kg
