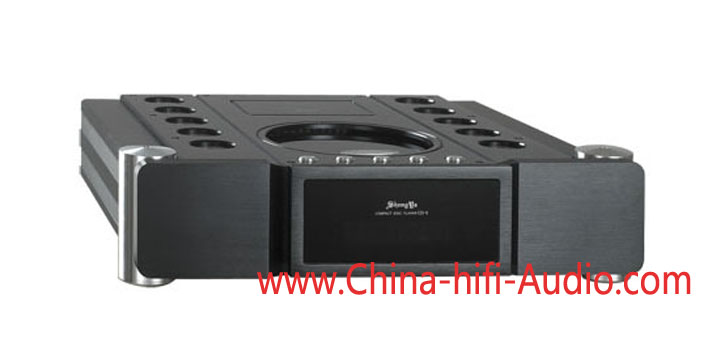

Shengya CD-6MK CD PLAYER full balanced Field-effect output Black

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

Directions:
1. audio output Group A current output FET, low-frequency deep and powerful, wide sound field, a powerful dynamic.
2.Philips performance VAM1202 movement, accompanied by a high level of integration CD7-II digital servo IC, this machine has its reading is accurate, error-correcting ability, good shock resistance.
3.Digital-analog converter chip for the Burr-Brown's latest decoder chip PCMl792. The chip has a 24bit conversion accuracy and 192KHz sampling frequency to be able to accurately restore every detail of the music, another to ensure accuracy, but also in particular the use of independent active clock.
4 analog signal amplification using the Burr-Brown precision, high-speed operational amplifier OPA627 and OPA2134 and the OPA2604. With a well-known third-order GIC low pass filter can effectively filter out the interference noise of the digital signal, audio signal purer.
5 aluminum alloy multi-function infrared leisure remote control, the operation feel better.

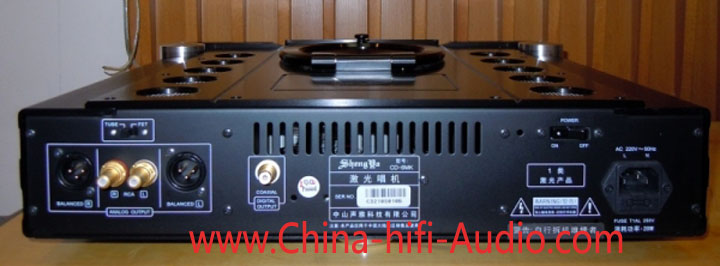

6.XLR and RCA terminals are gold-plated imported advanced products to ensure that the beautiful sound performance I also durable power cord for the senior wire of the U.S. system XLO (high card), the sound field positioning, depth, width, air sense, control have a very good help.
7. The machine chassis and the amplifier chassis, the same design concept, three-point landing foot to have a positive effect on the chassis balance and external vibration attenuation; aluminum alloy structure of the chassis can also be effective to reduce its resonant frequency, so that the sound quality is pure degrees has increased.

Technical parameters:
Audio output level: 2.5V
Frequency response: 10Hz - 20kHz ± 0.5dB
Dynamic Range: ≥ 100dB
SNR: > 95Db
Harmonic Distortion: <0.003%
channel separation: > 90dB
Power supply voltage: 220V（±10%） 50Hz
Dimensions (W × H × D): 446 × 113 × 420 (mm)
Packing size (W × H × D): 466 × 133 × 450 (mm)
Net weight: 12 kg
Gross weight: 13.5 kg

CD-6MK jukebox upgrade from the original CD-6 on the basis of improved products, and the machine to optimize the movement of the assembly process, so that its reading accuracy increased dramatically, the voice of the amount of information and sound density to significantly improve the sound field positioning more accurately. CD-6MK jukebox has a transistor audio output and electronic audio output two output options to facilitate the players to select an output mode according to the different equipment or hobby. Transistor audio output FET CPI current output, low-frequency deep and powerful, wide sound field, dynamic and powerful. Tube audio output Russian enthusiast tube 6922, the beautiful sounds, sound performance analytical sense of good air. CD-6MK jukebox using Philips performance VAM1202 movement, together with the high level of integration CD7-II digital servo IC, so that the machine has its reading is accurate, error-correcting capability, and shockproof performance advantages. Digital, analog converter chip for the PCM1796 Burr-Brown Corporation decoder chip, this chip has a the 24Bit conversion accuracy and 192kHz sampling frequency can be accurately restore every detail of the music. In addition, to ensure accuracy, but also in particular the use of independent active clock. The amplification of the analog signal is used Burr-Brown precision, high-speed transport, put the OPA604 and OPA2134 and the OPA2604. With a well-known third-order GIC low pass filter can effectively filter out the interference noise of the digital signal, audio signal purer. Power supply with high flux, low leakage flux toroidal transformer power supply, in order to reduce magnetic interference. Tube tube and field-effect mixed-precision high-voltage regulated power supply, high voltage stability, low coefficient of AC ripple, and timbre more bile taste more pronounced, the sound generated by the benefits. XLR and RCA terminals are gold-plated high-level products to ensure great sounding performance I also durable power cord for the United States XLO (high) wire on the sound field positioning, depth, width, air sense, and control has a very good help. CD-6MK phono chassis and zoom chassis the same design philosophy, constitute not only the chassis by a solid aluminum front panel is a super-thick aluminum block cutting production, the elegant lines of the panel is the characterization of a unique style of many audio equipment products have a high degree of recognition. Three-point landing foot to have a positive effect on chassis balance and external vibration damping chassis of aluminum structures can be effective in reducing the resonant frequency, the sound purity has increased.
