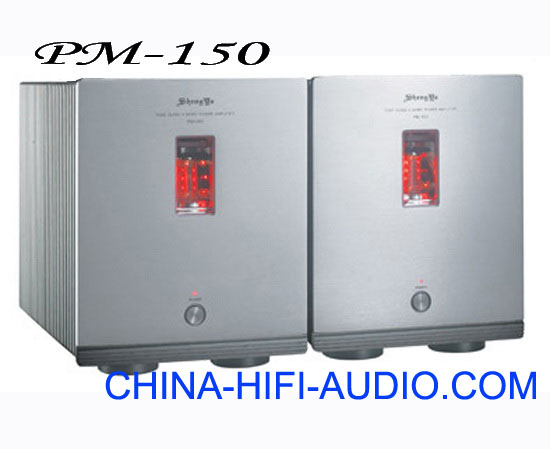

Shengya PM-150 a pair of Mono Power Amplifiers tube amp

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!



FEATURE:

FEATURE:

PM-150 mono Power Amplifier:
Voltage amplification stage employs 12AU7 vacuum tube
Another 12AU7 in SRPP for solid stage current amplification
High power Toshiba transistor in final output stage
First 10W output in pure class A, 150W output in Class AB
Vacuum tube + transistor rectification for very musical timbre
High-end audio use MKP coupling capacitors and parts
Dual mono blocks with zero interchannel interference
Effortless control over low impedance speakers
2 pairs of speaker output terminals (each block) for
Very convenient bi-wiring connection
Detachable power cord system (IEC)

SPECIFICATIONS:

PM-150 mono Power Amplifier
Rated Power Output:
10W x 2 pure Class A (8Ω),
150W x 2 (8Ω)
300W x 2 (4Ω)
Pure Class A Power Output: 10W
Frequency Response: 20Hz to 20KHz, ± 0.5db
S/N Ratio: > 90db
Total Harmonic Distortion: <0 .1% (1Khz, 1W)
Input Impedance: 47KΩ
Input Sensitivity: 1.7V
Input interface: 2 x RCA (per pair)
Output interface: 4 pairs speaker out terminals (per pair)
Net Weight: 18 kg x2
Gross Weight: 38 kg
Dimensions (WHD): 210 x 263 x 400mm (per block)
Supply Power Voltage: AC220V(± 10%) 60Hz/50Hz
