Shengya PSM100 Transistor monoblock Class A Power Amplifier pair
100% Brand New
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Directions:
1.independent mono balanced transmission amplifier structure, completely eliminate the problem of channel crosstalk.
2. signal input circuit by the FET cascode differential amplifier, famous transistor differential voltage amplification, the final stage output stage a powerful lineup of 16 high-power transistors, and easily promote as low as 2-ohm impedance speakers.

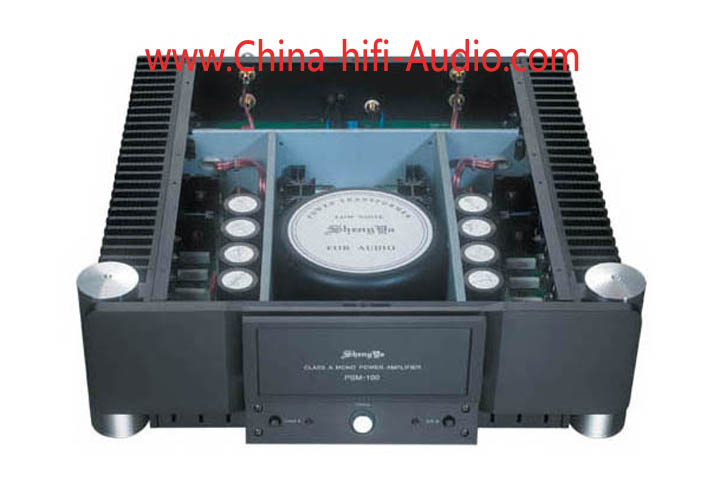

3. power supply in part by the 500W toroidal transformer and 80,000 microfarads electrolytic capacitors composed with huge aluminum radiator, so that the sound field positioning, sound clarity and energy flu symptoms have greatly improved.
4. 100W Pure Class A output, the sound delicate Run thick, wide dynamic potential of the powerful pull of mountains and rivers.

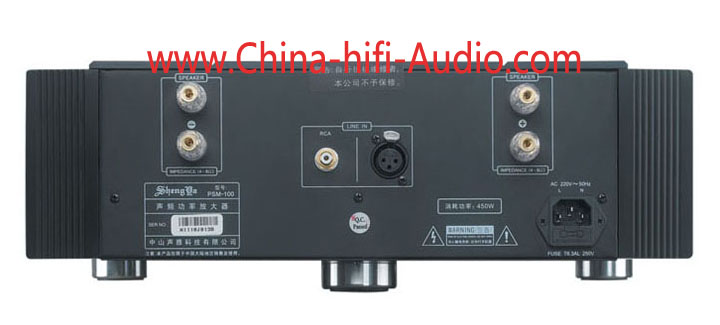

5. increase the choice of balanced and unbalanced signal input can be connected to two different sound preamplifier.
6. can be set to A or class AB output state, which is convenient to fine-tune the sound can reduce heat.

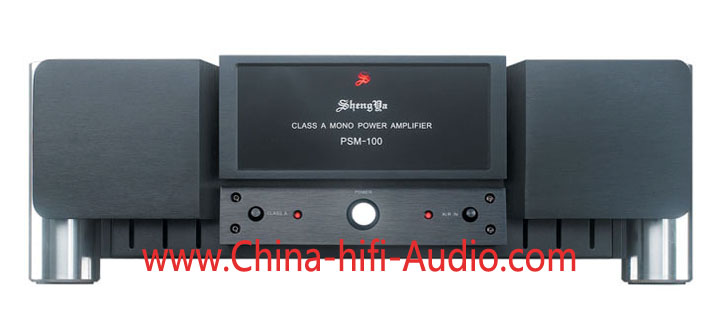

7. Design to reflect the content of products as the main purpose, rich in detail and elegant, every detail from the inside out, descending derived, naturally brilliant and unpretentious. Boldly installed the world of today's one silver with black, and decorated with a small amount of aluminum metal color components which not only enhances the visual impact, allowing Black to produce an unprecedented charm; stable atmosphere, the overall details of the interpretation of very wonderful, wonderful, very engaging and luxurious temperament revealed in eternity.
Technical parameters:
Frequency response: 20Hz-20kHz ± 0.5dB
Rated output power: 100W (8Ω)
output power: 100W (8Ω)
Harmonic Distortion: ≤ 0.1% (1kHz 1W)
Input Sensitivity: 650mV
SNR: ≤ 90dB (broadband)
Input impedance: 47kΩ
Power supply voltage: 220V（±10%） 50Hz
Dimensions (W x H x D): 416 x 111 x 436 (mm) x 2 Pcs
Packing size(W x H x D): 446 x 151 x 466 (mm)x 2 Pcs
Net weight: 21kg x 2 Pcs = 42KG
Gross weight: 23.2kg x 2 Pcs = 46.4KG
