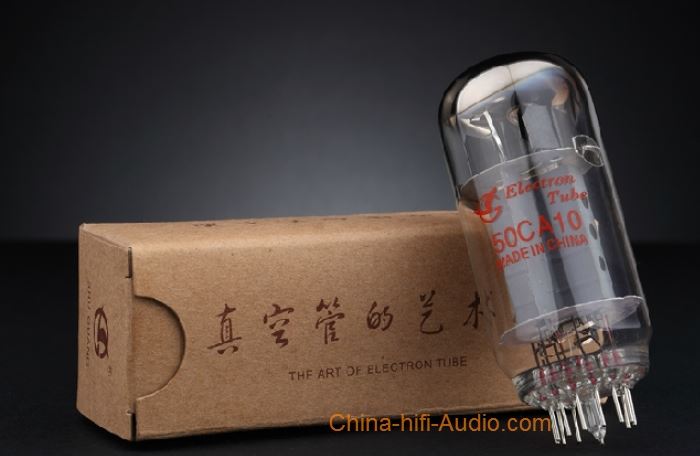

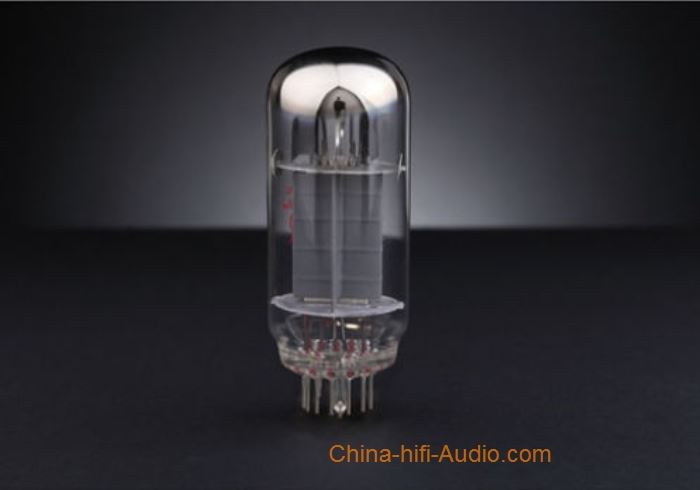

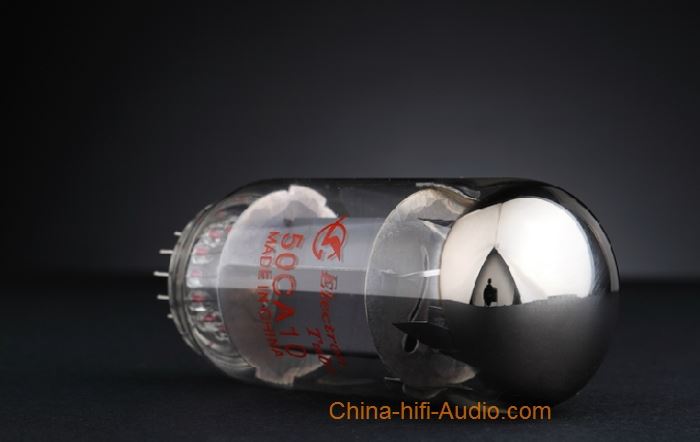

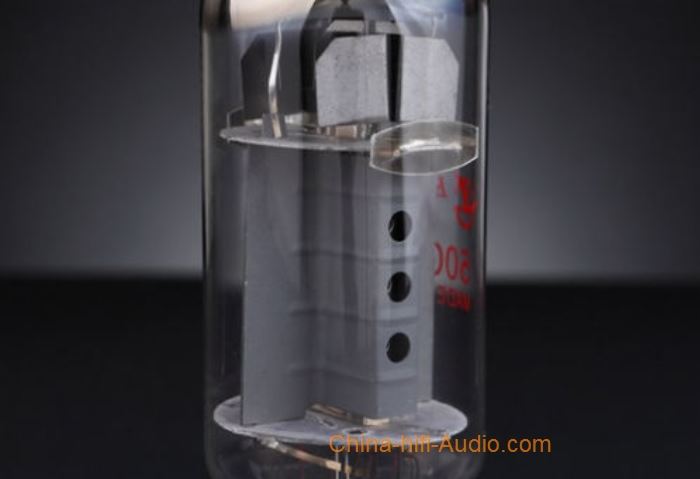

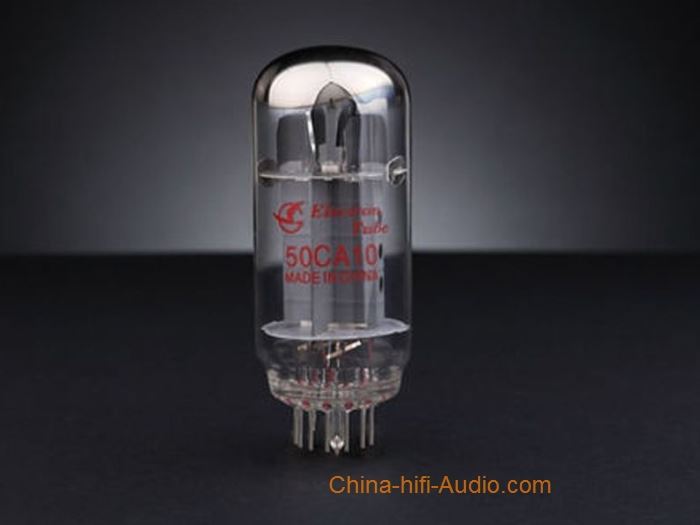

Shuguang 50CA10 vacuum valve tubes best matched pair for Amplifier

Product Price:

  • Product Model: Model: MUIA9832190
  • Product Weight: Shipping Weight: 3kg
  • Product Quantity: -1 Units in Stock

Sold Out


paypal

Shuguang 50CA10 vacuum valve tubes best matched pair for Amplifier (2pcs )
100% Brand New


The price is for a pair of 50CA10 vacuum tube









Declaration


All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!

Thermal cathodes power transistor A1, AB1 class amplification
Filament heating
Uf-------------------------------50V
If--------------------------------0.175A

Limit rating
Anode voltage ---------------------450V
Anode dissipated power ---------------30W
Cathode current ---------------------200mA

Static parameter
Ua------------------------------250V
-Ug-----------------------------22V
Ia------------------------------80mA
Gm----------------------------14mA/V
Ri------------------------------600Ω
μ-----------------------------8
Pout---------------------------6W
