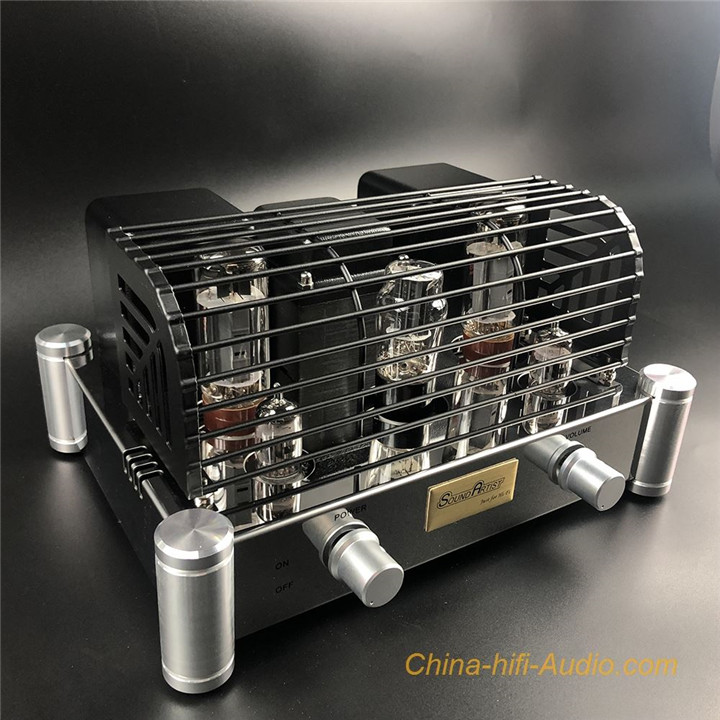

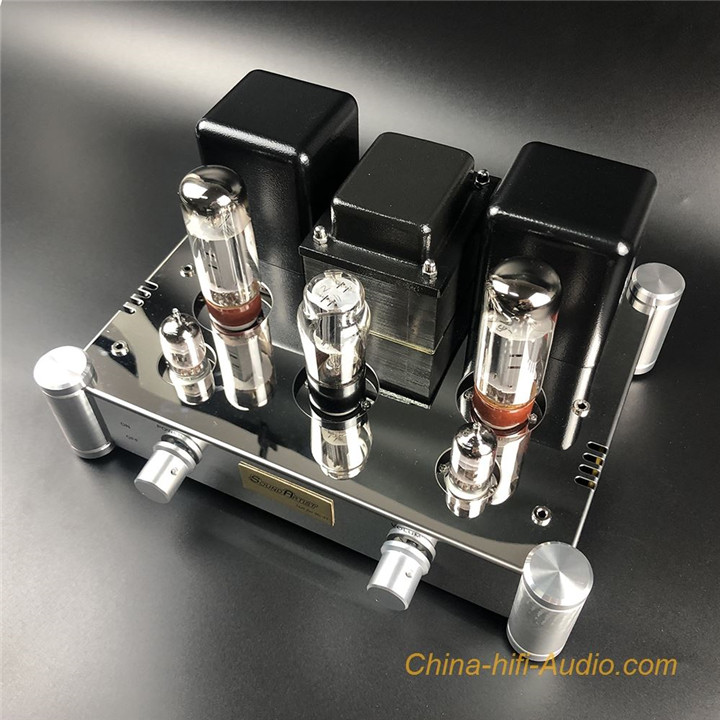

SoundArtist SA34A EL34 12AX7 tube amp Single-end Class A HiFi audio amplifier
100% Brand New
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Features:
Power Transformers: new imported 0.35, stack thickness 50MM (96-50).
Output transformer core: new imported 0.35 (66*36(standard version)) or (76*40upgrade version).
Chassis: imported mirror stainless steel chassis.
Corners aluminum column: high-grade aluminum CNC machining, diamond knife speed car system.
Output Block: High-grade export base, with a transparent cover.
EL34 do power output.
Potting type output transformer, to ensure the stability and reliability of the output transformer, especially in the southern humid places, have a more reliable performance.
Output transformer with a new imported 0.35 core manufacturing, high-purity copper wire package enameled, layered segmentation, string and connection method, divided into three clips two around the system,
Output transformer transformer housing with high-grade stretch hood. High temperature paint surface treatment, bright pattern processes. Nissan ALPS potentiometer.
Imported 0.35 thick core manufacturing power transformers, to ensure adequate power and low temperature rise.
Technical Parameter：
Output power : 6W + 6W
Output impedance: 4 ohms, 8 ohms.
Input impedance: 100K.
Signal to noise ratio: 85dB.
Frequency response: 30Hz - 38KHz.
Input sensitivity: 750mV.
Input voltage: AC 100V-110V/60HZ.
Power consumption: 78W.
Basic Parameter Indicator
Vacuum Tube:
5Z4Px1,EL34x2,12AX7x2
Input jack: CD/AUX
Dimension 315W x 258D x 163H mm
Packing size: 410W x 360D x 270H mm
Weight: 9.5 KG
Package weight: 11.5-12.5 KG
