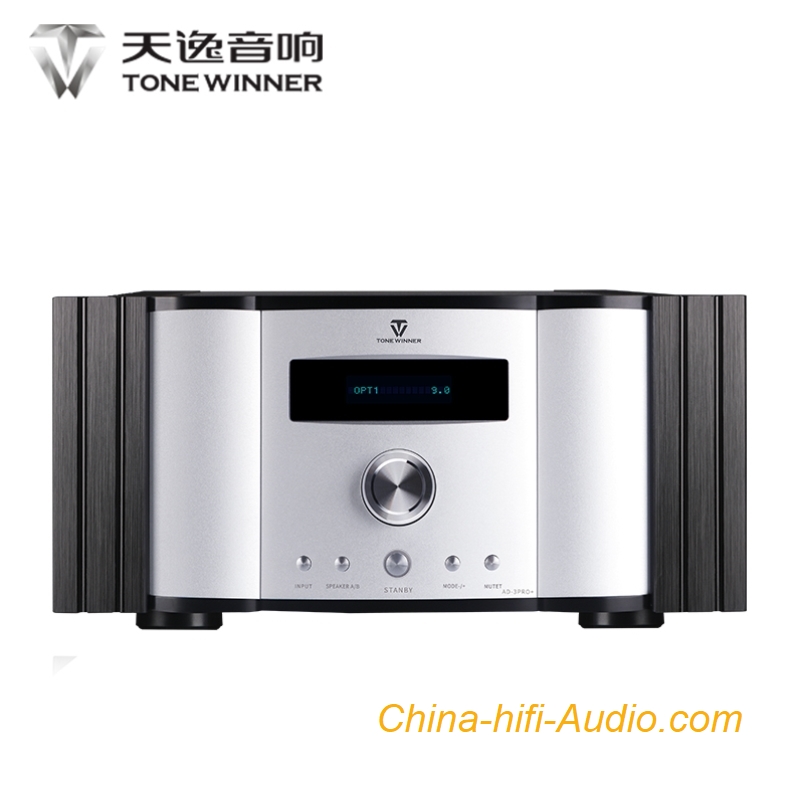

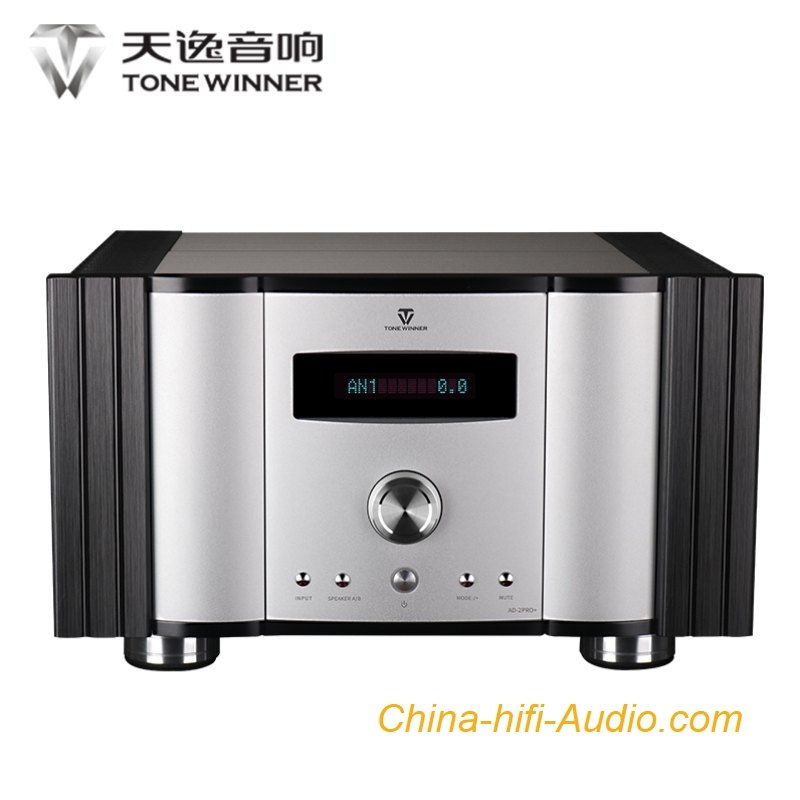

Tonewinner AD-2PRO+ Class A high-end integrated amplifier
100% Brand New
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Description：
Tonewinner AD-2PRO+ is ill with its soft and rich dynamics which are accompanied, however, by sharp and well-present basses.
It is therefore a two-channel hi-end device with 200W of power on 8 ohms.
The total harmonic distortion, under normal operating conditions, is less than or equal to 0.05%, while the frequency response ranges from 10 Hz to 95 kHz. At the same time, the signal/noise ratio is greater or greater than 100 dB.

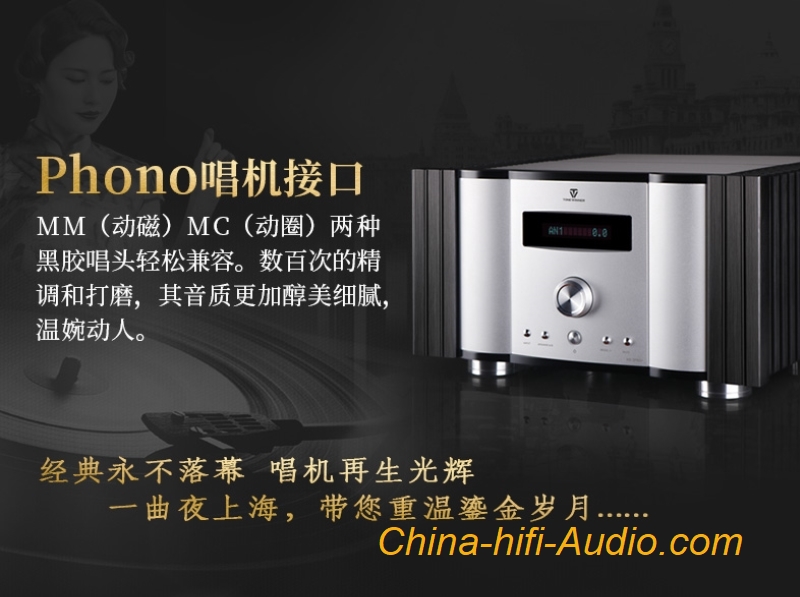

Part of a leading series on the market since 2008, this amplifier continues to surprise audiophiles because of its technical solutions. Starting with its amplification method, which provides for a symmetrical and balanced differential input at the BTL output. All in order to increase the clarity of the sound and a greater balance. It then finds space for a DAC ES9038, which well interfaces with the Phono input for mobile magnet (MM) and mobile coil (MC). Also provided are balanced XLR connections, balanced and unbalanced subwoofer outputs.
AD-2PRO+ is provided with three separate operating modes, made possible by the careful design of the internal circuitry. The listener gets a choice between pure Class A, Class AB and Auto, which provides automatic switching between A and AB.

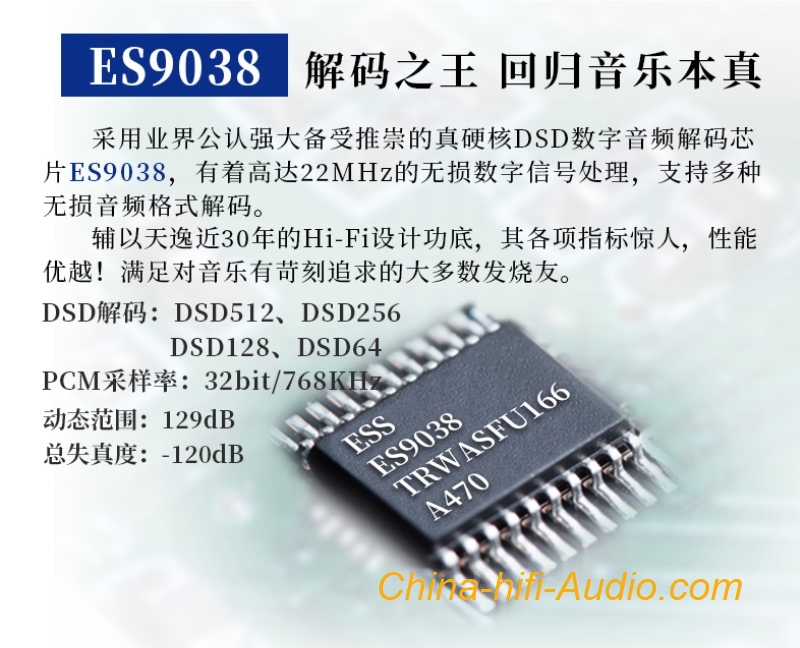

● Support DSD decoding bases on ES9038 chip, lossless audio formats are all supported.

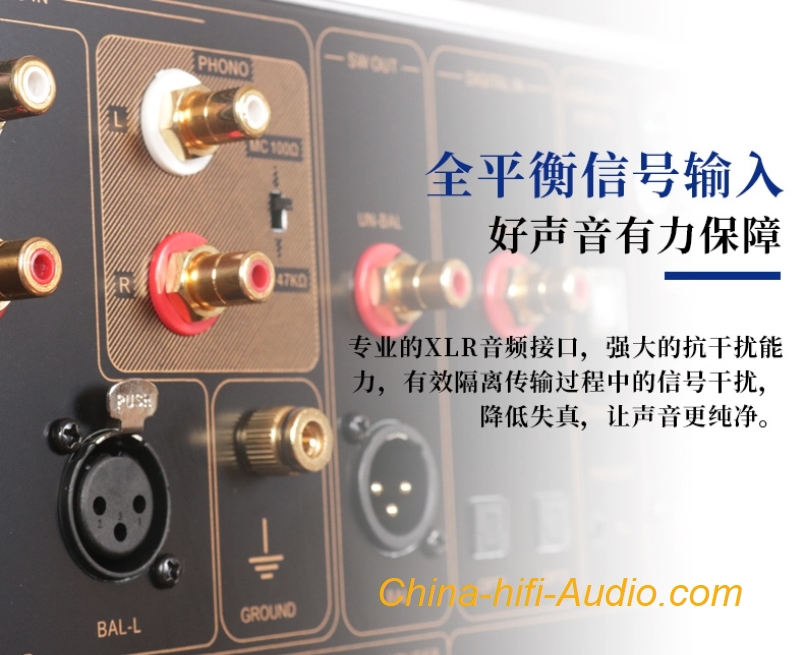

● Support kinds of inputs of USB, MM/MC, OPT, COAX, BALANCE, ANALOG etc.

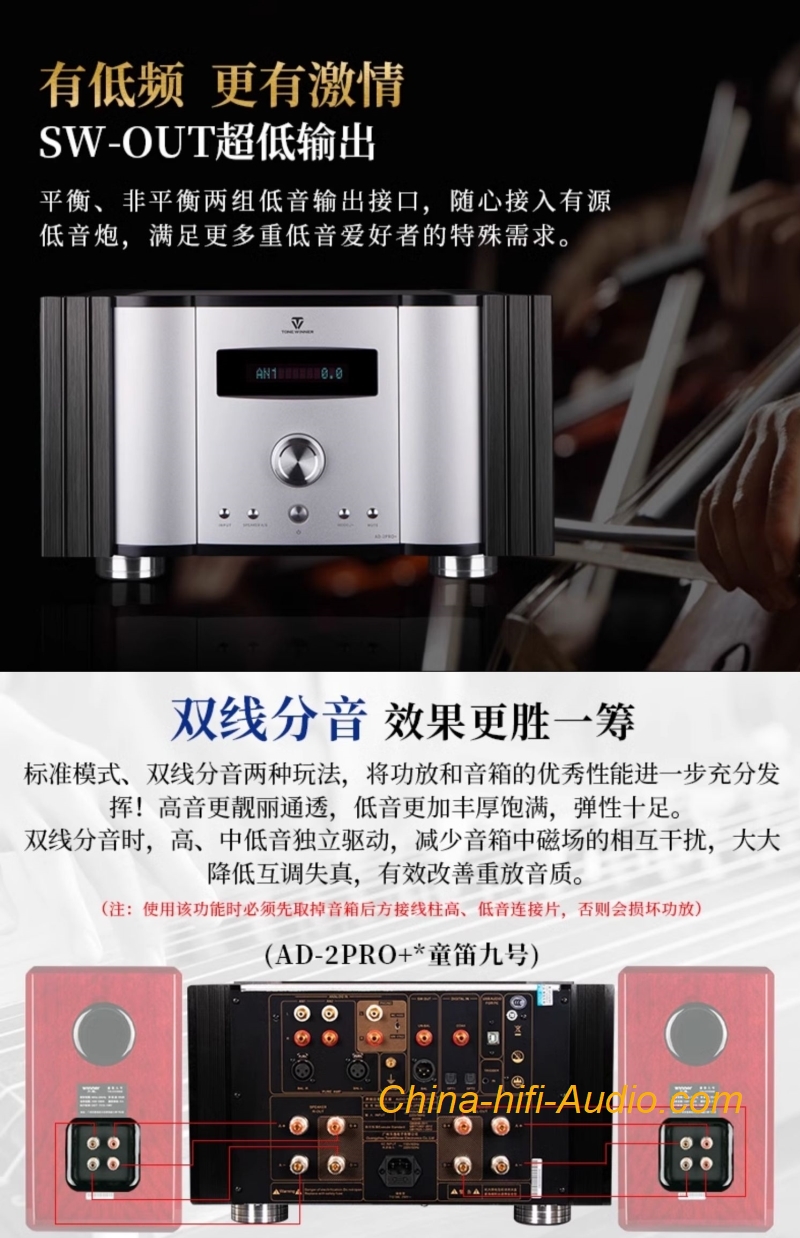

● Support SW balance, unbalance output; Support double line crossover that favors audiophiles.
● Adopts the well known full balance amplifier circuit design, provide enjoyable sound quality.

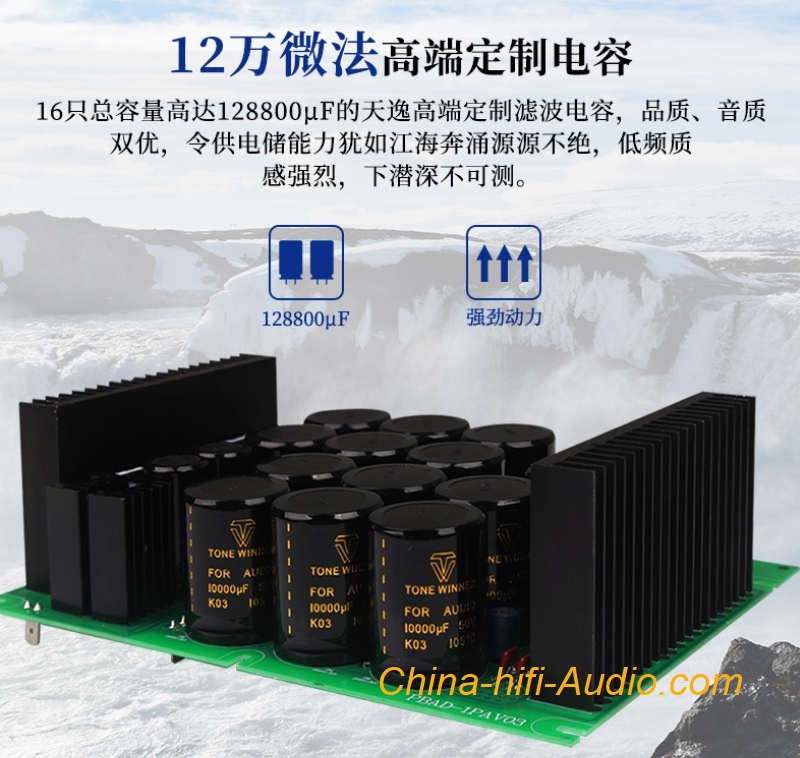

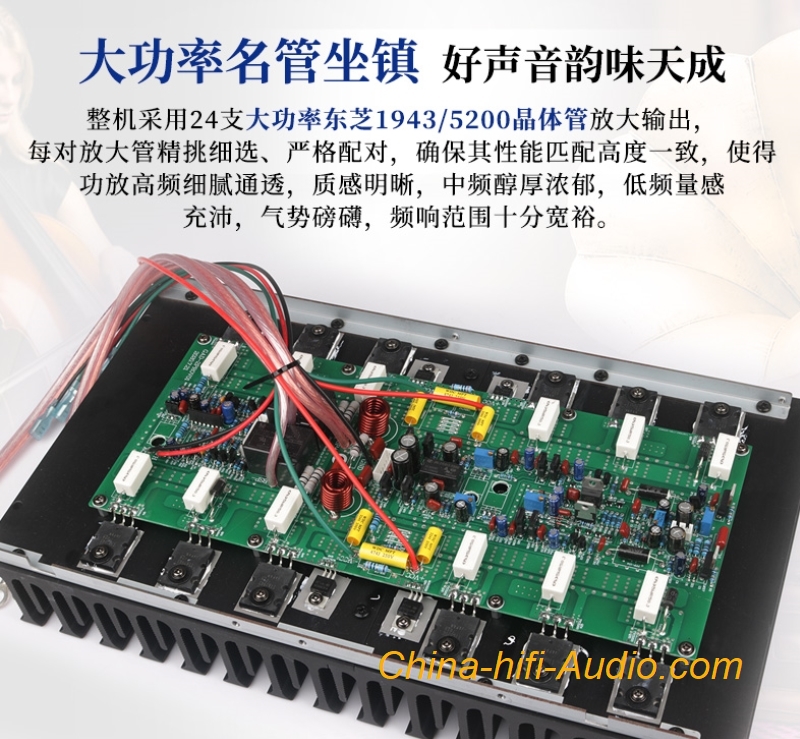

● Adopts 860W big toroidal transformer and up to 120,000uF customize capacitors, uses 24pcs Toshiba transistors to guarantee enough power drive, can match with different world high end speakers.

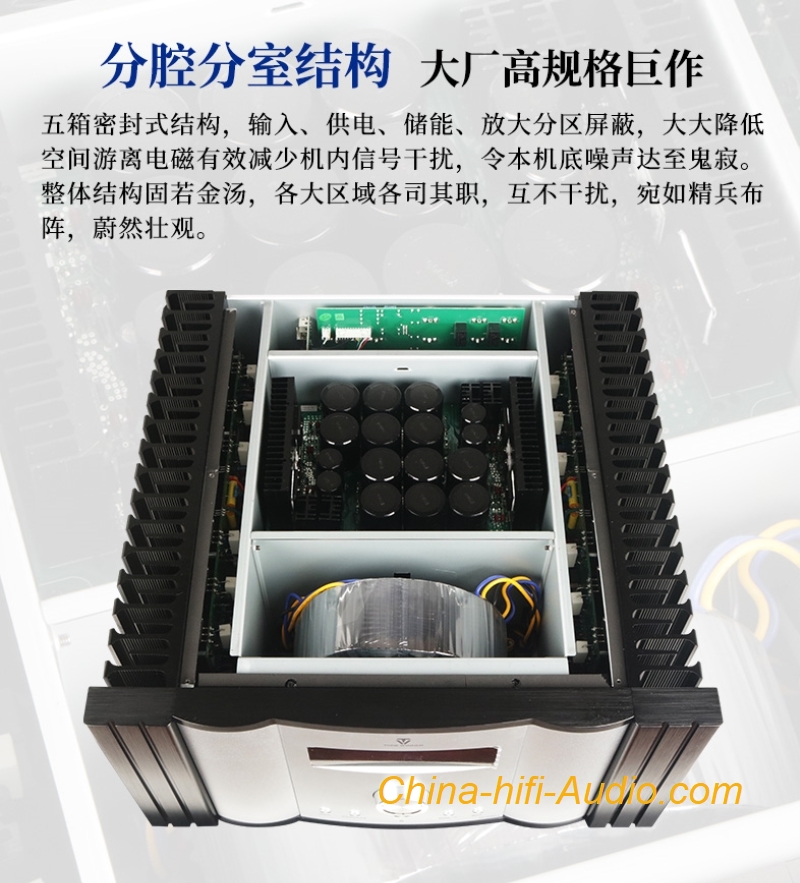

● Internal mechanical design with independent and shield cabinets, makes nearly 0 ground noise.
The Tone Winner AD-2PRO+ amplifier offers a wide range of connectivity options, making it versatile and compatible with various audio sources. Whether you want to connect a CD player, computer, smartphone, or any other device, this amplifier has got you covered.
With multiple analog inputs, including 2 RCA inputs and 1 XLR input, you can easily connect your favorite audio sources to the amplifier. Additionally, the 2 coaxial and 2 optical audio inputs provide flexibility for digital audio sources. This ensures that you can enjoy high-quality sound from a variety of devices.
Specifications:
SNR :≥100dB(A weight)
Frequency response :15Hz~95KHz(+1/-3dB)
Distortion degree :≤0.05%(1KHz, A weight)

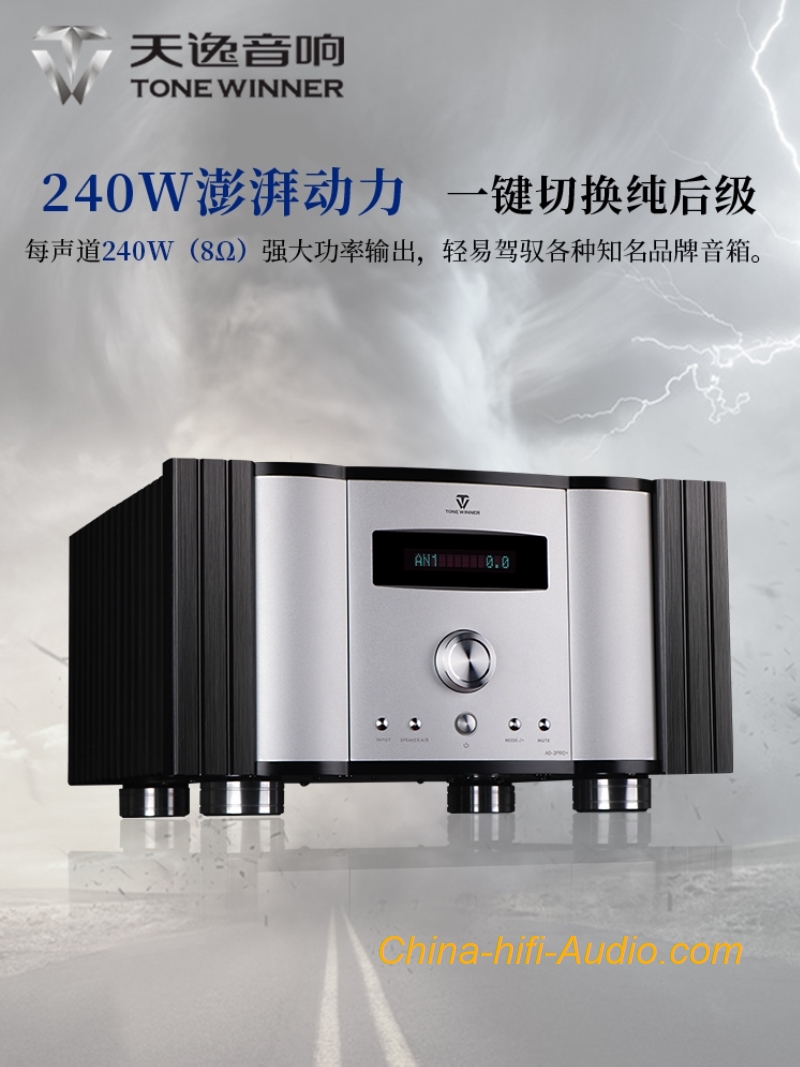

Output power :240W (THD=1%, 1KHz, 8Ω single channel)
Rated load impedance :8Ω
Overall gain :40dB±1dB

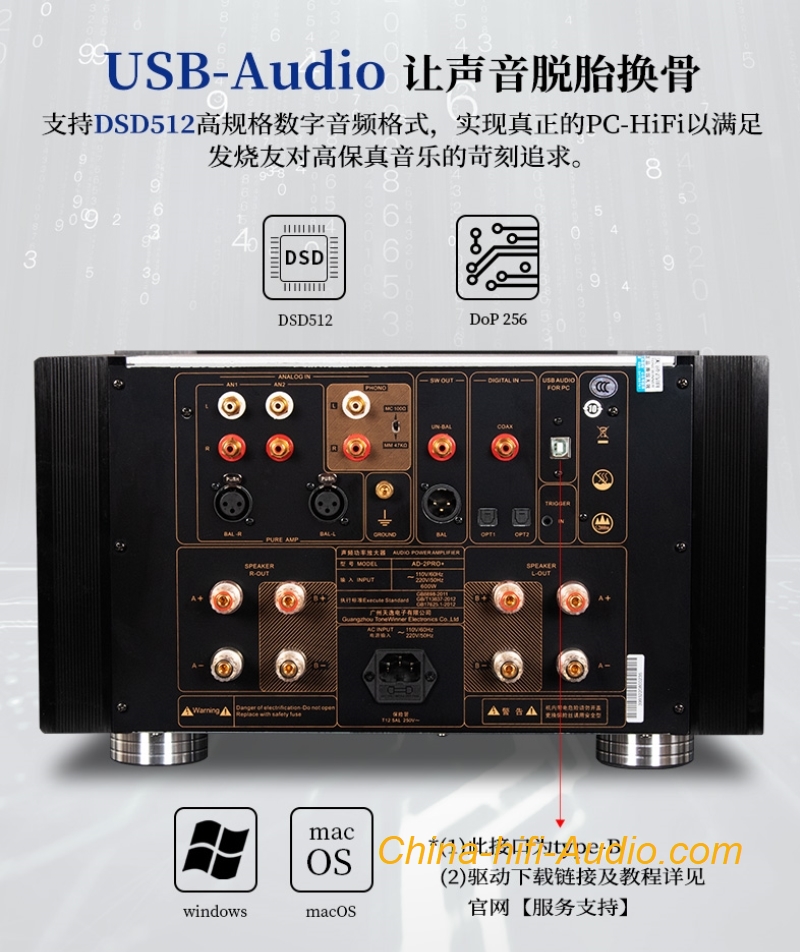

USB input support :DSD512, 256, 128, 64;
DoP 256, 128, 64;
PCM16-32bit, 44.1-768kHz
Coaxial, fiber input support: DoP64; PCM16-32bit, 44.1-192kHz
Class A static power consumption :260W~320w
Class A and B static power consumption :70W~110w
Standby power consumption :<0.5W
Net weight :35.9Kg
Gross weight :41.8Kg

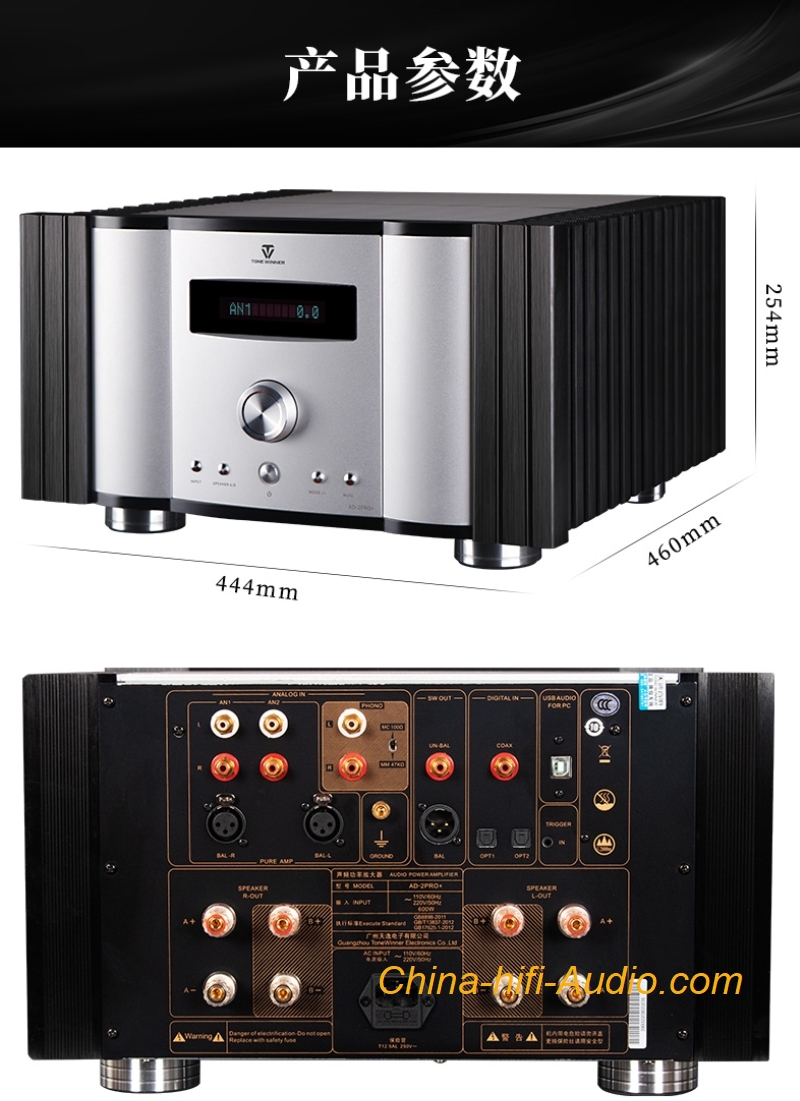

Machine size :444*460*254mm(W*D*H)
Packing size :604*614*407mm(W*D*H)
