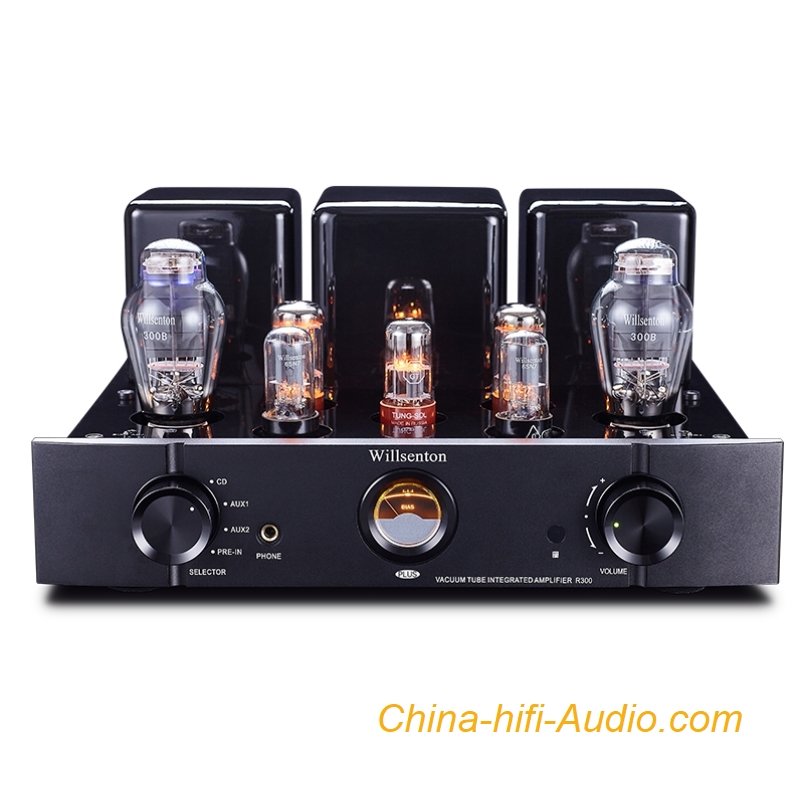

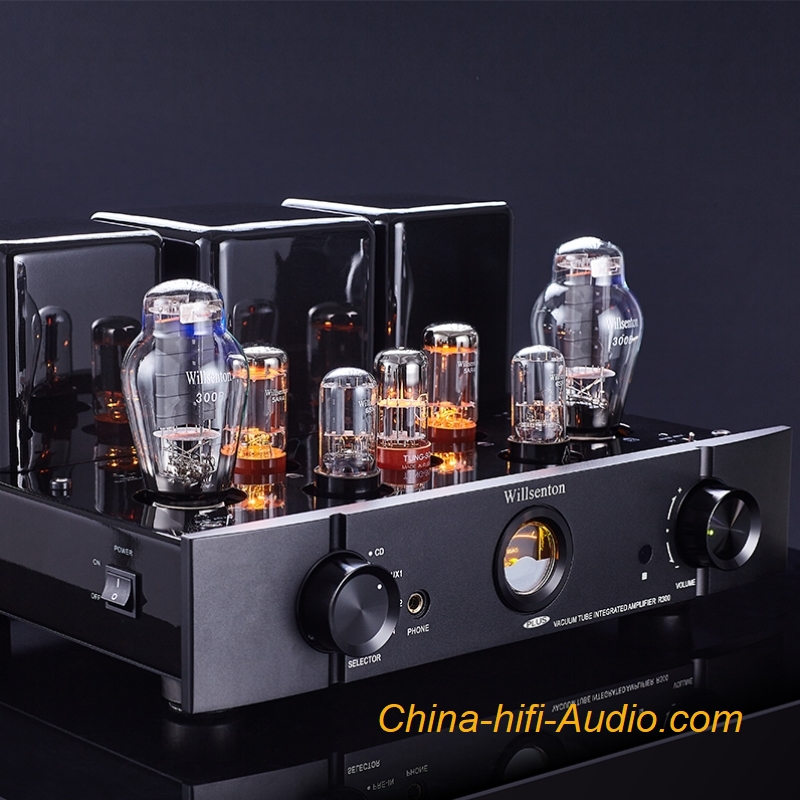

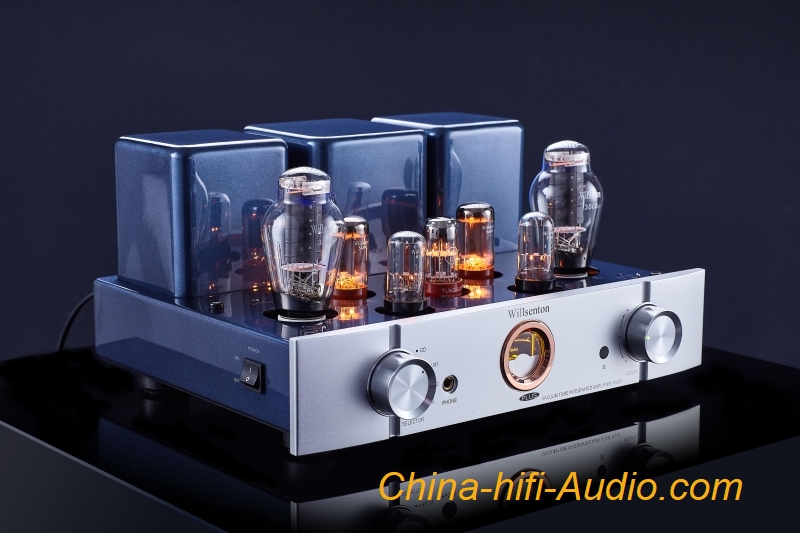

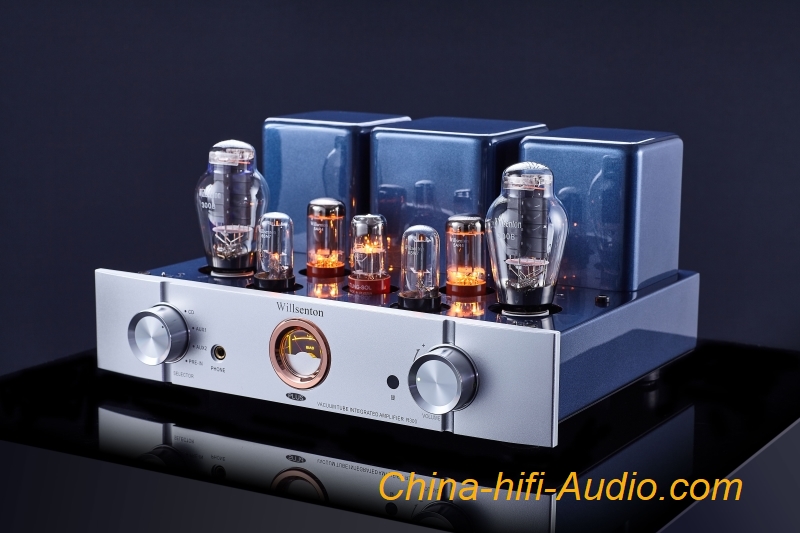

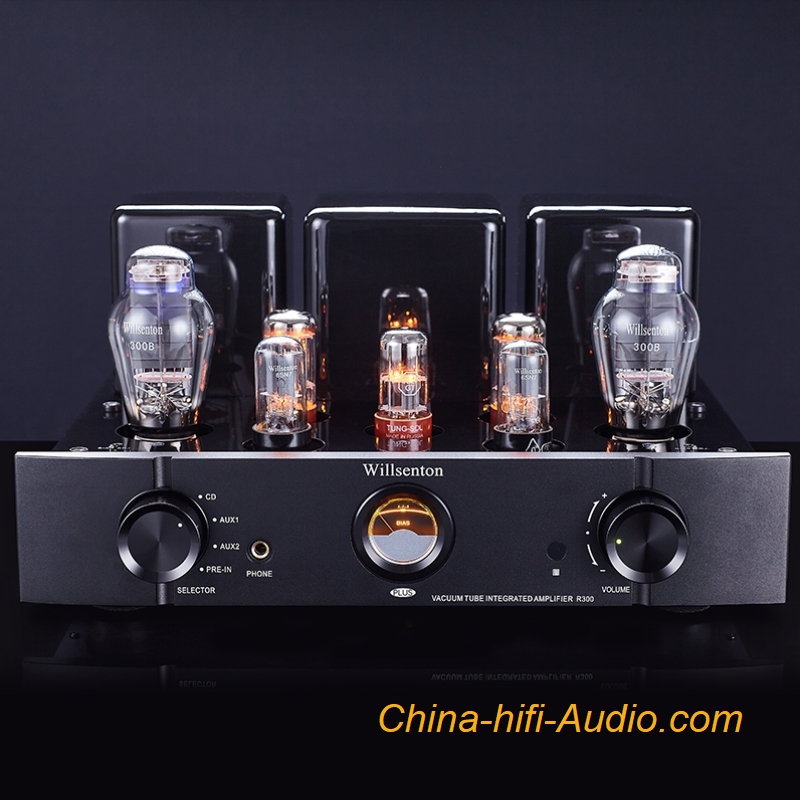

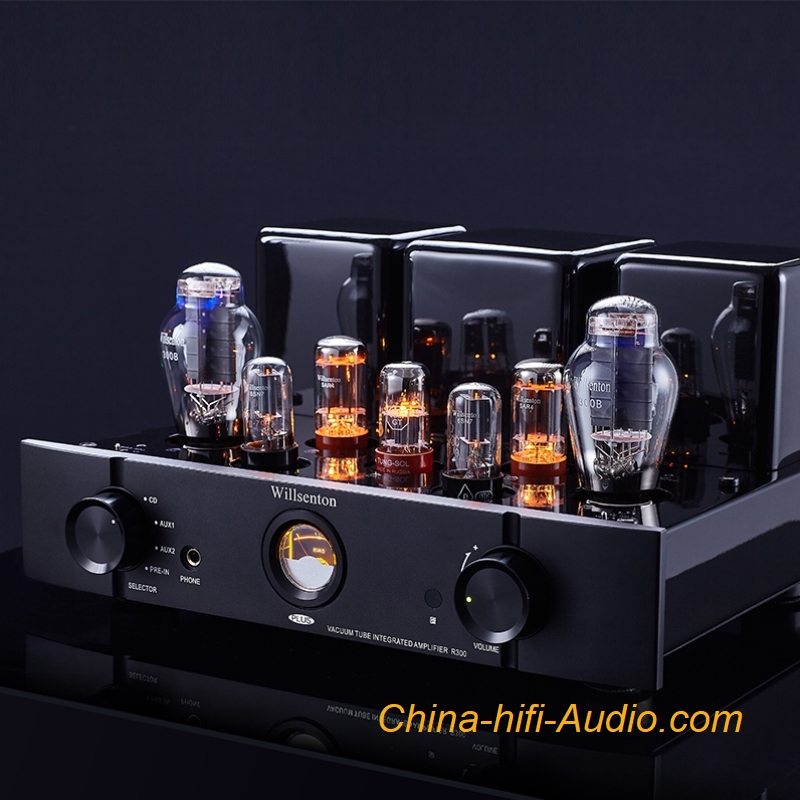

Willsenton R300 PLUS Tube Amplifier 300B*2 Single-ended Class A Integrated Amplifier & Power Amplifier & Headphones amp All in One
100% Brand New
Declaration
All items are guaranteed to be 100% brand new in the original box.
1 year warranty!!
Features:
Single-ended pure Class A tube Integrated amplifier
The body of Willsenton R300 PLUS use classic Black piano paint.

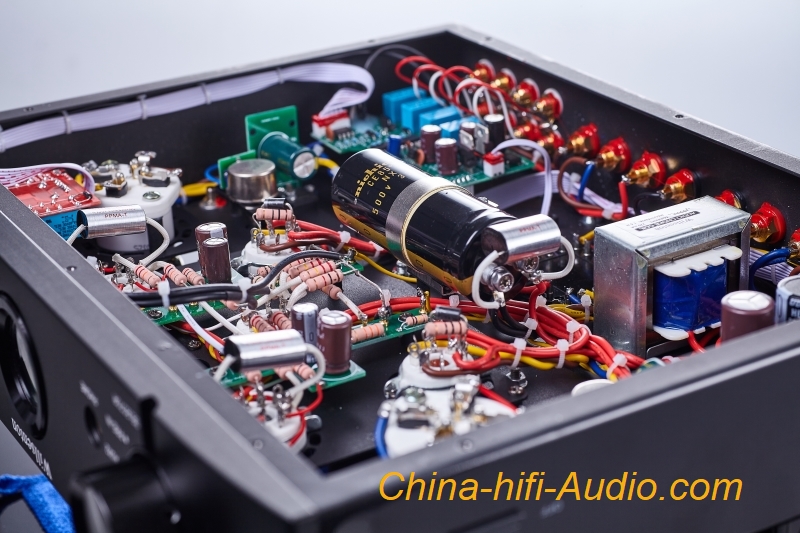

• Pure hand-made, Point to point manual welding.

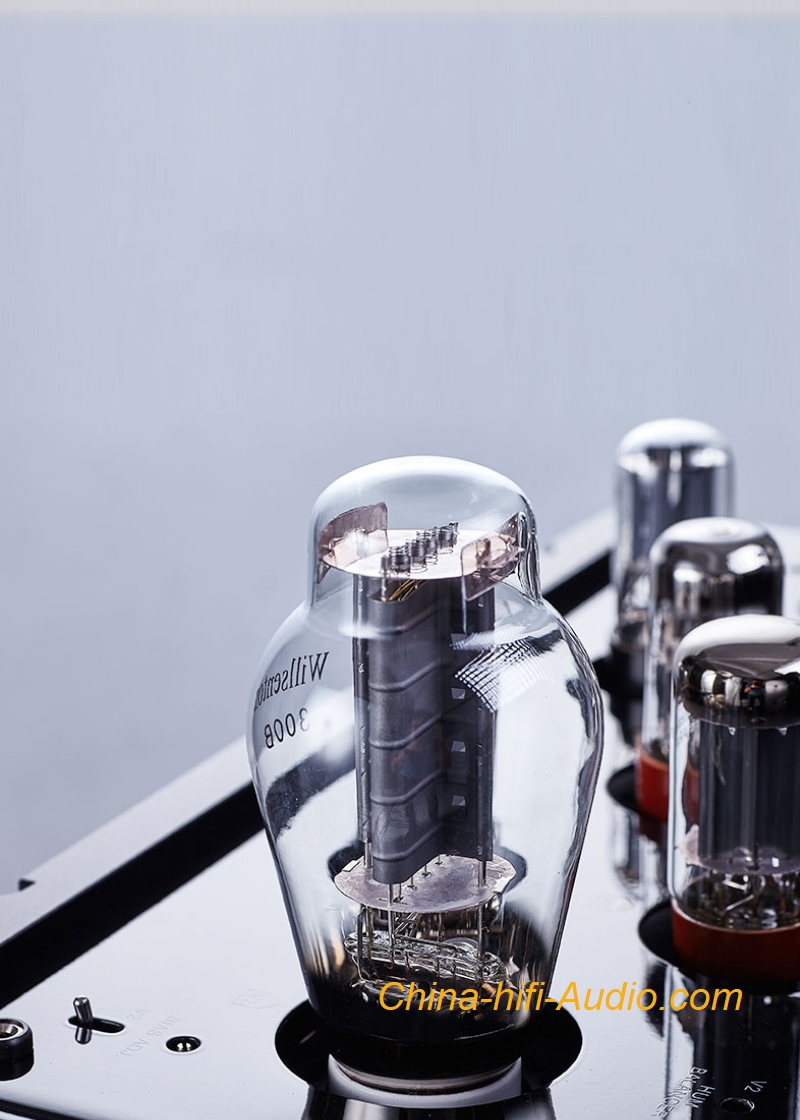

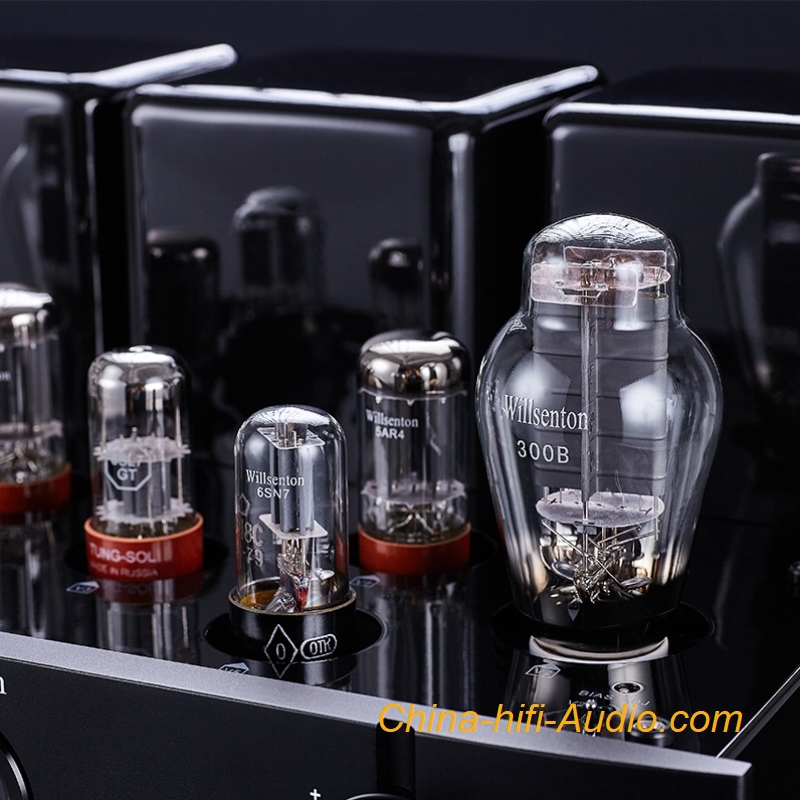

• Two Willsenton custom-made 5AR4 vacuum tubes used for high voltage rectification. 1pcs of TUNG-SOL 6SL7 and 2pcs of Willsenton 6SN7 vacuum tubes are used for the voltage amplifier and preamp stage. TUNG-SOL 6SL7 can be better optimized circuit. The power amplifier stage uses two Willsenton custom-made 300B vacuum tubes for single-end Class A power amplification.
• Reasonable internal structure, with fever circuit, high frequency is clear and detailed, full frequency is full, low frequency dynamic is loose and powerful
• Use a square power transformer specially developed for this R300 PLUS tube amplifier
• Two wide frequency high-end EI type single-ended output transformers with high-end special. Optimized production process of output transformer with Z11 imported iron core.
• Provide professional equipment input ports, R300 PLUS is equipped with multiple signal input ports, which can facilitate you to connect a variety of audio source signals, so that you can have different audio sources and different experiences
• Brushed aluminum alloy panel, using brushed panel, exquisite workmanship, comfortable feel, high-grade and elegant.

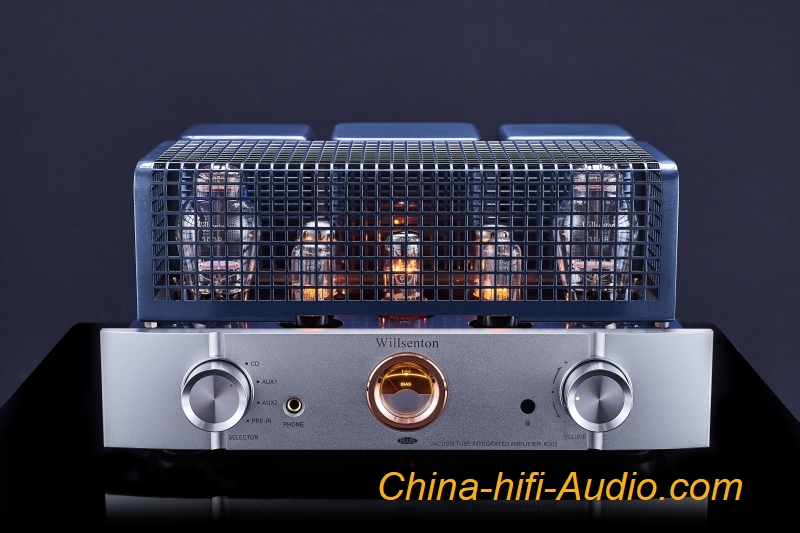

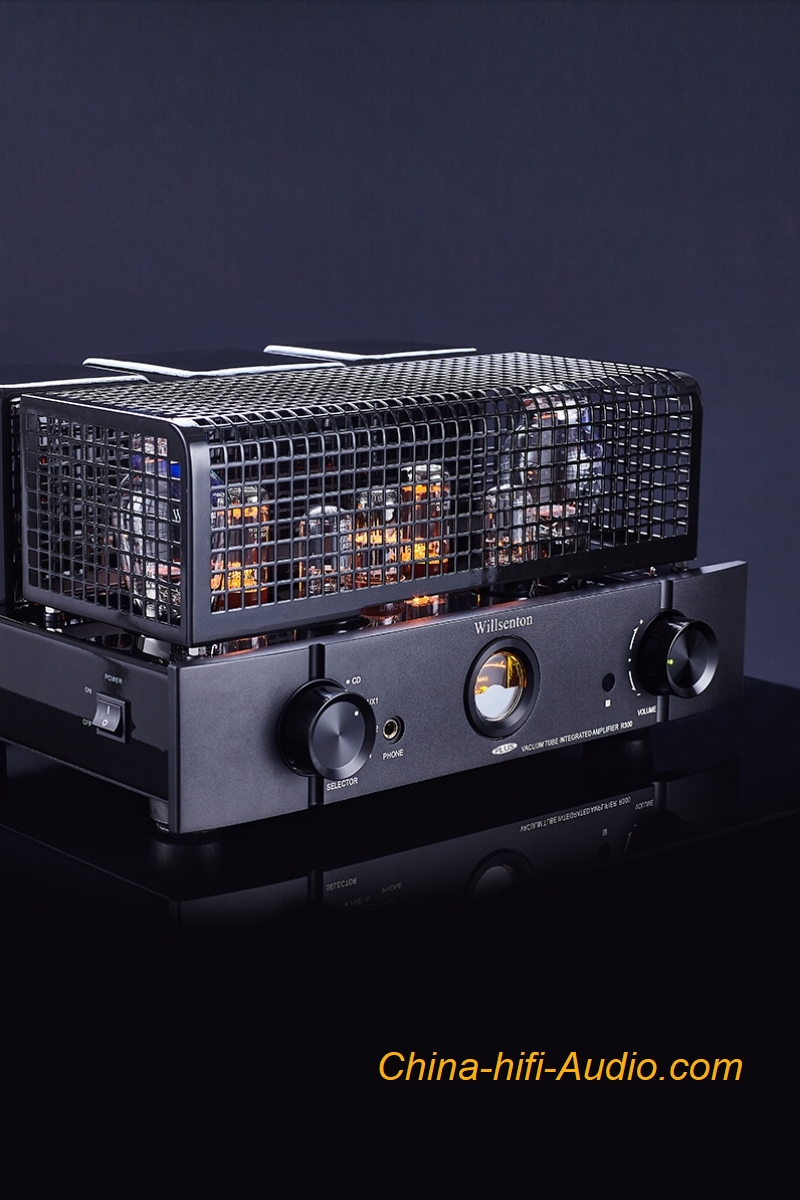

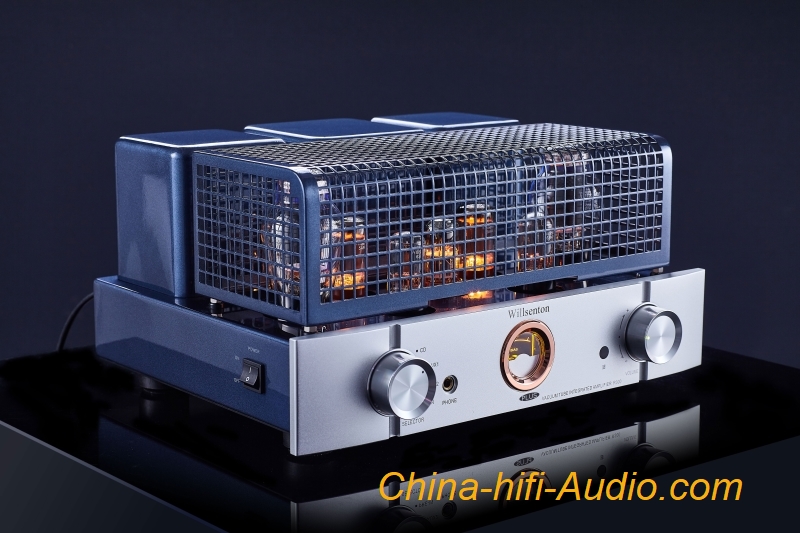

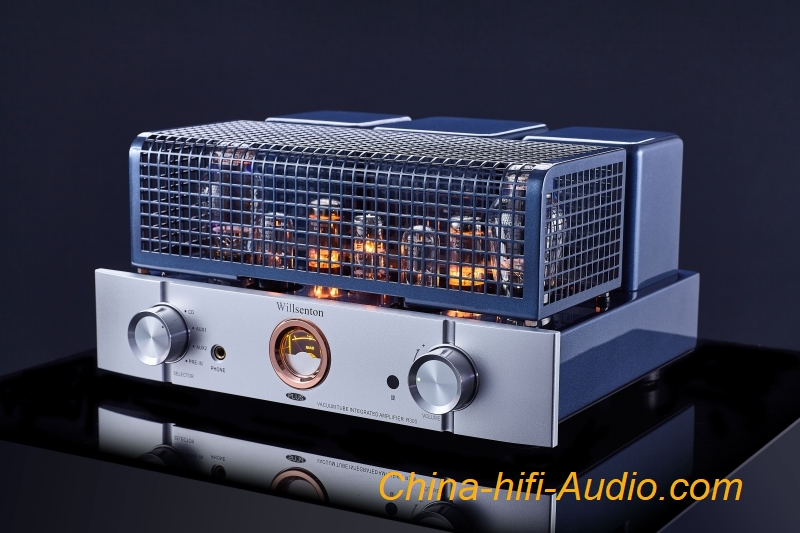

• Gold-plated port, a design that integrates quality and beauty, reduces signal loss, and has good conduction performance; the metal mesh cover can protect the beauty of the electronic tube, making it safer for users.
• Power on mute delay function, soft-start feature to prolong tube life (about 30 seconds).
• Infrared function remote control. use a new Remoter CNC in one block aluminum alloy, more convenient to change batteries.
• Use Japanese ALPS high-end potentiometer
• Peripheral power tube bias current adjustment function and power output level meter sensitivity switch
• Negative feedback circuit design
• Use thick silver-plated signal leads
• Headphones output 6.5mm jack
Product specification
FTC rated output power: 5W+5W (8Ω, 20HZ-20KHZ, THD 1%)
Rated output power: 8W+8W
Overall frequency response: 15Hz-30KHz (-3dB)
Harmonic distortion: 0.5% (1W/1kHz, rated output power less than 5%)
Signal-to-noise ratio: 86dB (A-weighted)
Input sensitivity: 210mv (when be an Integrated amp)
: 620mV (when be a Power amplifier)
Input impedance: 100KΩ

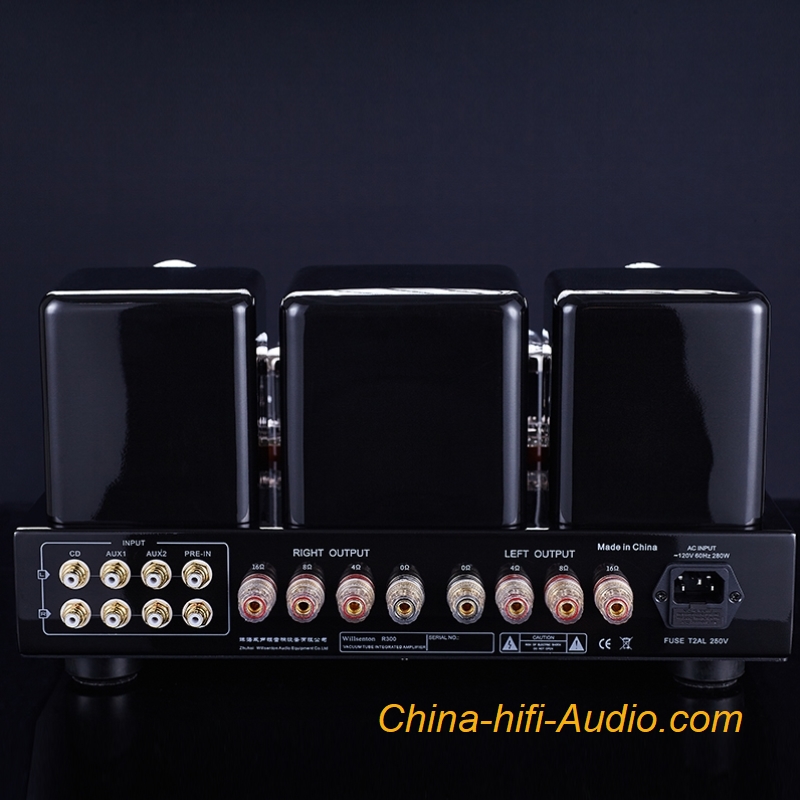

Input terminals: CD, AUX1, AUX2, PRE-IN
Output impedance: 4Ω, 8Ω, 16Ω
SNR: 90dB
Power consumption: 280W
Headphone output impedance: 30Ω-300Ω
Power supply voltage: AC 100V - 240V 60Hz/50Hz (100V, 110V, 115V, 120V, 230V,240V version will take 7-14 business days to order). 220v is in stock.
Dimension: (W×D×H): 405*355*200mm (16*14*8 inches)
Vacuum tubes: 300B x2, 5AR4 x2, 6SN7 x2, Tung-sol 6SL7x1
Net weight: 23KG (51LB)
Gross weight: 27KG (60LB)
