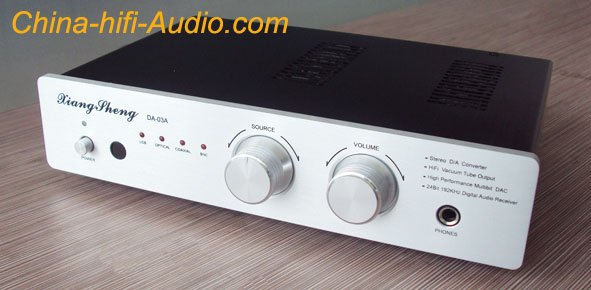

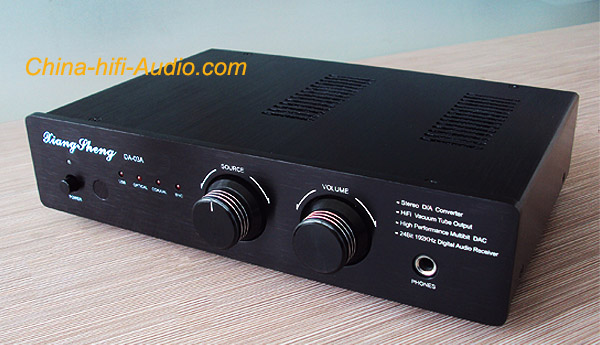

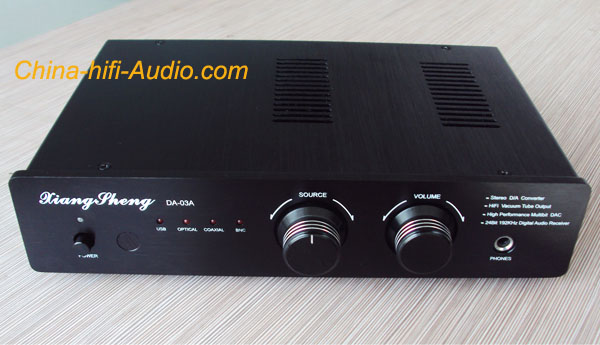

Xiangsheng DA-03 USB DAC with tube headphone amp hi-fi audio
come with a remote control
Colour Black or Silve for Choice
Original USB IC come with SA9023 or TE7022 24bit/96K
If you need the XMOS USB asynchronous IC 24bit/192k, plus $27 USD to get it.
Declaration
Xiangsheng DA-03 PCM1794 CS8416 TE7022 AK4118+AK4495 SA9023 DAC Remote Control 5670 tube buffer
This is one of the best DAC with very good chips combination, It based on PCM1794 high performance DAC chip and CS8416 SPDIF receiver and TE7022 USB receiver with 24bit 96Khz sampling rate. Support 24bit 192Khz sampling rate via coaxial optical input, USB input support up to 24bit 96Khz sampling rate which is far better than the other 16bit usb receivers.
With integrated TPA6120 hihg performance headphone amplifier, Can drive 32 ohm to 600 Ohm headphones.
Hight lights

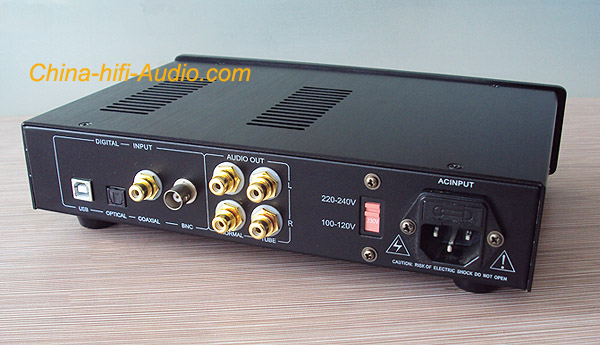

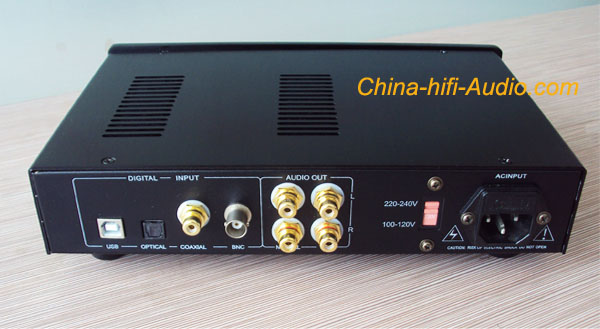

Has up to 4 ways of input include BNC, Coxial, Optical, USB
Has two ways of output, Direct output and 5670 tube buffer output, Can match for both of solid state amplifier and tube amp.
TPA6120 headphone amplifier inside which is the best headphone amp chip.
There is two versions of the XIANGSHENG DA-03A, one version is DAC + Headphone amplifier with remote, one version is Pure DAC without Headphone amplifier without remote.
The WITHOUT Headphone amplifier version use high performance PCM1794 DAC core chip,The best DAC chip from Burr-Brown,One of the most popular DAC chip. CS8416 digital receiver from CIRRUS with 24bit 192Khz sampling handling ability.
The one with Headphone amplifier version use high performance AK4495 DAC chip, the best DAC chip from AKM,One of the most popular DAC chip. AK4118 digital receiver from AKM with 24bit 192Khz sampling handling ability.

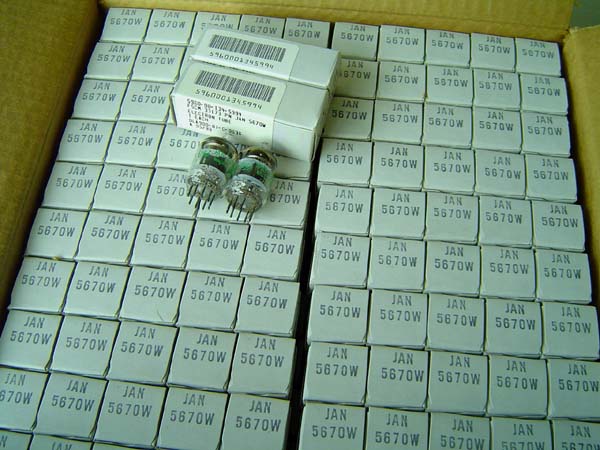

Tube buffer stage is based on NOS 5670 tube from GENERAL ELECTRIC, Add tube sound to the sonic, DC supply for filament and plate to eliminate noise.

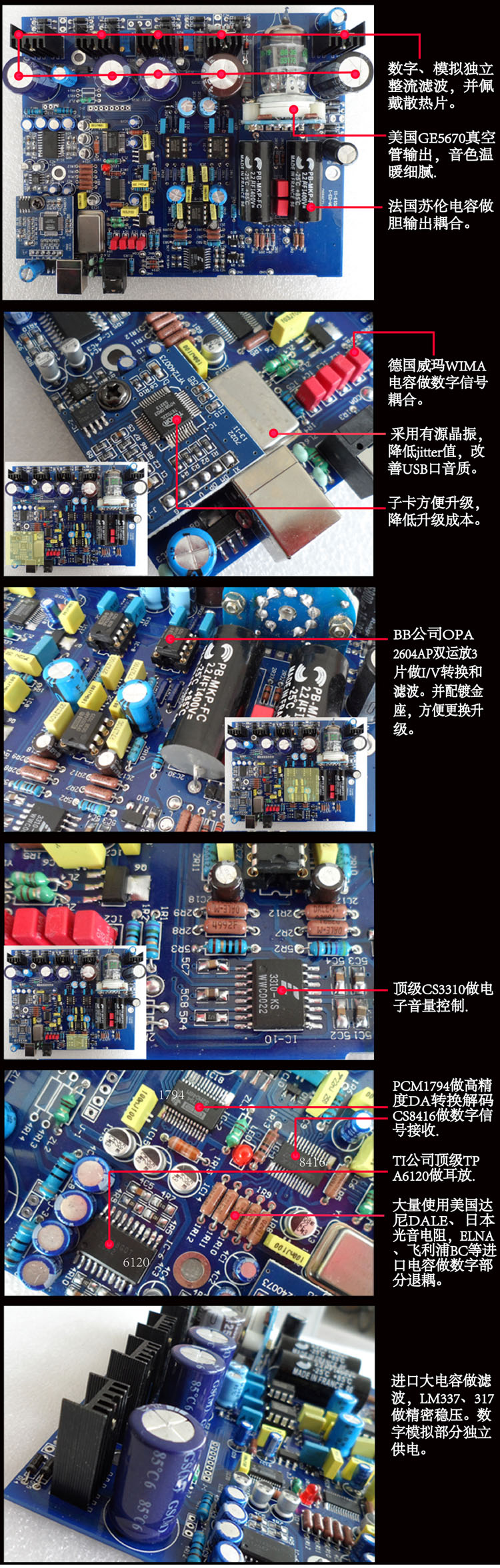

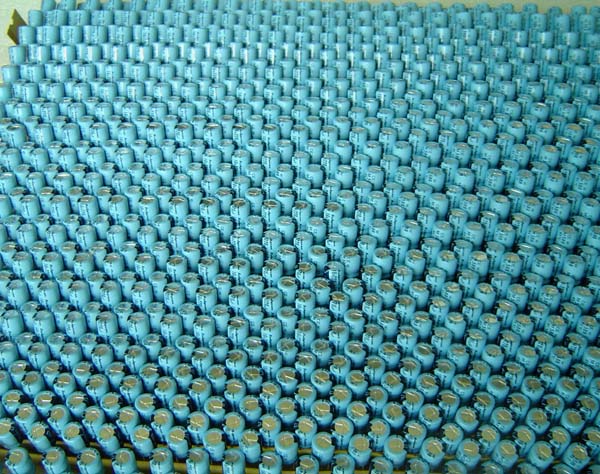

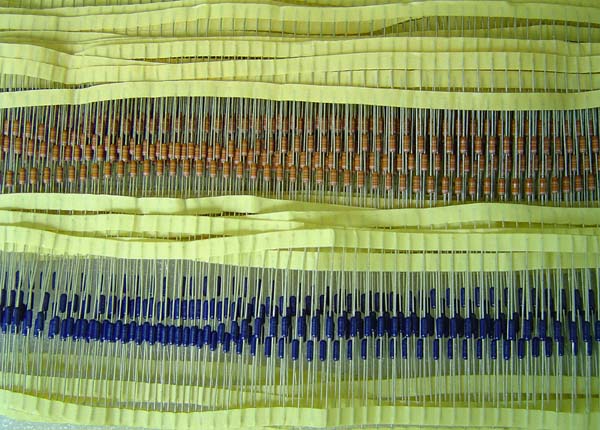

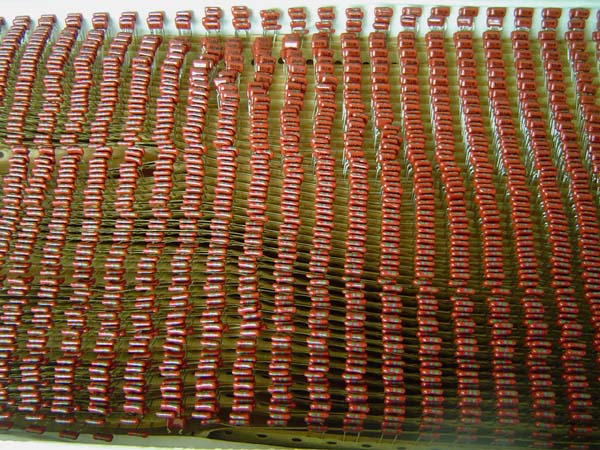

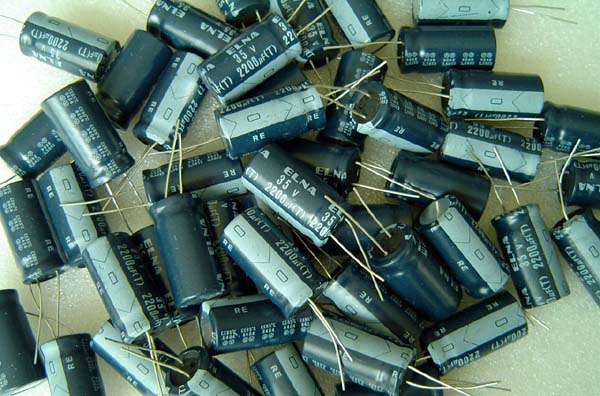

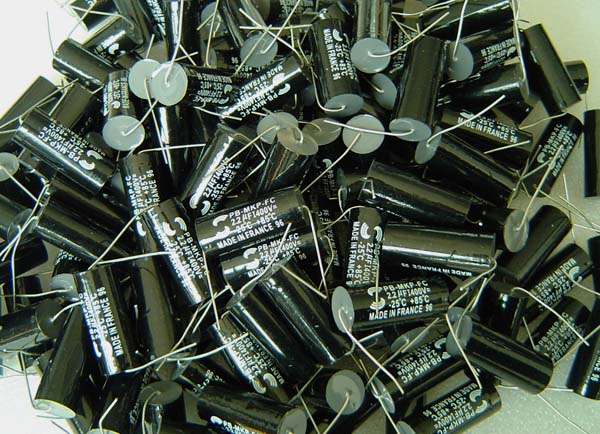

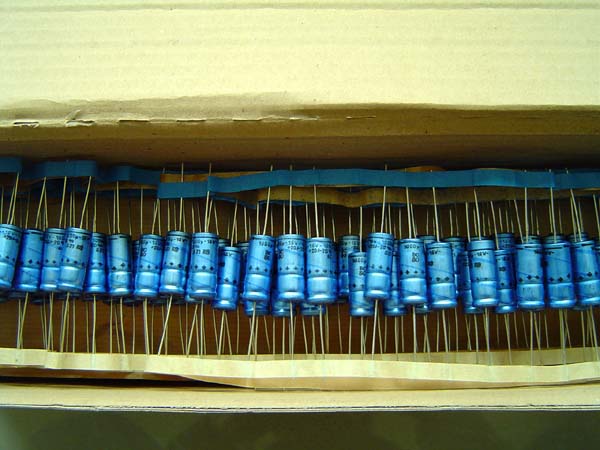

Using many high quality components to meet audiophile's listenning, DALE resistor from USA and NIKKOHM resistor from JAPAN, WIMA caps from GERMAN, SOLEN coupling caps from FRANCE etc, That make the DAC reproduce neutral & no color added sound,Also great analysis and great atmosphere.
Using oscillator to lower jitter of USB input.

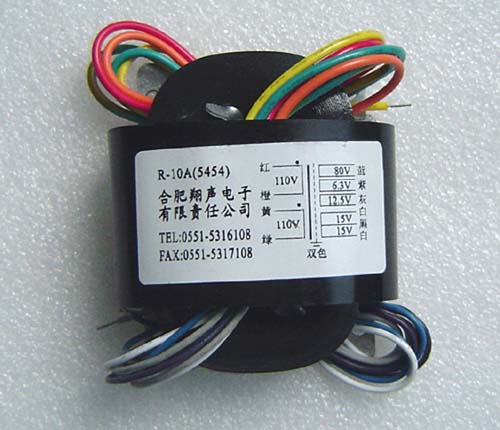

115V/230V high quality R-core transformer with less electriomagnetic leakage and higher efficience.
Separate power supply for digital section and analog section.

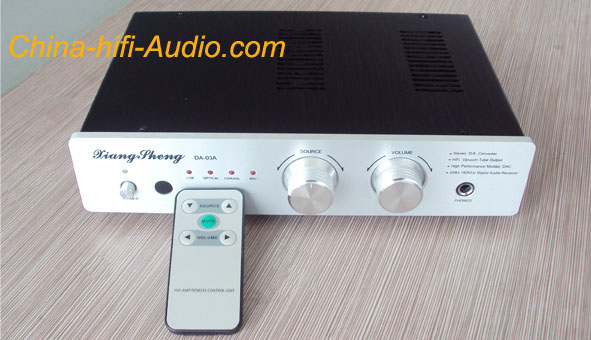

Come with remote control, Input selection/ volume up& down / mute can be done with it, Has memory function, Can load the previous setting when power on.
Specifications
Dimension of metal case: 260mm (W) * 167mm (D) * 55mm (H)
Frequence response: 20Hz to 30Khz
SN ratio: Direct outpu-- 110DB, Tube buffer -- 90DB
Harmonic distortion: Direct output <0.001%, Tube buffer <0.1%
Output level: 2000MV
Dynamic: 120DB
Input impedence: 75 Ohm digital
Vacuum tubes: GE 5670(USA) or 6H3n(Russian) for choice
Transformer: R-core transformer or Toroidal transformer for choice
Headphone resistance: 32 Ohm to 600 Ohm
Input voltage: 100V - 250V 60Hz / 50Hz
Net weight: 1.75 kg
Gross weight: 3 kg
