XiangSheng DAC-02A DAC Headphone Amplifier USB BNC coaxial Black

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

FEATURES :

Product Description:

◆ High-resolution digital to analogue audio converter with superior audio dynamic performance for consumer audio and musical applications.

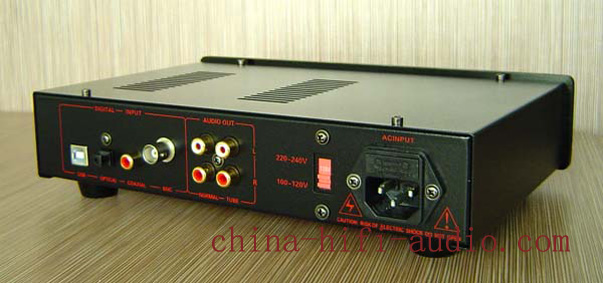

◆ (4) sets of digital inputs: (1) coaxial, (1) optical, (1) USB and (1) BNC input.
◆ (2) sets of RCA outputs –The unit have two output, one with transistor and one with single 6N3 vacuum tube. So you can change the two output to find more fun. You can compare the sound between the two output then find out which can match you listen taste.
◆ Built-in headphone amplifier: allows you to enjoy music with privacy. Great power, music layers and details.
◆ Genuine imported processing chip. Produced elaborate Main Amplifier Boad adopt "Double-Sided Board" design.
◆ All resistors and capacitors are audiophile grade to ensure sound quality. Key parts are from Germany and Taiwan etc.
◆ R-shape high efficiency transformer.
◆ Separate power supply rectification to analog and digital circuits.
◆ Gold coated RCA connectors and coaxial connector.
◆ Vacuum tube output use well-known Chinese 6N3 tube. It can be replaced with 5670 type of tube.
◆ Brushed aluminum faceplate, with all metal buttons and knobs, plus blue LED indicator light.
◆ The volume potentiometer does not control volume on the line outputs, just the headphone.
◆ When there is no signal input, it'll become mute automatically.

Parameter:

Tube Used: 6N3 ( can be replaced with 5670 tube)
Digital Audio Inputs: (1) coaxial, (1) optical, (1) USB and (1) BNC input.
Stereo Audio Outputs: 2 analog stereo outputs via RCA Left/Right channel: Normal Output and Tube Output.
Headphone Amplifier Output Output Power: 500mW-100mW
Impedance: 32 ohm -600 ohm
Sampling Frequency: 32kHz、44.1kHz、48kHz、88.2kHz、96kHz depending on source.
Resolution Capability: This DAC-02A supports 16bit、20bit and 24bit audio depending on source.
Input Impedance: 75 ohm
Line Output Impedance: 600 ohm
Output Voltage: 2000mV
Dynamic Range: 120dB
Frequency Response: 20Hz-30KHz
Signal-To-Noise Ratio（SNR）: Normal Output: 110dB; Tube Output: 90dB
Total Harmonic Distortion: Normal Output: less than 0.001%
Tube Output: less than 0.1%
Power Supply: 100-240VAC 50/60Hz (110V, 120V, 127V, 230V,240V version will
take 3-14 work days to order)
220V version is in stock.

Dimension: 260mm (W) x 167mm (D) x 55mm (H)
Net Weight: 2 KG
Gross weight: 3kg
CHARACTERISTIC :The DAC-02A also have"Upgraded Version" for higher request, the Upgraded Version adopt 5670 tube and "Upgraded" components and accessories.
