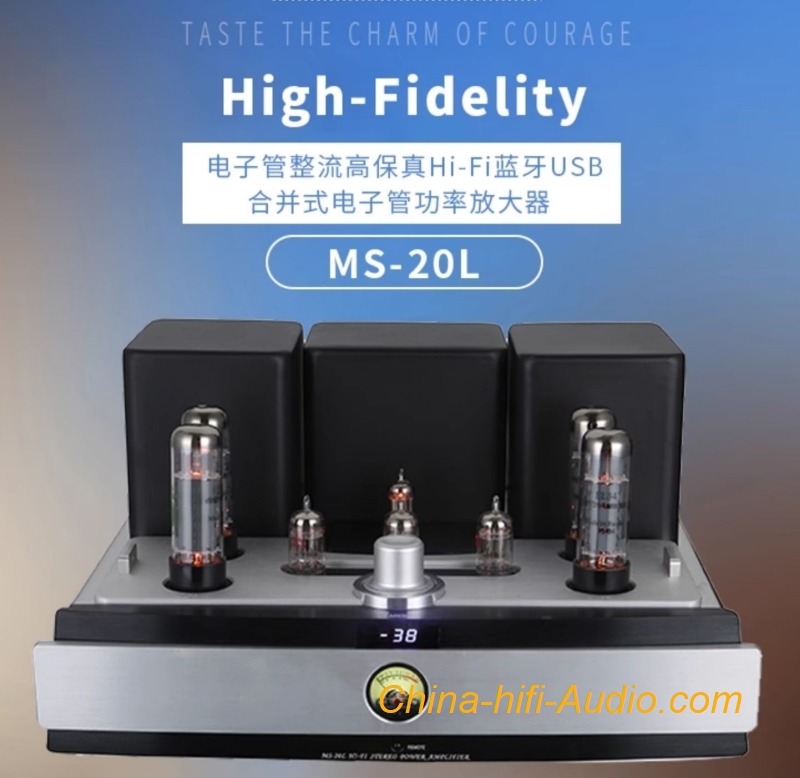

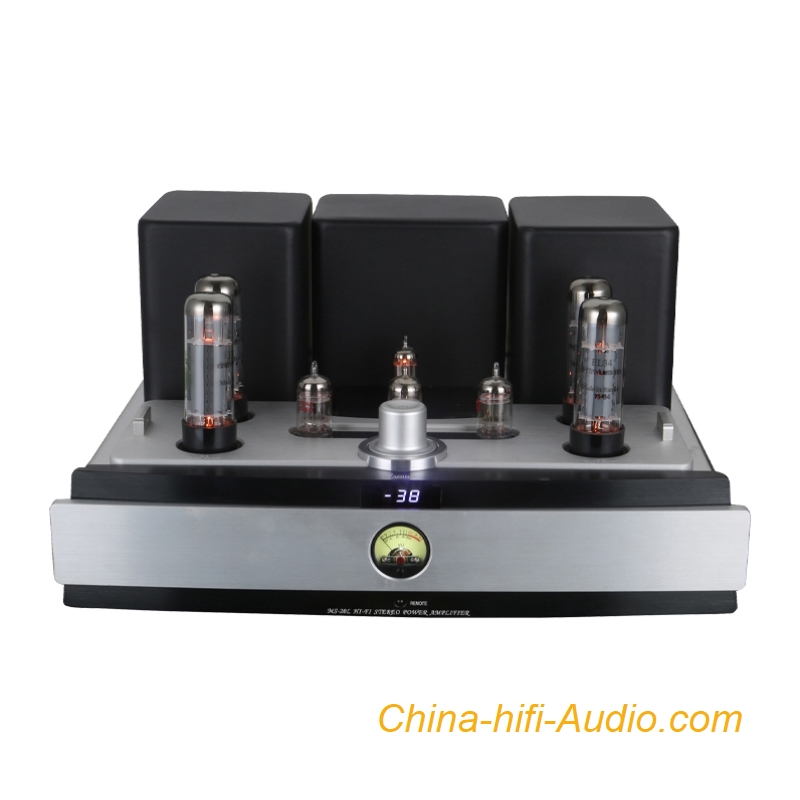

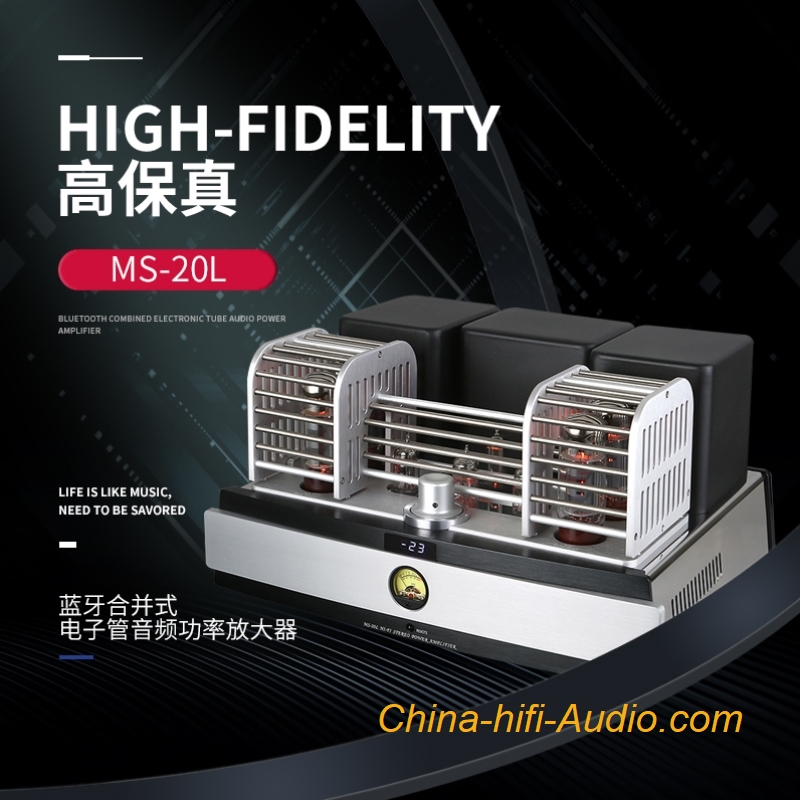

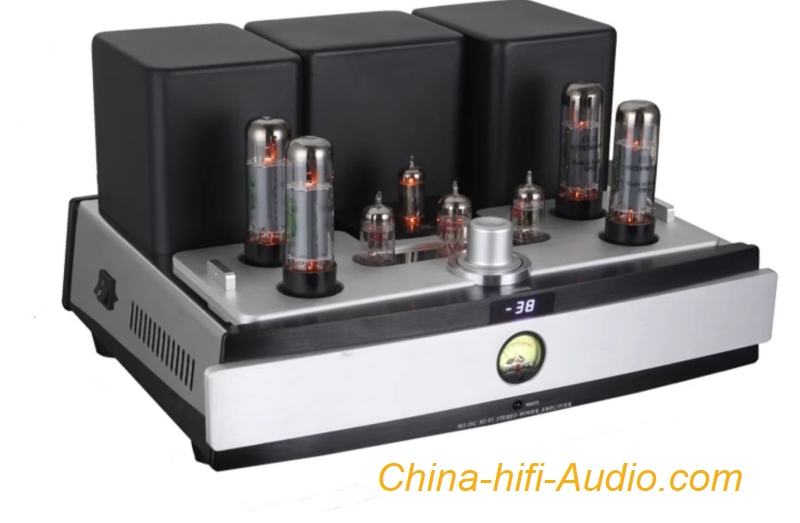

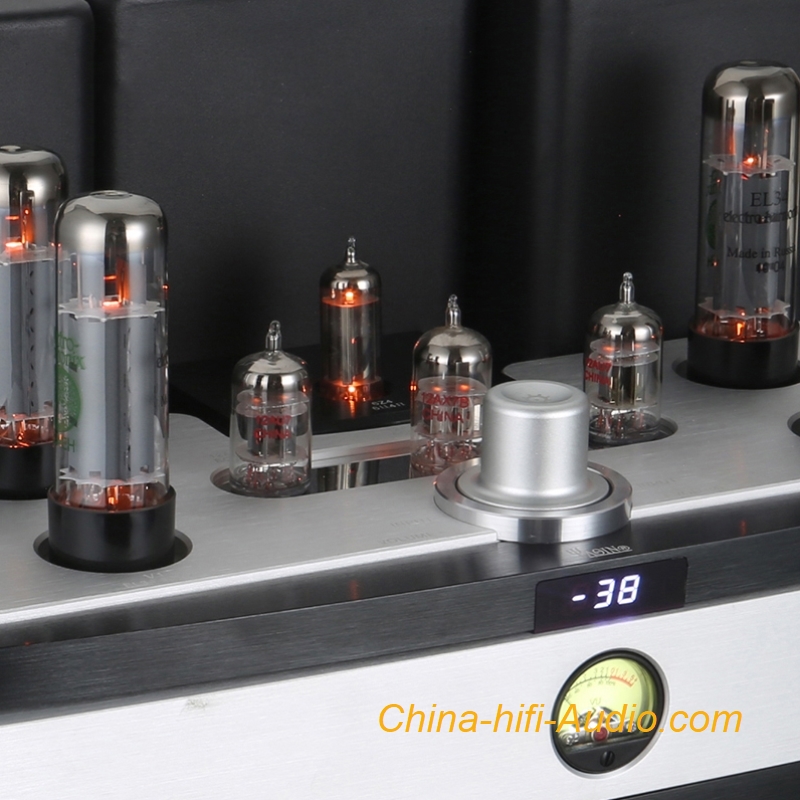

YAQIN MS-20L EL34 HIFI VACUUM TUBES AUDIO INTEGRATED AMPLIFIER

All items are guaranteed to be 100% brand new in the original box.

1 year warranty!!


Product features:
Two 12AU7/ECC82 and one 12AX7/ECC83 vacuum tubes are used for voltage amplification and push, and one 6Z4 diode is used for rectifier.
The use of diode one-way conductivity, alternating direction of alternating alternating current can be transformed into a single direction of pulsating direct current, and two excellent vacuum tube combination, so that the sound has better analytical power and expression, play the characteristics of soft and warm sound.
The Power tube uses four EH-EL34 vacuum tubes imported from Russia to do class AB1 push-pull power amplification.
Push-pull can reduce static current, reduce distortion and increase output power.

Product parameters:
Output Power: 32W+32W (8Ω)
Frequency response: 10Hz-80KHz (-2dB)
Distortion: ≤1.0%（8Ω,output 22W)
Signal to noise ratio: ≥93dB
Input sensitivity: ≤260mV
Power consumption: ≤230W
Load impedance: 4Ω-8Ω

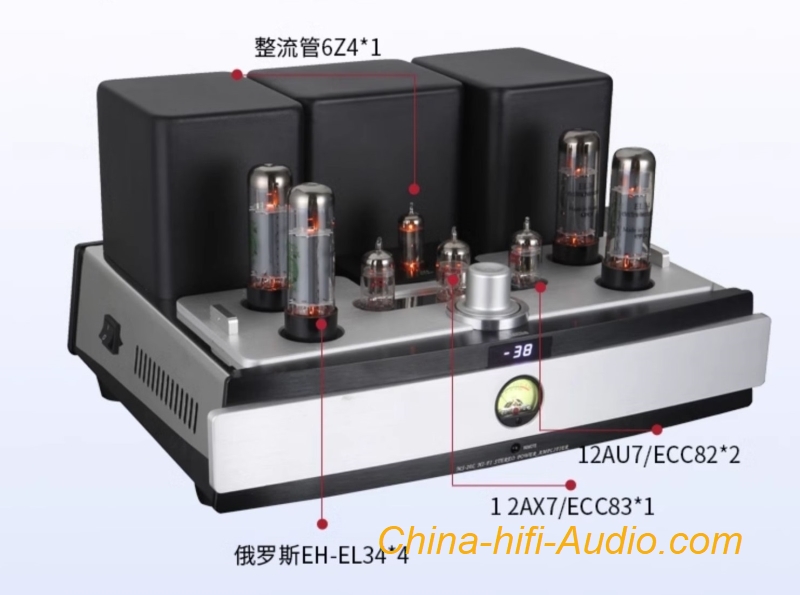

Tube: 12AU7/ECC82 x2; 12AX7/ECC83 x1 ; 6Z4X 1;Russia EH-EL34 x4
Net weight: 22 kg
Gross weight: 25 kg
Dimensions: (W*D*H) 400*355*220mm
