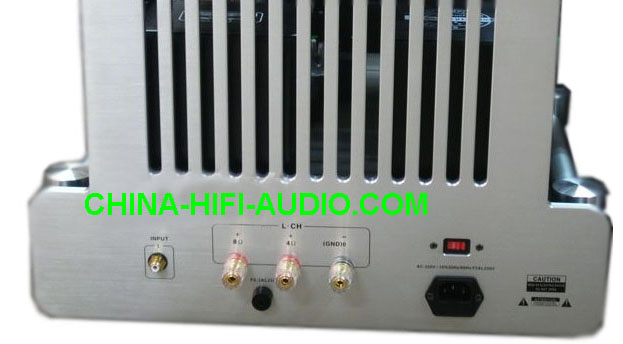

YAQIN MS-845 Class A single-ended vacuum Tube Mono Block Power Amplifier
100% Brand New
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
FEATURES :
Feature:
These a pair of Power amplifier is a low internal resistance of the power transistor (845), it is Class A single-ended amplifier, the sound quality is good.
Power amplifier drive circuit as "SRPP" circuit, and for the dual parallel, wide frequency response, pushing strong.
Japan imported the audio output transformer using dedicated oriented silicon steel Z11 (0.35mm thick) and oxygen-free high strength enameled wire and special winding process multi-group production, so that the machine wide frequency response, to ensure that the machine high, medium and low frequency sounds good , transparent and powerful.
This machine adopts foreign name Factory sound dedicated enthusiast and non-polarized electrolytic (MKP) Need for high-quality imported French Suren gold blocking capacitors and manufacturing, the main audio channel dedicated to use imported from Japan (ALPS) volume motor potentiometer, with quiet background music, low noise, no sound pollution and durable.
High-voltage power supply for the automatic delay control, can effectively extend the tube life.
Electrical Specifications:
Output Power: 25W + 25W (8Ω)
Distortion: ≤ 2.5% (1kHz)
Frequency response: 10Hz - 40kHz (-2dB)
SNR: ≥ 86dB (A)
Input Sensitivity: ≤ 0.2V
Load Impedance: 4Ω - 8Ω
Tube: after class: 12AU7 × 2 845 × 1
Power supply voltage: 110/220V 60Hz/50Hz
(100V, 110V, 120V, 127V, 230V, 240V version will
take 3-14 work days to order),
220V version is in stock
Volume: 315mm x 395mm x 435mm (D x W x H)
Gross Weight: 32kg x2 (a pair) = 64 kg
