Muzishare X10PRO KT170 Class A sinle-ended integrated Tube Amplifier &Power&Phono 28W*2
100% Brand New
MUZISHARE X10PRO is an integrated Amplifier.
This is a Power Amplifier too (there is a group pre-amp input).
This is a Headphone amplifier too.
This is a amplifier for Phono player too.

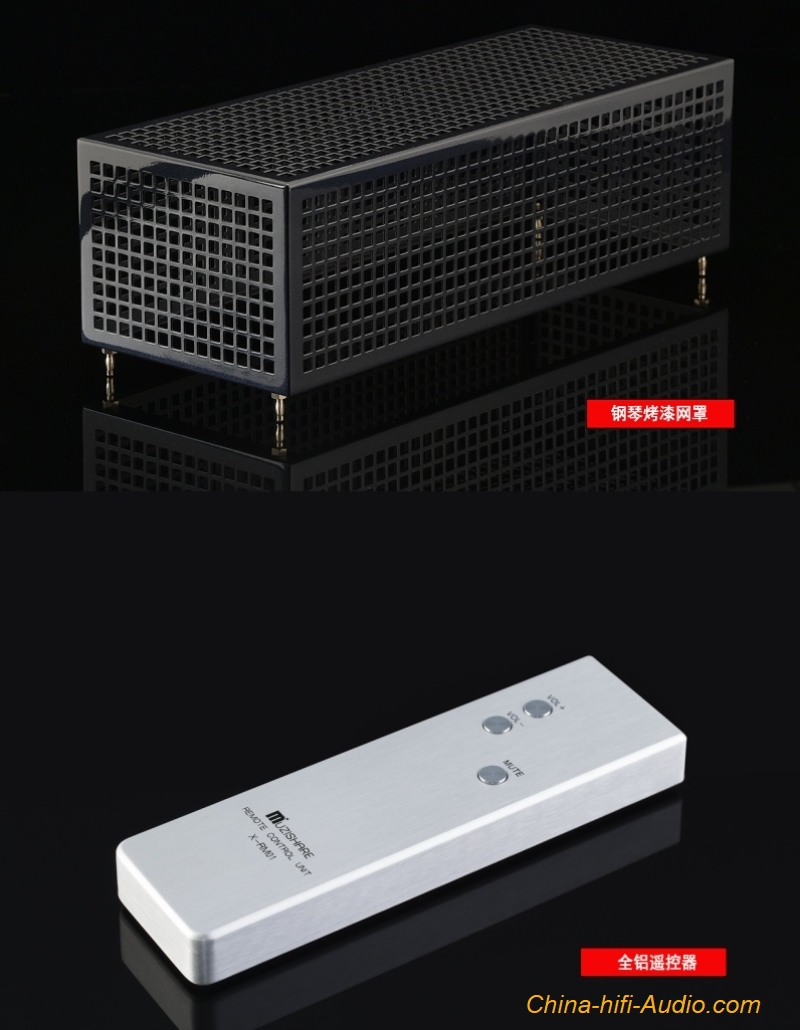

It come with a remote control and a tube cage cover.
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Product Features: Product Features:
Pure hand-made, machine scaffolding with welding.
Using two high-quality wide-frequency high-quality Japanese EI output transformer.
Using a high-power Z11 core toroidal power transformer dedicated designed for the machine.
Using Two 274Bs for full tube rectification in the high-voltage part.
The front stage used Two Russian 12AX7EH and 6SN7EH vacuum tubes , and two KT170 (Russian TUNG-SOL Tissot) vacuum tubes are used in the back stage for Class A single-ended power amplification.
External power tube current (BIAS ADJ.) and hum (HUM BAL.) adjustment position and current display and dynamic output level UV meter.
Select Japanese ALPS motor potentiometer and use German Mondofo M-CAP fever capacitor.
Mute delay function when turn on the amp(about 30 seconds)
Infrared function remote control.
Five groups of signal input (BALANCE, CD, LINE, PHONO, PRE IN);This machine has specially added balanced input function and pure back stage function.
With MM phono function; plug-in vacuum tube protective cover for easy installation.
The sound is ethereal, smooth, noble, gorgeous, dynamic, and well controlled, suitable for enjoying all types of music.
Technical parameter：
Rated output power: 28W+28W
Harmonic distortion: 1% (1KHZ)
Frequency response of the whole machine: 20HZ~50KHZ (-1.5DB)
Signal-to-noise ratio: 92dB
Left and right output balance: <1dB
Output impedance: 4Ω, 8Ω, 16Ω
Input impedance: 100KΩ
Power consumption of the whole machine: 270W
Net weight: 36KG
Gross weight: 41KG
Input sensitivity: 165mV (-1.5dB) 180mV (-3db) 1.5V (pre in)
Vacuum tubes used: 12AX7EH x2; 6SN7EH x 2; KT170x2; 274Bx2
Dimension: (Wx Dx H): 430x 393x228 (mm)
Power supply: 100V - 240V 60Hz / 50Hz, 110V, 115V, 120V, 220V and 230V version are in stock. 100V and 240V version need to take 3-14 business days to order.
Working conditions: temperature 0℃~40℃ humidity: 20%~80%
Storage conditions: temperature -20℃~70℃ humidity: 20%~90%
