MUZISHARE X11 6L6 Push 845 integrated tube amplifier& power amp MM Phono&Headphone Balanced XLR
100% Brand New
MUZISHARE X11 is an integrated Amplifier.
This is a Power Amplifier too (there is a group pre-amp input).
This is a Headphone amplifier too.
This is a amplifier for Phono player too.

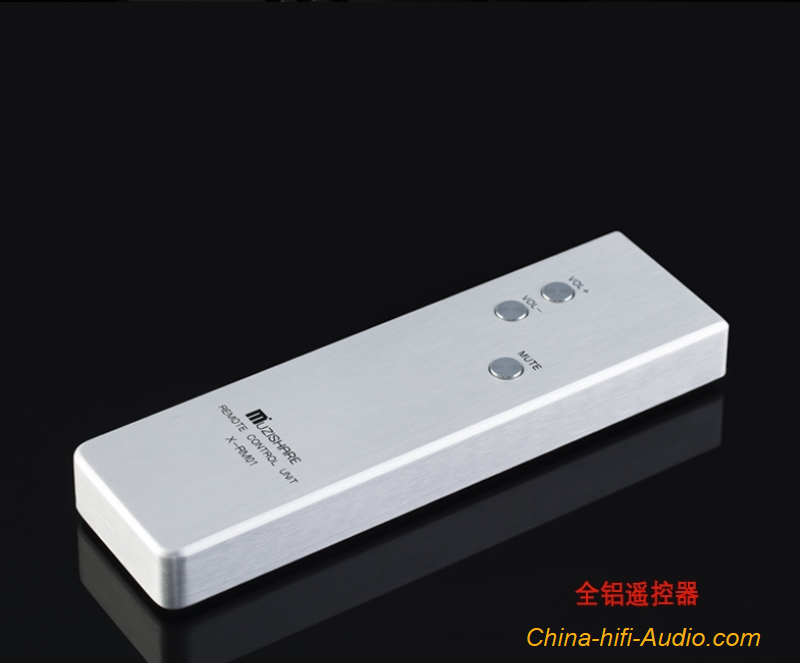

It come with a remote control and a tube cage cover.
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Product Features:

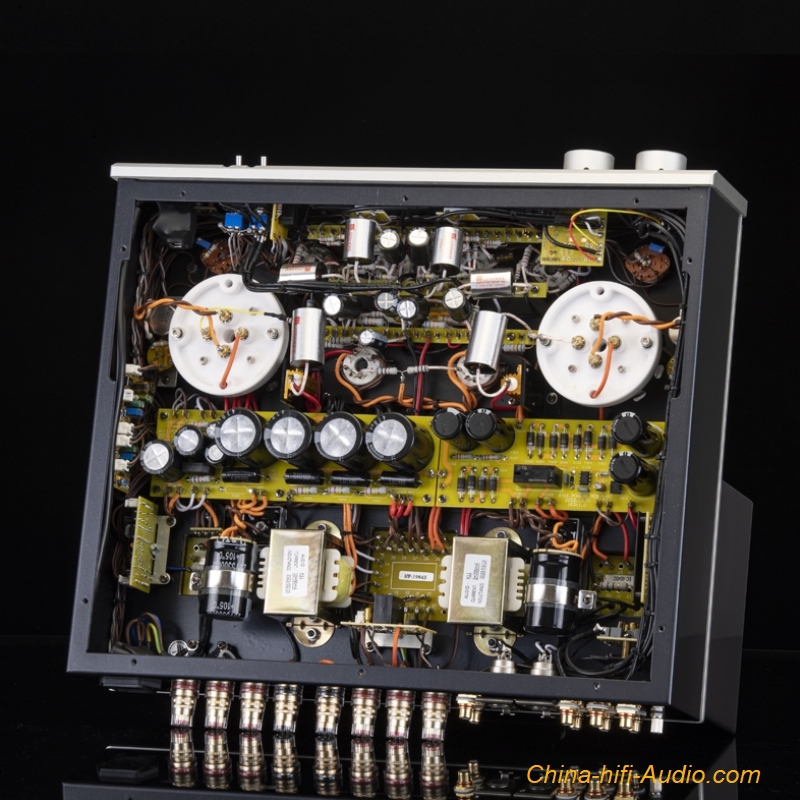

pure Handmade: The entire unit is meticulously handcrafted, utilizing scaffolding welding techniques.
High-Quality Output Transformers: Two EI type single-ended output transformers made with Z11 iron cores, featuring premium craftsmanship and wide frequency response.
High-Power Power Transformer: A high-power power transformer made with a Z11 iron core and special materials fusion.
Rectification Section: Utilizes 2 x 274B rectifier tubes for full-wave rectification. Tube Configuration: The preamp stage employs two each of Tung-Sol 6SL7 and 6L6EH vacuum tubes, while the power stage utilizes two 845 vacuum tubes for Class A single-ended power amplification.

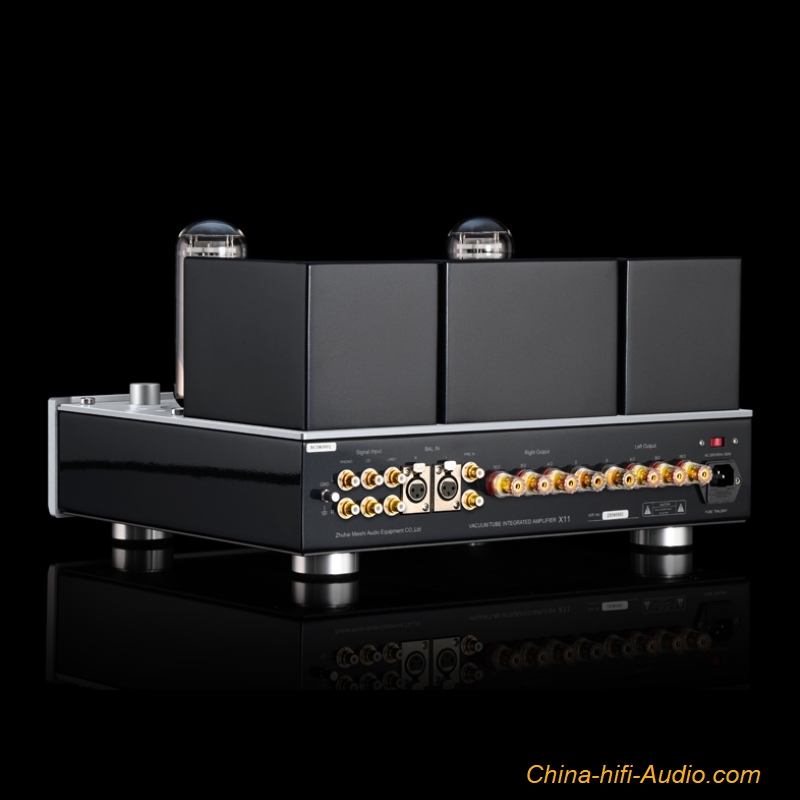

Versatile Inputs: Features five signal inputs (BALANCE, CD, LINE, PHONO, PRE IN), with additional balanced input and pure post-stage functions.
High-Quality Components: Incorporates specially developed metalized polypropylene audio coupling capacitors, NICHICON electrolytic capacitors, and Teflon-coated copper-plated gold vacuum tube sockets.

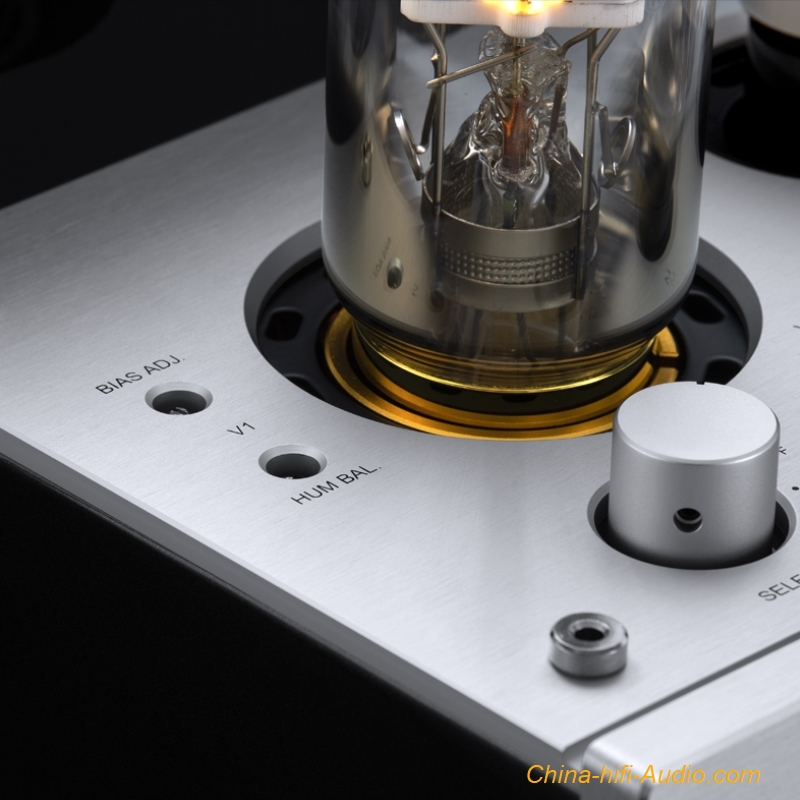

External Power Tube Current Adjustment Knob and UV Meter: Equipped with an external power tube current adjustment knob and dynamic output level UV meter display.
Premium Controls: Utilizes Japanese ALPS motorized potentiometers and military-grade T STL filter capacitors for high-quality sound reproduction.
High-Voltage Startup Mute Delay Function: Features a high-voltage startup mute delay function (approximately 30 seconds).
MM Phono Stage: Includes a MM phono stage for vinyl playback. Infrared Remote Control and Detachable Vacuum Tube Protective Cover: Comes with an infrared remote control and easy-to-install detachable vacuum tube protective cover.
Technical parameter：
Rated Output Power: 28W + 28W
Harmonic Distortion: 1% (1kHz)
Frequency Response: 20Hz to 22kHz (-1.5dB)
Input Sensitivity: Merged: 160mV, PRE IN: 1200mV
Signal to Noise Ratio: Approximately 92dB
Balanced Output: <1dB
Output Impedance: 4Ω, 8Ω, 16Ω
Total Power Consumption: 350W
Input Impedance: RCA: 100K, Balanced: 47K, PRE IN: 100K
Vacuum Tubes Used: 6SL7*2, 6L6EH*2, 274B*2, 845*2
Dimensions: 430*408*274(mm)
Power Supply Voltage: ~115V/230V ±5% (50Hz)
Operating Conditions: Temperature 0°C to 40°C, Humidity 20% to 80%
Storage Conditions: Temperature -20°C to 70°C, Humidity 20% to 90%
Weight: 47kg
Power supply: 100V - 240V 60Hz/50Hz, 110V, 115V, 120V, 220V and 230V version are in stock. 100V and 240V version need to take 3-14 business days to order.
