PSVANE CV181-TII hi-end vacuum tube replace 6N8P and 6SN7 electronic valve pair

All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!

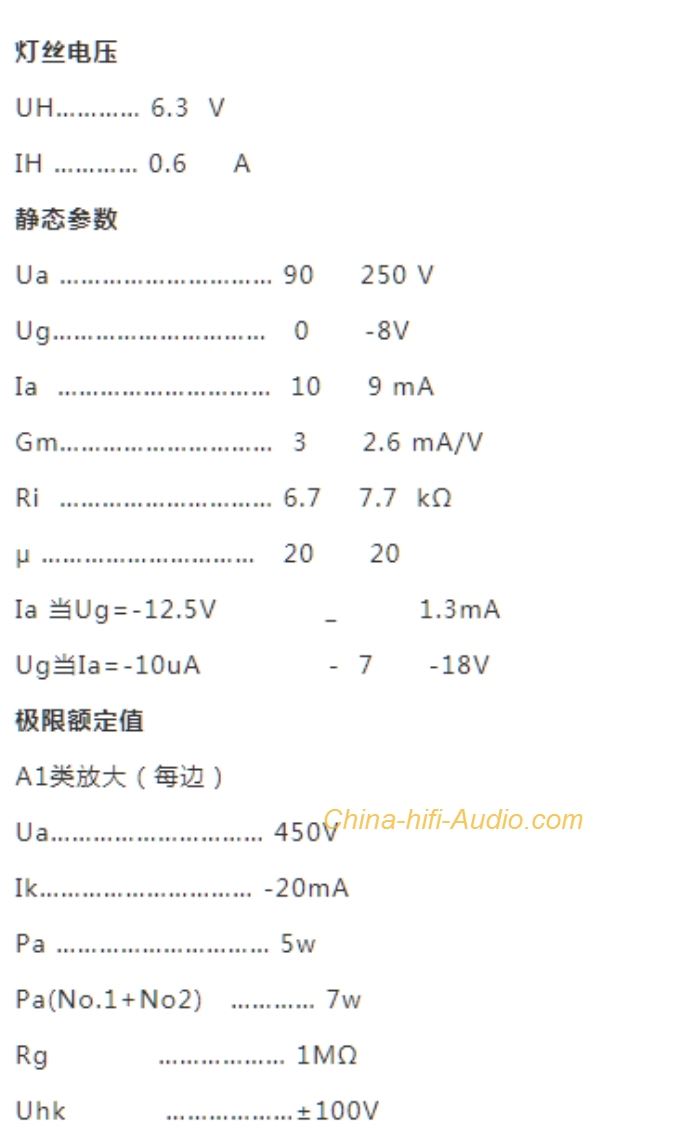

Heater
UH………… 6.3 V
IH ………… 0.6A

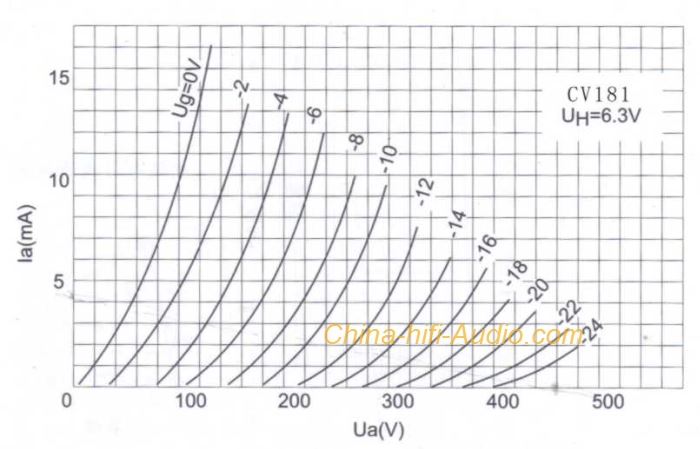

Static Parameter
Ua ………………………… 90 250 V
Ug………………………… 0 -8V
Ia ………………………… 10 9 mA
Gm………………………… 3 2.6 mA/V
Ri ………………………… 6.7 7.7 kΩ
μ ………………………… 20 20
Ia when Ug=-12.5V _ 1.3mA
Ug whenIa=-10uA - 7 -18V

Maximum Rating
class A1
Ua………………………… 450V
Ik………………………… -20mA
Pa ………………………… 5w
Pa(No.1+No2) ………… 7w
Rg ……………… 1MΩ
Uhk ………………±100V
