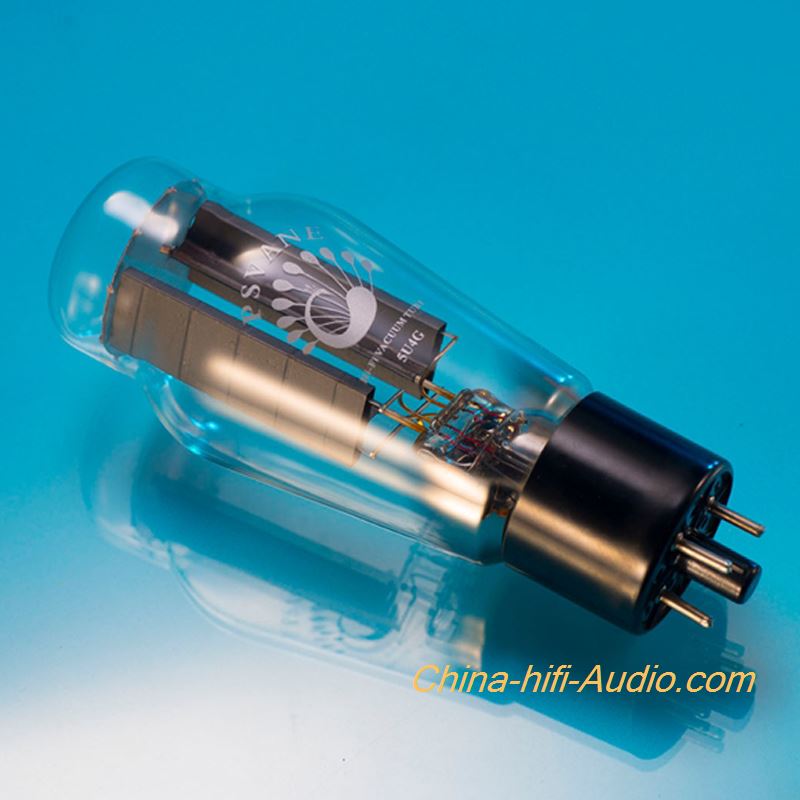

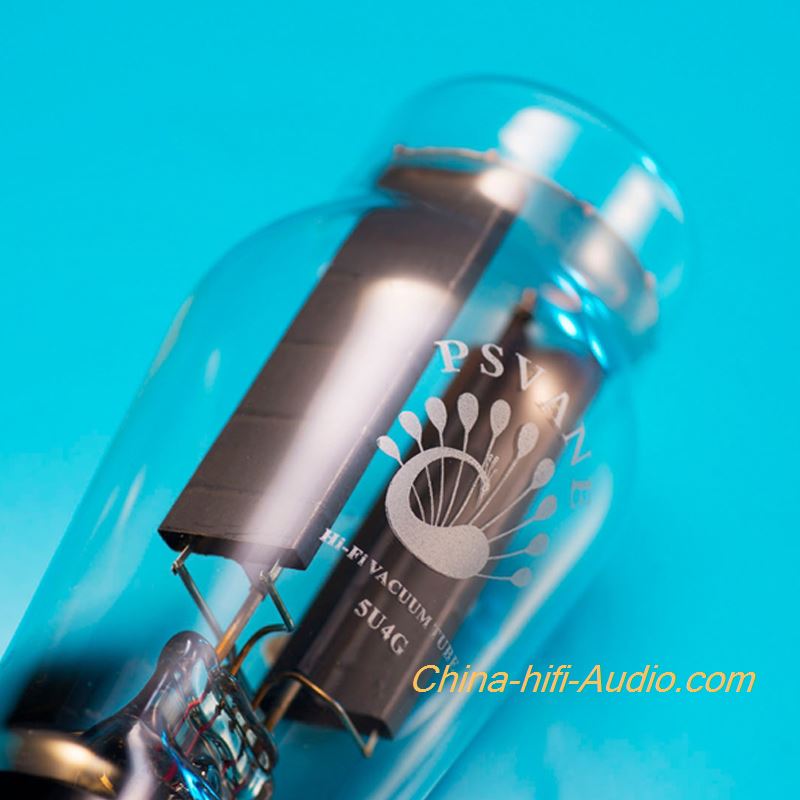

PSVANE hifi audio Vacuum tube 5U4G amplifier tube
100% Brand New
This price is a single price original factory matching,1pcs

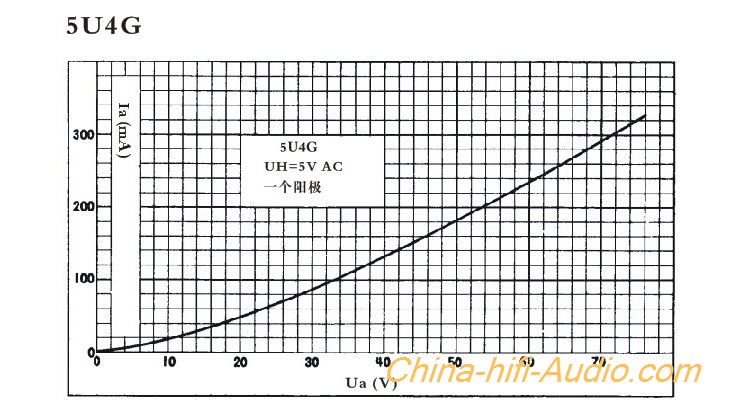

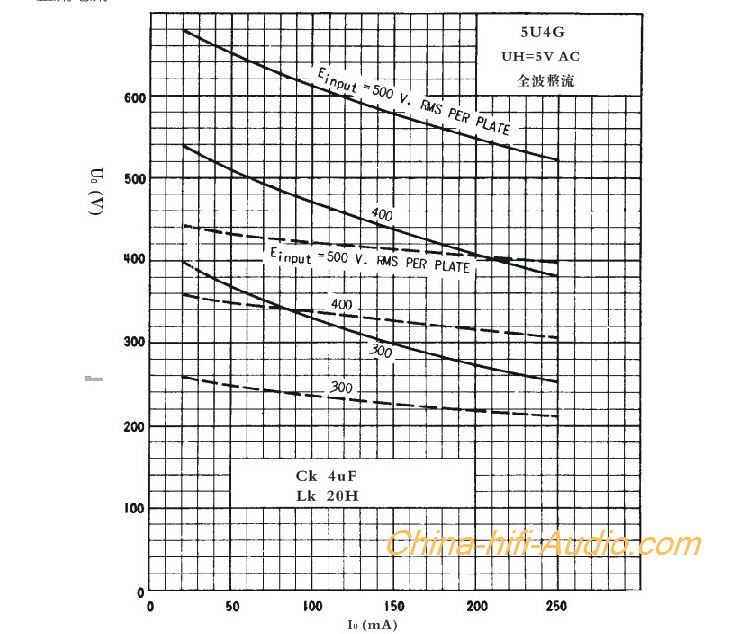

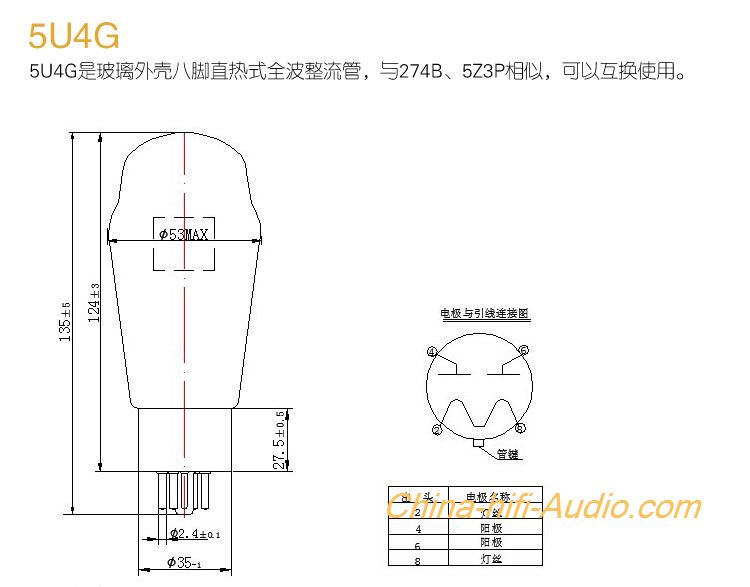

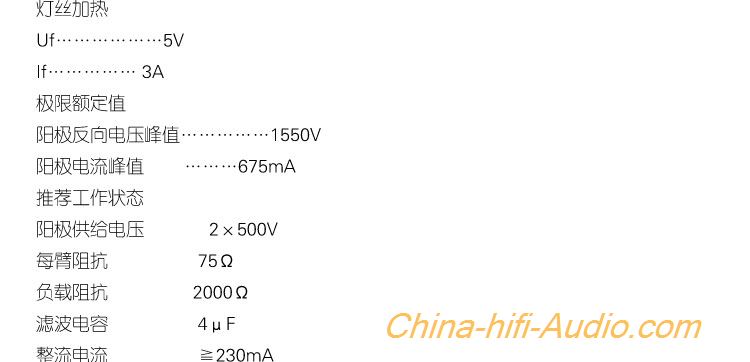

5U4G is an eight-pin direct-heated full-wave rectifier tube with a glass shell, similar to 274B and 5Z3P, and can be used interchangeably.
Declaration
All items guaranteed 100% BRAND NEW in the original edition Box.
ONE-YEAR WARRANTY !!!
Product features:
T-6.6s electronic tube front stage:
The t-6.6s pre gallbladder stage has a distortion of 0.01%, signal-to-noise ratio of 100dB, output voltage of plus or minus 60V, frequency response of 5hz-100khz-0.2db, tone colour, charm, details, driving force, dynamics, balance and 3D sense of sound field all reach the international leading level. The key technology of broadening frequency response is adopted in the vacuum tube preamplifier, and the circuit design concept is unique.
The tone color is mellow and clear, and the notes tend to linger, making it a good instrument for describing floating clouds or flowing water, or subtle and understated moods.transparency.
Product parameters:
Input sensitivity: 150mV
Frequency response: 10 Hz ～ 95 kHz (- 1dB)
Total harmonic distortion: ≤ 0.01% (1kHz, vo: 1V)
Signal to noise ratio: ≥ 100dB (when the input is connected to 600 Ω)
Maximum output amplitude: ± 60V (sine wave)
Output phase: in phase
Electronic tube: 12AX7 2, 12au7 2
Net weight: 12kg
Gross weight: 14kg
Overall dimension: width 43 × height 12 × depth 35cm
