PSVANE WE101D WE101D-L vacuum tube Western Electric replica Pair

Product Price: $454.17 USD

  • Product Model: Model: MUIA9831382
  • Product Weight: Shipping Weight: 3.5kg
  • Product Quantity: 0 Units in Stock

Please Choose:



Sold Out


paypal

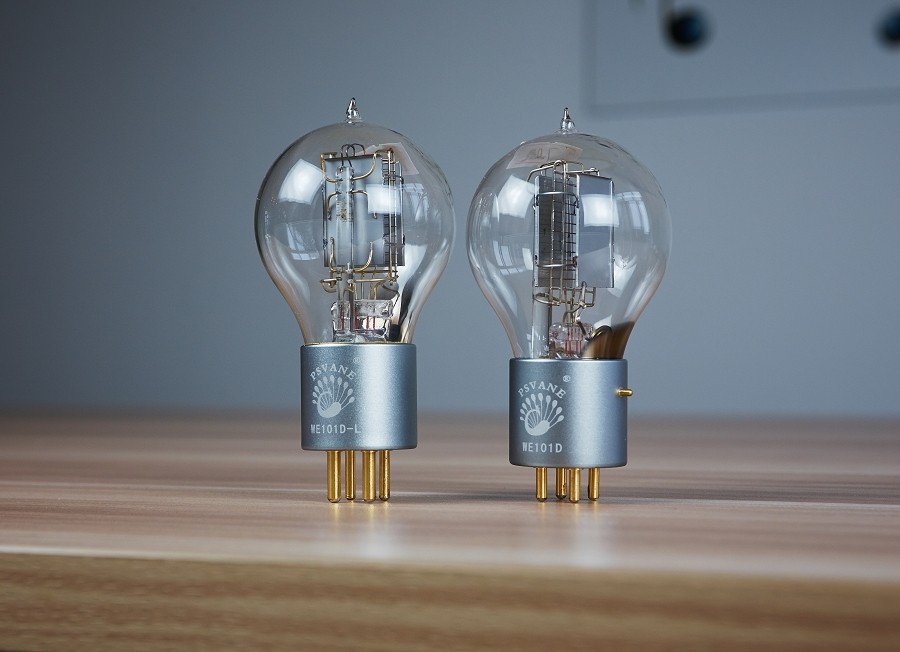

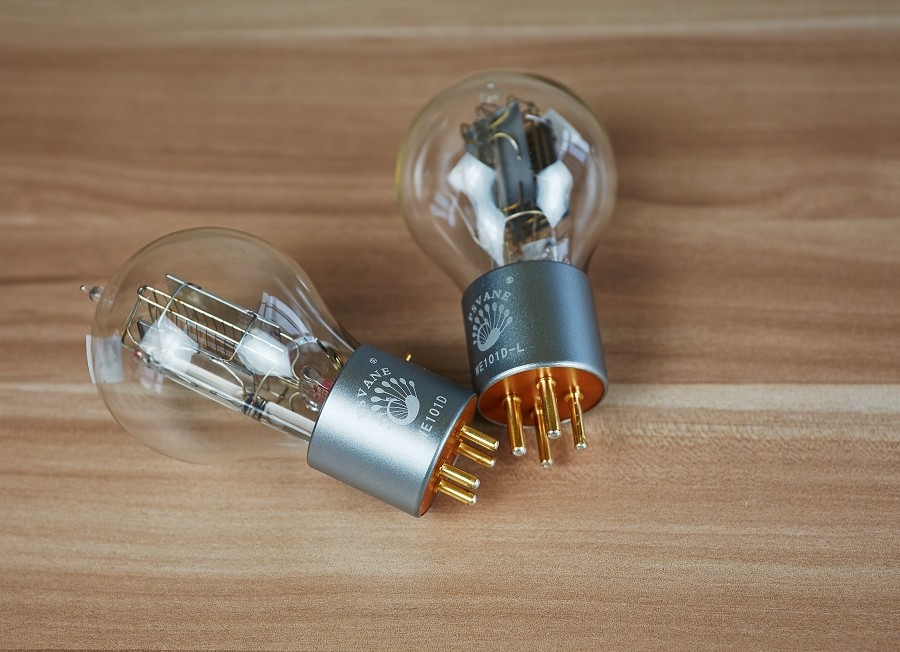

PSVANE WE101D or WE101D-L Hi-end vacuum tubes Western Electric replica
Best Matched Pair brand new

The price is for a pair of PSVANE WE101D or WE101D-L Hi-end vacuum tubes Western Electric replica.
If you buy 2pair(4 pcs), we will send the Factory Full matched tubes to you. The difference between PSNAVE WE101D and WE101D-L is pin.
WE101D needs to match original WE-style tube socket,
WE101D-L only need Normal tube socket.




















Declaration


The difference between PSNAVE WE101D and WE101D-L Vacuum tube is pin.
WE101D needs to match original WE-style tube socket,
WE101D-L only need Normal tube socket.


Specification:
Electrical parameter rating value unit
Direct Interelectrode Capacitances
Input 4.8 uuF
Output 5.2 uuF
Grid to plate ≤ 3.3 uuF

Typical operating parameter
Heater voltage 4.5 V
Heater current 1.0 A
Ua 190 V
Ug -18 V
Ia 6.4 mA

Electrical parameter―absolute maximum ratings minimum maximum unit
Heater voltage 4 5 V
Ua - 300 V
Pa - 15 W
Ia - 30 mA
