PSVANE WE205D WE205D-L vacuum tube Western Electric replica Pair

Product Price: $474.63 USD

  • Product Model: Model: MUIA9831383
  • Product Weight: Shipping Weight: 3.5kg
  • Product Quantity: 3 Units in Stock

Please Choose:



  • Add to Cart:
  • Max: 5


paypal

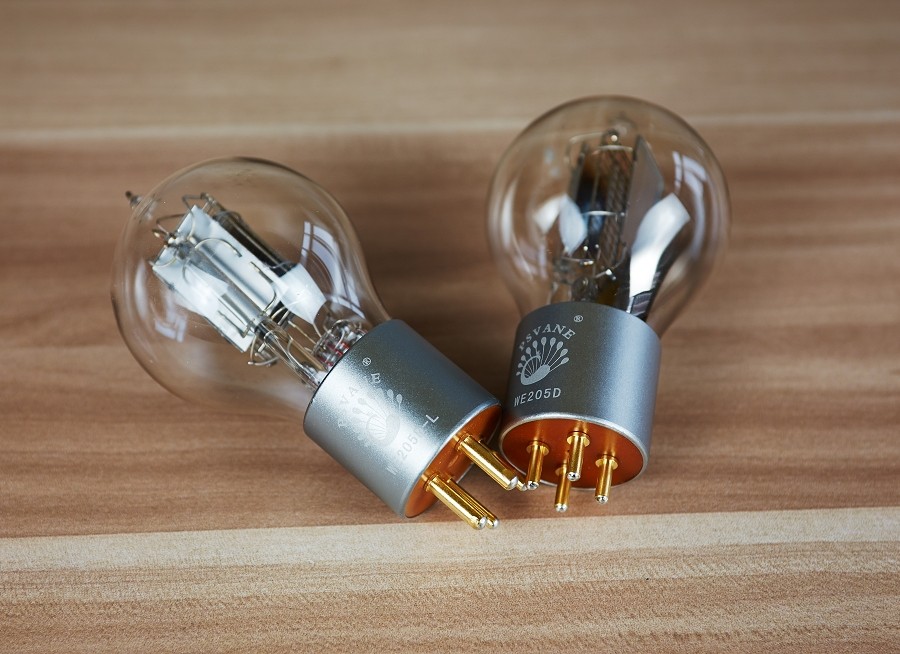

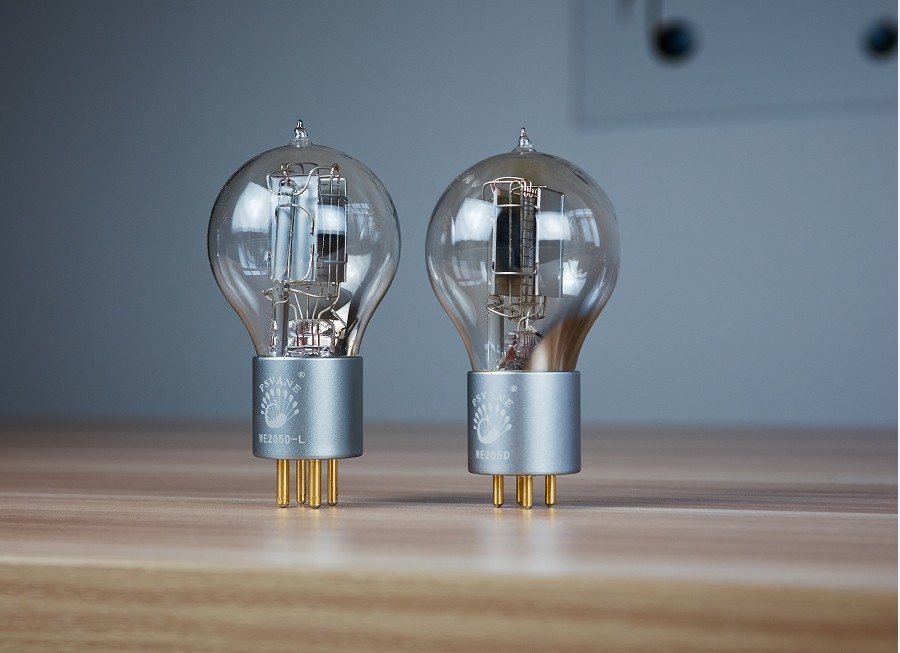

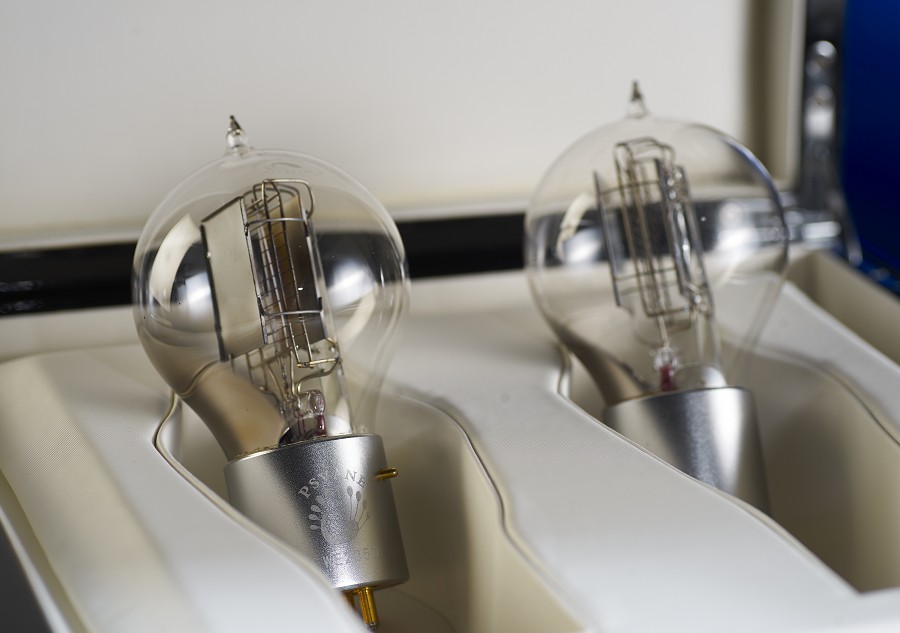

PSVANE WE205D or WE205D-L Hi-end vacuum tubes Western Electric replica
Best Matched Pair brand new

The price is for a pair of WE205D or WE205D-L Hi-end vacuum tubes Western Electric replica.
If you buy 2pair(4 pcs), we will send the Factory full matched tubes to you. The difference between PSNAVE WE205D or WE205D-L is pin.

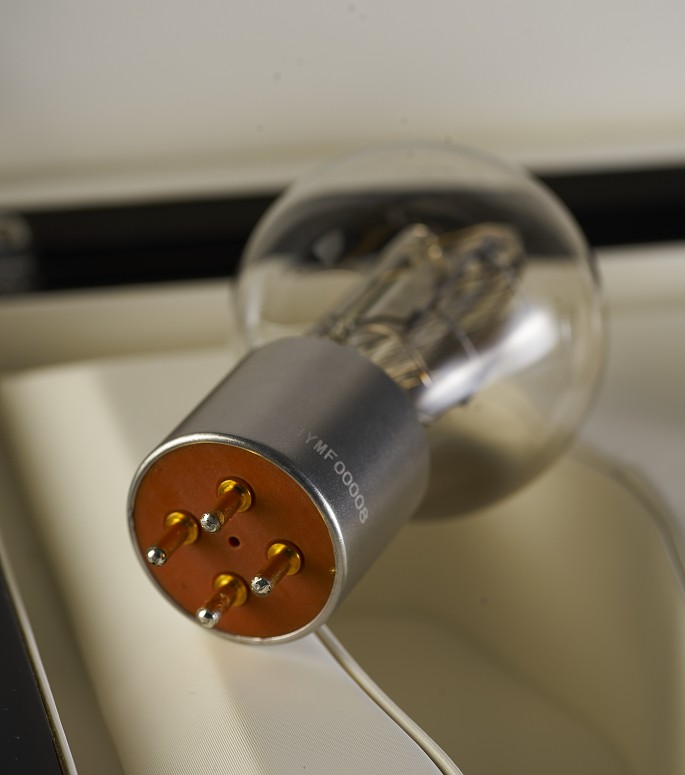

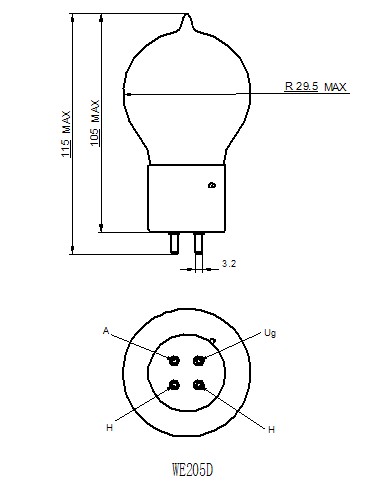

WE205D needs to match original WE-style tube socket,
WE205D-L only need Normal tube socket.



















Declaration


The difference between PSNAVE WE205D or WE205D-L is pin.
WE205D needs to match original WE-style tube socket,
WE205D-L only need Normal tube socket.


Specification:
Electrical parameter rating value unit
Direct Interelectrode Capacitances
Input 4.8 uuF
Output 5.2 uuF
Grid to plate ≤ 3.3 uuF

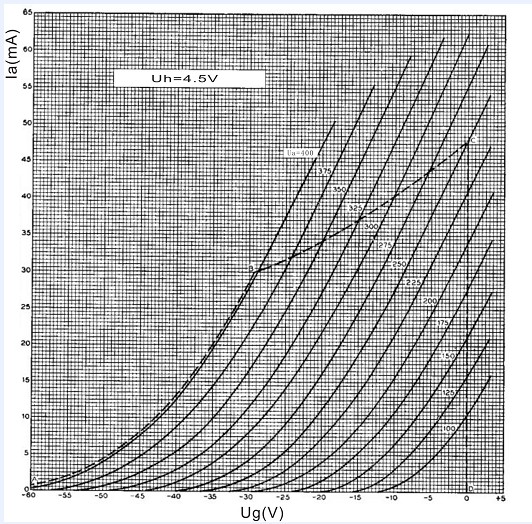

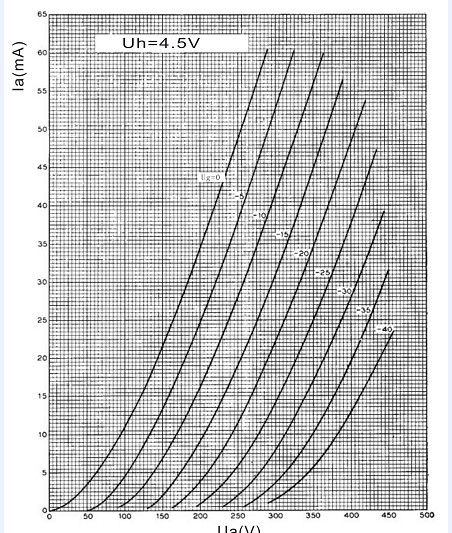

Typical operating parameter
Heater voltage 4.5 V
Heater current 1.6 A
Ua 300 V
Ug -30 V
Ia 8 mA
Amplification coefficient 6.7
Pout ≥ 800 mW
Electrical parameter―absolute maximum ratings minimum maximum unit
Heater voltage 4 5 V
Ua - 400 V
Pa - 15 W
Ia - 50 mA

Product 110/129
